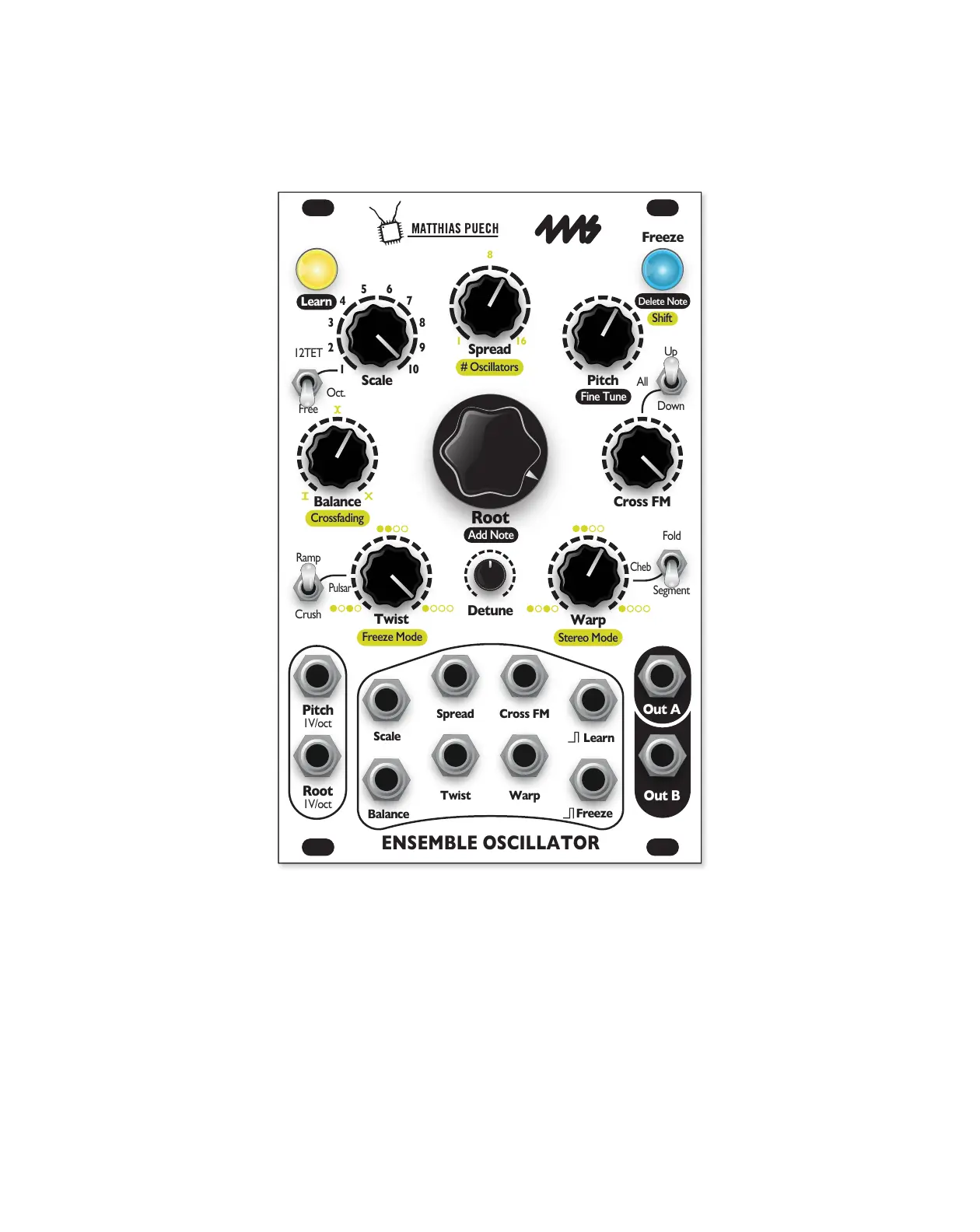

Ensemble Oscillator
4ms Company & Matthias Puech
User Manual 1.0 – January 10, 2020
When does the superposition of tones produced by well-coordinated instruments become a single voice with a complex
timbre subtly evolving over time? What are the boundaries between a rich timbre and a musically harmonic chord? From
traditional overtone singing techniques and Gregorian chants to Spectral Music, Helmholtz’ resonators to modern-day
Fourier theory, or classical counterpoint to Xenakis’ massive polyphonic clusters, the rich spectrum lying on the limit of these
perceptual illusions has been a constant source of fascination, scientific study and artistic inspiration.
Combining additive, FM, phase-distortion and wavefolding synthesis techniques in new unorthodox ways, the Ensemble
Oscillator allows you to explore this sonic boundary and exploit it musically. The eurorack-format module is a unified
polyphonic voice of sixteen complex oscillators sharing the same sine-based waveforms. The oscillators take their
frequency relationships from a selected scale, crossfading smoothly from one note to the next. The Ensemble Oscillator
easily creates a wide variety of sounds ranging from aggregates of pure sine waves to pulsar synthesis or pristine harmonic
tones and lush wide chords to rich dirty drones and rumbling glitches. Custom scales can quickly be “learned” and saved
using a CV keyboard or by manually entering notes with the controls.
The Ensemble Oscillator was designed by Matthias Puech and 4ms Company.
Features
• A maximum of 16 sine-based oscillators, bound to intervals of a selected Scale
• 30 factory-programmed, user-writeable scales organized in three groups:
•12TET: all notes quantized to equal temperament, repeating over octaves
•Octave: unquantized notes, repeating over octaves
•Free: unquantized notes, repeating over the interval between the lowest and highest note
• A simple method to program (“Learn”) your own scales manually or with a CV/Gate keyboard
• Three phase distortion effects Twist
• Three wave distortion effects Warp
• Three algorithms of for modulating the oscillators with each other Cross FM
• Mono or stereo output with selectable panning algorithm
• button and jack to freeze the frequency of some of the oscillators, with selectable algorithm Freeze
• Two 1V/oct inputs: (non-quantized), and (quantized) Pitch Root
•High-accuracy, temperature-stable, eight octave range (-2V to +6V), can be calibrated to any keyboard
• Six bi-polar CV inputs (-5V to +5V)
• Two gate inputs for automated Learning and Freezing
Page of 2 19
Table of Contents
Features 2! ".................................................................................................................
Getting Started 4
Plugging in your Ensemble Oscillator 4! "....................................................................
Basic Concepts 4! ".....................................................................................................
Controls and Jacks 6! "................................................................................................
Tutorials and Patches 9
Tutorial I: Create your own Scale in Learn Mode using the knobs 9! "........................
Tutorial 2: Create your own Scale in Learn Mode using a keyboard 10! "...................
Detailed Concepts and Usage 11
Scale Groups 13! ".......................................................................................................
Learn Mode: Advanced Concepts 14! ".......................................................................
Shift Features 15! ".......................................................................................................
Crossfading 16! "..........................................................................................................
# Oscillators 16! ".........................................................................................................
Freeze Mode 16! "........................................................................................................
Stereo Mode 17! "........................................................................................................
Firmware and Calibration 17
Upgrading Firmware (audio bootloader) 17! "..............................................................
Calibrating 1V/oct jacks 18! ".......................................................................................
Button RGB color balance adjustments 18! "..............................................................
Factory Reset 18! ".......................................................................................................
Electrical and Mechanical Specifications 19
Page of 3 19
