Row Power 25

4ms Company

Eurorack Power Module

User Manual 1.0 – Sept. 24, 2019

!

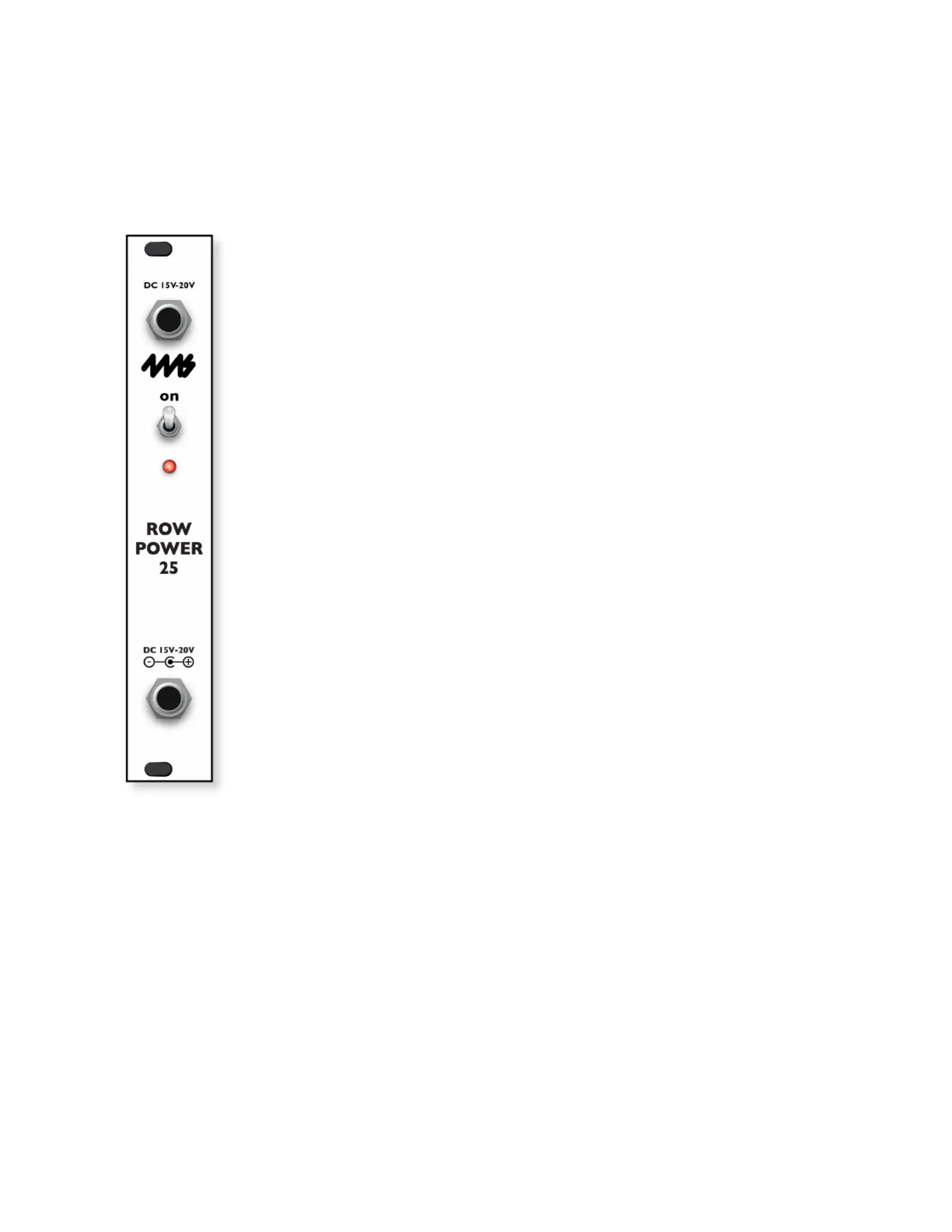

The Row Power 25 is a power supply module for the Eurorack modular system. It

requires a barrel-style power brick (15V – 20V DC) and supplies power to modules

via flying bus cables, direction connection, and/or bus boards using the single

standard 16-pin Eurorack header on the back. For custom power systems, the

Row Power 25 has a set of easily soldered holes for using large gauge wire or

MTA156 connectors to connect to distribution bus boards.!

Multiple Row Power modules can be powered from a single power brick by

daisy-chaining with an inexpensive barrel cable. The Row Power 25 can also be

daisy-chained to 4ms Company’s Pod enclosures.!

Maximum and recommended power output:

•+12V: 1.4A maximum, 1.0A recommended!

•-12V: 0.8A maximum, 0.5A recommended!

•+5V: 1.0A maximum, 0.8A recommended!

Maximum power output can be expected under normal operating conditions.

Recommended power output is guaranteed under extreme temperature and limited airflow

conditions.

Power Brick:

•

Available wherever Row Power modules are sold.!

•You may use your own power brick if it meets the following:!

•

15VDC to 20VDC!

•

Minimum 30W output power!

•

Positive center 2.1mm barrel plug!

•

Low-noise output!

Features:

•Two identical barrel power jacks at top and bottom for daisy-chaining (either

jack can be used for power input or chaining)!

•!On/off switch

•!LED indicates +/-12V rails are functioning

•!25.6mm (1.01”) deep with power cable attached

•!22.0mm (0.87”) with no power cable (when using solder points)

•#4HP
