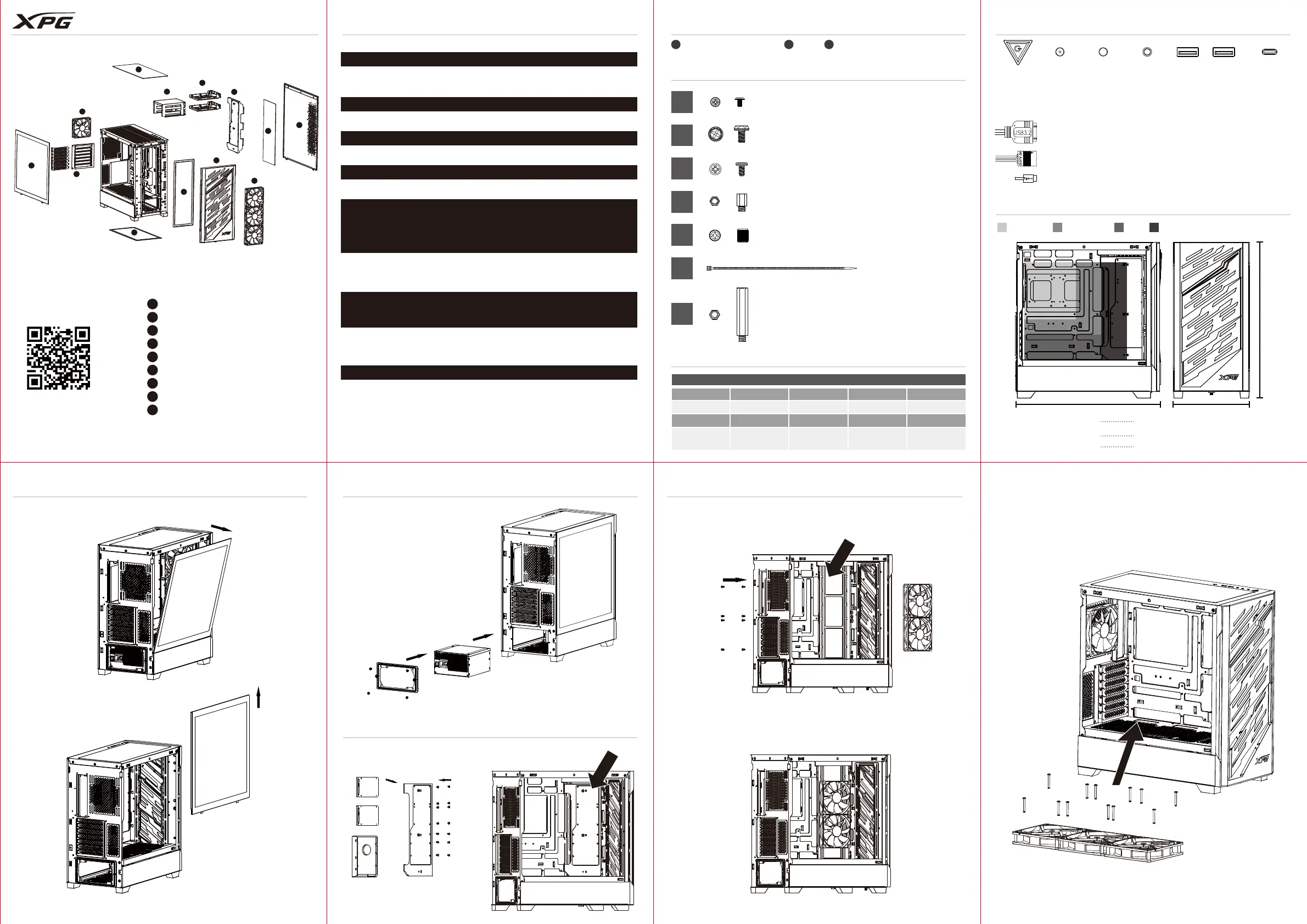

SPECIFICATIONS

STARKER AIR BTF CHASSIS

x28

Motherboard & SSD Screws

PSU Screws

HDD Screws

Motherboard Standoff Screws

Cable Ties

x6

x8

x1

x5

PACKAGE CONTENTS

1

ACCESSORY

3

QSG

2

ACCESSORY CONTENTS

Power

Button

Reset

Button

Hybrid

Audio Port

USB 3.2

Type A x2

CHASSIS I/O PORTS

STARKER AIR BTF

MID-TOWER CHASSIS

x3

Nut Setter

GPU Length

CPU Air Cooler Height

PSU Length

Up to 390mm

Up to 180mm

Up to 220mm

Mini-ITX

Micro-ATX

ATX

DIMENSIONS and COMPATIBILITY

A

A3mm Tempered Glass Panel

Steel Panel

(Magnetic) Dust Filter

Magnetic Front Panel

Pre-installed 4 x 120mm ARGB Fans

PCI Expansion Bracket

Removable Hard Drive Cage

2.5”/3.5” HDD/SSD Trays

E-ATX Bracket

B

C

D

E

F

G

H

I

Learn More

ColorBlack / White

Form Factor

E-ATX / ATX / m-ATX / ITX

ATX / m-ATX (Reverse Connector Motherboards)

Material

SPCC / 3 mm Tempered Glass

Dimension (H x W x D)

496 x 242 x 464 mm

3.5" Drive Bays

2+1

Compatibility

Graphic Card Length

CPU Air Cooler Height

PSU Length

Pre-Installed Fans

4 x 120 mm ARGB Fans

PCIe Slots

7 Horizontal / 4 Vertical

2.5" Drive Bays

2+2

Front

Top

Rear

PSU Shroud

Side

Fan Support

120 mm x 3 / 140 mm x 3

120 mm x 3 / 140 mm x 2

120 mm x 1 / 140 mm x 1

120 mm x 3

120 mm x 2 (with E-ATX bracket removed)

Front

Top

Rear

Radiator Support

360 / 280 / 240 mm

360 / 280 / 240 mm

140 / 120 mm

2 x USB 3.2 Type A, 1 x USB 3.2 Type C,

1 x Hybrid Audio Port

1 x LED Button, 1 x Reset Button, 1x Power Button

I/O Ports

390 mm

180 mm

220 mm

Warranty2 Years

PRE-SET LIGHTING EFFECTS

MODE DESCRIPTIONS

Mode 1Mode 2Mode 3Mode 4Mode 5

RedGreenBluePurpleYellow

Mode 6Mode 7Mode 8Mode 9-12Mode 13

WhiteOrangeNeon Green

Lighting effect

No.1-4

Off

LED

Button

USB 3.2

Type C

464 mm242 mm

496 mm

Please consult your user manual of motherboard manufacturer, then connect these leads to the panel

header on the motherboard.

USB 3.2 Connection: Please refer to the motherboard manual for more information on the

connection.

Audio Connection: Please refer to the motherboard installation to avoid the device error and

cause the motherboard sound device to be damaged.

USB 3.2 Type C Connection: Please refer to the motherboard manual for more information

on the connection.

E-ATX

C

A

B

D

E

F

G

H

C

C

C

E

I

x2

VGA Card Standoffs (23.5mm)

REMOVING THE GLASS SIDE PANEL

POWER SUPPLY INSTALLATION

FAN MOUNTS

Side Fan Mount:

1.

2.

PSU Shroud Fan Mount:

1.

2.

1

2

E-ATX BRACKET & STORAGE INSTALLATION

12

2.5”

2.5”

3.5”
