Sida 1/4
March.2025

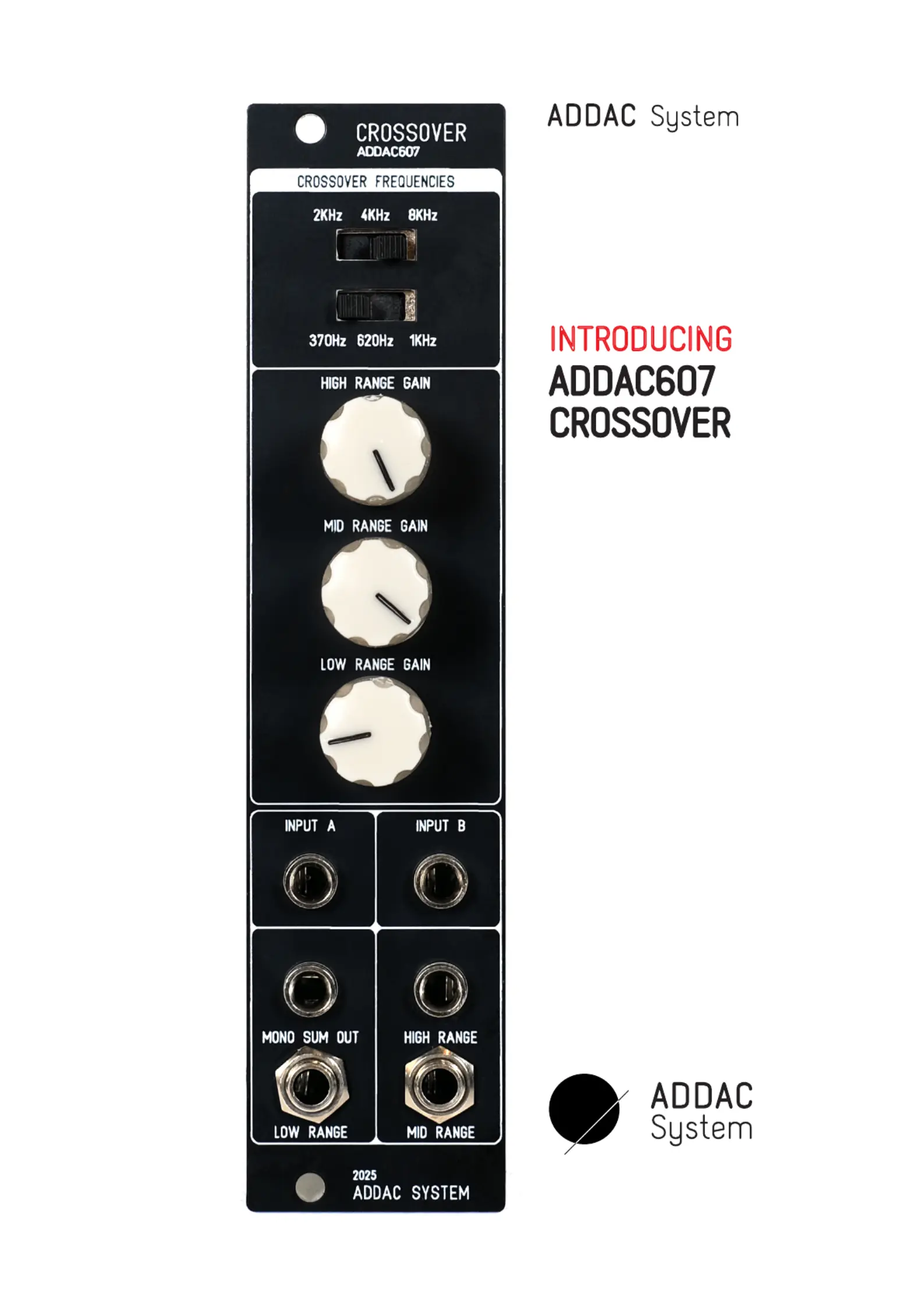

USER’S GUIDE . REV01
ADDAC607
CROSSOVER
INTRODUCING
From Portugal with Love!
Instruments for Sonic Expression
Est.2009
ADDAC607
CROSSOVER USER’S GUIDE
March.2025

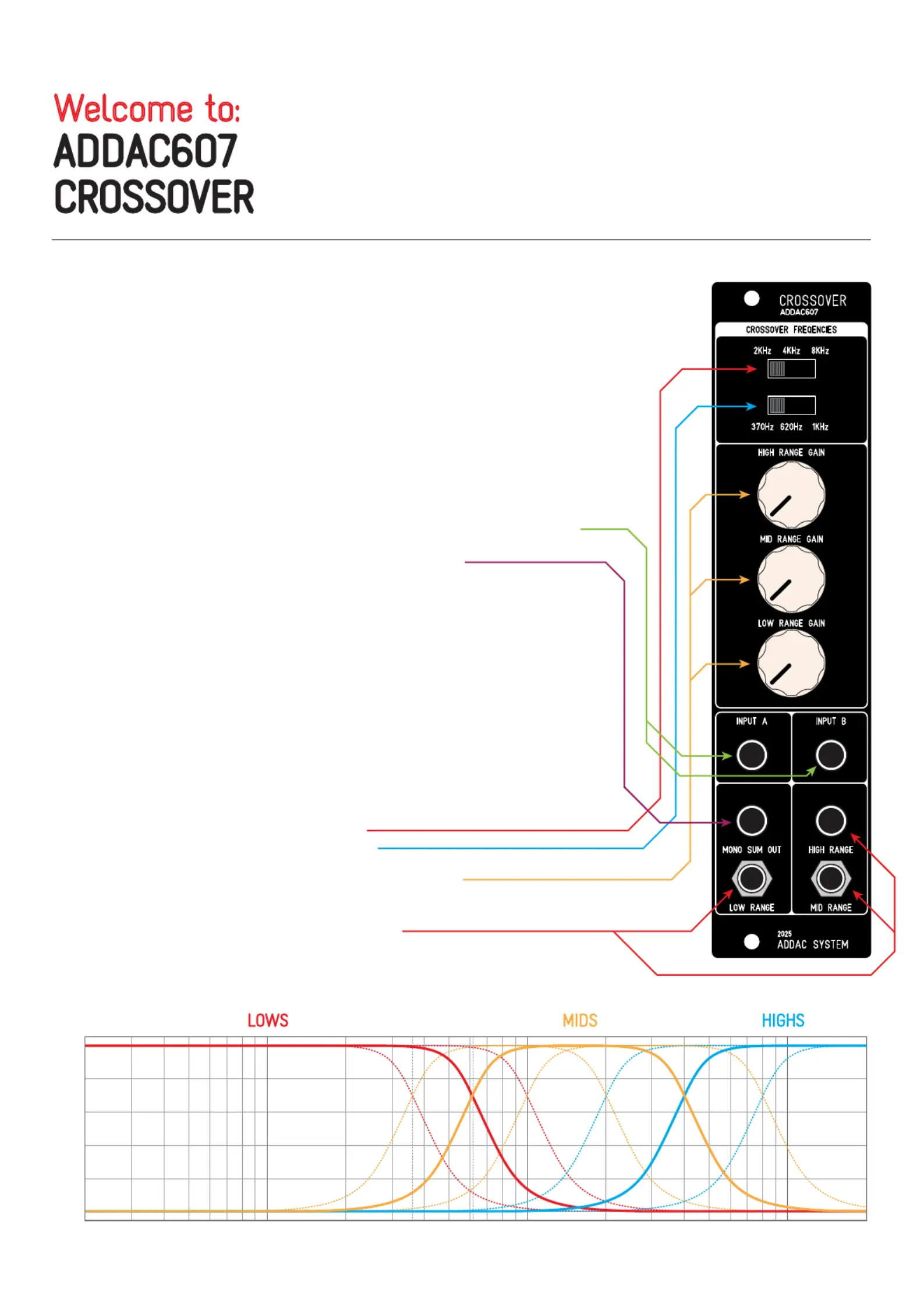

Here’s a graphical plot of the crossover slopes
Revision.01
Welcome to:
page 2ADDAC SYSTEM
WELCOME
Commonly audio Crossovers split an audio signal into several frequency ranges
so that each resulting signal is adequate for the speaker drivers they are
connected to, usually low range is sent to the big woofers, mid range to
smaller woofers and high range to the tweeters.
Here we introduce our ADDAC607,a mono 3 band Crossover featuring 4 pole,
24db Sallen-Key active filters and volume controls for each band.
Although ADDAC607 operates in Mono (for Stereo signals two modules can be
used) there are 2 audio inputs that allow an easy way for Stereo to Mono
summing. The [MONO SUM OUT] carries this summed signal. This output is
pre-gain and can also be use as a buffered Thru output.
The possibility to split the signal into different bands makes possible several
usefull processes, as examples:
- Independently process specific frequency ranges like adding delay only on
the high range band
- Split a signal to feed 3 compressors for multiple band compression
- By controlling the [GAIN] knobs they can act as “kill” switches in DJ mixers to
remove a whole band from the mix
This module is also a great companion for our ADDAC220 Dual Envelope
Follower+ allowing to extract the dynamics from any signal in a focused
frequency range allowing to, as an example, separate a kick drum from a
snare.
There are three switches to select the bands operating ranges:
2KHz, 4KHz and 8KHz for the high range
370Hz, 620Hz and 1KHz for the low range
The three [GAIN] controls set the volume for each band.
At noon they are unity gain, fully CW they are p2-x2 amplifiers.
The three last jacks carries the bands outputs.
Tech Specs:
6HP
4.5cm deep
60mA +12V
60mA -12V
0.0
1.0
0.8
0.6
GAIN
LOWS MIDS HIGHS
FREQUENCY
100Hz20Hz 1KHz 2KHz 4KHz 8KHz370Hz 620Hz 10KHz 20KHz
0.4
0.2
page 3ADDAC SYSTEM
ADDAC607 User’s Guide

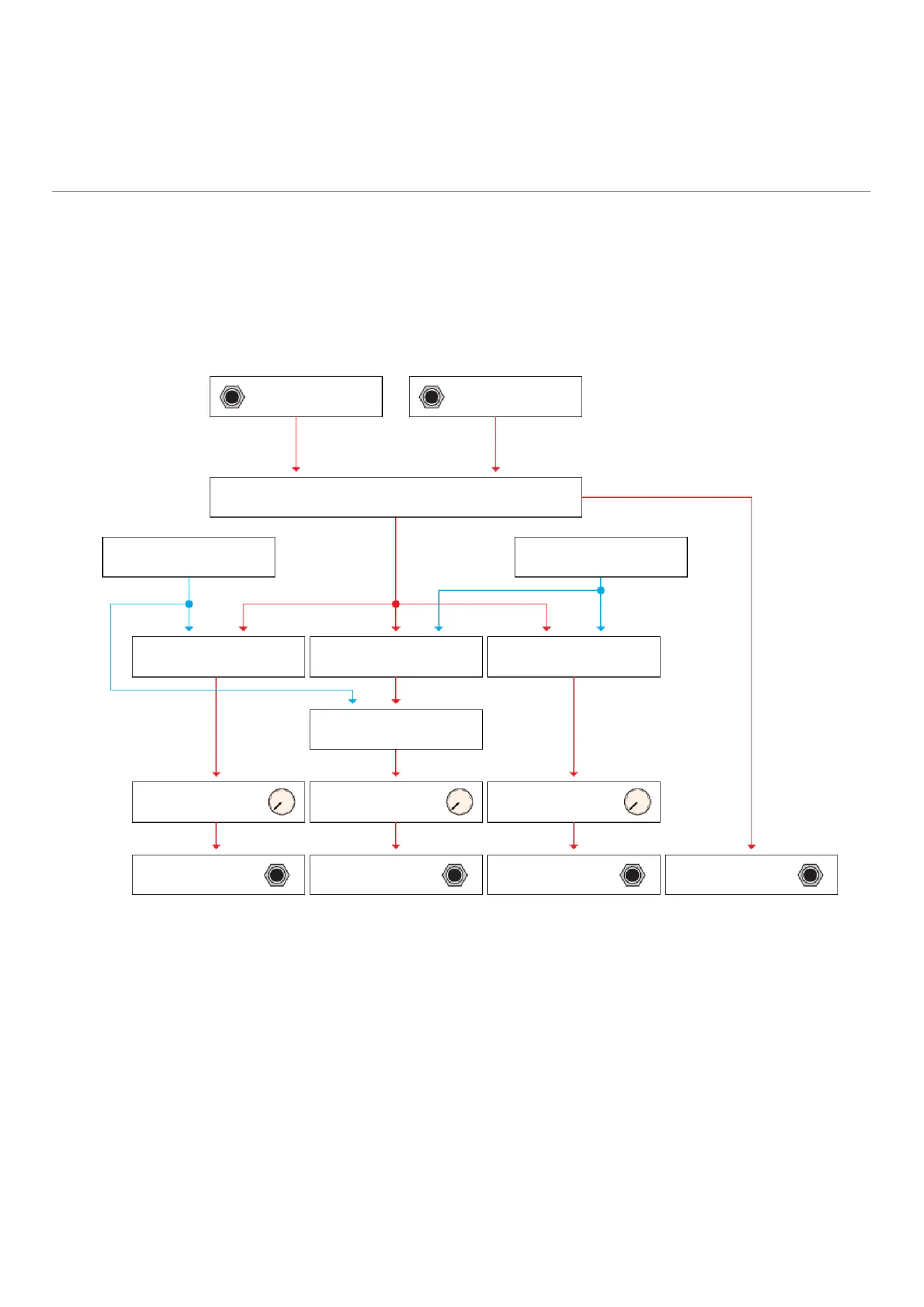

SIGNAL FLOW DIAGRAM
INPUT A
INPUTS SUM
INPUT B
MONO SUM OUTPUT
HIGH RANGE GAINHIGH RANGE GAIN MID RANGE GAIN
MID RANGE LP FILTER HIGH RANGE HP FILTER
MID RANGE HP FILTER
LOW RANGE LP FILTER
LOW RANGE FREQUENCY SWITCH
370Hz / 620Hz / 1KHz
HIGH RANGE FREQUENCY SWITCH
2KHz / 4KHz / 8KHz
HIGH RANGE OUTPUTMID RANGE OUTPUTLOW RANGE OUTPUT
