Sida 1/42

AdderLink X-USBPRO

Analog video and USB extenders

contents

welcome contents

installation

operation

rter

inormation

Contents

Welcome

Introduction .................................................................................2

Supplied items .............................................................................3

Optional items .............................................................................4

Installation

Connections .................................................................................5

Mounting .....................................................................................5

Connections at the local module ...........................................6

Local module power connection ....................................... 8

Connections at the remote module .......................................9

Dual user conﬁguration .......................................................12

Video display (DDC) information ......................................... 13

Video compensation ............................................................. 14

What is skew and why is compensation needed? .......... 16

Operation

General use ................................................................................17

Dual user arbitration .................................................................17

Peripheral operation .................................................................17

Further information

Getting assistance ......................................................................18

Troubleshooting ........................................................................18

Warranty ....................................................................................19

Safety information ....................................................................19

Radio Frequency Energy............................................................20

welcome contents

installation

operation

rter

inormation

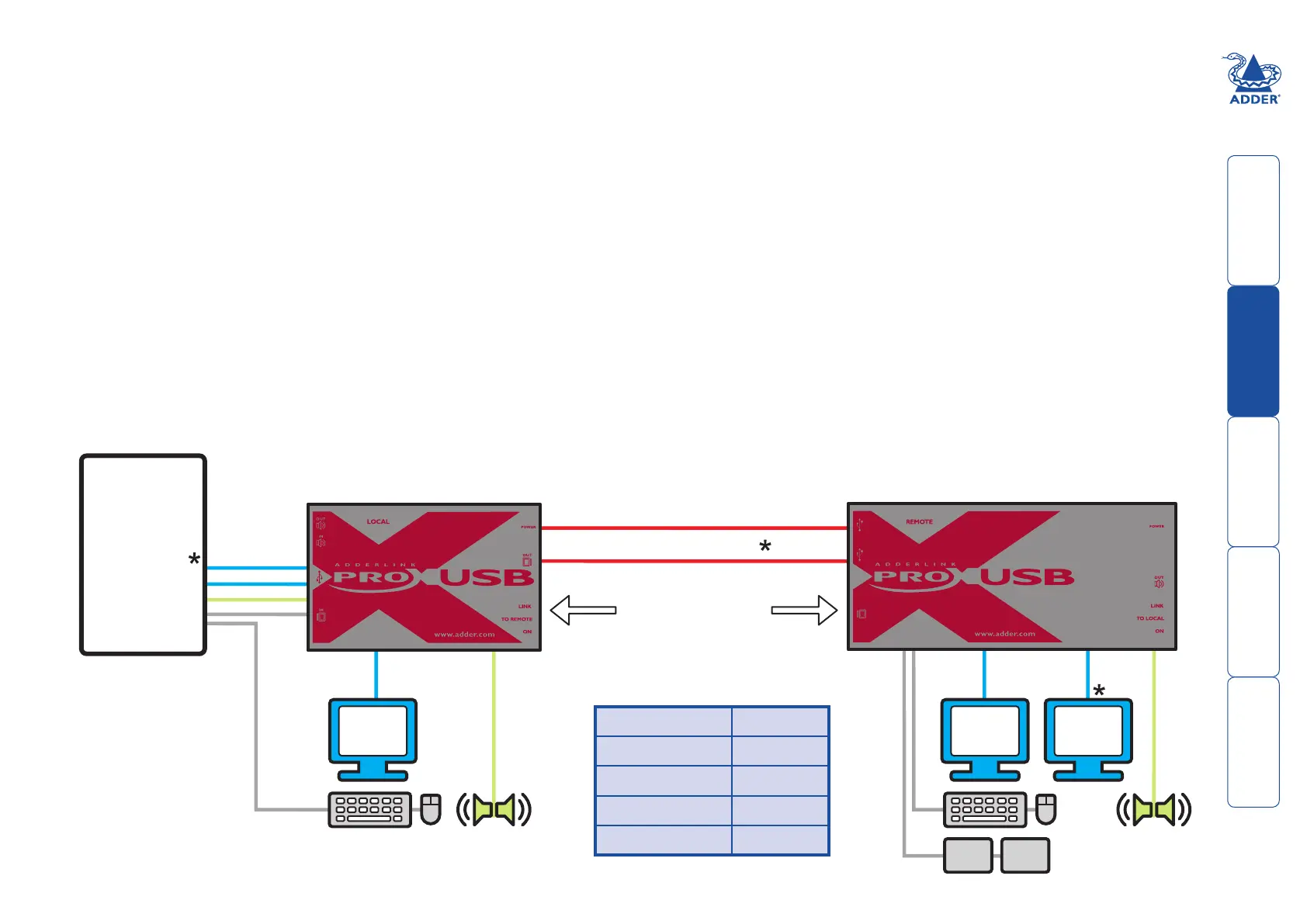

USB

device

USB

device

ADDER

AUDIO

VIDEO (1)

VIDEO (2)

USB

Up to 300 metres

separation

CATx link cable (1)

CATx link cable (2)

ADDER

Welcome

Introduction

Thank you for choosing the AdderLink X-USBPRO

or X-USBPRO-MS2 extenders which provide a

very effective way to put distance between your

computer and its peripherals.

The compact casings and ease of use of the

modules belie the ingenuity of their operation.

Using our proprietary transmission techniques we

are able to reliably transfer more signals than ever

before along a single length of Category 5, 5e, 6, 7

or 7a twisted pair cabling. What this means for you

is that your video, audio, USB keyboard, USB mouse

and two other USB channels are all readily and

reliably available at up to 300 metres away.

Using the Adder X-USBPRO extenders does not

mean that you need to compromise on functionality

in any way. Our highly efﬁcient transmission

methods mean that CD quality sound and high

video resolutions of up to 1920 x 1200 are fully

supported. Any lag effects caused by long cable

runs are easily eliminated using the intuitive video

compensation system located within the remote

module. Three equalisation bands allow you to

ensure that every colour arrives at precisely the

right time, ensuring a sharp image every time. The

X-USBPRO-MS2 model uses an additional CATx

connection to provide dual analog video links.

The USB connections are seamless allowing four full

speed USB 2.0 devices to be used simultaneously

with full support for disconnect/re-connect at any

time without causing errors.

The Adder X-USBPRO extenders have been

designed to be quick to install and totally

transparent in operation: ‘Fit and forget’ is the

motto. So whether you are extending your

workplace or creating a cost-effective distributed

audio visual system, the X-USBPRO extenders

provide the power and ﬂexibility to create the right

solution.

CAT 5 250m

CAT 5e 250m

CAT 6 300m

CAT 7 300m

CAT 7a Patch 200m

Maximum cable lengths

The MS2 variant

provides a second

analog video channel.

Produktspecifikationer

Varumärke:	Adder
Kategori:	Inte kategoriserad
Modell:	Link X-USB PRO
Produktens färg:	Svart
Antal USB 2.0 anslutningar:	5
Maximal överföringshastighet avstånd:	300 m
Kvalitet på VGA (D-Sub) porten:	3
