Sida 1/48

AdderLink XD150

User Guide

Experts in

Connectivity

Solutions

Extender

Solutions

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Introduction

Welcome ................................................................................................................ 2

AdderLink XD150 features ................................................................................3

Tips for achieving good quality links ................................................................4

Supplied items ....................................................................................................... 5

Optional extras .....................................................................................................6

Installation

Locations ................................................................................................................ 7

Connections ..........................................................................................................8

Local video connection ................................................................................. 8

Local USB connection ...................................................................................8

Local audio connection ................................................................................. 9

Local serial port connection ........................................................................ 9

Local data link connection............................................................................9

Local power connection .............................................................................10

Remote video connection ..........................................................................11

EDID management .................................................................................11

Remote USB connections ..........................................................................11

Remote audio connection ..........................................................................12

Remote serial port connection .................................................................12

Remote data link connection.....................................................................12

Remote power connection ........................................................................13

Conguration

Mode switch settings .........................................................................................14

Firmware upgrades ............................................................................................15

Operation

Indicators .............................................................................................................16

Further information

Getting assistance ..............................................................................................17

Appendix 1 - Options port pin-out ...............................................................18

Appendix 2 - Link cable interference protection ........................................19

Warranty ..............................................................................................................20

Safety information ..............................................................................................20

Radio frequency energy ....................................................................................21

Index

Contents

INSTALLATION

CONFIGURATIONOPERATION

FURTHER

INFORMATION

INDEX

Introduction

WELCOME

Thank you for choosing the AdderLink XD150 extender modules. These compact

modules allow you to transfer the following connections up to 150 meters from your

computer via a single link cable:

• High quality single link DVI digital video,

• USB keyboard and mouse plus two other USB devices (up to version 2.0),

• An RS232 serial device at speeds up to 115200 baud,

• Stereo speakers.

Thanks to our long involvement and investment in extender

technology we have succeeded in overcoming the

numerous problems associated with extending high

speed signals.

The AdderLink XD150 extender modules

are totally transparent in operation, leaving

you free to use your computer as

though you’re still sitting next to it.

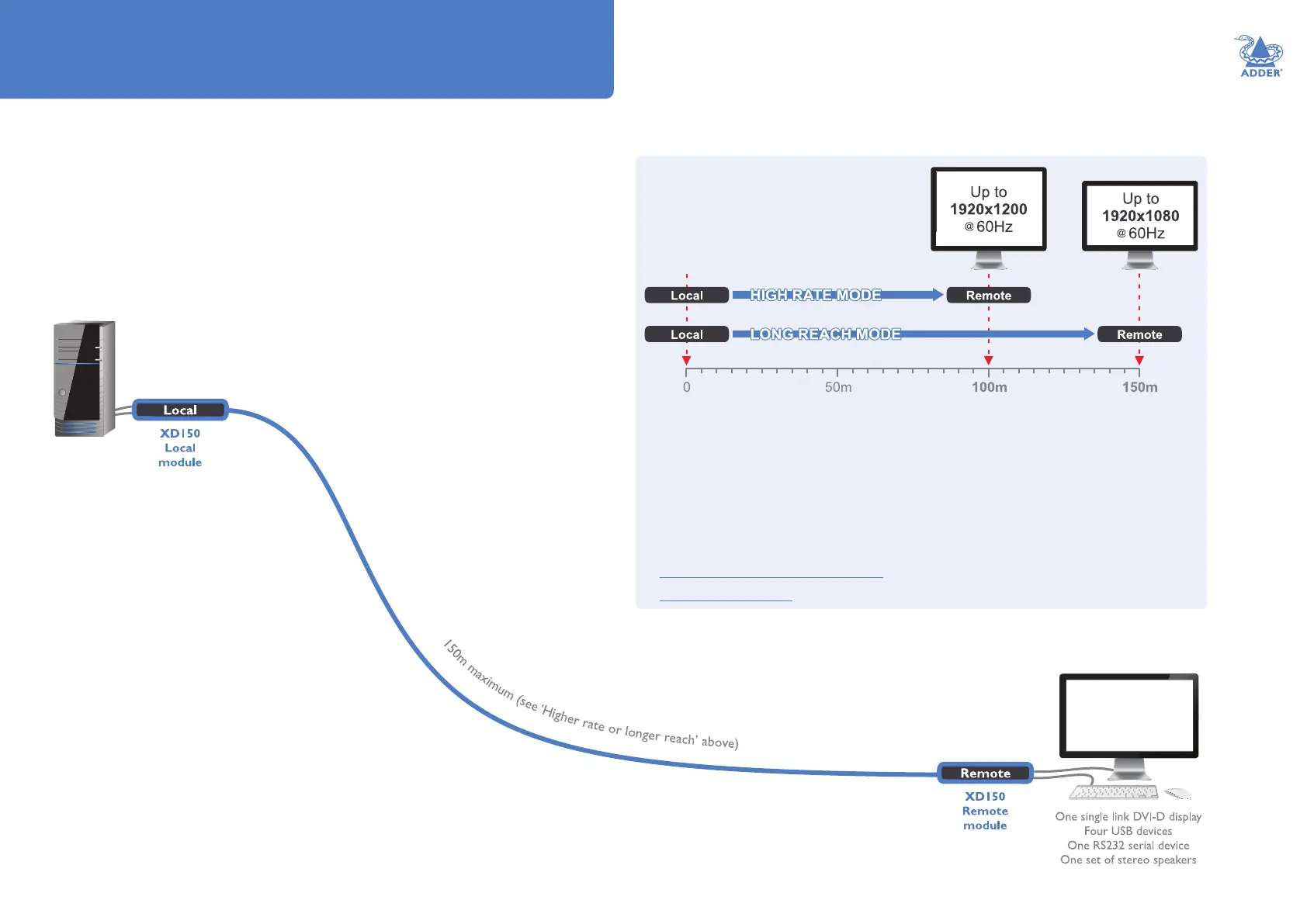

Higher rate or longer reach?

The AdderLink XD150 extenders provide two operational modes so that you can

choose your priority: To support a higher resolution display (up to 1920 x 1200 @ 60Hz)

or to cover a greater distance (up to 150 meters). A simple switch setting on the

local module determines the required mode. When the high rate mode is enabled, the

XD150 system will continually monitor the data link to ensure that image quality is

beingmaintained.Ifthedatalinkisnotsufcient,thelocalmodulewillautomaticallyfall

back to long reach mode.

Produktspecifikationer

Varumärke:	Adder
Kategori:	Inte kategoriserad
Modell:	Link XD150
Vikt:	600 g
LED-indikatorer:	Activity, Link, Power, USB
Maximal upplösning:	1920 x 1200 pixlar
Modell:	Sändare och mottagare för AV-utrustning
Produktens färg:	Svart
Produktstorlek (BxDxH):	169 x 120 x 31 mm
Temperatur vid drift:	0 - 40 ° C
AC-inspänning:	100-240 V
Likströmsingång:	Ja
Antal ljudutgångar vänster/höger:	1
Växelström Frekvens:	50 - 60 hz
Ingående ström:	0.7 A
Maximal överföringshastighet avstånd:	100 m
DVI ingångar:	1
DVI-utgång portar:	1
RS-232-utgångar:	1
