Sida 1/62
1
SECT 1
Contents
Welcome
Introduction .................................................................................2
Supplied items .............................................................................3
Module features ..........................................................................4
Installation and operation
Installation ...................................................................................5
Stage A - Configuration switch settings ................................5
LOCAL module switches .....................................................5
REMOTE module switches .................................................6
Stage B - Mounting a module – desk or rack ........................7
Installation Advice ..............................................................7
Stage C - Connections ............................................................. 8
Connections at the LOCAL module ...................................8
Connections at the REMOTE module .............................. 11
Operation ...................................................................................14
Power and activity indicators ............................................... 14
General use ...........................................................................14
User arbitration and keyboard indicators ......................14
Visible image shadows ..................................................... 14
Locking and unlocking the system ......................................15
Special configuration
Configuration ............................................................................16
What are hotkeys? ...........................................................16
Entering, using and exiting configuration mode ...........16
Password setting ...................................................................17
Password override .................................................................17
Hot plugging and mouse restoration ..................................18
Which restore setting do I use? ....................................... 18
Microsoft and Logitech -specific mouse settings ................18
Image controls - sharpness and brightness .........................19
Skew adjustment ..................................................................21
Miscellaneous settings .......................................................... 23
Further information
Troubleshooting ........................................................................24
Getting assistance ......................................................................25
Products in the X2-Series range ................................................26
Cables .........................................................................................26
Emissions and Immunity ............................................................27
2
44
33
22
PSU
PSU
X2
MULTI
SCREEN
11
1
2
3
4
PC
AUDIO
VIDEO 1
KEYBOARD
MOUSE
VIDEO 2 – 4
SERIAL 1– 4
LOCAL
X2
MULTI
SCREEN
REMOTE
separate channels. For both variants, a local module attaches to the computer
system and provides connections for the local peripherals while the remote
module is placed up to 200m away and handles the remote peripherals. The
long distance link between the two modules is made by either two (MS2 model)
or four (MS4 model) Category 5, or higher, twisted pair cables.
Special circuitry within the remote module allows you to make adjustments to
the sharpness and brightness settings to suit your own preferences. Additionally,
a Skew adjustment is also provided to counteract the effects of uneven lengths
of twisted pair cables that are used to carry the video signals.
SECT 2
Welcome
Introduction

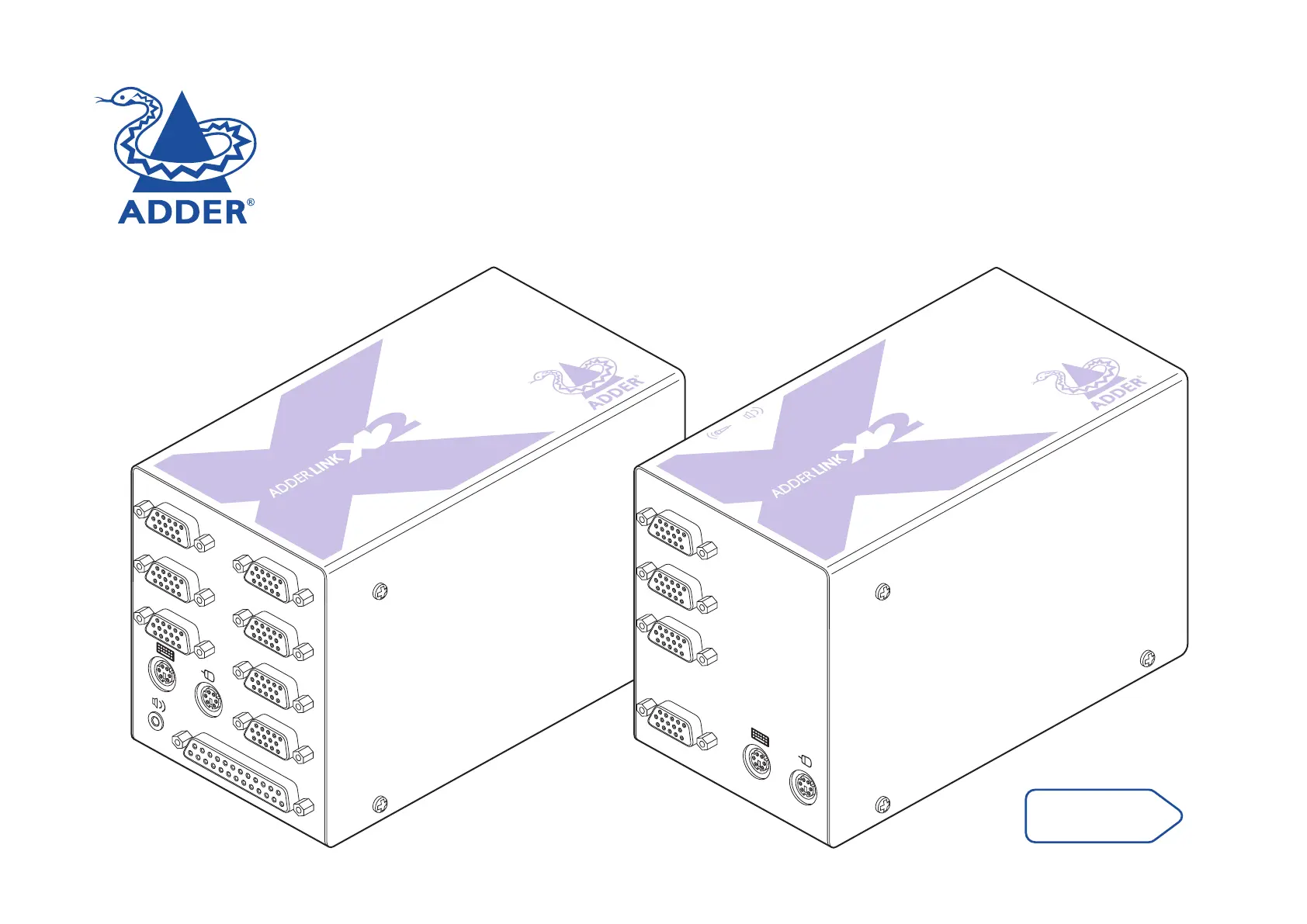

Thank you for choosing the AdderLink X2 Multi Screen extenders. Comprising
two compact modules, these extenders allow you to place multiple video
monitors and serial devices together with a keyboard, mouse and audio
peripherals up to 200 metres from a computer system. In addition, locally
connected video monitors, keyboard, mouse and speakers allow two users to
simultaneously view the outputs of the host system and also take control of
the system, providing it is not being used by the other user. A user relinquishes
control two seconds after their last key press or mouse movement.
Two variants of the Multi Screen extenders are available, the MS2 model allows
two video and serial channels, while the larger MS4 model provides four

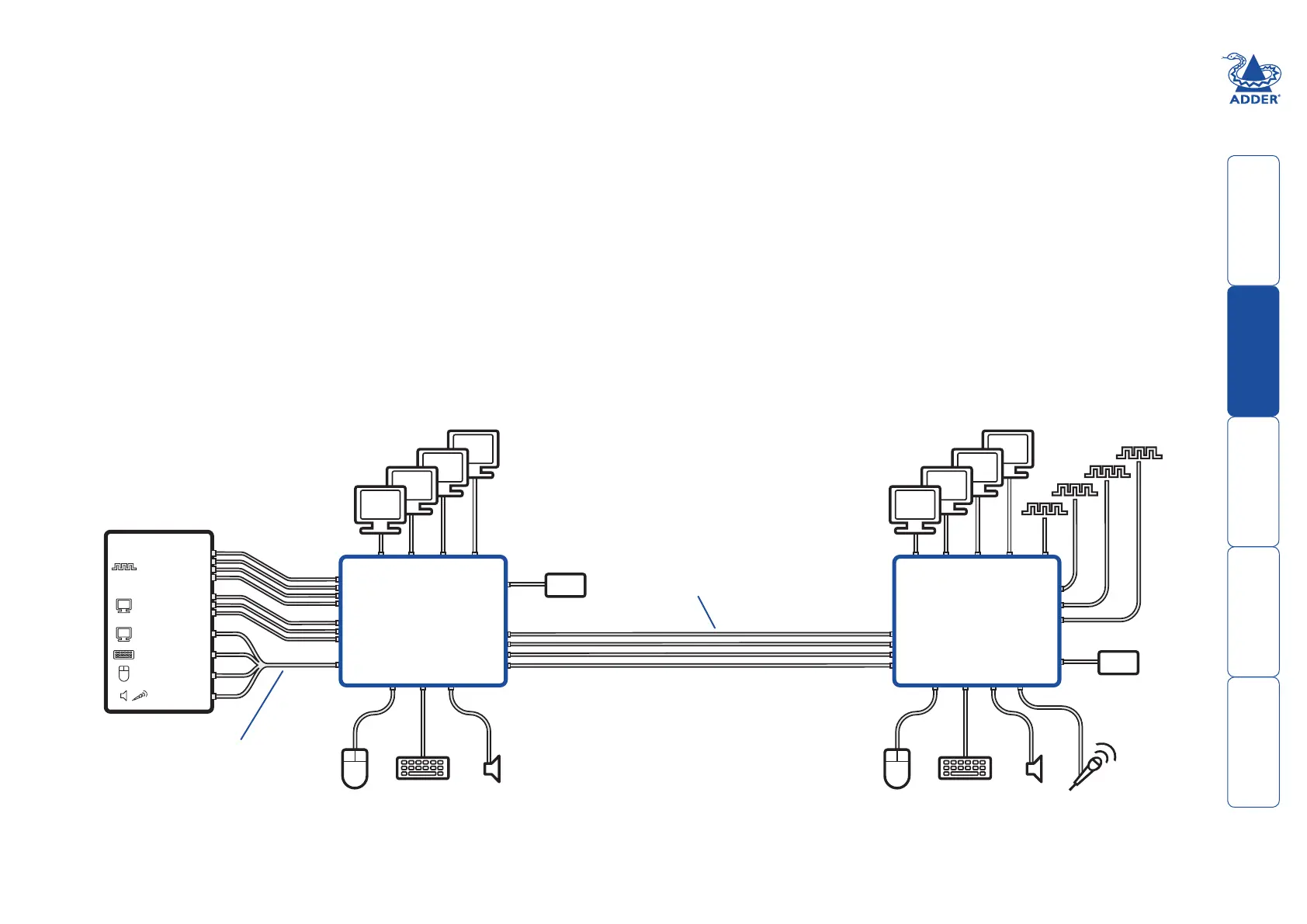

A special multi-cable
simplifies the connection
of the keyboard, video
channel 1, mouse and
audio ports to the LOCAL
module.
The duplicate mouse, keyboard
and audio peripherals connect
to the REMOTE module.
Up to 200 metres separation
between the local and
remote modules via two
(MS2 model) or four (MS4
model) Category 5, or higher,
cables
The mouse, keyboard and speaker
peripherals adjacent to the host computer
connect to the LOCAL module. Note
that the serial devices and microphone
connections are not available at the
LOCAL module.
Power
supply
unit
Two (MS2 model) or
four (MS4 model)
video channels are
available at the
LOCAL module.
LOCAL Power
supply unit
(optional on
MS2 model)
Two (MS2 model) or four (MS4
model) video and serial device
channels are available at the
REMOTE module.
