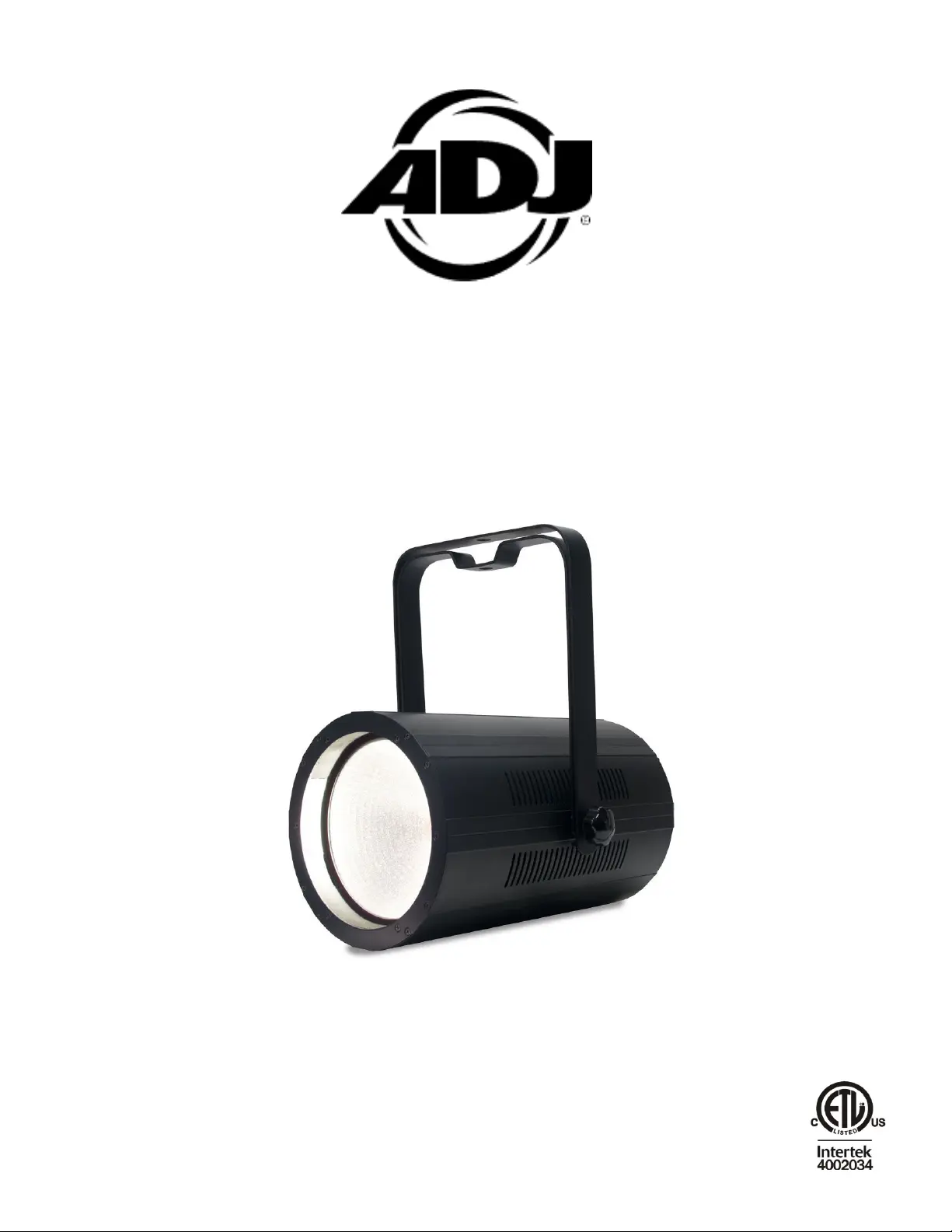

User Instructions
09/24
COB CannOn Wash DW
©2016 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby dis-
claim any and all liabilities for property, equipment, building, and
electrical damages, injuries to any persons, and direct or indi-
rect economic loss associated with the use or reliance of any
information contained within this document, and/or as a result
of the improper, unsafe, unsucient and negligent assembly,
installation, rigging, and operation of this product.
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
ADJ Products, LLC - www.adj.com - COB Cannon Wash DW User Manual Page 3ADJ Products, LLC - www.adj.com - COB Cannon Wash DW User Manual Page 2
• Five Operating Modes
• Electronic Dimming 0-100%
• 5 Selectable Dimming Curves
• 8 Color Macros
• Built in Microphone
•Opitional 40 & 50° Lenses Included°
• DMX-512 protocol
• 3-Pin & 5-Pin DMX Connections
• 6 DMX Modes: 1 Channel Mode, 2 Channel Mode, 3 Channel
Mode, 4 Channel Mode, 5 Channel Mode, & 6 Channel Mode.
• ADJ RFC compatiable (Not Included)
• Power Cord Daisy Chain (See page 26)
COB Cannon Wash DW Warranty Registration
COB Cannon Wash DW Features
The COB Cannon Wash DW 2 year limited warranty. Please carries a
fill out the enclosed warranty card to validate your purchase. All
returned service items whether under warranty or not, must be freight
pre-paid and accompany a return authorization (R.A.) number. The
R.A. number must be clearly written on the outside of the return pack-
age. A brief description of the problem as well as the R.A. number
must also be written down on a piece of paper included in the ship-
ping carton. If the unit is under warranty, you must provide a copy of
your proof of purchase invoice. You may obtain a R.A. number by con-
tacting our customer support team on our customer support number.
All packages returned to the service department not displaying a R.A.
number on the outside of the package will be returned to the shipper.
The unit should be mounted using a mounting clamp (not provided),
axing it to the mounting bracket that is provided with the unit.
Always ensure that the unit is rmly xed to avoid vibration and slip-
ping while operating. Always ensure that the structure to which you
are attaching the unit is secure and is able to support a weight of 10
times the unit’s weight. Also, always use a safety cable that can hold
12 times the weight of the unit when installing the xture.
The equipment must be installed by a professional, and it must be
installed in a place where it is out of the reach of people’s grasp.
COB Cannon Wash DW Installation
COB Cannon Wash DW Introduction
Unpacking: Thank you for purchasing the COB Cannon Wash DW by
ADJ Products, LLC. Every COB Cannon Wash DW has been thoroughly
tested and has been shipped in perfect operating condition. Carefully
check the shipping carton for damage that may have occurred during
shipping. If the carton appears to be damaged, carefully inspect your
xture for any damage and be sure all accessories necessary to oper-
ate the unit has arrived intact. In the case damage has been found
or parts are missing, please contact our toll free customer support
number for further instructions. Do not return this unit to your dealer
without rst contacting customer support.
Introduction: The ADJ COB Cannon Wash DW is a DMX intelligent,
high powered LED wash fixture. This wash has five operating modes:
Sound Active mode, Auto mode, WW/CW Dimmer mode, Static Color
mode, and DMX control mode. This fixture can be used in a
stand alone mode or connected in a Primary/Secondary
configuration. o optimize the performance of this product, please T
read these operating instructions carefully to familiarize yourself with
the basic operations of this unit. These instructions contain important
safety information regarding the use and maintenance of this unit.
Please keep this manual with the unit, for future reference.
Customer Support: ADJ Products, LLC provides a customer support
line, to provide set up help and to answer any question should you
encounter problems during your set up or initial operation. You may
also visit us on the web at www.adj.com for any comments or sugges-
tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.
Pacic Standard Time.
Voice: (323) 582-3322
Fax: (323) 582-3108
E-mail: support@AmericanDJ.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
ADJ Products, LLC.
PLEASE recycle the shipping carton when ever possible.
COB Cannon Wash DW Safety Precautions
Power Supply: The ADJ COB Cannon Wash DW contains a automatic
voltage switch, which will auto sense the voltage when it is plugged
into the power source. With this switch there is no need to worry about
the correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used as a form of communication between intelligent fixtures
and controllers. A DMX controller sends DMX data instructions from
the controller to the fixture. DMX data is sent as serial data that trav-
els from fixture to fixture via the DATA “IN” and DATA “OUT” XLR ter-
minals located on all DMX fixtures (most controllers only have a DATA
“OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
dierent manufactures to be linked together and operate from a single
controller, as long as all xtures and the controller are DMX compli-
ant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. When a fixture is assigned a DMX address
of 1, the DMX controller knows to send DATA assigned to address 1
to that unit, no matter where it is located in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX Operation):
The COB Cannon Wash DW can be controlled via DMX-512 protocol.
The COB Cannon Wash DW has 6 DMX modes, please see pages 12-13
for the dierent modes. The DMX address is set on the back panel of
the COB Cannon Wash DW. Your unit and your DMX controller require
a standard 3-pin or 5-pin XLR connector for data
input and data output (Figure 1). We recommend
Accu-Cable DMX cables. If you are making your
own cables, be sure to use standard 110-120 Ohm
shielded cable (This cable may be purchased at
almost all pro lighting stores). Your cables should
be made with a male and female XLR connector
on either end of the cable. Also remember that
DMX cable must be daisy chained and cannot be
split.
ADJ Products, LLC - www.adj.com - COB Cannon Wash DW User Manual Page 4
COB Cannon Wash DW DMX Set Up
ADJ Products, LLC - www.adj.com - COB Cannon Wash DW User Manual Page 5
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken. Do not attempt to remove or break o the ground
prong from the electrical cord. This prong is used to reduce the risk
of electrical shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out`
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to the point they exit from the unit.
• Cleaning -The fixture should be cleaned only as recommended by
t he manufacturer. See page 19 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (inclu-
d ing amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
Figure 1
