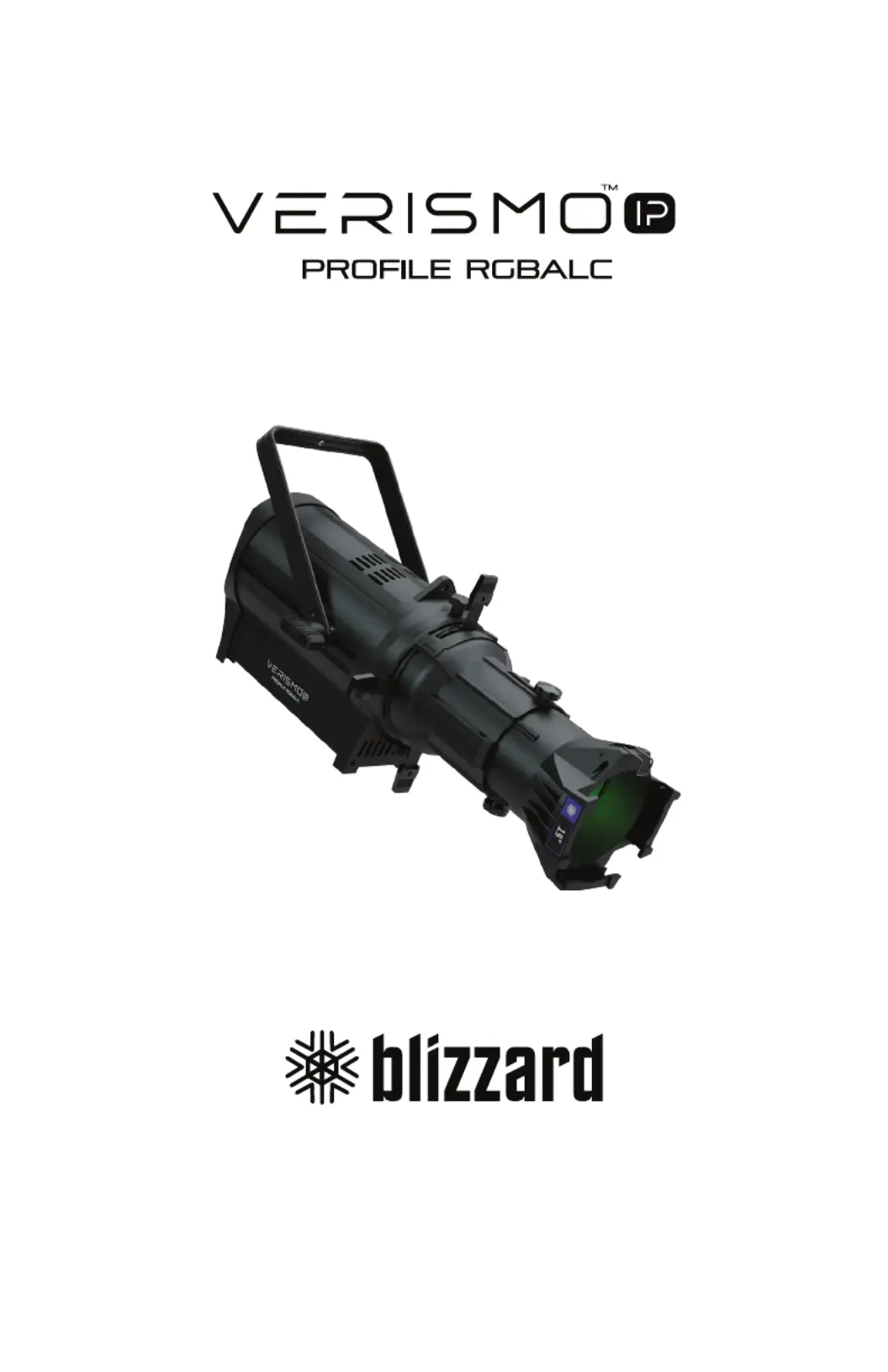

Blizzard Lighting, LLC

http://www.blizzardpro.com

Waukesha, WI USA

Page 2

TABLE OF CONTENTS

1. Getting Started 3

What’s In The Box? 3

Getting It Out Of the Box 3

Powering Up! 3

Getting A Hold Of Us 3

Safety Instructions 4

2. Meet the Verismo™ IP Prole RGBALC 5

Main Features 5

DMX Quick Reference 5

Verismo™ IP Prole RGBALC Pin-Up Picture 6

The Rear Connections 6

3. Setup 7

Fuse Replacement 7

Connecting A Bunch of Verismo™ IP Prole Fixtures 7

Data/DMX Cabling 7

Cable Connectors 8

Take It To The Next Level: Setting Up DMX Control 8

Lens Barrels & Focusing 8

Insert the Gobo Holder 9

Rotating the Shutter Barrel 9

Mounting & Rigging 9

4. Operating Adjustments 10

The Control Panel 10

Control Panel Menu Structure 11

Static Mode 12

Dimming Curves 12

Dimming Speed 12

Dimming Frequency 13

DMX Values In-Depth 13

5. Appendix 14

Keeping Your Verismo™ IP Prole As Good As New 14

Returns (Gasp!) 14

Shipping Issues 14

Tech Specs! 15

Page 3

1. GETTING STARTED

What’s In The Box?

• Verismo™ IP Prole RGBALC Engine

• Power Cable

• Gobo Holder

• This Lovely User Manual

Optional Accessories (sold separately)

The following accessories are available for this xture. But the lone wolves that

they are, they must be purchased separately. Contact your authorized Blizzard

Lighting dealer for pricing.

• Verismo-LENS-19: Verismo Prole 19° Lens

• Verismo-LENS-26: Verismo Prole 26° Lens

• Verismo-LENS-36: Verismo Prole 36° Lens

• Verismo-LENS-50: Verismo Prole 50° Lens

Getting It Out Of the Box

Congratulations on purchasing the Verismo™ IP Prole RGBALC. Now that

you’ve got your xture, you should carefully unpack the box and check the

contents to ensure that all parts are present and in good condition. If anything

looks as if it has been damaged in transit, notify the shipper immediately and

keep the packing material for inspection. Again, please save the carton and all

packing materials. If a xture must be returned to the factory, it is important

that the xture be returned in the original factory box and packing.

Powering Up!

All xtures must be powered directly o a switched circuit and cannot be run

o a rheostat (variable resistor) or dimmer circuit, even if the rheostat

or dimmer channel is used solely for a 0% to 100% switch.

Warning! All xtures must be connected to circuits with a suitable

Ground (Earthing).

Getting A Hold Of Us

If something happens to go wrong, visit blizzardpro.com/support and

open a support ticket. We’ll be happy to help, honest.

Disclaimer: The information contained in this document are subject to change without

notice. Blizzard Lighting™ assumes no responsibility or liability for any errors or omissions

that may appear in this user manual. We reserve the right to update the existing, or create

a new document to correct any errors or omissions at any time. You can download the

latest version of this document from www.blizzardpro.com.

Author: Date: Last Edited: Date:

J. Thomas 3/8/2023 J. Thomas 1/29/2024

Produktspecifikationer

Varumärke:	Blizzard Lighting
Kategori:	Effektmaskin
Modell:	Verismo IP Profile RGBALC
Produkttyp:	Discobelysning, stroboskop
Vikt:	9616.15 g
Bredd:	457.2 mm
Djup:	650.24 mm
Höjd:	320.04 mm
LED-indikatorer:	Ja
Certifiering:	cETLus, RoHS
Färgtemperatur:	10000 K
Lämplig för inomhusbruk:	Ja
Färgåtergivningsindex (CRI):	94
Spänning:	100 - 240 V
Ljuslägen:	DMX
DMX-ingång:	Ja
DMX-utgång:	Ja
Antal stift:	5
Antal DMX-kanaler:	17 kanaler
Produktens färg:	Svart
Ingångsfrekvens:	50 - 60 hz
Strömförbrukning (vanlig):	289 W
Lamptyp:	LED
Strömkälla:	AC
Lampor:	300 W
Antal:	1
Kuldiameter:	- "
Flimmerfri användning:	Ja
Integrerat handtag:	Ja
Minsta antalet DMX-kanaler:	7 kanaler
