Sida 1/16

5/13

User Instructions

Unpacking: Thank you for purchasing the WiFly RGBW8C by ADJ

Products, LLC. Every WiFly RGBW8C has been thoroughly tested and

has been shipped in perfect operating condition. Carefully check the

shipping carton for damage that may have occurred during shipping.

If the carton appears to be damaged, carefully inspect your xture for

any damage and be sure all equipment necessary to operate the unit

has arrived intact. In the event damage has been found or parts are

missing, please contact our toll free customer support number for fur-

ther instructions. Please do not return this unit to your dealer without

contacting customer support rst.

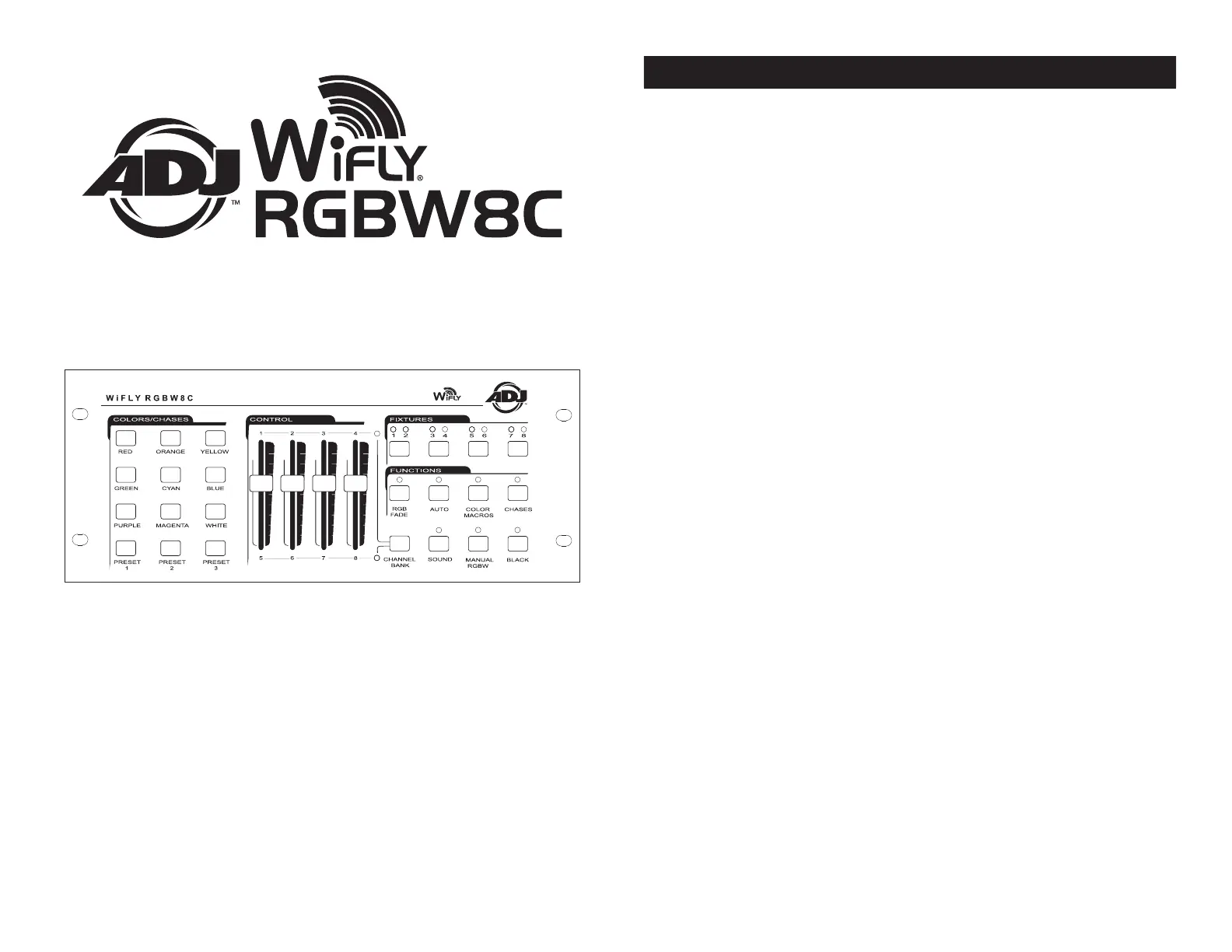

Introduction: The WiFly RGBW8C is a 64-channel RGB, RGBW or

RGBA LED wireless DMX controller. Up to 8 LED fixtures or fixture

groups can independently be controlled via four fixture buttons. The

units control panel includes; 9 “Static Color/Chase” buttons, which

contain pre-programmed colors and chase programs, 3 programma-

ble color preset buttons, 4 multi function faders that control RGBW

intensities, as well as program speed, fade time, and master dimmer.

There are 8 buttons used to select the operation mode, including RGB

Fade, Auto Run, Color Macro, Channel Bank, Chase, Sound Active,

Manual RGBW and Blackout modes. The WiFly RGBW8C is one of the

simplest and most versatile LED controllers available today. It is ideal

for D.J.’s, nightclubs, lounges, bars, and anyone that wants easy con-

trol of LED Par’s, Bar’s, Flood’s, or Panel’s.

Customer Support: ADJ Products, LLC provides a toll free customer

support line, to provide help and to answer any question should you

encounter problems during your set up or initial operation. You may

also visit us on the web at www.adj.com for any comments or sugges-

tions. Service Hours are Monday through Friday 8:00 a.m. to 4:30 p.m.

Pacic Standard Time.

Voice: (800) 322-6337

Fax: (323) 582-2941

E-mail: support@americandj.com

Warning! To prevent or reduce the risk of electrical shock or re, do

not expose this unit to rain or moisture.

WiFly RGBW8C General Information

ADJ Products, LLC www.adj.com - WiFly RGBW8C Page 2

• 9 Static Colors

• RGBW Faders To Create Desired Color

• 9 Chases

• Auto, RGB Fade, Color Macros, Chase, Manual RGBW, Channel

Bank, and Sound Active Modes

• Adjustable Program and Fade Speed

• Adjustable Sound Sensitivity

• Built-In ADJ’s WiFly TransCeiver Wireless DMX

• Blackout

WiFly RGBW8C Features

ADJ Products, LLC www.adj.com - WiFly RGBW8C Page 4

WiFly RGBW8C Product Registration

WiFly RGBW8C DMX Set Up

Power Supply: Before plugging your unit in, be sure the source

voltage in your area matches the required voltage for your ADJ WiFly

RGBW8C. The ADJ WiFly RGBW8C is 120v only. Only use the included

power supply to power WiFly RGBW8C.

DMX-512: DMX is short for Digital Multiplex. This is a universal pro-

tocol used by most lighting and controller manufactures as a form of

communication between intelligent fixtures and controllers. A DMX

controller sends DMX data instructions from the controller to the fix-

ture. DMX data is sent as serial data that travels from fixture to fixture

via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX

fixtures (most controllers only have a DATA “OUT” terminal).

DMX Linking: DMX is a language allowing all makes and models of

different manufactures to be linked together and operate from a single

controller, as long as all xtures and the controller are DMX compli-

ant. To ensure proper DMX data transmission, when using several

DMX fixtures try to use the shortest cable path possible. The order

in which fixtures are connected in a DMX line does not influence the

DMX addressing. For example; a fixture assigned a DMX address of 1

may be placed anywhere in a DMX line, at the beginning, at the end,

or anywhere in the middle. Therefore, the first fixture controlled by

the controller could be the last fixture in the chain. When a fixture is

assigned a DMX address of 1, the DMX controller knows to send DATA

assigned to address 1 to that unit, no matter where it is located in the

DMX chain.

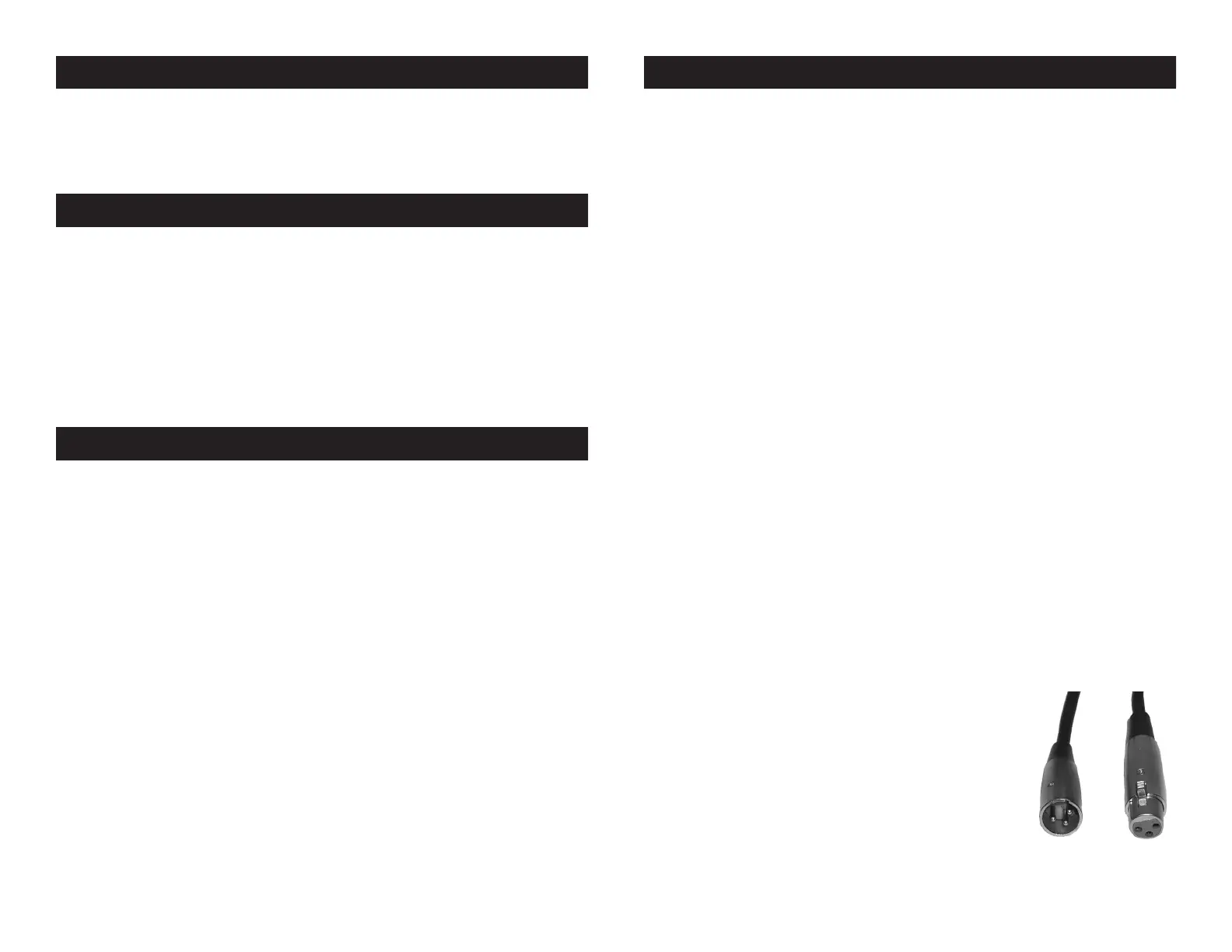

Data Cable (DMX Cable) Requirements (For DMX and Master/Slave

Operation): DMX controller and unit require a approved DMX-512

110 Ohm Data cable for data input and data output (Figure 1). We

recommend Accu-Cable DMX cables. If you are

making your own cables, be sure to use standard

110-120 Ohm shielded cable (This cable may be

purchased at almost all professional sound and

lighting stores). Your cables should be made with

a male and female XLR connector on either end of

the cable. Also remember that DMX cable must be

daisy chained and cannot be split.

Figure 1

The WiFly RGBW8C carries a 1 year (365 days) limited warranty.

Please fill out the enclosed warranty card to validate your purchase

and warranty. You may also register your product online at www.

americandj.com. All returned service items whether under warranty or

not, must be freight pre-paid and accompany a return authorization

(R.A.) number. If the unit is under warranty you must provide a copy

of your proof of purchase invoice. Please contact ADJ Products, LLC

customer support for a R.A. number.

To optimize the performance of this product, please read these

operating instructions carefully to familiarize yourself with the basic

operations of this unit. These instructions contain important safety

information regarding the use and maintenance of this unit. Please

keep this manual with the unit, for future reference.

WiFly RGBW8C General Instructions

ADJ Products, LLC www.adj.com - WiFly RGBW8C Page 3

ADJ Products, LLC www.adj.com - WiFly RGBW8C Page 6ADJ Products, LLC www.adj.com - WiFly RGBW8C Page 5

WiFly RGBW8C DMX Set Up

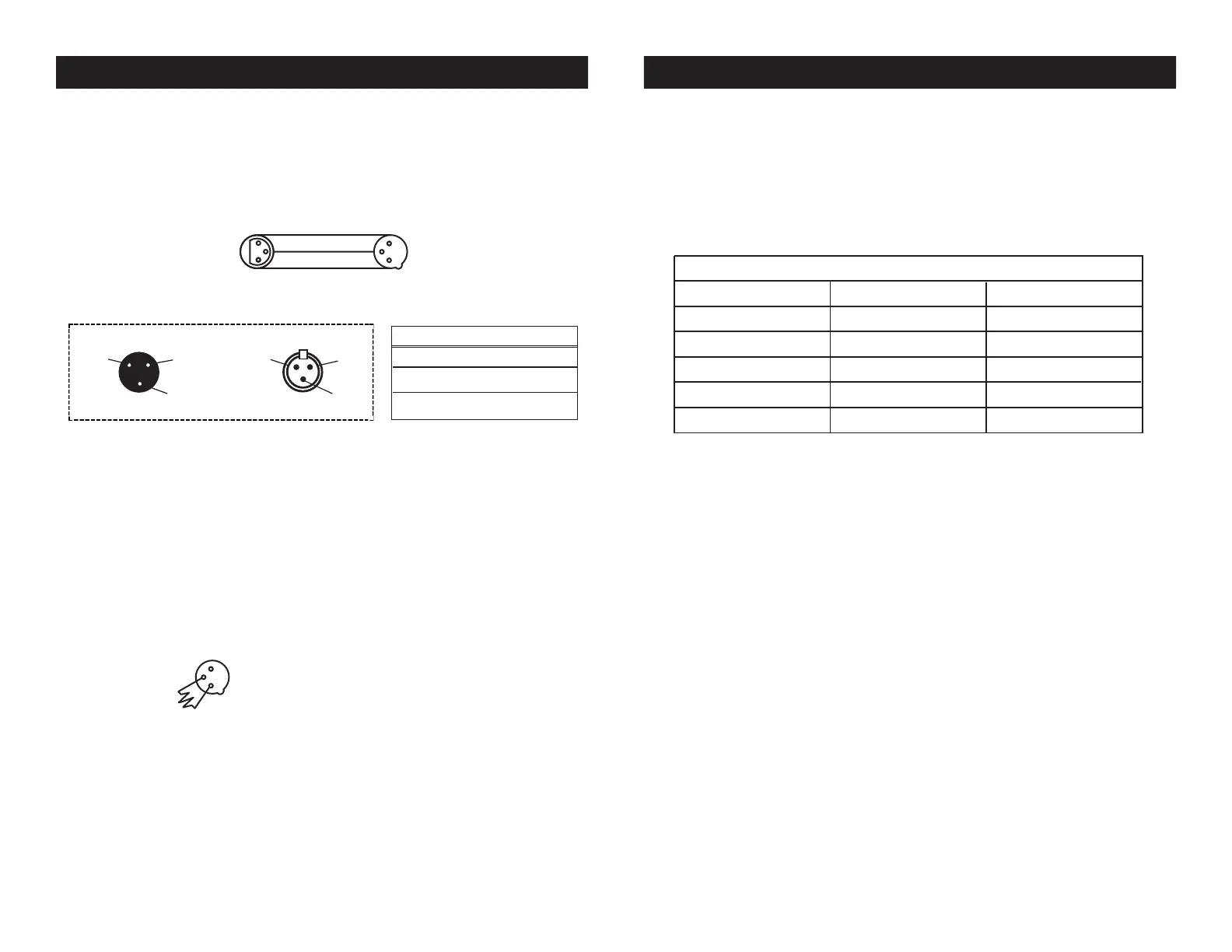

Notice: Be sure to follow gures two and three when making your own

cables. Do not use the ground lug on the XLR connector. Do not con-

nect the cable’s shield conductor to the ground lug or allow the shield

conductor to come in contact with the XLR’s outer casing. Grounding

the shield could cause a short circuit and erratic behavior.

DMX512 IN

3-PIN XLR

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

DMX512

DMX+,DMX-,COMMON

Termination reduces signal errors and

avoids signal transmission problems

and interference. It is always advisable

to connect a DMX terminal, (Resistance

120 Ohm 1/4 W) between PIN 2 (DMX-)

and PIN 3 (DMX +) of the last fixture.

DMX +

DMX -

COMMON

DMX512 OUT

3-PIN XLR

Figure 2

Figure 3

1 Ground

XLR Male Socket

XLR Pin Conguration

3 Hot

2 Cold

3 Hot

XLR Female Socket

Pin 3 = Data True (positive)

Pin 2 = Data Compliment (negative)

Pin 1 = Ground

Special Note: Line Termination.

When longer runs of cable are

used, you may need to use a terminator on the last unit to avoid erratic

behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-

nected between pins 2 and 3 of a male XLR connector (DATA + and

DATA -). This unit is inserted in the female XLR connector of the last

unit in your daisy chain to terminate the line. Using a cable terminator

(ADJ part number Z-DMX/T) will decrease the possibilities of erratic

behavior.

DMX512 IN

3-PIN XLR

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

SOUND

REMOTE

CONTROL

INPUT

POWER

INPUT OUTPUT

DMX512

DMX+,DMX-,COMMON

Termination reduces signal errors and

avoids signal transmission problems

and interference. It is always advisable

to connect a DMX terminal, (Resistance

120 Ohm 1/4 W) between PIN 2 (DMX-)

and PIN 3 (DMX +) of the last fixture.

DMX +

DMX -

COMMON

DMX512 OUT

3-PIN XLR

Figure 4

WiFly RGBW8C DMX Set Up

5-Pin XLR DMX Connectors.

Some manufactures use 5-pin DMX-

512 data cables for DATA transmission in place of 3-pin. 5-pin DMX

xtures may be implemented in a 3-pin DMX line. When inserting stan-

dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,

these adaptors are readily available at most electric stores. The chart

below details a proper cable conversion.

Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)

Pin 1

Pin 5 - Do Not Use

Pin 4 - Do Not Use

Pin 3

Pin 2

Pin 1

Pin 3

Pin 2

Not Used

Data True (+ signal)

Data Compliment (- signal)

Ground/Shield

3-Pin XLR to 5-Pin XLR Conversion
