Sida 1/2
Sinks manufactured by ADVANCE TABCO
®
are designed and constructed for the use of
liquid containment. Suggested applications include Food Preparation, Manufacturing,
Cooking, Laboratory and Service and the like. ADVANCE TABCO
®
does not recommend
product use for activities employing harsh and active chemicals. Please consult factory
regarding unusual applications.
CHECK FOR CONCEALED DAMAGE
FILE CLAIM WITH DELIVERING FREIGHT CARRIER
EDGEWOOD, NY 11717-8380
© ADVANCE TABCO, OCTOBER 2018
Installation Instructions for
WALL MOUNTED
19-18 SERIES & WSS SERIES SINKS
Suggested Rough-In Plumbing Dimensions
Figure 4
Adjustable
Flange
STEP 5
Adjust the tubular wall support brackets and flanges
to proper alignment. Loosen or tighten each flange
to sit snug against the wall and secure to wall using
screws (Not Included) . Be sure to go (Figure 4)
back and hand tighten the set screws at this time.
P-Trap
Drain
To Waste Line
34”
Suggested
Height
12"
Finished Floor
28
1
2
"
5"
L
C
L
C
L
C
P-Trap
Drain
To Waste Line
34”
Suggested
Height
12"
Finished Floor
25
1
2
"
5"
L
C
L
C
L
C
For Further Assistance
Contact Customer Service at:
800-645-3166
or
customer@advancetabco.com
MANUAL FAUCET
OPERATED
ELECTRONIC
OPERATED
KNEE
OPERATED
Model # Model # Model #
19-18-1-ADA 19-18-1-EFADA N/A
19-18-40/19-18-40-ADA 19-18-40EF/19-18-40EFADA 19-18-40KV/19-18-40KV
19-18-60/19-18-60-ADA 19-18-60EF/19-18-60EFADA 19-18-60KV/19-18-60KV
19-18-80/19-18-80-ADA 19-18-80EF/19-18-80EFADA 19-18-80KV/19-18-80KV
19-18-100/19-18-100-ADA 19-18-100EF/19-18-100EFADA 19-18-100KV/19-18-100KV
19-18-120/19-18-120-ADA 19-18-120EF/19-18-120EFADA 19-18-120KV/19-18-120KV
WSS-14-21/WSS-16-25 WSS-14-21EF/WSS-16-25EF WSS-14-21KV/WSS-16-25KV
Electronic Operated
Knee Operated
INSTALLING KNEE VALVES FOR KV SERIES
Knee Valves can be installed before or after sink is
mounted to the wall. Attach each Knee Valve onto the
sink by fitting into existing stud welded screws found
underneath the unit.
Use supplied nuts to secure valve(s) to sink. Tighten with
7/16” open end wrench (Figure 5).
Connect supply lines to knee valve(s) and supply line(s)
from knee Valve(s) to Faucet(s). Connect drain(s).
Figure 5
4 Nuts
Per Valve
Manual Operated
(Faucet Not Included)
WARNING: Equipment that includes a faucet may expose you to chemicals, including lead, that are known to the
State of California to cause cancer or birth defects or other productive harm. For more Info.,visit www.p65warnings.ca.gov.re
Manual, Electronic
& Knee Valve Units
A.D.A. Units

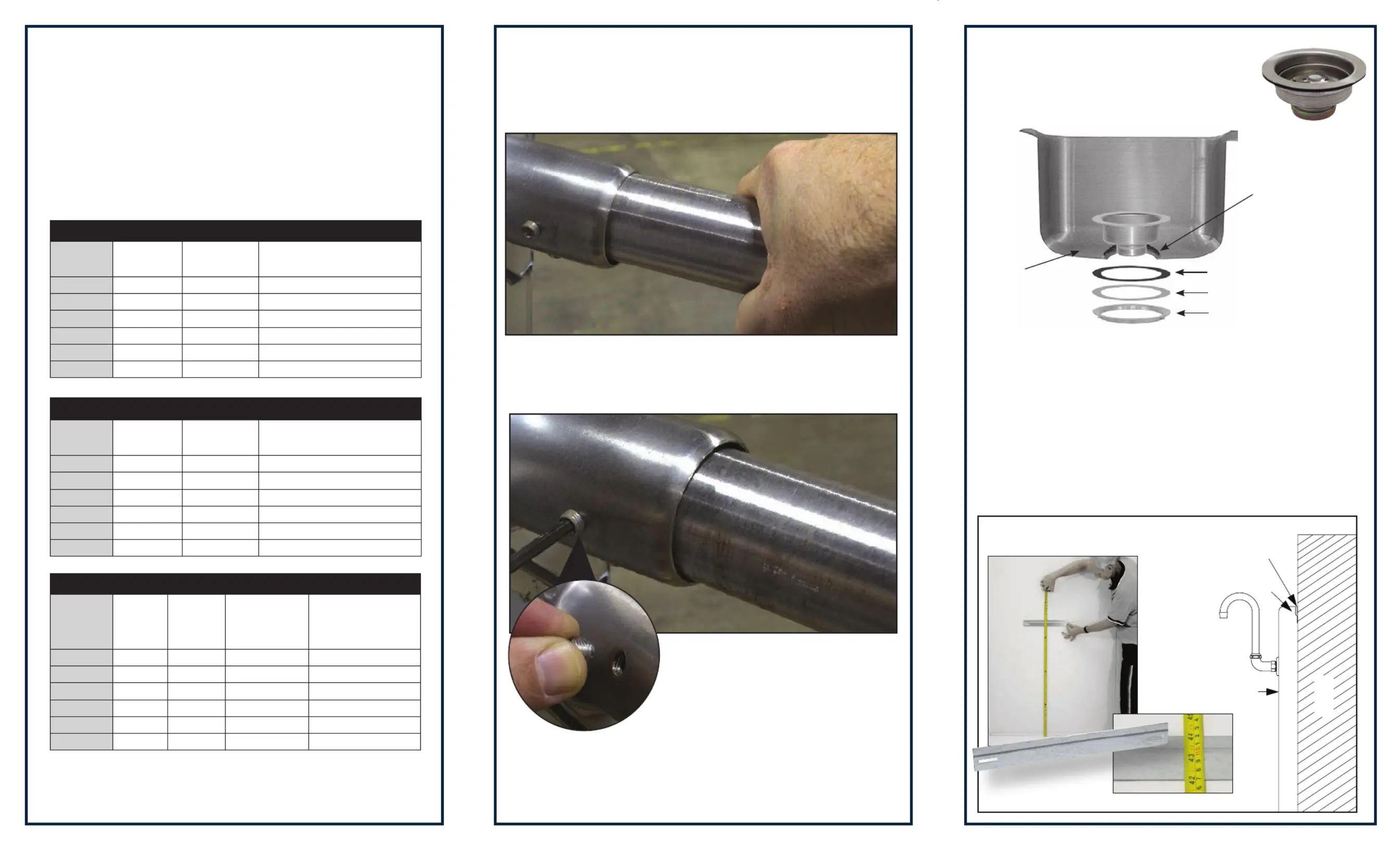

CARTON CONTENTS:
MANUAL OPERATED SERIES
# of
Stations
# of Drains
Included
# of Faucets
Included
# of Supports
Included
1 1 Not Included 2 Support Brackets
2 1 Not Included 2 Support Brackets
3 1 Not Included 2 Support Brackets
4 1 Not Included 2 Support Brackets
5 2 Not Included 4 Support Brackets
6 2 Not Included 4 Support Brackets
ELECTRONIC FAUCET OPERATED SERIES (EF Series)
# of
Stations
# of Drains
Included
# of Faucets
Included
# of Supports
Included
1 1 1 2 Support Brackets
2 1 2 2 Support Brackets
3 1 3 2 Support Brackets
4 1 4 2 Support Brackets
5 2 5 4 Support Brackets
6 2 6 4 Support Brackets
KNEE OPERATED SERIES (KV Series)
# of
Stations
# of
Drains
Included
# of
Faucets
Included
# of
Knee Valves
Included
# of Supports
Included
1 1 1 1 2 Support Brackets
2 1 2 2 2 Support Brackets
3 1 3 3 2 Support Brackets
4 1 4 4 2 Support Brackets
5 2 5 5 4 Support Brackets
6 2 6 6 4 Support Brackets
(1) Sink
(2) “Z” Wall Brackets
Tubular Wall Supports*
Faucet(s)*
Drain(s)*
*See Below For Proper Quantities Supplied Per # Of Stations:
TOOLS NEEDED (Not Included):
5/32” Allen Wrench
7/16” Open End Wrench
STEP 1
Carefully remove contents of carton/crate. Position sink
upside down on a protected surface so you can access the
underside of the sink. Install tubular wall supports into Sink
gussets . (Figure 1)
STEP 2
Lightly tighten each Set Screw using 5/32” Allen
Wrench. Do not over-tighten at this time (Figure 2).
PLEASE NOTE: Some models may require Set
Screws to be inserted into the Set Screw Holes.
Figure 1
Figure 2
STEP 3
Place Sink upright and install drain(s)
and faucet(s) at this time. Your plumbing
contractor is responsible for local code
requirements.
Sink
Bottom
K-6 Basket
Drain shown
1/4” continuous
bead of Plumber’s
Putty or Silicone
Sealer.
Rubber Washer
Paper Washer
Die Cast Nut
STEP 4
Mount the provided wall “Z” brackets to wood studs or
cement walls for strong support. Mount the brackets at
recommended height of 44” from the finished floor to the
to the top of the bracket (Figure 3). When installing
A.D.A. sink models, be sure to review A.D.A. codes
for proper install heights. See suggested rough-in
dimensions on next page.
Slide the sink onto the wall brackets and be sure the sink
sits securely on them.
Back Splash
Silicone Sealer
" " Z Bracket
Wall
Figure 3
Actual “Z”
Bracket Shown
