Round Ceiling IP Speaker (Mic Enabled)
(IPSCM-RMe) Installation
Advanced Network Devices • 3820 Ventura Dr. Arlington Hts. IL 60004
tech@anetd.com• 847-463-2237 • www.anetd.com/
1v1.2
INSTALLATION
The device ships with a ferrite for optional
usage. For any concerns over line
performance, wrap CAT5/CAT6 Ethernet
cable around ferrite once and clamp shut.

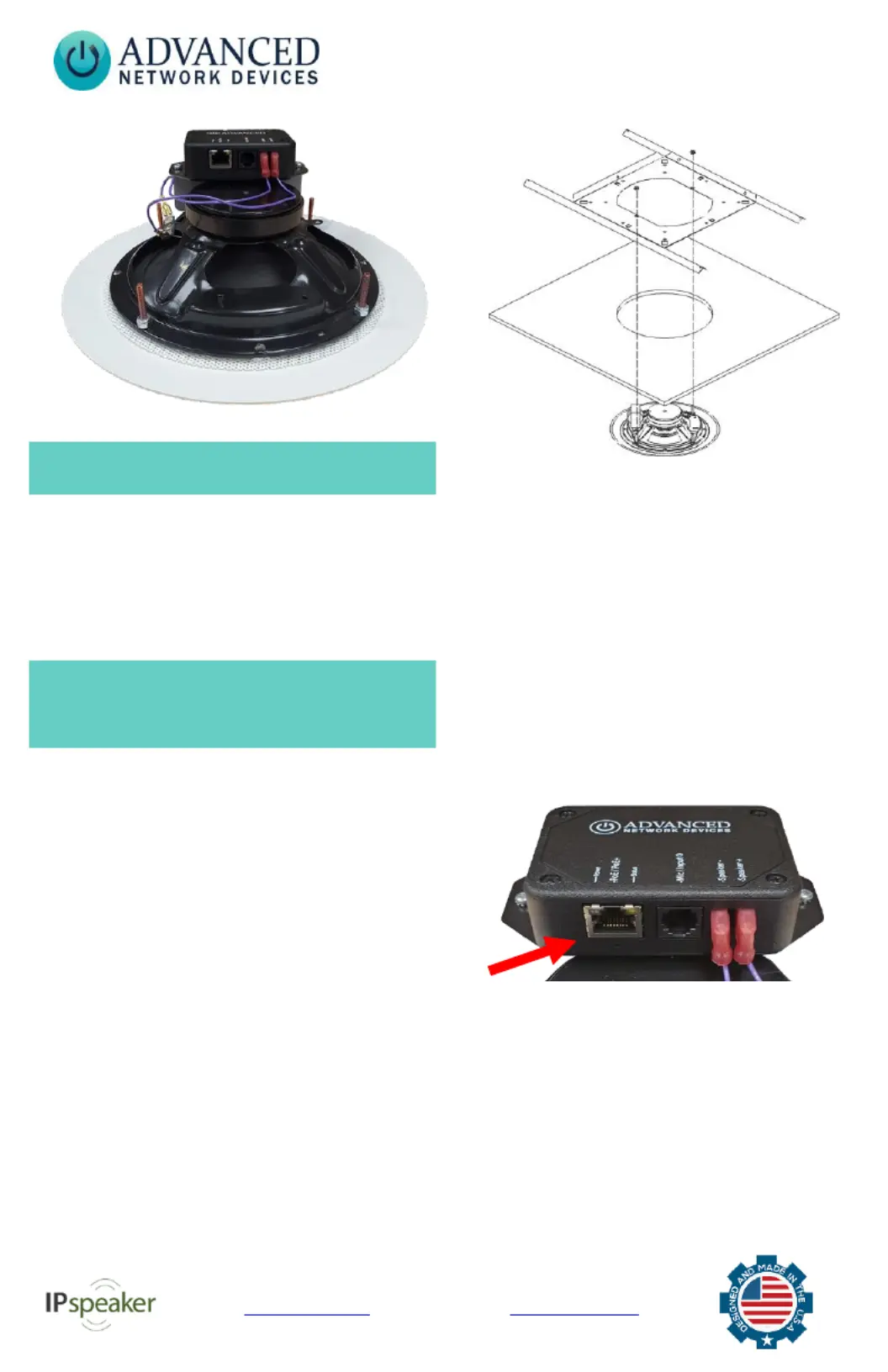

IPSCM-RM-CB ASSEMBLY FOR
SUSPENDED CEILINGS
1.Align the IPSCM-RM-CB bridge on the
tile, such that the support legs end at
the tile edges, and mark along the round
section; rotate bridge 90˚ to mark
remainder of hole. Use caution when
handling the bridge as it contains sharp
edges.
2.Cut ceiling tile along the marked circle.
3.Place the IP speaker assembly on flat
surface, magnet side up.
4.Center ceiling tile over the IPSCM-RMe
speaker.
5.Place the IPSCM-RM-CB bridge over the
baffle assembly with two studs of the
speaker baffle running through the two
small oval holes of the bridge.
6.Secure speaker assembly, tile, and
IPSCM-RM-CB bridge together with
the two #8-32 nuts provided in the
bag attached to the speaker magnet.
7.Complete the network cable run to
the IP speaker.

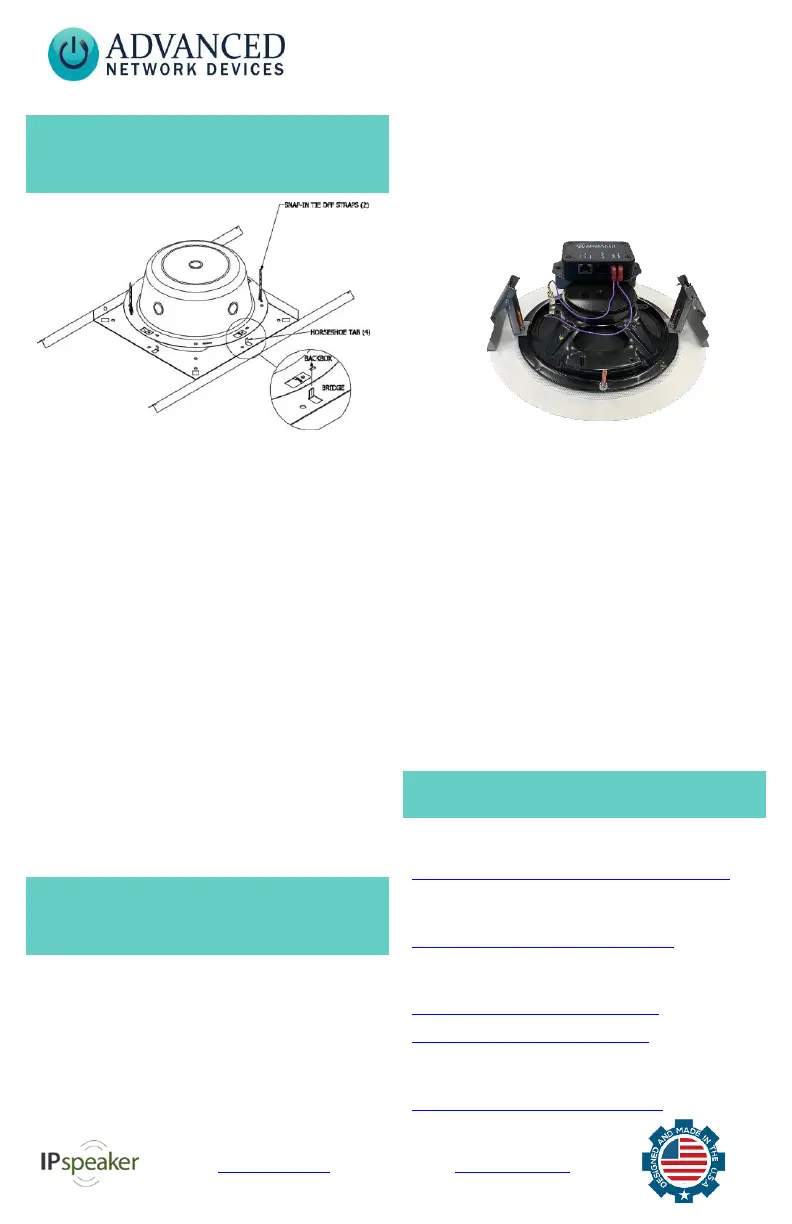

8.Install back box (IPSCM-RM-BB) if
necessary, per instructions in next
section.
9.Connect the network cable to
Ethernet jack labeled PoE/PoE+.
10.Secure IPSCM-RM-BB back box if
used, tie off unit to building structure
if required using straps on the back
box, then place entire assembly into
ceiling.
