Zone Line Out Controller
(ZONE-LO)
Advanced Network Devices • 3820 Ventura Drive Arlington Heights, IL 60004
Support: tech@anetd.com • 847-463-2237 • www.anetd.com/user-support/
1 v1.3

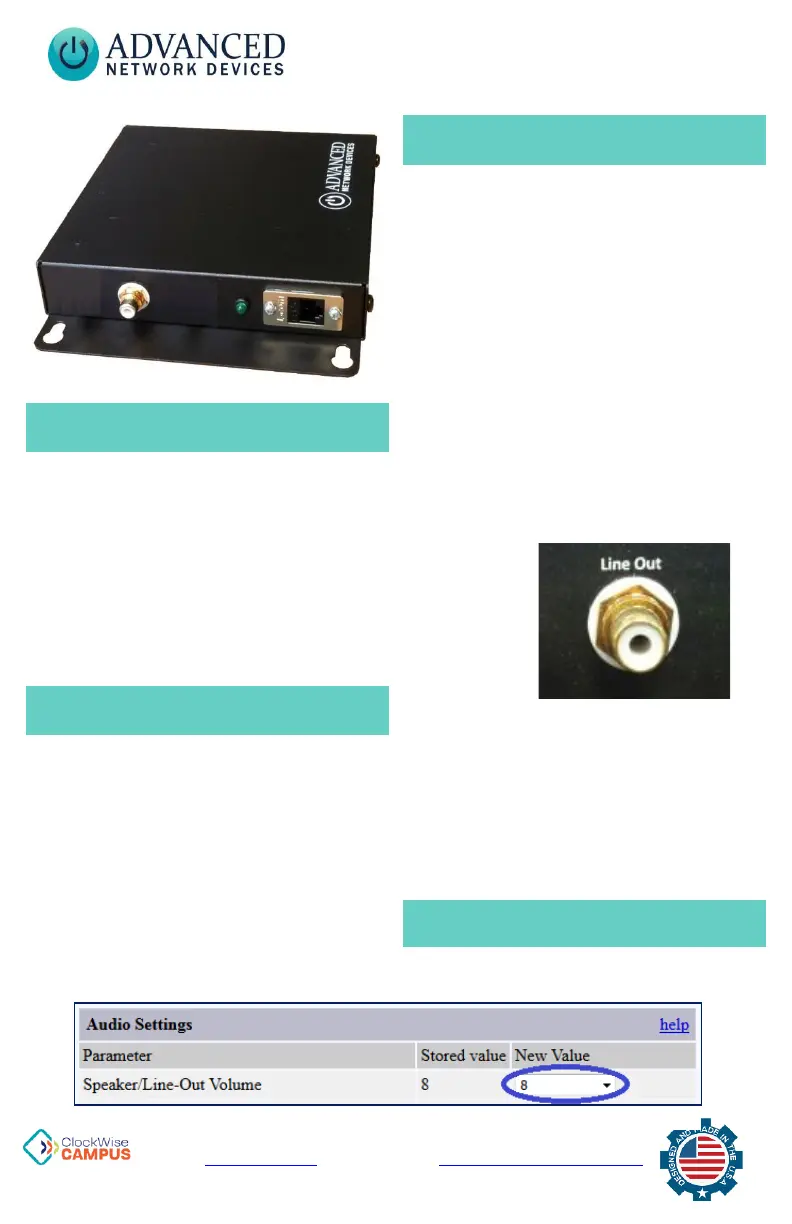

Figure 1
OVERVIEW
The ZONE-LO provides access to a line-
level audio output signal*. You can
access the signal via a front panel RCA
connector, typically used to connect to
analog amplifiers.
*10k Ohm, unbalanced, 2Vpp, Dynamic Range:
93dB. THD+N: 0.008%
INSTALLATION
The device can mount to a wall using the
four keyhole features located at the
corners of the device, with wall anchors
appropriate to the installation surface.
Power the device with PoE or PoE+,
connected via an Ethernet cable to the
PoE input. With power applied, the
green Power LED on the front panel will
illuminate.
SETUP AND USE
WARNING: Make sure to turn off
equipment when making connections,
and to set audio equipment volume to a
low value before powering on to avoid
any audio “pop” in the output.
The ANetD ZONE-LO works with a wide
variety of amplifiers. Please refer to the
technical documentation for your
speaker product when connecting to the
audio input.
Line Level Output
The RCA
connection
provides an
unbalanced
line-level
output,
typically used to connect to analog
amplifiers. This output activates
automatically any time the ZONE-LO
receives audio streams. More detailed
specifications include: 10k Ohm,
unbalanced, 2Vpp line-level output.
AMPLIFIER INTERFACE
Zone Line Out Controller
(ZONE-LO)
Advanced Network Devices • 3820 Ventura Drive Arlington Heights, IL 60004
Support: tech@anetd.com • 847-463-2237 • www.anetd.com/user-support/
2 v1.3
AND Zone Line Out Controllers work with
a wide variety of amplifiers. Please refer
to the technical documentation for your
specific product when connecting the
audio input.
Technical specifications for the audio
output from the Zone Line Out
Controller:
RCA Line Out
10k Ohm, unbalanced, 2Vpp line-level
output. Dynamic Range: 93dB. THD+N:
0.008%

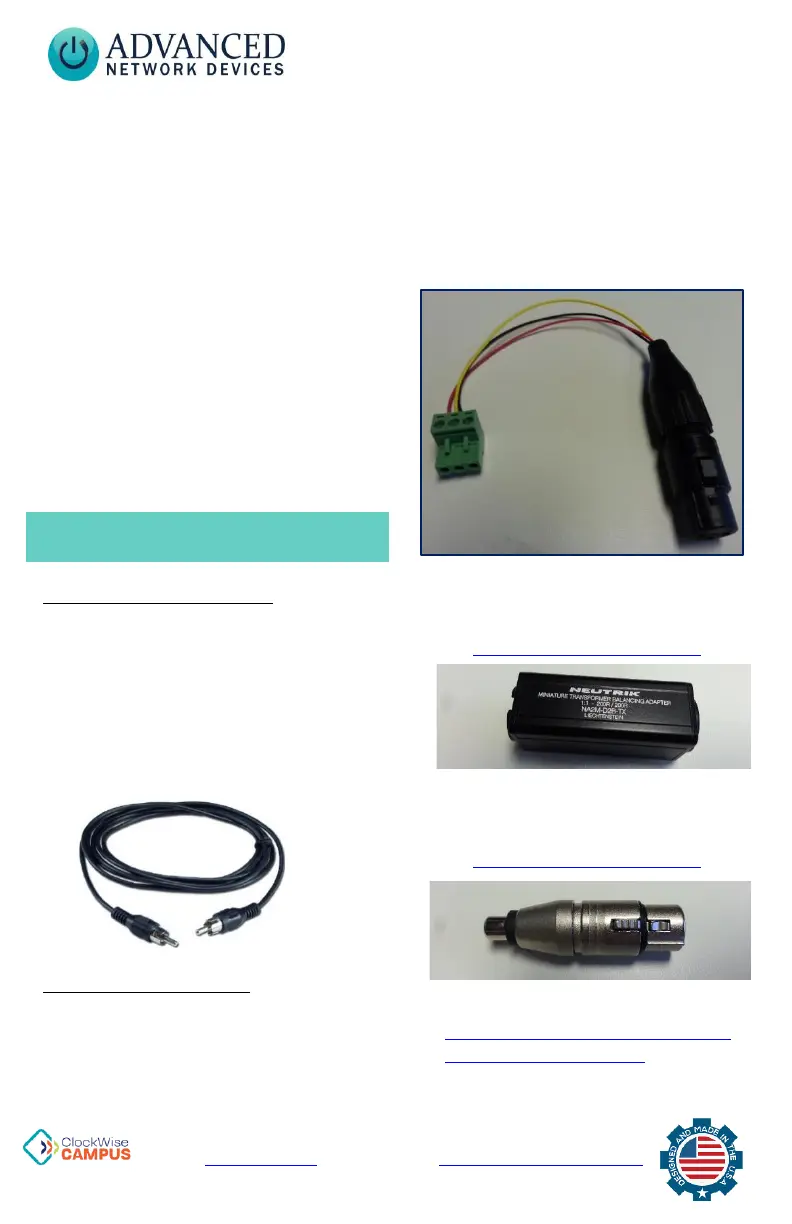

CABLES AND ADAPTERS
Unbalanced Amplifier Input
The ZONE-LO includes an RCA audio line-
level output port, enabling use of a
standard male-to-male RCA cable for
unbalanced amplifier inputs. You can
purchase this item off-the-shelf from a
variety of electronics stores.
Balanced Amplifier Input
If the amplifier only features balanced
inputs, then the recommended use of
XLR works as the most straightforward
method of adapting the unbalanced
audio output from the ZONE-LO. We
recommend a short RCA cable and a
longer XLR cable whenever possible due
to the enhanced noise rejection on the
XLR. These two tested RCA-to-XLR
adapter options proved to work.
1. Neutrik XLR adapter with audio
transformer:
Mouser Electronics Website
2. Neutrik XLR adapter without
transformer:
Mouser Electronics Website
Source:
http://en.wikipedia.org/wiki/XLR_connector
#Technical_usage_information
