Startup Manual 1
Packing List
Before installation, make sure that you have
received the following:
• ADAM-3617 Product
• ADAM-3617 Startup Manual
If anything is missing or damaged, contact your
distributor or sales representative immediately.
Specications
System Functions
• Analog Input Channels: 4 differential
• Input Type: V, mA
• Voltage/Current Range ±10V, ±2.5V, 0~20mA,
4~20 mA
• Resolution 16-bit
• Accuracy ±0.1% or better of
FSR(Voltage)
±0.2% or better of
FSR(Current)
• Isolation Voltage 2000 V
DC
• Burn-out Detection Yes(Current-only)
• Power Consumption 1w
• Operation Temp. -40 ~ 70°C
• Warranty 2 years
Notes
For more information on this and other Advantech
products, please visit our websites at:
http://www.advantech.com
For technical support and service:
http://www.advantech.com/support/
This startup manual is for ADAM-3617
Part No: 2003A61700 1st Edition
January 2016
STARTUP MANUAL
ADAM-3617
4-ch Analog Input Module
Application Wiring
Overview
As ADAM-3600 Extension I/O, ADAM-3617 is a
16-bit analog input module that provides 4-chs
of voltage and current signal acquisition. This
module is extremely cost-effective solution for
industrial measurement and monitoring applica-
tions.
Caution:
When connecting jumpers or installing the card, you should disconnect the power to prevent surges
damaging sensitive electronic components.
Switch Description
SW1 Status Description
OFF(Default) Voltage Input
ON Current Input
2 Startup Manual
Installation

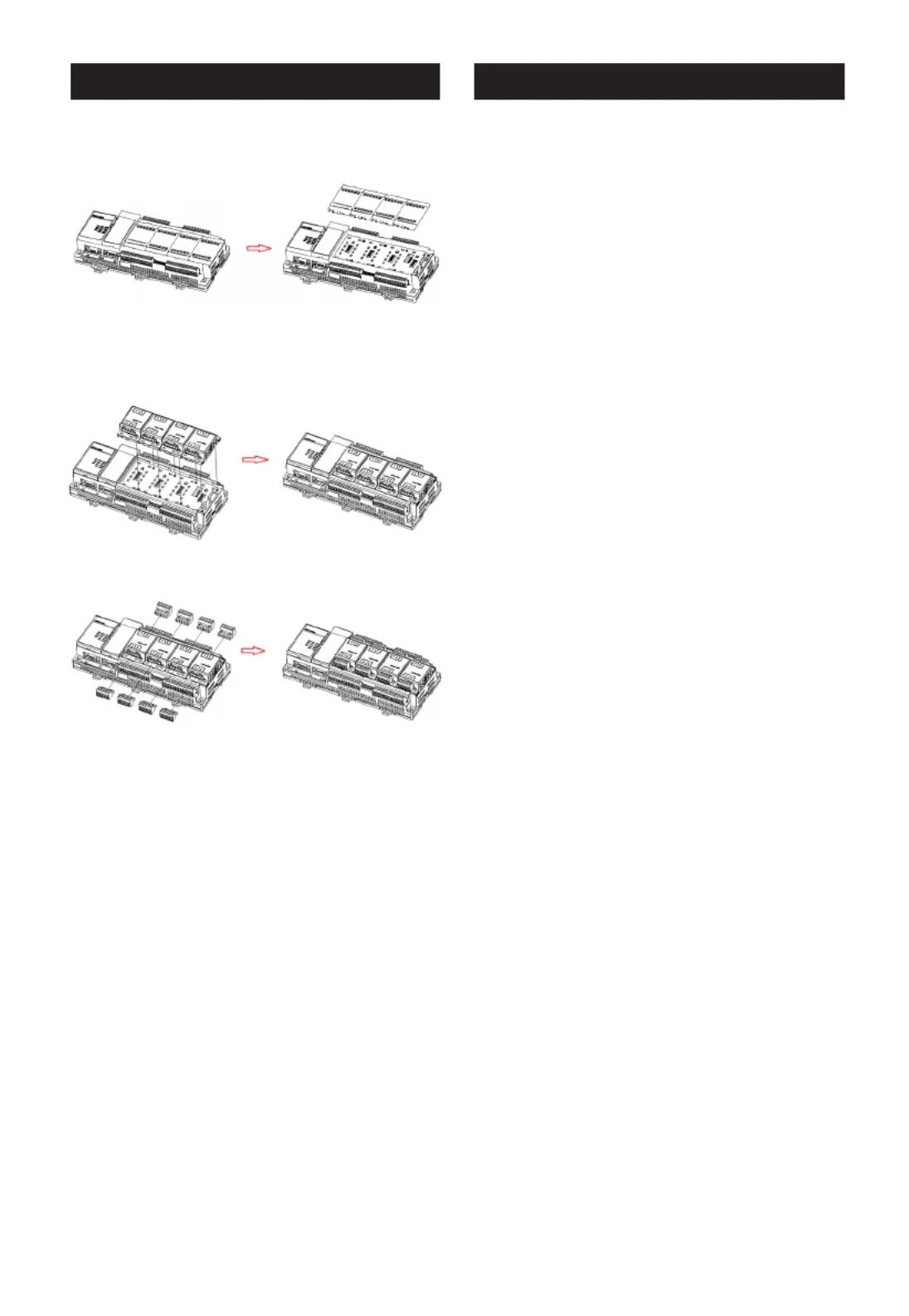

1. Remove the cover of extension slot on the
ADAM-3600-C
2. Install ADAM-3617 on the extension slot, please
note that the connector must be perfectly match,
and then fix the two screws.
3. Fix the terminal block
Software and User Manual
The TagLink Studio is for completing ADAM-
3600 and its extension I/O configuration and
management. The PC operation system is
Windows XP/Windows 7. The software installa-
tion package as well as user’s manual can be
acquired from the following path: http://www.
advantech.com/
