ADAM-4510_4510S_4520 Startup Manual 1
Before you begin installing your module, make sure that the
following materials have been included:
• 1 x ADAM-4510, 4510S, 4520
• 1 x DIN-rail mounting bracket (attached to module)
• 1 x ADAM-4510/4510S/4520 Startup Manual
• 1 x Panel mounting bracket
If any of the above items are missing or damaged, please
contact your distributor or sales representative immediately.
CE Notication
ADAM-4510, 4510S and 4520 developed by Advan-
tech Co., Ltd. has passed the CE test for environmental
specications.Thetestconditionsforpassingincludingthe
equipment being operated within an industrial enclosure.
Therefore,inordertoprotecttheADAMmodulefrombeing
damaged by ESD, we strongly recommend that the use of
CE-compliant industrial enclosure products.
• Automatic internal RS-485 bus supervision
• NoexternalowcontrolsignalsforRS-485
• Minimum 3000 V
DC
isolation (4510S/4520)
• TransientsuppressiononRS-485datalines
• Baudrate up to 115.2 kbps
• Networking up to 4000 feet (1200 m)
• Reserved space for termination resistors
• Poweranddataowindicatorfortroubleshooting
• Power requirement: +10 to +30 V
DC
• Mounts easily on DIN-rail or panel
ADAM-4510 RS-422/RS-485 Repeater
ADAM-4510S Isolated RS-422/485 Repeater
ADAM-4520 Isolated RS-232 to RS-422/485 Converter
Startup Manual
ADAM-4520 transparently converts RS-232 signals into
RS-422orRS-485.ADAM-4510/4510Sampliesexisting
RS-485 signals.
Intelligent RS-485 Control
ADAM-4510, 4510S, and 4520 automatically senses the di-
rectionofthedataowandswitchestransmissiondirection.
Isolation (ADAM-4510S/4520 only)
ADAM-4510S and 4520’s Opto-isolators provide 3000 V
DC
isolation to protect the host computer from ground loops
and voltage spikes.
Surge Protection
ADAM-4510/4510Sand4520oerinternalsurge-protection
on their data lines. Internal high speed transient suppres-
sors on each data line protect the modules from dangerous
voltages levels or spikes.
Common
• Power Requirements: Unregulated +10 to +30 V
DC
• Case: ABS+PC with captive mounting hardware
• Accessories (supplied): DIN-rail mounting adapter,
panel mounting bracket
• Plug-in screw terminal wiring: Accepts AWG 1-#12 to
#22 (0.5 to 2.5 mm)
• Operating Temperature: -10~70°C (14~158° F)
• Storage Temperature: -25 ~ 85°C (-13~185° F)
• Humidity: 5 ~ 95%, non-condensing
ADAM-4510/4510S

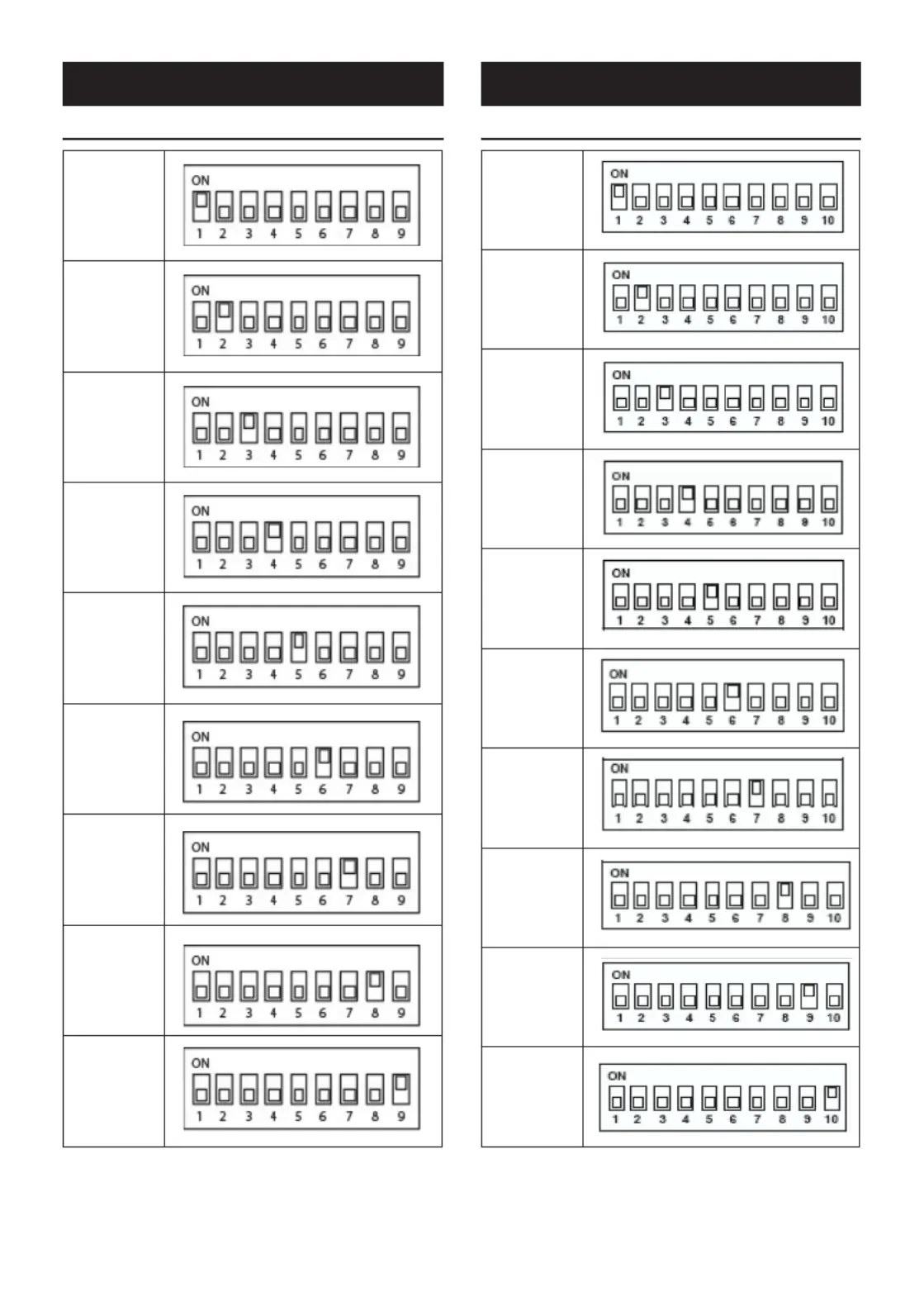

• Baudrate (bps): 1200, 2400, 4800, 9600, 19.2 k, 38.4
k, 57.6 k, 115.2 k, RS-422 (switchable)
• Isolation Voltage: 3000 V
DC
(4510S only)
• RS-422/RS-485 Interface: plug-in screw terminal
• Power Consumption:
- ADAM-4510
Typical:1.1W@24V
DC
Max.:1.2W@24V
DC
- ADAM-4510S
Typical:1.5W@24V
DC
Max.:1.6W@24V
DC
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com/eAutomation
For technical support and service:
http://www.advantech.com/support/
ThisstartupmanualisforADAM-4510,4510S,4520.
Part No. 2003452014 Edition 9
March 2022
Declaration of Conformity
Overview
Specications
Declaration of Conformity
