VEGA-X110 Startup Manual 1
Before you start installing your card, please make sure that
the following items have been shipped:
• 1 x VEGA-X110 GPU card
• 1 x Startup Manual
• 1 x China RoHS
Optional: Thermal Kit
• 1 x Fansink or 1 x Heat spreader attachment
(Based on the customer’s order requirement)
Note: Regarding OpenVINO, you can go to:
https://www.intel.com/content/www/us/en/devel-
oper/tools/openvino-toolkit/overview.html
to download the latest version.
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
VEGA-X110
MXM 3.1 Intel® Arc™ A-Series A370M
Embedded GPU Card
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for VEGA-X110.
Part No. 2046X11000
Printed in Taiwan
Edition 1
July 2023

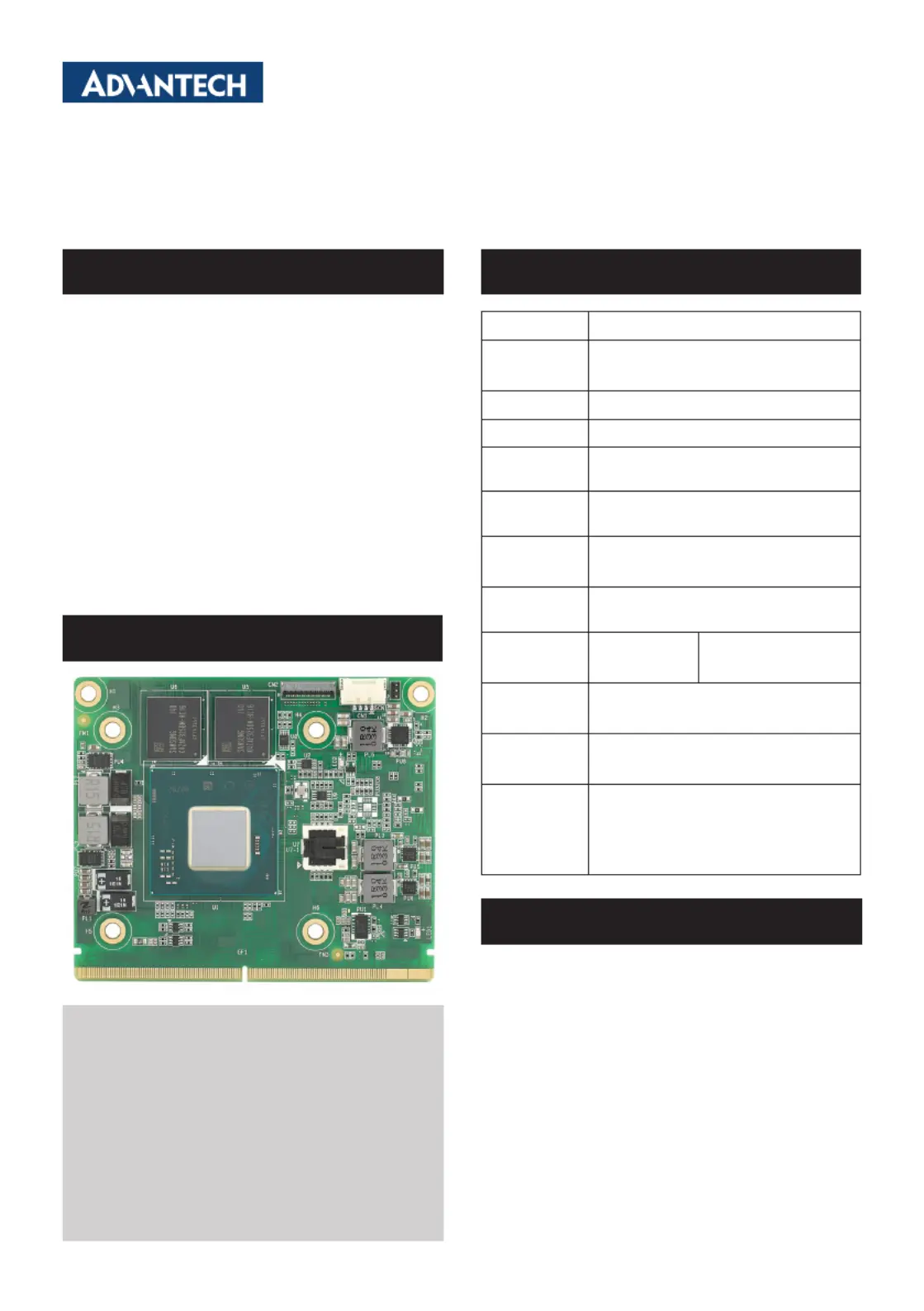

Product Picture
Product VEGA-X110-00A1
Form Factor
Mobile PCI Express Module
(MXM 3.1 Type-A)
GPU Intel® Arc™ A370M
Memory GDDR6 4GB
Dimensions
(W x D)
82 x 70 mm
Signal
Interface
MXM 3.1 PCI Express Gen 4 p1-x8 with
3.0 Backwards Compatibility
Temperature
0~60 °C
(Depends on the GPU and cooler)
Max. Power
Consumption
Up to 40 watts
Thermal
Solution
Fansink
(optional)
Heat spreader
(optional)
Power Range
9-20V
(Fan control: 12V only)
Dislay I/O
Ports
Reserved 4 x DisplayPort 1.4a,
7680 x 4320 @60Hz, 8K
Graphics
Engine
DirectX 12, OpenGL 4.6, OpenCL 3.0
HW Encoding: H.264/H.265(HEVC)/AV1
HW Decoding: H.264/H.265(HEVC)/
AV1/VP9
• Above 4G decoding enabled
• Resizable (Re-Size) BAR support enabled
• Compatibility Support Module (CSM) or Legacy Mode
must be disabled and UEFI boot mode must be Enabled.
Notes: The procedure to enable resizable BAR may be
dierentforeachsystemmanufacturer.Please
checkwithyoursystemmanufacturerforspecic
instructions as necessary.
The Resizable BAR option may be described as
Re-Size BAR, Smart Access Memory, or Clever
Access Memory.
Visit the Intel website to get more information:
https://www.intel.com/content/www/us/en/sup-
port/articles/000091128/graphics.html
Motherboard Requirements
2 VEGA-X110 Startup Manual
Connector Location Connector Description Pin Denitions Symbol
CN1
4-Pin Fan
Connector
PIN1: GND
PIN2: +12V
PIN3: FAN TACH
PIN4: FAN PWM
Notes: Insert the fan plug into the fan connector on the VEGA-X110 GPU card.
VEGA-X110
VEGA-X110 with Fansink (optional)
VEGA-X110 with Heat Spreader (optional)

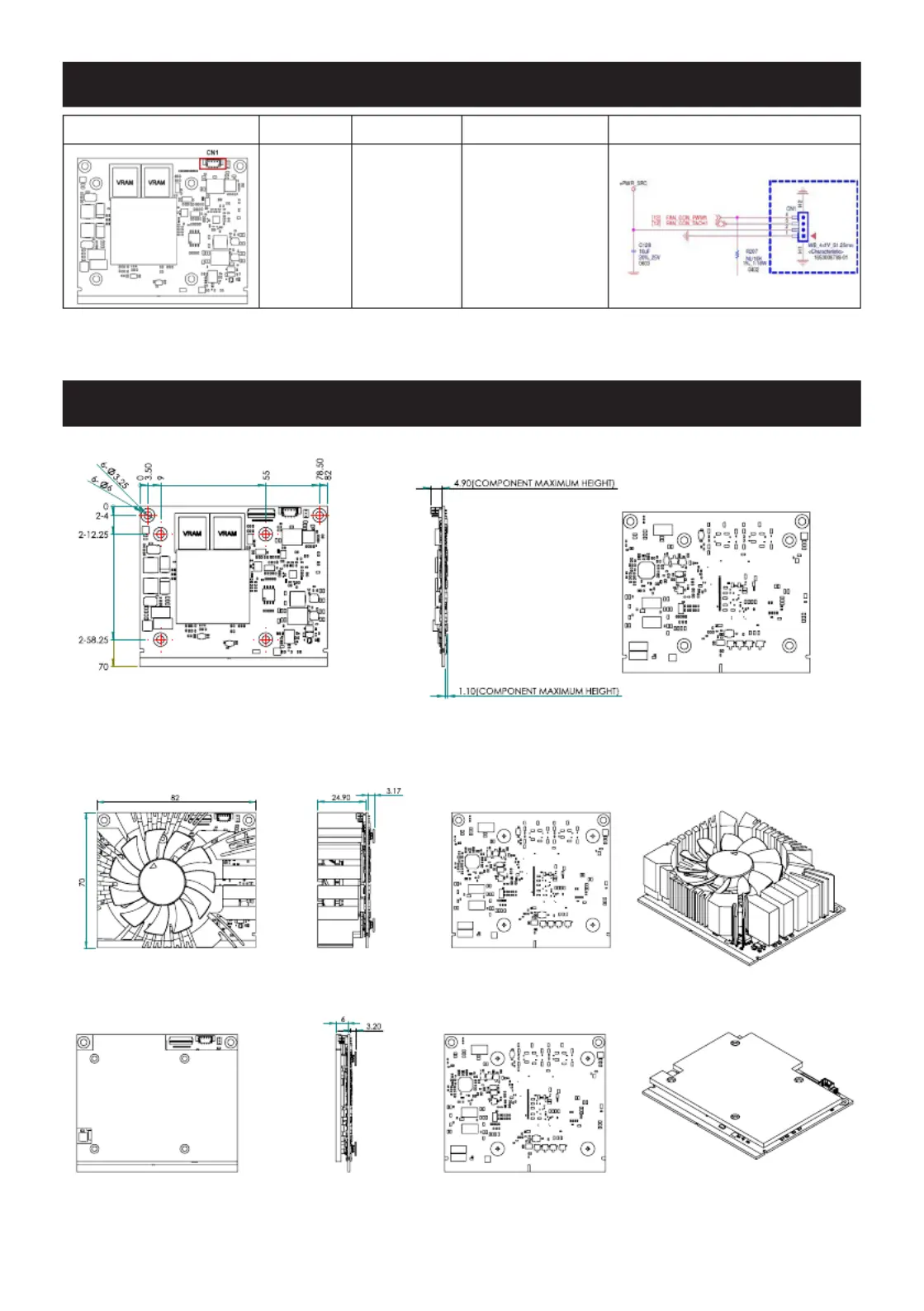

Connectors
Dimensions
