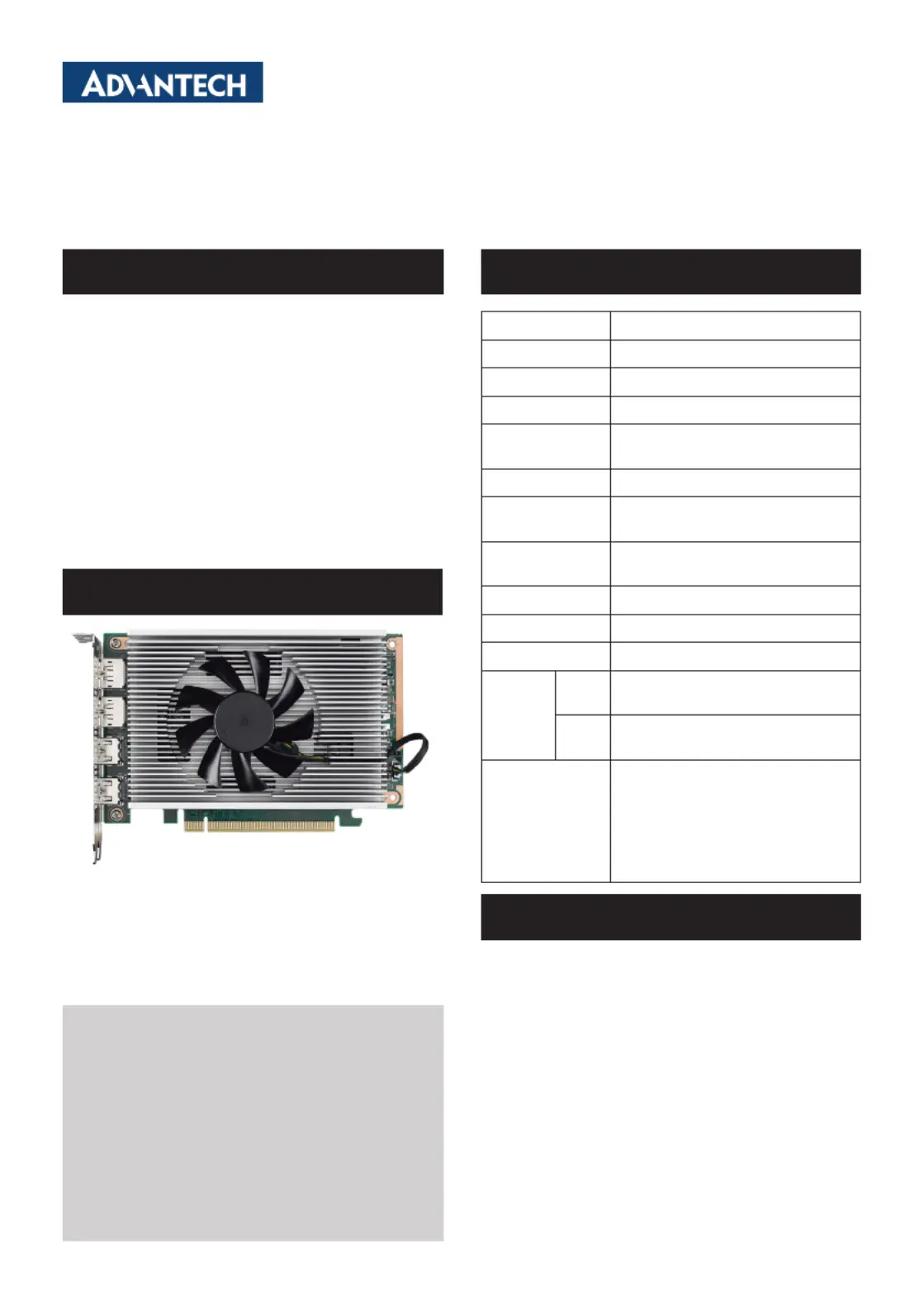

VEGA-P110 Startup Manual 1
Before you start installing your card, please make sure that
the following items have been shipped:
• 1 x VEGA-P110 GPU card with active fan and full-height
PCIe bracket installed
• 1 x Startup Manual
• 1 x China RoHS
Note: Regarding OpenVINO, you can go to:
https://www.intel.com/content/www/us/en/devel-
oper/tools/openvino-toolkit/overview.html
to download the latest version.
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
VEGA-P110
PCIe x16 Intel® Arc™ A370M
Embedded GPU Card
Product VEGA-P110-42A1
Form Factor PCI Express x16
GPU Intel® Arc™ A370M
Memory GDDR6 4GB
Dimensions
(W x H x D)
168 x 110 x 34.8 mm, Dual Slots
Signal Interface PCI Express Gen 4.0 x8
Temperature
0~60 °C (Depending on the GPU
and cooler solution)
Max. Power
Consumption
Up to 60 watts
Thermal Solution Single Active Fan
Power Connector 8-pin power input
Power Range DC 12V input
Dislay
I/O Ports
DP
2 x DisplayPort 1.4a,
7680 x 4320 @ 60Hz, 8K
HDMI
2 x HDMI 2.0b,
4096 x 2160 @ 60Hz, 4K
Graphics Engine
DirectX 12, OpenGL 4.6, OpenCL
3.0
HW Encode: H.264/H.265 (HEVC)/
AV1
HW Decode: H.264/H.265 (HEVC)/
AV1/VP9
• Above 4G Decoding enabled
• Resizable (Re-Size) BAR support enabled
• Compatibility Support Module (CSM) or Legacy Mode
must be disabled and UEFI boot mode must be Enabled.
Notes: The procedure to enable the resizable BAR
maybedierentforeachsystemmanufacturer.
Please check with your system manufacturer for
specicinstructionsasnecessary.
The Resizable BAR option may be described as
Re-Size BAR, Smart Access Memory, or Clever
Access Memory.
Visit the Intel website to get more information:
https://www.intel.com/content/www/us/en/sup-
port/articles/000091128/graphics.html
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for VEGA-P110.
Part No. 2046P11000
Printed in Taiwan
Edition 1
July 2023
Product Picture
Motherboard Requirements
2 VEGA-P110 Startup Manual
Connectors
Below are the connectors for VEGA-P110:
Connector Location Connector Description Pin Denitions Symbol
ATX8P1
PCIe Card Power from ATX
power supply (Optional)
PIN1 : +12VDC
PIN2 : +12VDC
PIN3 : +12VDC
PIN4 : GND
PIN5 : GND
PIN6 : GND
PIN7 : GND
PIN8 : GND
FAN1 4-Pin Fan Connector
PIN1 : GND
PIN2 : +12VDC
PIN3 : FAN TACH
PIN4 : FAN PWM
104.86
169.94(PCBA WITH PCIe Bracket)
1.04
168(PCBA)
110(PCBA )
30
2.60
37.47
38.74
120.92
125.31
74
74
Dimensions
