MIC-7_Flex_IO Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. Flex I/O board x 1
2. Flex I/O Expansion Kit Startup manual x 1
P/N: 2041077070
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
le. Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe).
Flex I/O Expansion Kit
Flexible Expansion for Additional I/O and
Functions in MIC-7 Series
Startup Manual
Ethernet
• Ethernet Controller IC: Intel i210-AT
• Interface Speed: 10/100/1000 Mbps
• Ethernet Interface P/N: 98910770320 (2 ports),
98910770330 (4 ports)
• Ethernet Controller IC: Intel i226-V
• Interface Speed: 10/100/1000 Mbps, 2.5 Gbps
• Ethernet Interface P/N: 98910770340 (2 ports),
98910770350 (4 ports)
Storage
• Storage Interface: NVMe (1 x PCIex4)
• Supported Form Factor: M.2 2280
Others
Giga LAN Connector (bi-color light)
Left Side: Green/Orange LED
Status Display
10Mbps Always turn o
100Mbps Orange
1000Mbps Green
2.5Gbps LAN Connector (bi-color light)
Left Side: Green/Orange LED
Status Display
10Mbps Always turn o
100Mbps Always turn o
1000Mbps Orange
2.5GBE Green
Environment
• Operating Temperature
- TDP 35W CPU: -20 ~ 60 °C
- TDP 65W CPU: -20 ~ 50 °C
• Storage Temperature: -40 ~ 85 °C (-40 ~ 185 °F)
• Relative Humidity: 95% @ 40°C (non-condensing)
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.tw
For technical support and service, please visit our sup-
port website for Flex I/O Expansion Kit at:
https://advt.ch/mic770spt
Register your products on our website and get 2
months extra warranty for free at:
Http://www.register.advantech.com
This manual is for the Flex I/O Expansion Kit Rev.A1.
Part No. 2041077070
Printed in China
1st Edition
May 2025
2 MIC-7_Flex_IO Startup Manual
P/N
NVMe
M.2
Eternet
Chip
Interface
Speed
Ethernet
Port
98910770320 - i210-AT 1 GbE 2
98910770330 1 i210-AT 1 GbE 4
98910770340 - i226-V 2.5 GbE 2
98910770350 1 i226-V 2.5 GbE 4

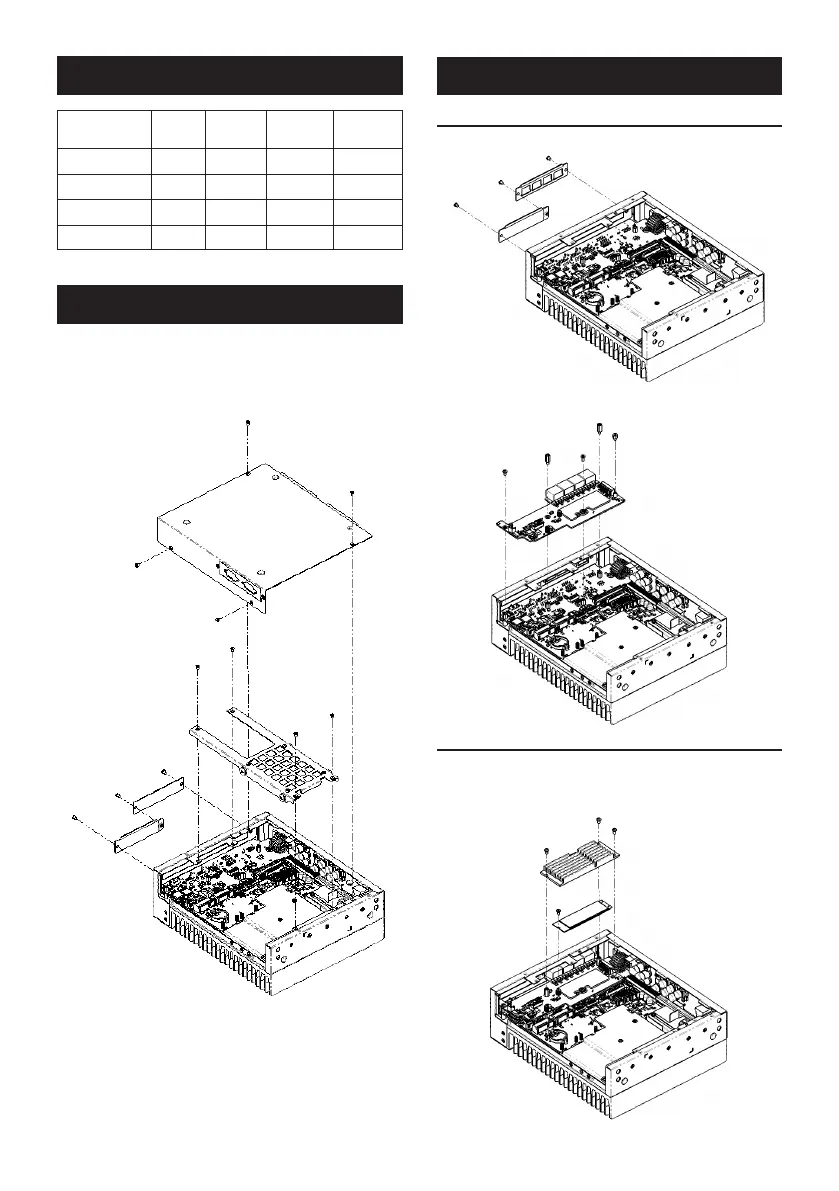

1. Remove the 4 screws and remove the bottom cover.
2. Remove the 4 screws and remove the storage device
bracket.
3. Remove the 2 screws and the front cover.
Selection Table
Simple Maintenance Process
Simple Maintenance Process (Cont.)
Flex IO Installation
1. Install the front cover and tighten the screws.
2. Install the front cover and tighten the screws.
NVMe Installation
1. Install NVMe and tighten 1 screw.
2. Install the NVMe HS and tighten the three screws.
3. Replace the bottom cover and secure it with the screws.
