FWA-1211 Startup Manual 1
Before installation, ensure that the following materials have
been received:
• One FWA-1211 din-rail Platform
• One box of accessories
• Onewarrantycerticate
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
Note 1:AcrobatReaderisrequiredtoviewanyPDFle
Acrobat Reader can be downloaded at: www.
adobe.com/Products/acrobat/readstep2.html
(Acrobat is a trademark of Adobe).
Note 2:Suppliedbycertiedpowersupply:
FSP040-RHAN2
ADP-40GD BH
Industrial Grade Cyber Security Appliance based on
Intel® Atom™ x5-E3940/ x5-E3930 Processor Platform
Startup Manual
Main Board Functions
• CPU: Intel Atom™ E3940/E3930
• BIOS: AMI™
• Memory: 1 x DDR3L 1333/1600/1867 MHz SODIMM, up
to 8 GB
• Ethernet:
- 5 x 10/100/1000 Mbps RJ45 via Intel i210-IT with 2
segment bypass
- 2 x10/100/1000 Mbps SFP via Intel i210-IS
• Storage: 1 x 2.5” internal SSD; 1 x mSATA slot (half size)
• Peripherals:
- USB:12x USB2.0 on front panel
- 2 x Power LED
- 1 x HDD LED
- 1 x Alarm LED
- 1 x Micro-HDMI
- 1 x Reset
- 1 x Console
- 2 x DB9 RS-232/422/485 seriel port (SKU option)
• Dimensions (W x L x H): 88 mm x 127 mm x 150 mm
• Weight: 3 Kg
• Environment: Operating Non-operating
• Temperature: -40 °C ~ 70 °C -40 °C ~ 85 °C
(-40 °F ~ 158 °F) (-40 °F ~ 185 °F)
• Altitude: Below 5000 m
• Humidity: 5% ~ 95%
• IP Rating: IP40
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com.tw/support
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the FWA-1211 series Rev. A.
Part No. 2002121100 1 st Edition
December 2020
Warning:
Pleasepowerothemachineanddisconnectitfrom
all power source before you disassemble FWA-1211
machine.
This product is intended to be supplied by an UL Listed
power supply or dc source suitable for use at minimum
Tma 40 degree C whose output meets ES1, LPS, and
is rated 9-36Vdc, 4-1A. If need further assistance,
please contact Advantech for further information.
2 FWA-1211 Startup Manual
FWA-1211

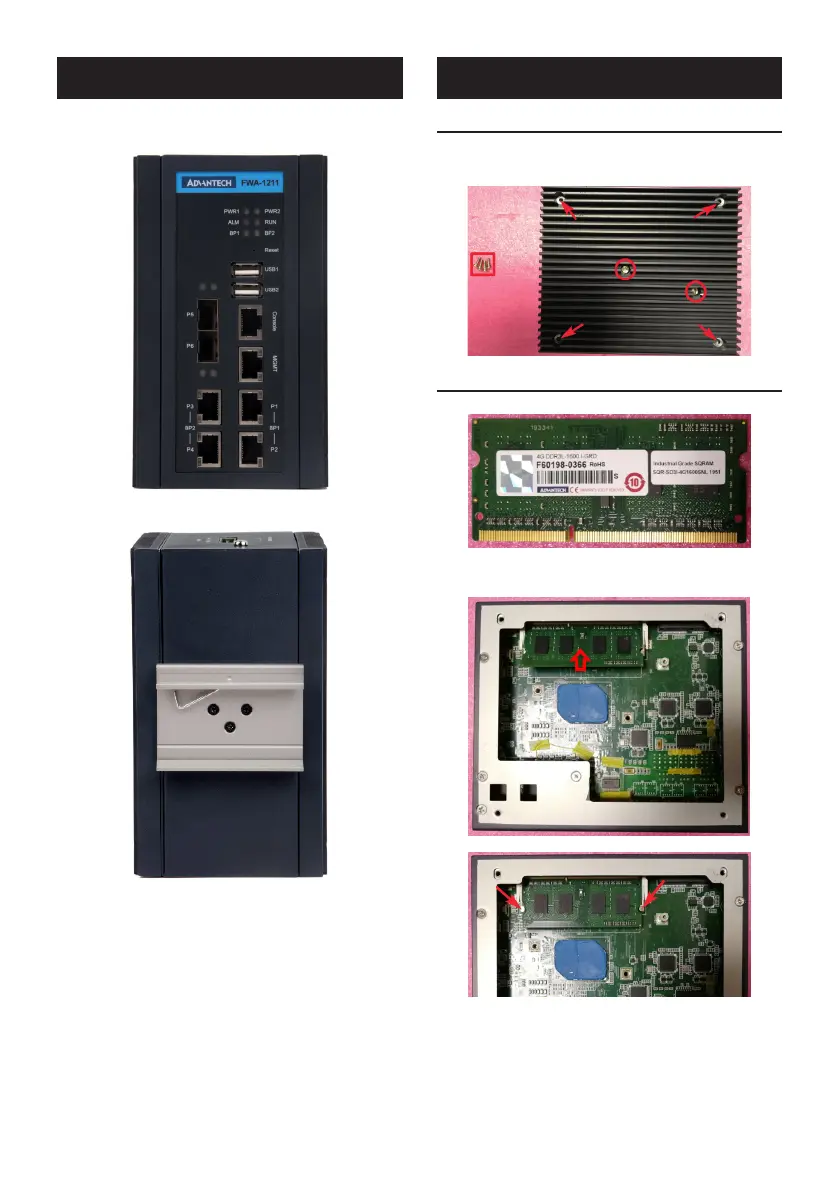

Front view:
Back view:
Specication
Installation
Installing
1. Unfasten the screws (red arrows), take out and keep for
later, then loosen the screws circled in red and remove
the heatsink.
Installing the memory
1. Prepare the memory.
2. Insert into the slot as below and press the memory until
locked.
