MIC-75G20-10C1 Startup Manual 1
Before you begin installing your i-Module, please make sure
that the following items have been shipped:
1. MIC-75G20 i-Module x 1 P/N: MIC-75G20-10C1
2. 4-pin Phoenix connector x 2 P/N: 1652003234
3. SATA cable (30 cm) x 1 P/N: 1700017838
4. SATA cable (40 cm) x 1 P/N: 1700020978-01
5. HDD BP power cable x 1 P/N: 1700024985-01
6. GPU power cable P/N: 1700034485-01
(6 to 6/8 pin) x 2
7. Mounting bracket (L) P/N: 1960005359T00A
8. Mounting bracket (R) P/N: 1960094392N013
9. Screw for mounting bracket x 6 P/N: 1930007259-01
10. MIC-75G20 Startup Manual x 1 P/N: 20415G2012
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
le. Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe).
PCIe Slots
• One PCIe x16 socket
• One PCIe p1-x4 socket
MIC-75G20-10C1
GPU Card Expansion i-Module for MIC-7 Series
Embedded System
Startup Manual
Environment
• Operating Temperature:
-10~30°C (35W CPU w/ industrial
wide-temp. RAM/SSD)
• Storage Temperature: -40~85°C (-40~185°F)
• Relative Humidity: 95% @ 40°C (non-condensing)
Mechanical
• i-Module Dimensions: i-Module Dimension (W x H x D):
130 x192 x 385 mm
• With MIC-7 Series: With MIC-7 series (W x H x D): 207 x
192 x 385 mm
Connectors
No. Item Function
1 DCIN1 24V
DC
in
2 PPCIE1 PCIe x16 slot
3 PPCIE2 PCIe p1-x4 slot
4 SATAPWR1 4-pin SATA power connector (5V)
5 SATA signal connectorSATA1
6 GPUPWR1
6-pin power connector for GPU card
(12V, 17A)
7 GPUPWR2
6-pin power connector for GPU card
(12V, 17A)
8 DC12VOOUT1 4-pin power connector (12V, 5A)
9 SYSFAN1 4-pin fan connector
10 SYSFAN2 4-pin fan connector (reserved)
11 LED GPU card power status
Specications(Cont.) Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
This manual is for MIC-75G20-10 Rev. C1.
Part No. 20415G2012
Printed in China
3rd Edition
October 2024
I/O Connectors
Specications
2 MIC-75G20-10C1 Startup Manual
System Installation
MIC-75G20 can be assembled with all MIC-7 series IPC
systems.
1. Undo the MIC-7 series system screws and remove the
bottom cover.
2. Undo the 8 screws on the MIC-75G20.
Simple Maintenance Process
Front View
3. Before aligning the MIC-75G20 and MIC-7, remove
the HDD bracket and adapter bracket by removing the
screws.
4. Secure the MIC-75G30 and MIC-7 Series using the 4
screws.
5. Assemble the MIC-75G20 cover and secure with 8
screws.
6. Reassemble the cover and secure with screws.
SimpleMaintenanceProcess(Cont.)
MIC-75G20-10C1 Startup Manual 3

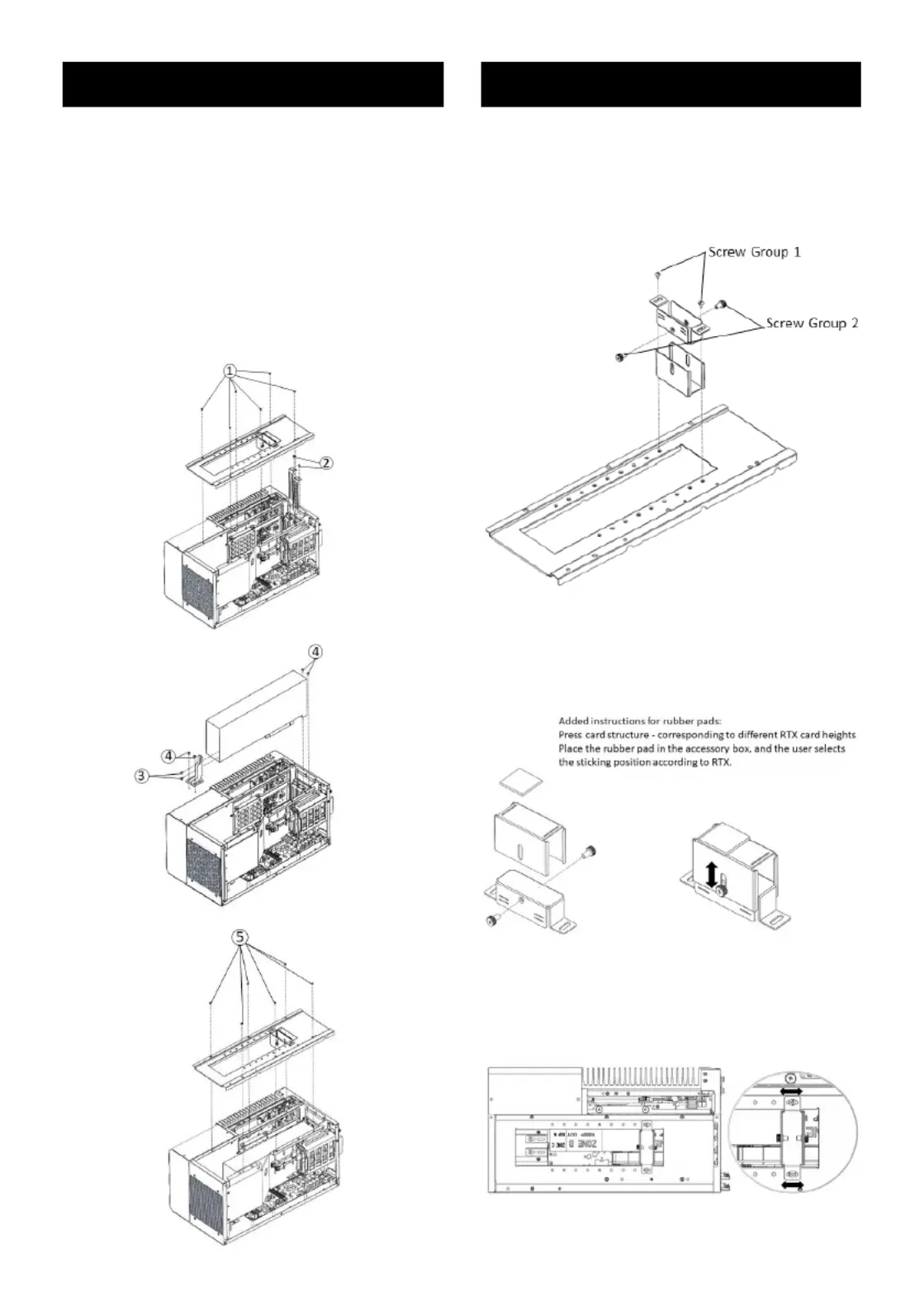

1. Remove the GPU bracket module by unscrewing the
6 screws.
2. Remove the adapter bracket to make space for the
GPU card.
3. Secure the GPU bracket to the GPU card and chassis
with 4 screws.
4. Secure the GPU card to the riser card and chassis with
4 screws.
5. Secure the GPU bracket back with 6 screws.
Note: The installation of the second GPU card works the
same.
1. Release screw group 1 to adjust the bracket to the
optimal position to attach the GPU card.
2. Release screw group 2 to adjust the bracket to the
optimal height to attach the GPU card.
GPU Card Bracket Assembly
GPUCardBracketAssembly(Cont.)
