Sida 1/6
MIC-75GF10 Startup Manual 1
Before you begin installing your i-Module, please make sure
that the following items have been shipped:
1. 1 x MIC-75GF10 i-Module
2. 1 x rubber clamp pad P/N: 1990024989T010
3. 10 x screws M3X4L P/N: 1930007979
4. 2 x screws M3x4.5 P/N: 1930005673-11
5. 4 x screws M4x4L P/N: 1930007259-01
6. 2 x mounting brackets P/N: 1960070545N006
7. 4 x screws for mounting brackets PN: 1930007259-01
8. MIC-75GF10 Start-up manual P/N: 204175GF00
If any of these items are missing or damaged, please
contact your distributor or sales representative immediately.
Note: Acrobat Reader is required to view any PDF
le. Acrobat Reader can be downloaded at: get.
adobe.com/reader (Acrobat is a trademark of
Adobe)
MIC-75GF10
MXM GPU Expansion Module for New AI Applica-
tion with MIC-7 Series Embedded System
Startup Manual
PCIe Slots
• 1 x PCIe p1-x4
• 1 x MXM 3.1 connector with PCIe x16 signal
Environment
• Operating Temperature: T1000: -10 ~ 50 °C; RTX-3000/
A2000/A1000: -10 ~ 40 °C (35W CPU and industrial wide-
temp. RAM/SSD)
• Storage Temperature: - 40 ~ 85° C (-40 ~185° F)
• Relative Humidity: 95% @ 40° C (non-condensing)
Mechanical
• i-Module Dimensions: i-Module Dimension (W x H x D):
192 x 151.5 x 230 mm
• MIC-7 series: (W x H x D): 113 x 192 x 230 mm
Connectors
Item Function
MXM1 MXM 3.1 connector with PCIe x16 signal
PPCIE1 PCIe p1-x4 slot
SATAPWR1 4-pin SATA power connector (5V)
SATA1 SATA signal connector
SYSFAN1 4-pin fan connector
SYSFAN2 4-pin fan connector (reserved)
DC12VOUT1
4 pin DC 12V ATX power connector for
PICE x4
Specications Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
This manual is for the MIC-75GF10 Rev. A1.
Part No. 204175GF00
Printed in China
1st Edition
April 2023

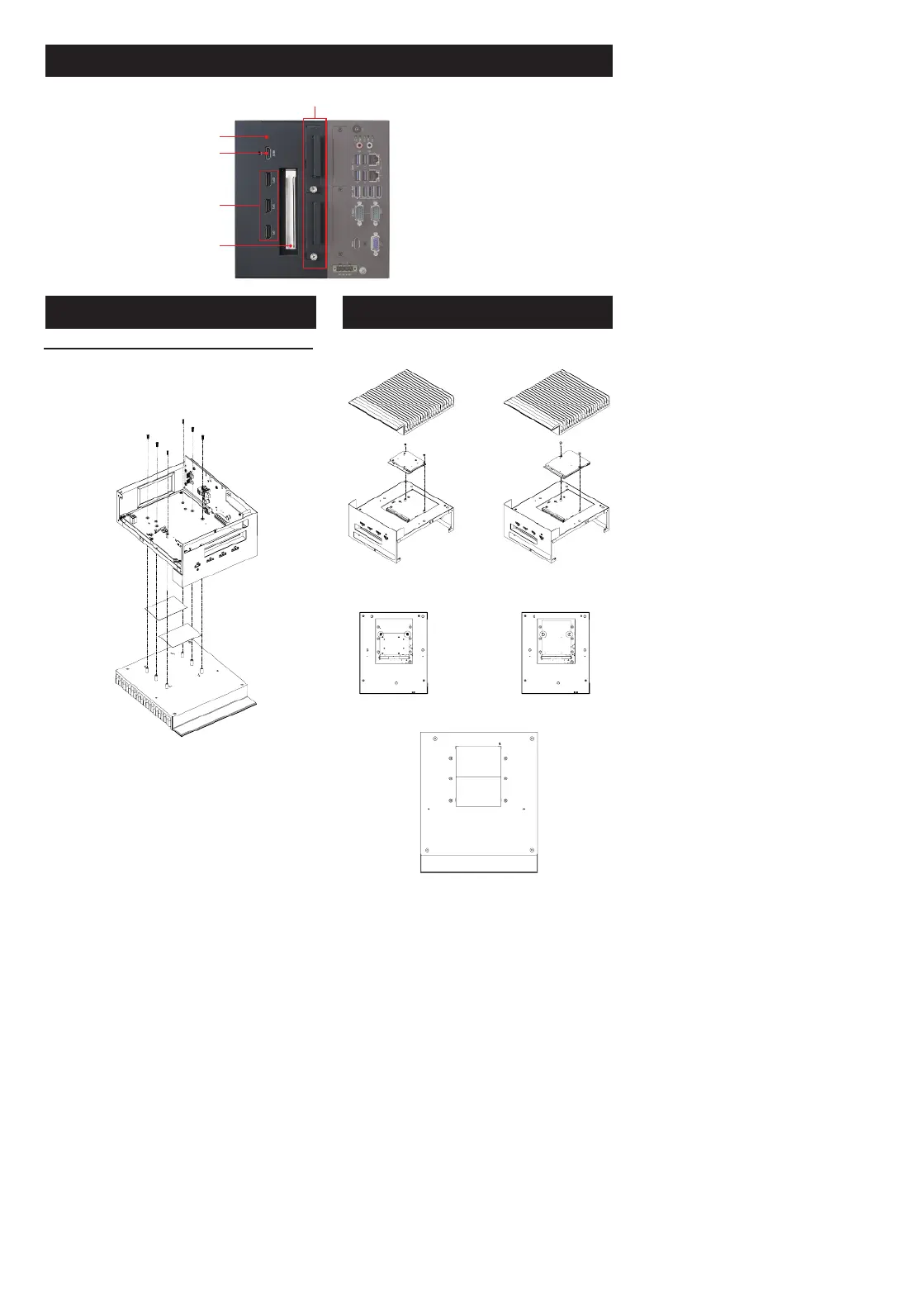

I/O Connectors
2 MIC-75GF10 Startup Manual
System Installation
MIC-75GF10 can be assembled with all MIC-7 series IPC
systems.
1. Undo 6 screws to release heatsink from MXM holder
bracket of MIC-75GF10.
2 x 2.5" swappable storage bay
(up to 15mm thickness)
MXM Conn.
PCIe x16
HDMI
PCIe p2-x4 for add-on card
DisplayPort
Simple Maintenace Process
Front View
2. Attach heat spreader and thermal pad to MXM module.
3. Place MXM module and secure it with 2 screws.
Note: Placement of thermal pad.
RTX-1000
RTX-3000
RTX-3000
Simple Maintenace Process (Cont.)
MIC-75GF10 Startup Manual 3
4. (1) Please refer to the data sheet of MIC-75GF10 to order corresponding heat spreader for MXM GPU.
(2) Replace heatsink and secure it with 6 spring screws.
Part Number Description
MIC-75GF10-00A1
MXM GPU expansion module (1 x MXM, 1 x PCIe and 2 x removable 2.5" storage bay, 1 x HDMI, 3
x DP)
MXM GPU
MXM Model Part Number Description Heatspreader
RTX-3000 SKY-MXM-R3000-6SDA Quadro RTX 3000 MXM 6GB Type B 98R1X300000 (TBD)
A2000
SKY-MXM-A2000-4SDA Quadro A2000 MXM 4GB Type A
SKY-MXM-A2000-8SDA 98R1X200000 (TBD)Quadro A2000 MXM 8GB Type A
A1000 Quadro SKY-MXM-A1000-4SDA A1000 MXM 4GB Type A
T1000 SKY-MXM-T1000-4SDB Quadro T1000 MXM 4GB Type A 98R1X100000 (TBD)
Note 1: Please order corresponding heatspreader for MXM GPU.
Note 2: Please refer to MXM GPU datasheet for more details.
HDD Installation
1. Undo the thumb screw and pull out the HDD holder.
2. Secure HDD with HDD holder with 4 screws
3. Replace HDD holder and attach it with a thumb screw.
Simple Maintenace Process (Cont.)
Simple Maintenace Process (Cont.)
5. Undo MIC-7 series system screws and remove the
bottom cover.
6. Align MIC-75GF10 with MIC-7 and secure 4 x spring
screws.
Simple Maintenace Process (Cont.)
