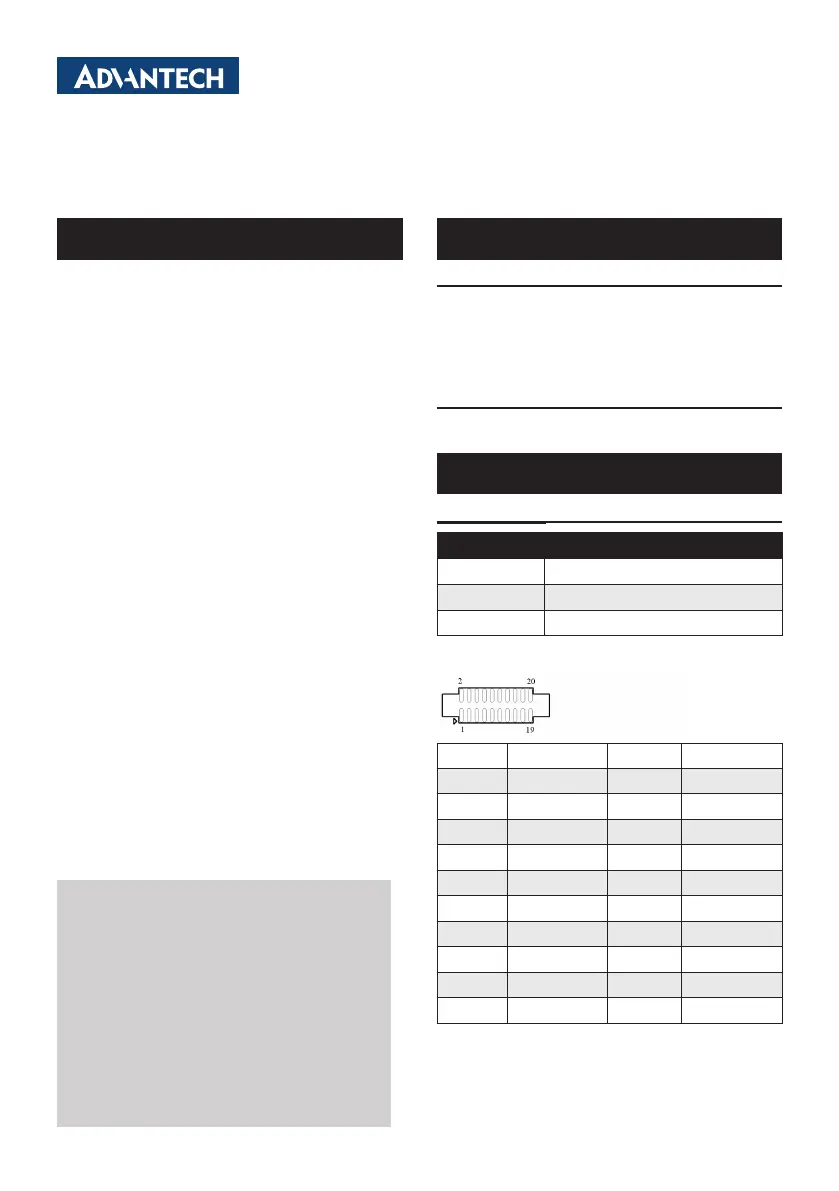

PCA-COM232 / PCA-COM485 Startup Manual 1

Before you begin installing your card, please make sure that

the following items have been shipped:

PCA-COM232 / PCA-COM485 4 Series Ports Expand

Module x1

2 year quality warranty card x 1 p/n:2190000902

Startup manual x 1

R/S D=5.5 H=2.0 +M M3*4L

ST Zn X2 p/n:1935030430

THREADED SPACER M3X0.5X7L

HP-7 for LPC module X1 p/n: 1990015800S000

F Cable 2*10P-2.0/D-SUB 9P

(M)*2 22.5CM W/BKT X2 p/n: 1700008762

If any of these items are missing or damaged, please con-

tact your distributor or sales representative immediately.

•

•

•

•

•

•

PCA-COM232 / PCA-COM485

4 Series Ports Expand Module

Startup Manual

Standard PC functions

This PCA-COM module expand 4 series ports by LPC con-

nector on CPU card.

PCA-COM232 - 4 RS-232 series ports.

PCA-COM485 - 4 RS-422/485 series ports with Auto-flow

control function.

Mechanical

Dimensions: 31.5 mm x 48 mm

Connectors

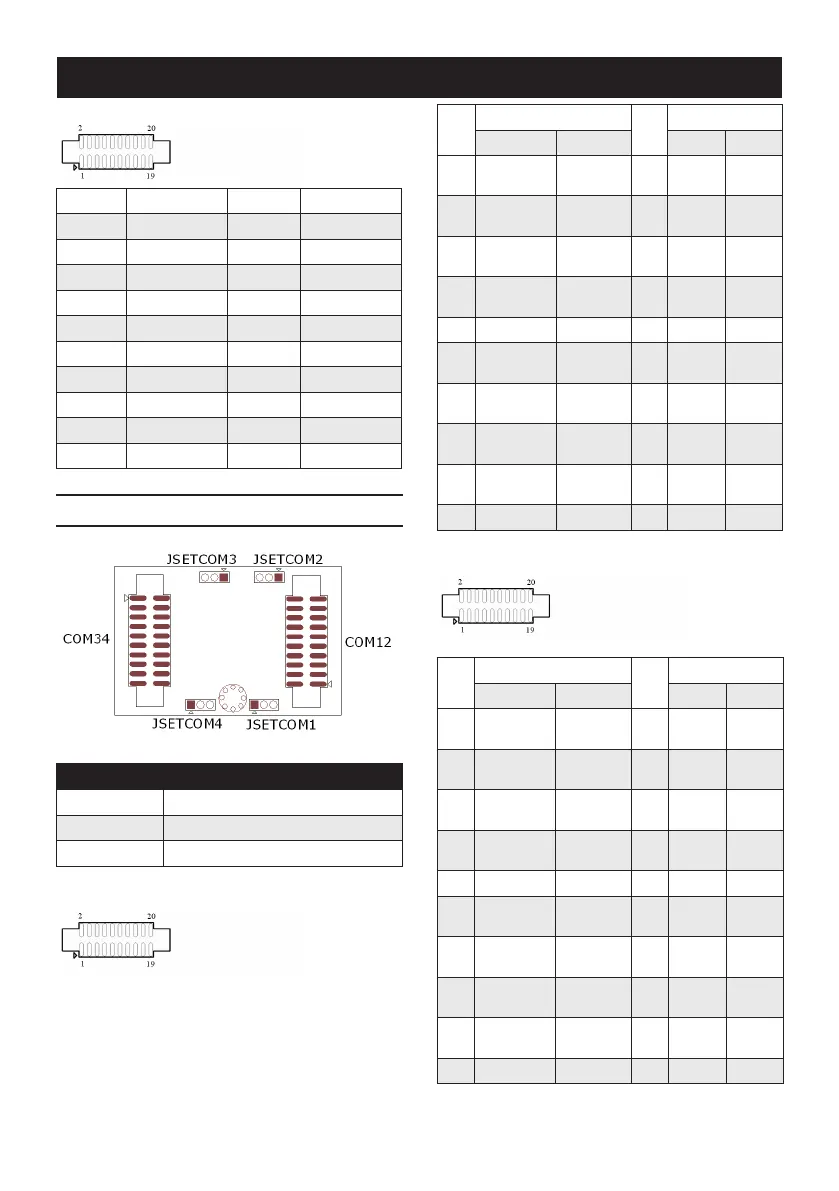

PCA-COM232

Connectors

Label Function

COM1 Serial Port: COM1 COM2

COM2Serial Port: COM3 COM4

COM1

PinSignalPinSignal

1DCD12DSR1

3RX14RTS1

5TX16CTS1

7DTR18RI1

9GND10GND

11DCD212DSR2

13RX214RTS2

15TX216CTS2

17DTR218RI2

19GND20GND

•

•

Specications Packing List

For more information on this and other Advantech

products, please visit our website at:

http://www.advantech.com

http://www.advantech.com/eplatform

For technical support and service, please visit our

support website at:

http://www.advantech.com.tw/support

This manual is for the PCA-COM232-COM485 series.

Part No. 200K023200

Printed in China

1st Edition

July 2009
