Sida 1/6
PCA-TPM(B1) Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. PCA-TPM 2.0 trusted platform module x1
2. 2-year quality warranty card x 1 P/N: 2190000902
3. Startup manual x 1 P/N: 20010TPM00
4. Screw x 1 P/N: 1930005258
If any of these items are missing or damaged, please con-
Specications
Standard Functions
• TrustedplatformmodulecompliantwithTCG2.0speci-
cation and TSS 2.0 via LPC connector on CPU card.
• AdoptingInneonSLB9665TT2.0FW5.51solutionwith
commoncriteriasecuritycerticationEALlevel4+.
• Hardware-based data protection solution for high security
businesses such as banks, governments, insurance and
condentialfacilitiesinfactoriesorpowerplants.Oncethe
module disconnects with the SBC, the encrypted data can
not be decrypted, even when password is provided.
• System support list
SBC
PCE-5129(BIOSV2.0orlater)
PCE-5029(BIOSV2.0orlater)
PCE-7129(BIOSV2.0orlater)
PCE-4129(BIOSV2.0orlater)
PCE-3029(BIOSV2.0orlater)
PCA-TPM
Trusted Platform Module TCG 2.0
Startup Manual
AIMB
AIMB-785(BIOSV2.0orlater)
AIMB-705(BIOSV2.0orlater)
Module IPC
MIC-7700(BIOSV1.0orlater)
MIC-7500(BIOSV1.13orlater)
AIMC-3202(BIOSV2.0orlater)
AIMC-3422(BIOSV2.0orlater)
AIIS-3400(BIOSV2.0orlater)
AIIS-3410(BIOSV2.0orlater)
ASMB
ASMB-585(BIOSV1.13orlater)
ASMB-785(BIOSV1.14orlater)
ASMB-813(BIOSV2.01orlater)
ASMB-823(BIOSV3.02orlater)
ASMB-913(BIOSV2.01orlater)
ASMB-923(BIOSV3.01orlater)
Build-in AP support OS List (TPM.msc)
Windows7SP1x64(Needtoupdatehotx─Fix459309)
WindowsServer2008R2SP1x64(Needtoupdatehotx
─Fix459309)
Windows8x86andx64
Windows8.1x86andx64
WindowsServer2012x64
WindowsServer2012R2
Mechanical
• Dimensions: 31.5 mm x 30.5 mm
• Power supply type: 3.3V,5V,5VSB
• Power requirements:3.3V@5mA,3.3VSB@25mA
(Operationtime)
• Operating temperature: 0~60°C
• Operating humidity: 40°C@85%RH,Non-Condensing
• Storage temperature:-40~85°C
• Storage humidity: 60°C@95%RH,Non-Condensing
• Weight: 0.12 kg
Specications(Cont.)
Packing List
FormoreinformationonthisandotherAdvantech
products, please visit our website at:
http://www.advantech.com
Fortechnicalsupportandservice,pleasevisitour
support website at:
http://support.advantech.com
This manual is for the PCA-TPM Series.
Part No. 20010TPM00
Print in China
1stEdition
February2017
LPC 1Screw hole
2 PCA-TPM(B1) Startup Manual
There is one connector on the module to connect with SBC.
The below table lists the functions of this connector.
Jumpers and connectors
Connectors
Label Function
LPC1
Low pin count connector
Pin Signal
Pin Signal
1 LPC_AD1 2 CLK_TPM
3 LPC_AD0 4 #PLTRST
5VCC3 6 #LFRAME
7GND 8 LPC_AD3
9 N/A 10 LPC_AD2
11 N/A 12 LPC_SERIRQ
13 14VCC VCC5SB

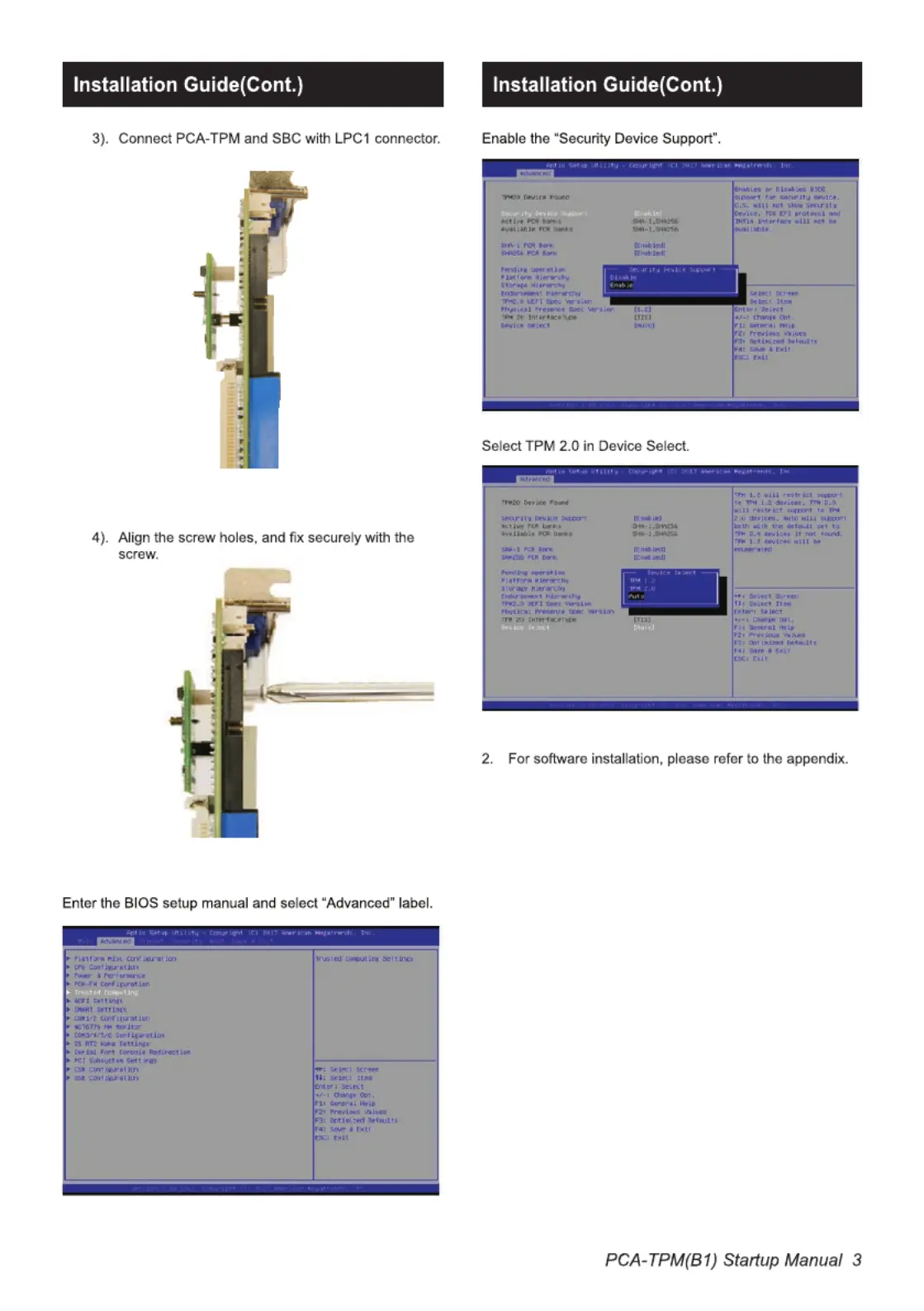

1. Please connect TPM module to the SBC LPC1 connec-
tor using the following steps.
1).LocateLPC1andthescrewholeonyourSBC.If
yourSBCiseitherPCA-6010/6011,PCE-5125,or
PCA-6782,youwillndtwoscrewholesaround
LPC1. Please choose the screw on the inside of
theSBCforthosefull-sizeproducts(pleaserefer
topicture1),andthescrewfurtherfromLPC1for
PCA-6782(pleaserefertopicture2).
Picture 1
Picture 2
2). LocateLPC1andthescrewholeonPCA-TPM.
Jumpers and Connectors
LPC1
Screw hole
Installation Guide
