PCA-TPMSPI Startup Manual 1
Before you begin installing your card, please make sure that
the following items have been shipped:
1. PCA-TPMSPI 2.0 trusted platform module x 1
2. 2-year quality warranty card x 1
3. Startup manual x 1
4. Screw x 1
If any of these items are missing or damaged, please con-
tact your distributor or sales representative immediately.
PCA-TPMSPI
Trusted Platform Module TCG 2.0
Startup Manual
Standard Functions
• Trusted platform module is compliant with TCG 2.0 speci-
cationandTSS2.0viaSPIconnectoronCPUcard.
• AdoptsInneonSLB9665TT2.0solutionwithcommon
criteriasecuritycerticationEALlevel4+.
• Hardware-based data protection solution for high security
businesses such as banks, governments, insurance and
condentialfacilitiesinfactoriesorpowerplants.Oncethe
module disconnects with the SBC, the encrypted data can
not be decrypted, even when a password is provided.
• System support list
SBC
PCE-5133
PCE-5033
AIMB
AIMB-788
AIMB-708
Build-in AP support OS List (TPM.msc)
Windows10Enterprise(64-bit)
Mechanical
• Dimensions: 20mm x 22mm
• Power supply type: 3.3V
• Power requirements:3.3V@45mA
• Operating temperature: 0~60°C
• Operating humidity: 40°C@85%RH,Non-Condensing
• Storage temperature:-40~85°C
• Storage humidity: 60°C@95%RH,Non-Condensing
• Weight: 0.12 kg
Specications
Packing List
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service, please visit our
support website at:
http://support.advantech.com
This manual is for the PCA-TPMSPI Series.
PartNo.20410TPM00
Printed in China
1stEdition
April
2022
2 PCA-TPMSPI Startup Manual

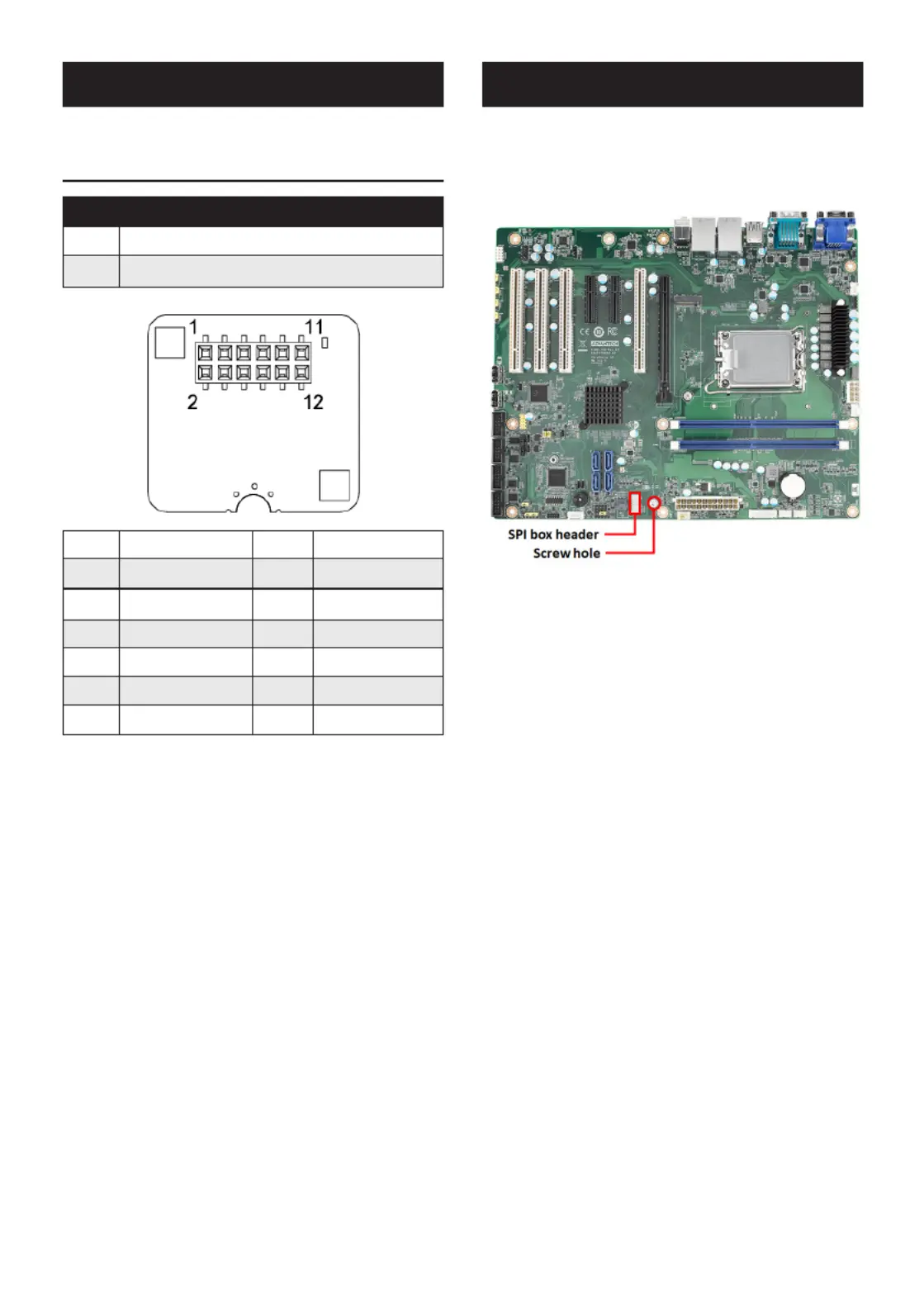

There is one connector on the module to connect with SBC.
The table below lists the functions of this connector.
Jumpers and connectors
Connectors
Label Function
SPI1
SPI connector
Pin Signal
Pin Signal
1 7TPM_PRSNT# Reserved
2 SPC_CS 8 SPI_MISO
3GND 9 GND
4 10SPI_CLK IRQ-TPM
5 GND 11 3.3V
6 SPI_MOSI PLTRST#12
1. Please connect TPM module to the SPI connector us-
ing the following steps.
1).ConnectthePCA-TPMSPImoduletotheSPIbox
header of your SBC/IMB.
2). FixthemoduleontotheSBC/IMBwiththeinclud-
ed screws and screw hole.
Jumpers and Connectors Installation Guide
PCA-TPMSPI Startup Manual 3

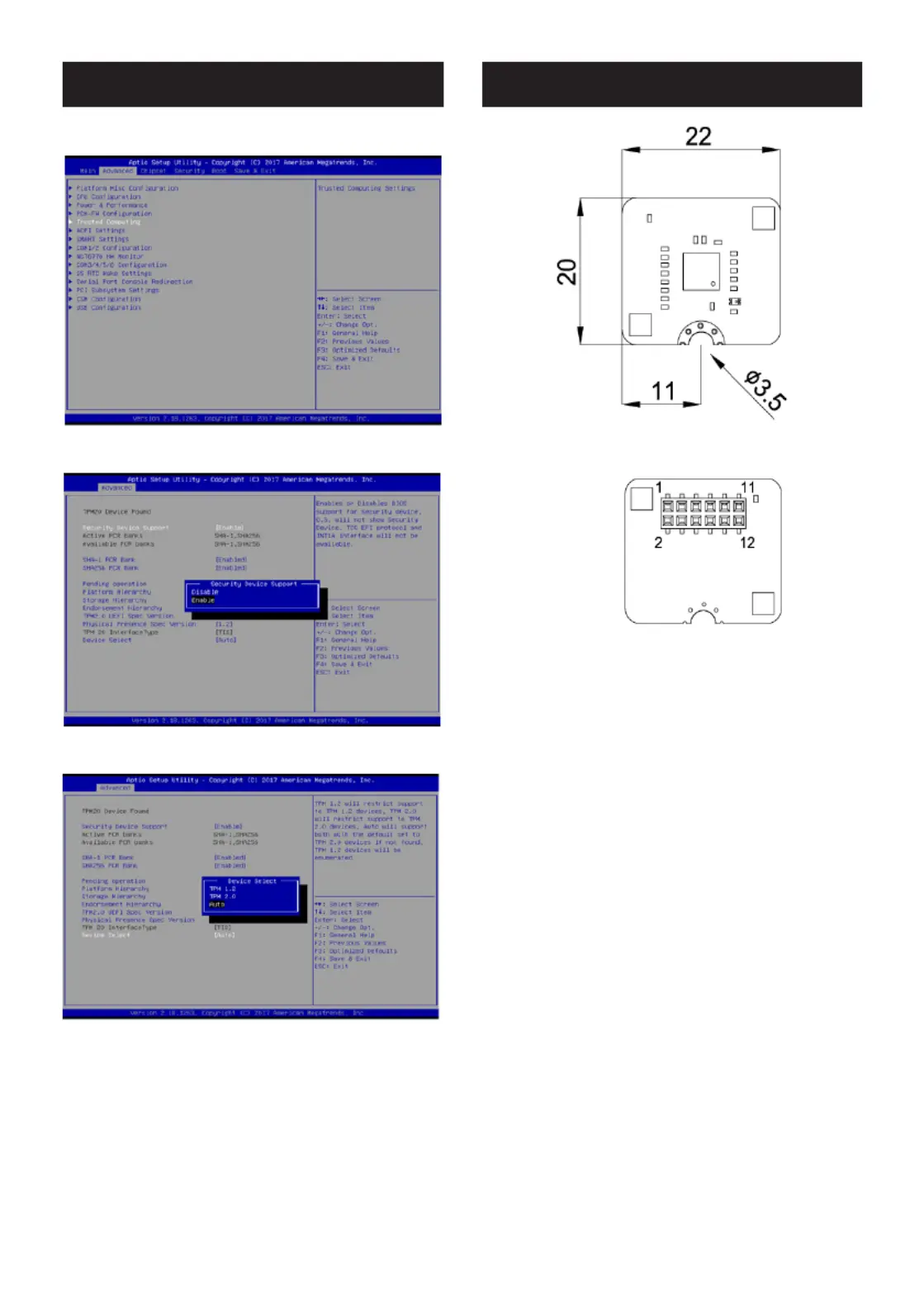

EnterBIOSsetupandselectthe“Advanced”tab.
Enable“SecurityDeviceSupport”.
SelectTPM2.0inDeviceSelect.
2. For software installation, please refer to the appendix.
Installation Guide (Cont.)
Figure 1: Top view
Figure 2: Bottom view
Board Layout
