PCE-5B06V(7B06V)-04A1E Startup Manual 1
PCE-5B06V-04A1E (PCE-7B06V-04A1E) Backplane: 6-slot BP for 2U Chassis,
1PICMIG 1.3, 1 PCIe, 4 32-bit PCI
PCE-5B06V-04A1E (PCE-7B06V-04A1E) Backplane:
6-slot BP for 2U Chassis, 1 PICMIG 1.3, 1 PCIe, 4
32-bit PCI
Startup Manual
Before you begin installing your card, please make sure
that the following materials have been shipped:
If any of these items are missing or damaged, contact your
distributor or sales representative immediately.
Standard Functions
• PICMIG 1.3 slots:
PCE-7B06V-04 supports PCE-7xxx CPU boards
PCE-5B06V-04 supports PCE-5xxx CPU boards
• PCIe slots:
PCE-7B06V-04 supports one PCIe p1-x8 slot
PCE-5B06V-04 supports one PCIe x16 slot
• 32-bit PCI:
Four 32-bit / 33 MHz PCI slot
• USB (2.0) support: Four Universal Serial Bus ports to
Backplane
Mechanical and Environment
• Dimensions: 80.01 x 325 mm
• Power supply voltage: +12 V, +5 V, -12 V, -5 V, +5 V
SBY, +3.3 V
• Power requirements: Refer to the CPU Board, add-on
Card & Peripherals
• Operating temperature: 0 ~ 60° C
• Weight: 0.211 kg (weight of board)
Packing list Specifications
• One 2 Ports USB Cable p/n: 1700002204
• PCE-5B06V-04A1E (PCE-
7B06V-04A1E) Startup Manual
• M4*6*0.7 Round Screws (5 pcs)
p/n: 1939000410
• 2 years quality warranty card p/n: 2190000902
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eplatform
For technical support and service, please visit our
support website at:
http://www.advantech.com/support
This manual is for the PCE-5B06V-04A1E (PCE-
7B06V-04A1E) series Rev. A1
Part No. 200K5B0621
Printed in China
2nd Edition
August 2012
2 PCE-5B06V(7B06V)-04A1E Startup Manual
The table below lists the function of each of the jumpers and
connectors:
Connectors and Jumpers
Connectors
Label Function
SHBA1~SHBD1 PICMG1.3 CPU board slot
PPCIE1 PCE-5B06V-04: PCIe x 16 slot
PCE-7B06V-04: PCIe x 8 slot
PPCI1~PPCI4 32 Bit / 33 MHz PCI Bus slot
EATXPWR1 ATX2.0 24-pin Power Connector
EATX12V1 ATX 12V Auxiliary 8-pin Power Connector
ATX12V1 ATX 12V 4-pin Power Connector
VOLT1 Alarm board / CMM Power Connector
FAN1 FAN Connector
FAN2 FAN Connector
FAN3 FAN Connector
FAN4 FAN Connector
FANDEC1 FAN speed detector Connector
SMBUS1 SMBus Connector for chassis monitor
SMBUS2 SMBus Connector for chassis monitor
KBMS1 External Keyboard/Mouse Connector
KBMS2 External Keyboard/Mouse Connector
JFP1 Power and Reset button Connector
IPMB1 IPMB Connector
USB12 Two USB port pin header
USB34 Two USB port pin header
Jumpers
Label Function
PSON1 ATX / AT Mode Selection
EATXPWER1
Pin Name
1 3.3 V
2 3.3 V
3 GND
4 5 V
5 GND
6 5 V
7 GND
8 Power OK
9 5 V SBY
10 12 V
11 12 V
12 3.3 V
13 3.3 V
14 -12 V
15 GND
16 PSON#
17 GND
18 GND
19 GND
20 -5 V
21 -5 V
22 5 V
23 5 V
24 GND
ATX12V1
Pin Name
1 GND
2 GND
3 12 V
4 12 V
EATX12V1
Pin Name
1 GND
2 GND
3 GND
4 GND
5 12 V
6 12 V
7 12 V
8 12 V
VOLT1
Pin Name
1 5 V SBY
2 GND
3 GND
4 -5 V
5 5 V
6 3.3 V
7 -12 V
8 12 V
FAN1~FAN4
Pin Name
1 GND
2 12 V
3 FANIO1~FANIO4
FANDEC1
Pin Name
1 FANIO1
2 FANIO2
3 FANIO3
4 FANIO4
SMBUS1~SMBUS2
Pin Name
1 5 V
2 C-SMBBUS
3 C-SMBDAT
4 GND
KBMS1~KBMS2
Pin Name
1 KBCLK
2 KBDAT
3 MSDAT
4 GND
5 5 V
6 MS_CLK
PCE-5B06V(7B06V)-04A1E Startup Manual 3
IPMB1
Pin Name
1 IPMB_CLK
2 IPMB_DAT
3 GND
USB12
Pin Name
1 USBV0
2 USBV0
3 USBD0-
4 USBD1-
5 USBD0+
6 USBD1+
7 GND
8 GND
9 Null
10 GND
USB34
Pin Name
1 USBV2
2 USBV2
3 USBD2-
4 USBD3-
5 USBD2+
6 USBD3+
7 GND
8 GND
9 Null
10 GND

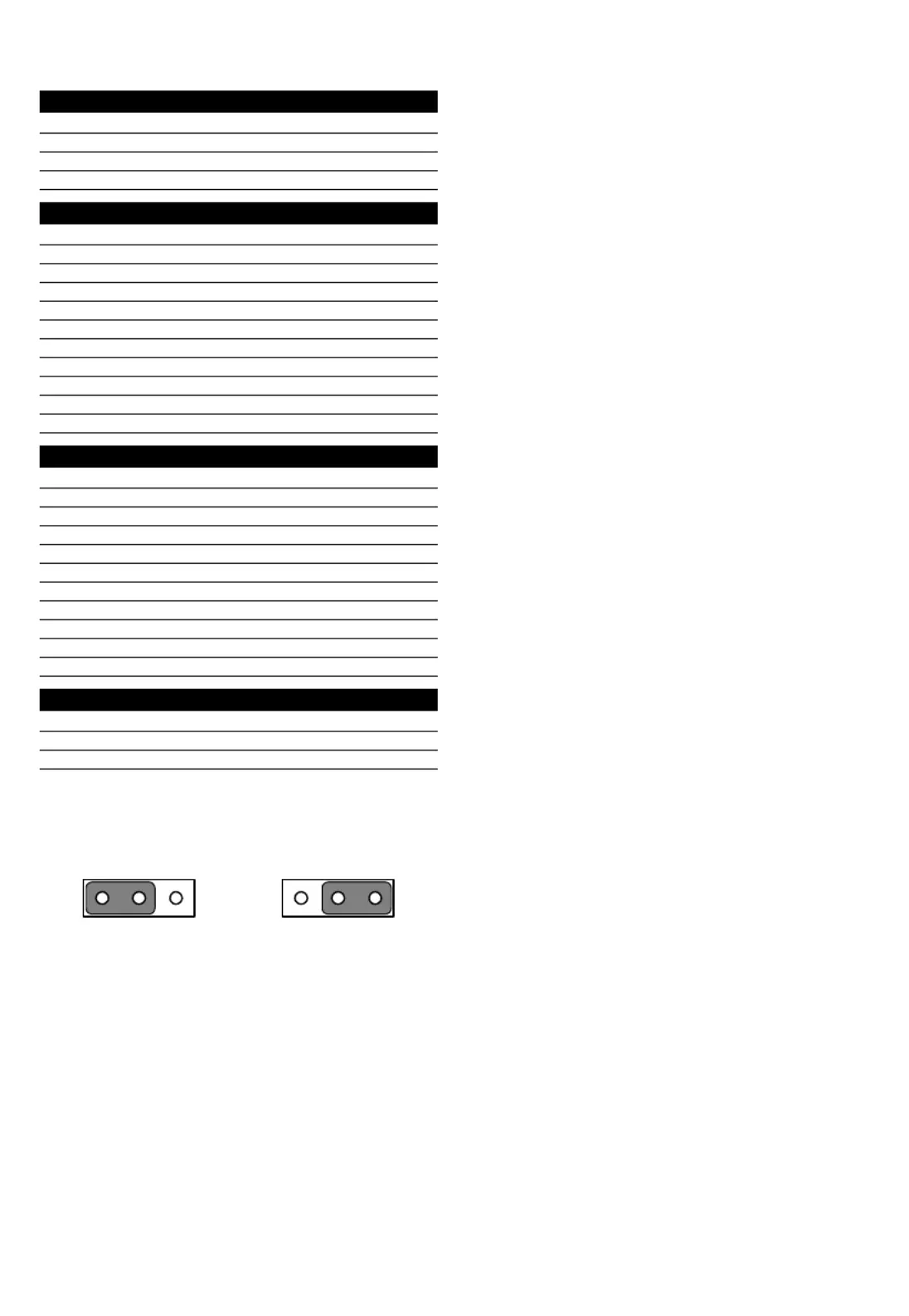

PSON1: ATX / AT Mode Selection
Setting Function
1-2 AT Mode
2-3* ATX Mode
*: Default
123
1 2 3
