Sida 1/4
PCLD-8813 Startup Manual 1
The PCLD-8813 is an advanced signal condition board
designed for PCIE-1812/1813. This board features one
reserved slot for every channel for plugging in a PCLD-8811
active filter board and supports isolation transfers for DI/O
and counter functions.
• Isolation signal transfers for DI/O and counter
• 1 x reserved slot for every channel for plugging in a
PCLD-8811 active filter board
• 2,500 VDC DI/O isolation protection
• 500 mA maximum loading per DO channel
• DIN-rail mount kit for easy mounting
Ordering Information
• PCLD-8813 advanced signal conditioning board for PCIE-
1812/1813
Accessories
Wiring Cables
• PCL-101100R-1E 100-pin SCSI shielded cable, ribbon-
to-pin, 1 m
• PCL-101100R-2E 100-pin SCSI shielded cable, ribbon-
to-pin, 2 m
Signal Conditioning Boards
• PCLD-8811-AE low-pass active filter board
• PCLD-8813-AE advanced signal conditioning board for
PCIE-1812/1813
PCLD-8813
Advanced Signal Conditioning Board for PCIE-
1812/1813
Startup Manual
Overview
For more information on this and other Advantech
products, please visit our website at
http://www.advantech.com
For technical support and service, please visit our
support website at
http://support.advantech.com
This manual is for PCLD-8813.
Part No. 2001881300 Edition 1
February 2018

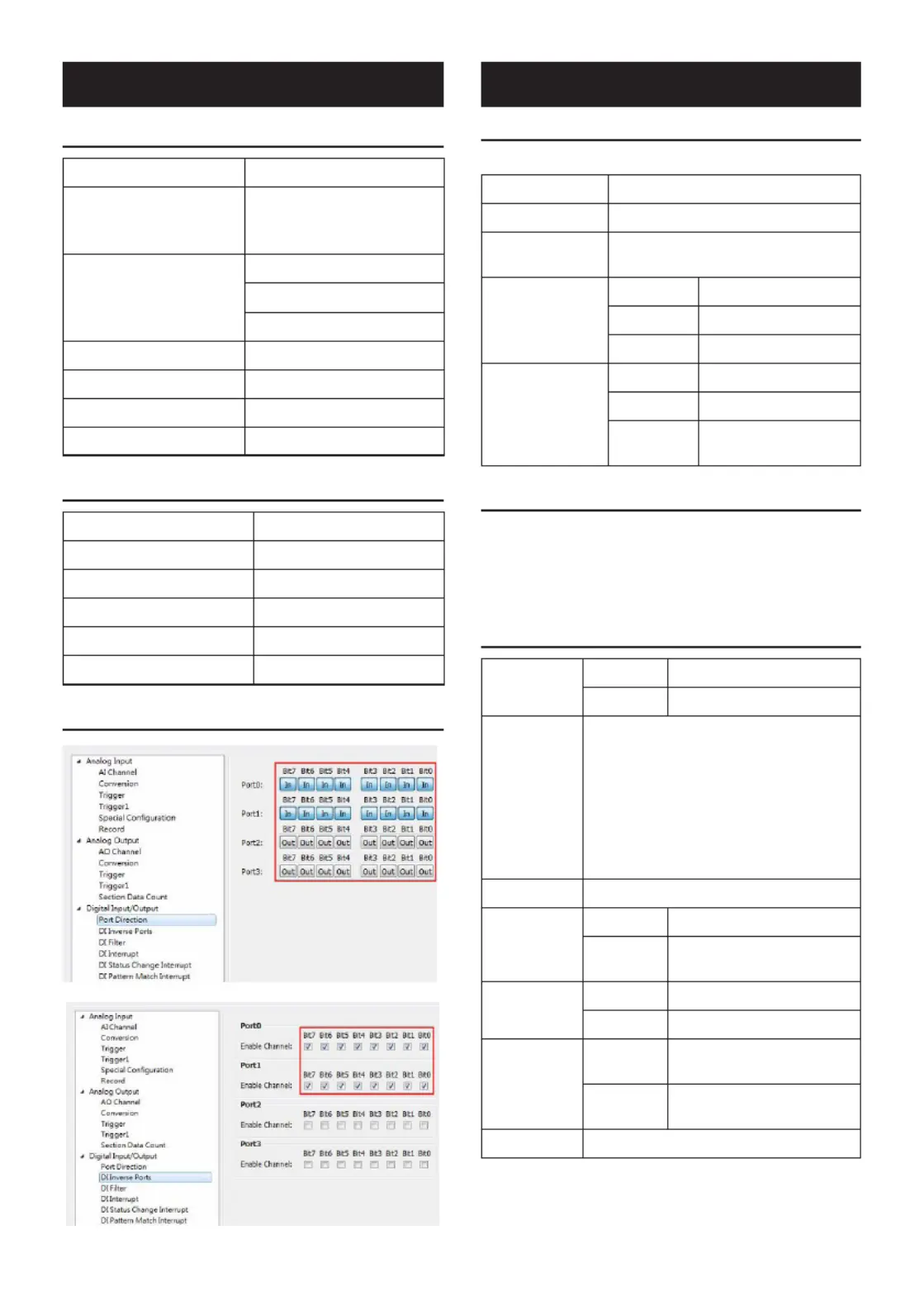

Board Components (Cont.)
Features
Board Components
2 PCLD-8813 Startup Manual
Isolated Digital Input
Input Channels 16
Input Voltage
Logic 0: 3 V max.
Logic 1: 10 V min. (30 V
DC
max.)
Input Current
10 V
DC
@ 2.97 mA
20 V
DC
@ 6.35 mA
30 V
DC
@ 9.37 mA
Isolation Protection 2,500 V
DC
Overvoltage Protection 70 V
DC
ESD Protection 2,000 V
DC
Opto-Isolator Response 50 us
Isolated Digital Output
Output Channels 16
Output Type Sink (NPN)
Isolation Protection 2,500 V
DC
Output Voltage 5 ~ 40 V
DC
Sink Current 500 mA max./channel
Opto-Isolator Response 50 us
DI/O Configuration for PCIE-1812/1813
Encode Counter Input
Axes 4 (independent)
Optical Isolation 2,500 V
DC
Max. Input Pulse
Frequency
10 MHz
Input Voltage
(Single Ended)
VIH (max.) 12 V
VIH (min.) 2.8 V
VIL (max.) 0.8 V
Input Voltage
(Diff. Ended)
VIH “CH+” – “CH-“ > 0.2 V
VIH “CH+” – “CH-“ < -0.2 V
Max. Input
Voltage
± 12 V
CJC Calibration
Vt = 10 (mV/°K) x T(°K)
Vt: calibration voltage
T: measured temperature in °K
0 °C = 273 °K
General Specifications
Power Sup-
ply Output
+5 V 100 mA
+12 V 50 mA
I/O Connec-
tor Type
1 x 100-pin pin-type SCSI (for PCIE-
1812/1813)
4 x 7-pin screw terminal block, 3.81 mm
(for I/O)
10 x 10-pin screw terminal block, 3.81
mm (for I/O)
1 x 3-pin screw terminal block, 3.81 mm
(for power output)
Dimensions 288 x 153 x 56 mm (11.4 x 6.0 x 2.2 in)
Power
Consumption
+5 V 0.03 A typical, 0.04 A max.
+12 V 0.15 A typical, 0.2 A max.
(without PCLD-8811)
Temperature Operating 0 ~ 60 (32 ~ 140 )°C °F
Storage -20 ~ 70 (-4 ~ 158 )°C °F
Relative
Humidity
Operating 10 ~ 90% RH non-con-
densing
Storage 5 ~ 95% RH non-con-
densing
Certifications CE
Specications Specications (Cont.)
PCLD-8813 Startup Manual 3

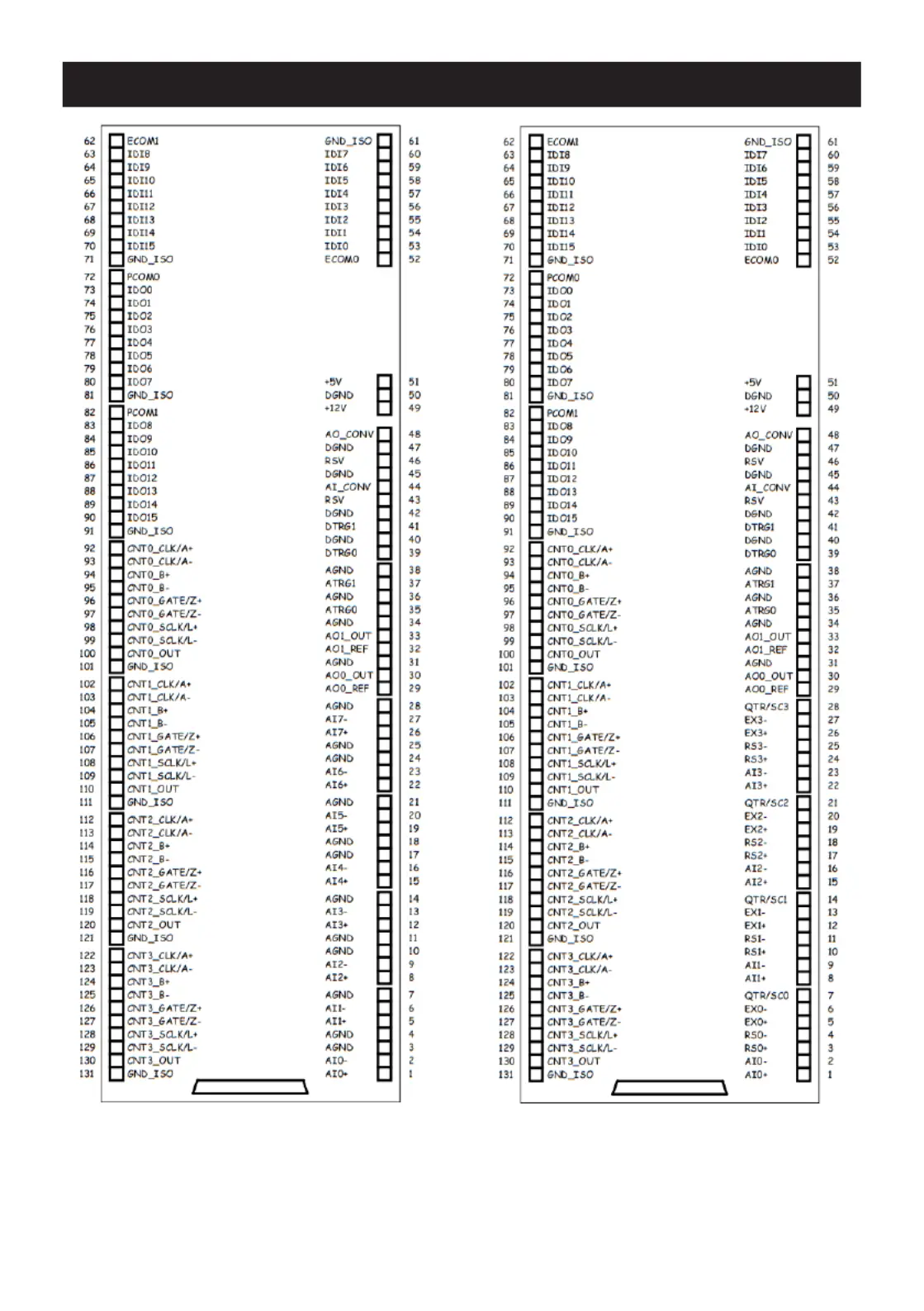

PCIE-1812
Component Descriptions and Settings
PCIE-1813
