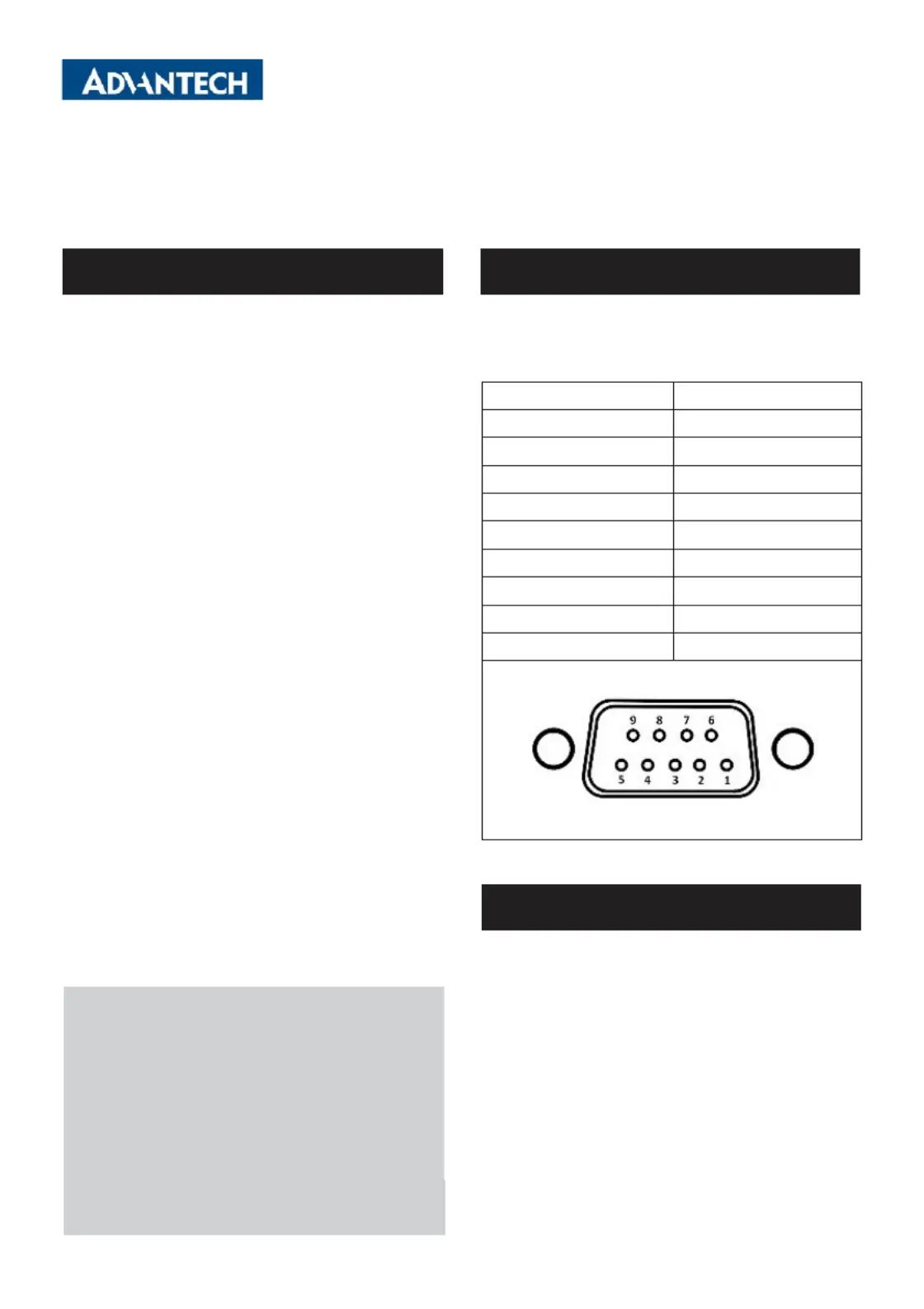

Sida 1/3
PCM CE- -26D2CA
2-Ports Isolated CANBus mPCIe, CANOpen, DB9
Startup Manual
Before installation, please ensure that the following items
have been included in your shipment:
1.
mPCIe(USB signal) card controller with CAN x 1
2.
DB9 I/O x 2 plate with iDoor x 1bracket
3.
Wafer- - x 2to DB9 cable
4.
Startup manual x 1
5.
Warranty card x 1
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
http://www.advantech.com/eAutomation
For technical support services, please visit our support
website at:
http://www.advantech.com.tw/eservice
This manual is for the PCM- - .26D2CA CE
Part No.
Edition 1
June 2023
The following tables and figures show the pin assignments
of the connector on the bracket to the modular If card. you
see two ports or above, it will use the same pin- definition
as this one.
PIN
CAN Port
1
-
2
CAN_L
3
GND
4
-
5
-
6
-
7
CAN_H
8
-
9
-
PCM module with iDoor technology supports the following
Advantech platforms:
§
Automation computers - UNO series
§
Panel PC - TPC series
§
Modular - IPC MIC series
See the following page for installation in TPC embedded panel
computers and UNO embedded computers.
PCM- - 26D2CA CE Startup Manual 1
Packing List
PIN Assignment
Installation
You can set the terminator resistor by jumper setting if
necessary to match impedance.
PIN# of JP1/ JP2
Status
Value of Terminator
Resistor
PIN 1-2
Open Mode
PIN 2-3 (Default)
Close Mode
120 Ohms
The support documentation can be accessed from https://
www.advantech.com/support.
2 - - PCM 26D2CA CE Startup Manual
1.
Remove the screws from the back plate and lift it off.
2.
Remove the screws from the blanking plate.
3.
Insert the PCM Module through the open slot.
4.
Secure the PCM Module with the screws you removed
from the blanking plate.
Jumper Settings
Embedded Panel Computer Installation
1.
Remove the screws from the base plate and lift it to
remove it.
2.
Insert the mPCIe card and secure with the screws.
3.
Remove the screws to remove the blanking plate.
4.
Insert the through the PCM Module blanking plate hole
and secure with screws. Attach the PCM Module to the
mPCIe - - card with the Wafer to DB9 cable.
Please follow the direction as shown in the picture.
The corresponded port was marked A/B on motherboard for
cable plug-in direction.
PCM- - 26D2CA CE Startup Manual 3
Embedded Computer Installation
Embedded Computer Installation
Wire Cable Installation
