Sida 1/13

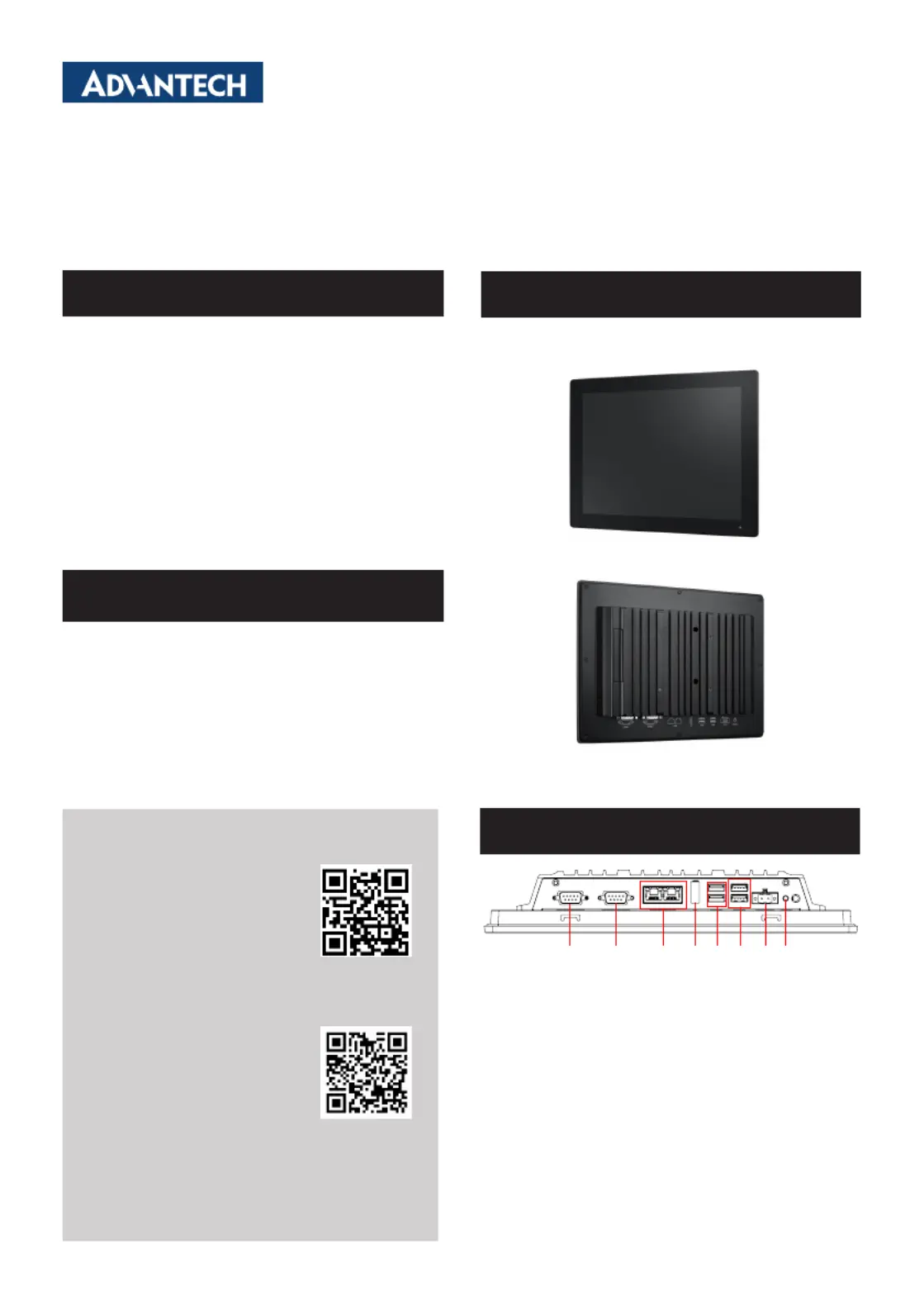

PPC-310S/312S ASL Startup Manual 1
Before installation, ensure that the following items are
included with the product:
1. 1 x Panel PC
2. 1 x PPC-310S/312S ASL startup manual
3. 1 x Phoenix connector
4. 8 x Mount brackets (PPC-310S/312S)
5. 8 x Mount screws (PPC-310S/312S)
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
Before installing software on the panel PC, install the cor-
responding drivers to ensure full functionality.
All drivers can be downloaded from the Advantech website
at http://www.advantech.com.
PPC-310S/312S
10.4’’/12.1’’ Fanless Panel PC with Intel® X7433RE
Quad-Core Processor
Startup Manual
Note: The examples provided in this manual are of the
PPC-312S ASL model.
Front View
Rear View
A. COM1: RS-232/422/485 E. 3 x USB 3.2
B. COM2: RS-232/422/485 F. 2 x USB 2.0
C. 2 x LAN G. DC-In
D. DP H. Power Button
A B C D E F G H
Packing List
For more information about this product, visit the
Advantech website at
http://www.advantech.com
For technical support and customer service, visit the
Advantech support website at
http://support.advantech.com/support/new_de-
fault.aspx
This manual is for the PPC-310S/312S ASL series,
Rev.A0, models.
Part No. 2041310S00
Printed in China
Edition 1
May 2025
Appearance
I/O Layout
Software Installation
2 PPC-310S/312S ASL Startup Manual
Specications
System
CPU
X7433RE
Core 4
Frequency 3.4GHz
Cache 6 MB
Memory 1 x SODIMM, DDR5 4800MHz, max. 16GB
Storage
1 x M.2 M key slot (2242/2280, SATA &PCIE x1)
1 x 2.5” SATA bay (optional)
Network (LAN) 2 x 10/100/1000/2500 Mbps Ethernet (Intel I226 LM)
I/O
2 x RS-232/422/485
2 x USB3.2, 2 x USB2.0
1 x DP
Expansion
1 x M.2 B key slot (2242 or 3052) (SATA, PCIe X1 ,USB 3.0 & SIM slot)*
1 x M.2 E key slot (2230) for wireless (PCIE p2-x1 & USB2.0)
1 x iDoor (optional)
1 x PCI or PCIe p2-x1 (optional)
2 x USB + GPIO module (optional)**
Watchdog Timer 255 timer levels; setup by software
Security
1 x TPM2.0 (on board as default)
Speaker 1 x 2W
LCD
Display Type 10.4’’ TFT LCD (LED backlight) 12.1’’ TFT LCD (LED backlight)
Max. Resolution 1024 x 768 1024 x 768
Viewing Angle 88 (left), 88 (right), 88 (up), 88 (down) 89 (left), 89 (right), 89 (up), 89 (down)
Luminance (cd/m2) 500 500
Contrast Ratio 1000 1000
Backlight Lifetime 50,000 hrs (min.) 30,000 hrs (min.)
Touchscreen
Touchscreen type
5 wire resistive touch or -touch projected capacitivemulti
Light Transmission 80%±5% (Res) or >86% (P-cap)
Controller USB interface
Physical
Characteristics
Dimensions
257.9 x 205.3 x 49.9 mm (10.2 x 8.1 x
2.0 in)
295.3 x 233.8 x 49.9 mm (11.6 x 9.2 x
2.0 in)
Weight 2.46kg (5.42Ib) 2.79 kg (6.15 lb)
OS Support
OS Support Windows 10 LTSC, Windows 11, Linux
Power
Comsumption
Input Voltage
24V
DC
± 30%
Power Consumption 30W 35W
Environment
Operating
Temperature
-20 ~ 60 °C (-4 ~ 140 °F)
Storage Temperature -30 ~ 85 °C ( -22 ~ 185 °F) -40 ~ 80 °C ( -40 ~ 176 °F)
Relative Humidity 95% @ 40°C (non-condensing)
Shock Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration
Operating Random Vibration Test 5~500Hz, 2Grms @with SSD, Follows IEC 60068-
2-64
EMC CE,FCC Class B, BSMI, EN60601-1-2, UKCA
Safety CB, UL, CCC, UKCA
Front Panel Protection IP66 compliant
* For Storage,choose either the B key or the 2.5” SATA bay.
** iDOOR, additional ports or 2.5” SATA bay can’t be installed in the same time since they share the same space.
PPC-310S/312S ASL Startup Manual 3
Specications (Cont.)
3. Fasten the screws with a torque of 2 kgf-cm. These
screws will push the mounting panel , ensuring a home
secure and stable unit.
Fasten the hook bracket
System Wiring Diagram
1. Connect the cabinet to the earth/ground.
2. Ensure that all cabinets have been grounded together.
3. Connect the ground of the power supply to the cabinet.
4. Connect the ground pin of PPC system to the cabinet.
Note: Test conditions for the power consumption values
provided above were as follows:
Memory: 8G DDR5
SSD: 64GB
Windows10 IOT Enterprise
Software: Burn-In Test 8.1
Panel Mounting
Before installing the PPC-310S/312S ASL panel computer
into the panel opening, ensure that the adhesive waterproof
gasket on the front bezel is correctly positioned.
1. Cut out a section from the panel based on the dimensions
of the Panel PC. The dimensions for the panel opening are
as follows:
– PPC-310S:249 x 196.4 mm (9.81 x 7.74 in)
– PPC-312S: 286.2 x 224.7 mm (11.27 x 8.85 in)
Install the PPC into the panel opening, ensuring
adequate air circulation with a required clearance on all
sides. Refer to the diagram for the minimum clearance
(100mm), air inlet and outlet directions (blue arrows),
and a suggested mounting panel thickness of less than
6mm (0.236”).
Panel Mounting – Positioning
2. Retrieve the clamps with long screws from the acces-
sory pack. Insert the clamps into the holes and slide
the clamp in the direction shown in the diagram below.
Securely hook the clamps around the four sides of the
bezel for a rm hold.
Fasten the hook bracket
Unit: mm
Panel Mounting (Cont.)
Earth Grounding Setup
