Sida 1/3
USB-5820 Startup Manual 1
Before installation, please ensure that the following items
are included with the product:
1. 1 x USB-5820 module
2. 3 x Terminal blocks
3. 1 x USB-5820 startup manual
4. 1 x USB 3.0 lockable cable (1 m)
If any of the above items are missing or damaged, contact
your distributor or sales representative immediately.
For more detailed information regarding this product, please
download the USB-5820 user manual from the Advantech
website.
Advantech’s USB-5820 is an industrial-grade isolated ana-
log output USB 3.0 I/O module. To ensure easy installation
in cabinet computers, USB-5820 modules are compact and
equipped with a DIN-rail mount kit. The built-in USB hub can
support a daisy-chain topology, while Euro-type pluggable
terminal blocks and LED indicators can facilitate congura-
tion and maintenance.
USB-5820
4-Channel, 16-Bit, 200 kS/s Isolated Analog
Output USB 3.0 I/O Module
Startup Manual
General
• Connectors:
1 x 10-pin terminal block (3.81 mm, A/O)
2 x 3-pin screw terminal blocks (3.81 mm, power)
1 x USB 3.0 type A (downstream port)
1 x USB 3.0 type B (upstream port)

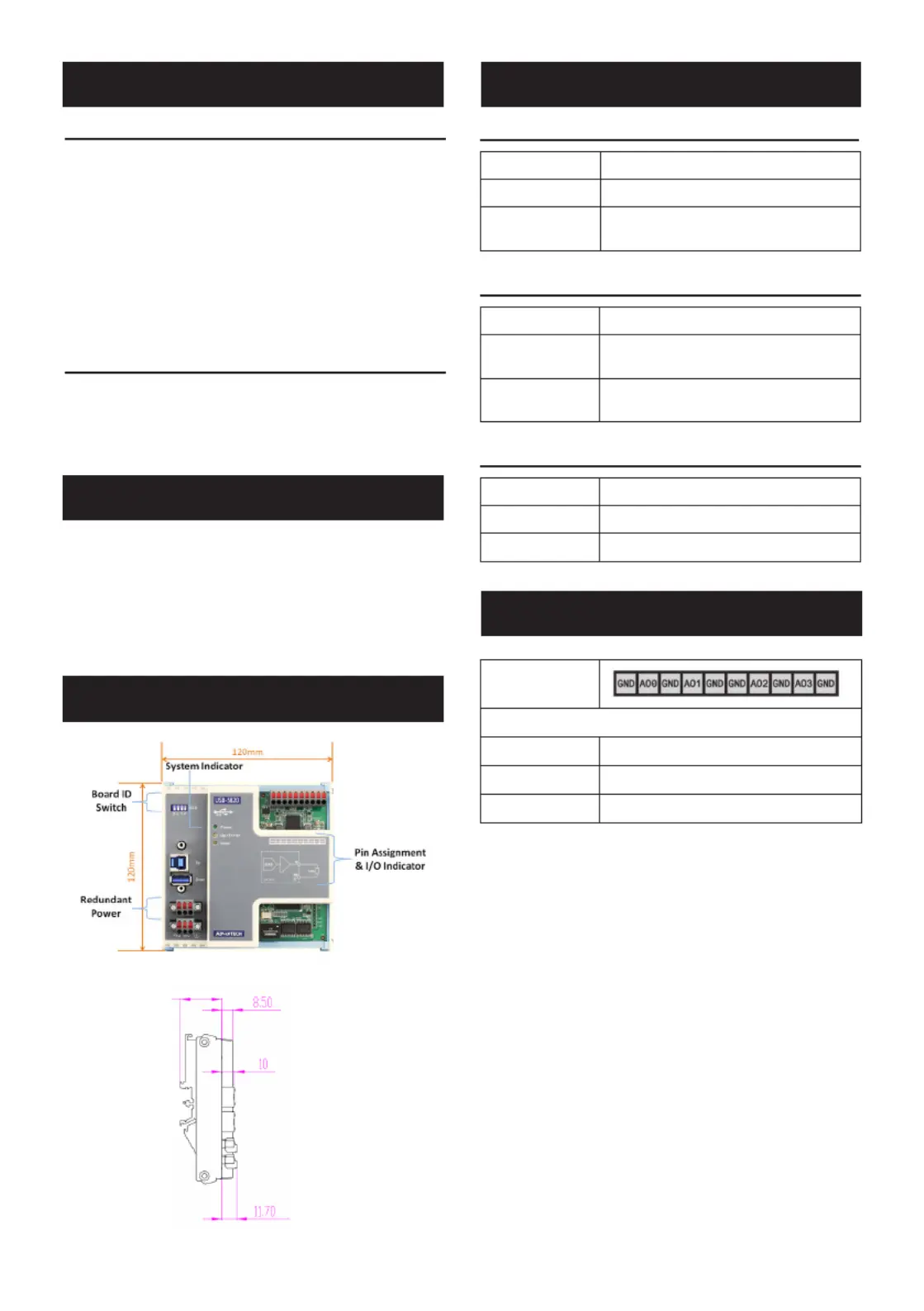

• Dimensions:
120 x 120 x 40 mm
3
(4.72 x 4.72 x 1.57 in
3
)
• OperatingTemperature: 0 ~ 60 °C (32 ~ 140 °F)
• StorageTemperature:-40 ~ 70 °C (-40 ~ 158 °F)
• StorageHumidity:5 ~ 95% RH (non-condensing)
• PowerSupply:10 ~ 30 V
DC
• Interface: USB 3.0
• DataTransferRates: 5 Gbps
• PowerConsumption:
100 mA typ./130 mA max. @24 V external power
450 mA typ./770 mA max. @5 V bus power
• ESDProtection:
Air: ±8 kV
Contact: ±6 kV
• DCSurgeProtection: 2 kV
AnalogOutput
• Channels:4
• Resolution:16 bits
• OutputVoltageRange:0 ~ 5 V, 0 ~ 10 V, ±5 V, ±10 V
• OutputCurrentRange:
0 ~ 20 mA, 4 ~ 20 mA (source type)
• Load:
> 1 kΩ (voltage output)
< 625 Ω (current output)
• OutputError:< ±0.1% of full-scale range
• IsolationProtection:2,500 V
DC
• UpdatingRate:
200/n kS/s, where n is the number of enabled channels
(n = 1 ~ 4)
• SlewRate:1 V/µs
1. Install the SDK and drivers downloaded from the
Advantech website.
2. Touch the metal case of the computer to discharge any
static electricity that may be in your body.
3. Insert the USB module into the designated USB port.
Use caution when inserting the module to avoid damag-
ing the components due to excessive force.
PackingList
For more information about this or other Advantech
products, visit our website at
http://www.advantech.com
For driver/SDK downloads and technical support
services, visit our support website at
http://support.advantech.com
This manual is for USB-5820.
Part No. 2041582000
Printed in China
Edition 1
April 2019
Specications
Overview
UserManual
InstallationInstructions
