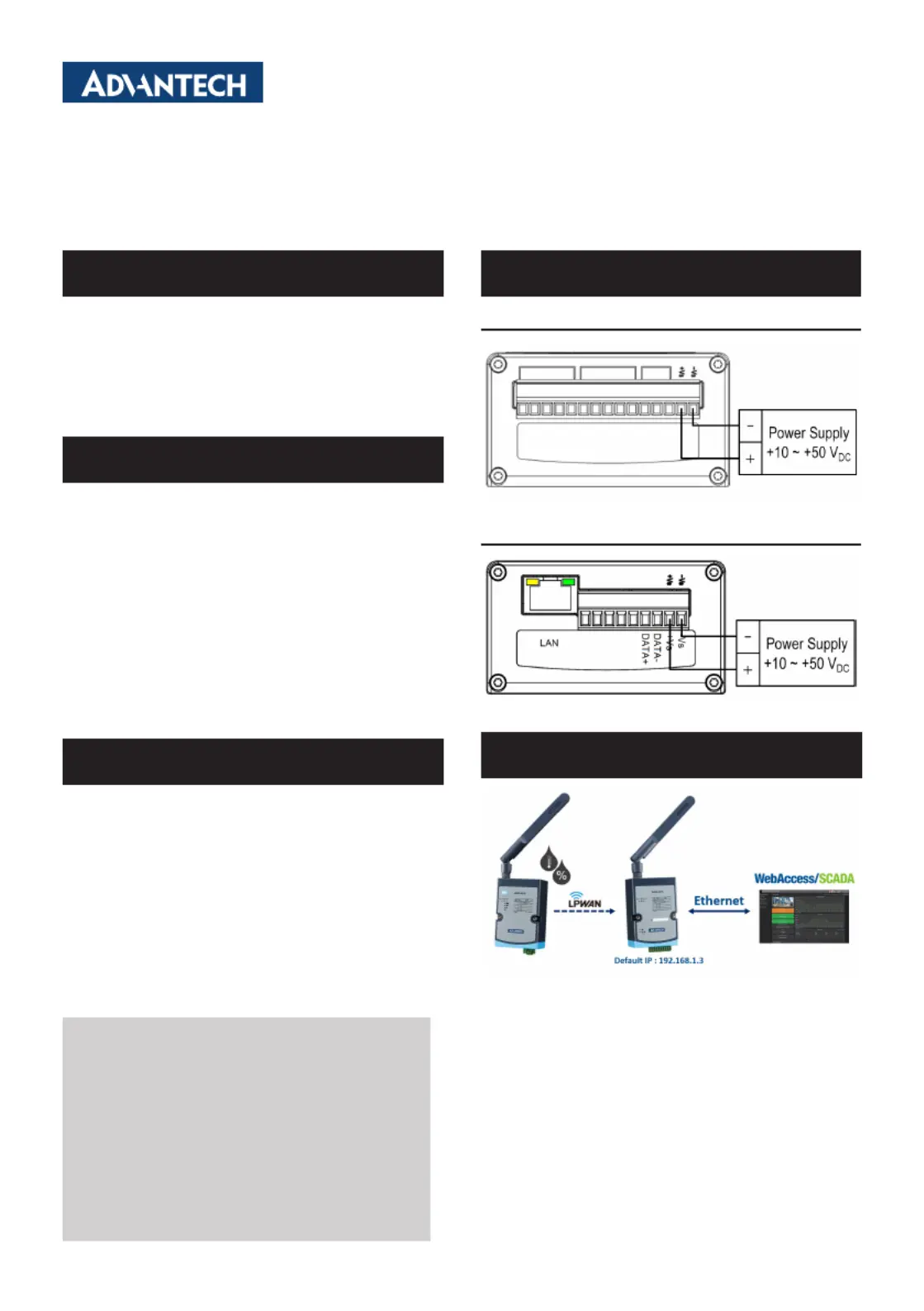

WISE-4210-S231 Startup Manual 1
Thank you for purchasing the WISE-4210-S231 LPWAN
Temperature/Humidity Starter Kit. This quick start guide is
intended to help you deploy your new solution. The guide
contains basic information on the power and application wir-
ing. Should you require additional instructions, please refer
to WISE-4210-S231 and WISE-4210-AP user manual.
• 1 x WISE-4210-S231
• 1 x WISE-4210-AP
• 2 x Antenna
• 1 x WebAccess/SCADA 75 tags license key
• 2 x Mounting bracket
• 1 x Quick start manual
• 1 x China RoHS declaration (NA series only)
• 2 x 60w adapter
• 2 x 183cm power cord
• 1 x 70 cm Ethernet cable
• 1 x Screwdriver
The WISE-4210 is designed for a standard industrial
unregulated 24 VDC power supply. For some applications,
it can also accept +10 to +50 VDC power input with 200 mV
peak-to-peak power ripple. The immediate ripple voltage
should be between +10 and +50 VDC. Batteries may also
be used as an alternative power source.
WISE-4210-AP is the LPWAN AP, power source comes
from adapter.
WISE-4210-S231
LPWAN Temperature/Humidity Starter Kit
Startup Manual
WISE-4210-S231 Power Supply Wiring
WISE-4210-AP Power Supply Wiring
Overview
For more information on this and other Advantech
products, please visit our website at:
http://www.advantech.com
For technical support and service:
http://support.advantech.com/
This startup manual is for WISE-4210-S231 Series.
Part No. 2043421000
Printed in Taiwan
Edition 1
August 2020
Packaging List
Input Power Requirements
Power Supply & Application Wiring
System Architecture
2 WISE-4210-S231 Startup Manual
Open the rubber cover on the side of WISE-4210 nodes,
thereisabatteryswitchtoturnonorturnothebattery
power supply.
The module accepts 3 x AA, 3.6 V lithium battery.
The batteries should be installed facing the same direction.
Installation Procedure Battery
1. Power on WISE-4210-S231 and WISE-4210-AP
2. Install WebAccess/SCADA in your PC.
3. To generate 75 tags use WebAccess/SCADA USB Hard
Key from the following link :
https://support.advantech.com/support/Download-
SRDetail_New.aspx?SR_ID=1-1YCRI3V&Doc_
Source=Download
4. Download WebAccess/SCADA WISE Starter Kit project
as in the following link :
https://support.advantech.com/support/Download-
SRDetail_New.aspx?SR_ID=1-1Y7TAWX&Doc_
Source=Download
5. Import WebAccess/SCADA WISE Starter Kit project into
your PC. Import procedure as following link :
https://support.advantech.com/support/Knowledge-
BaseSRDetail_New.aspx?SR_ID=1-1Y6YZXN&Doc_
Source=Knowledge+Base
6. Open WISE Starter Kit project and copy IoTDemo_
WISE-Project folder to c:\webaccess\node and c:\
webaccess\node\cong
7. Open WISE Starter Kit project and open ModiconDriv-
er__UTCSwapfolder.copy3dllletoc:\webaccess\
node and c:\webaccess\node\deriver and c:\webac-
cess\node\cong\ProjectName\BINandc:\webaccess\
node\ProjectName\BIN
8. Connect your PC with WISE-4210-AP, make sure the
PC IP segment is same with WISE-4210-AP. Default IP
on WISE-4210-AP is 192.168.1.3
9. You can have the data from WISE-4210-S231 directly
on your WebAccess/SCADA WISEPaaS Dashboard,
link as follow : https://localhost:3000/frame/SideBar?lan
guage=en&theme=dark&orgId=3.
