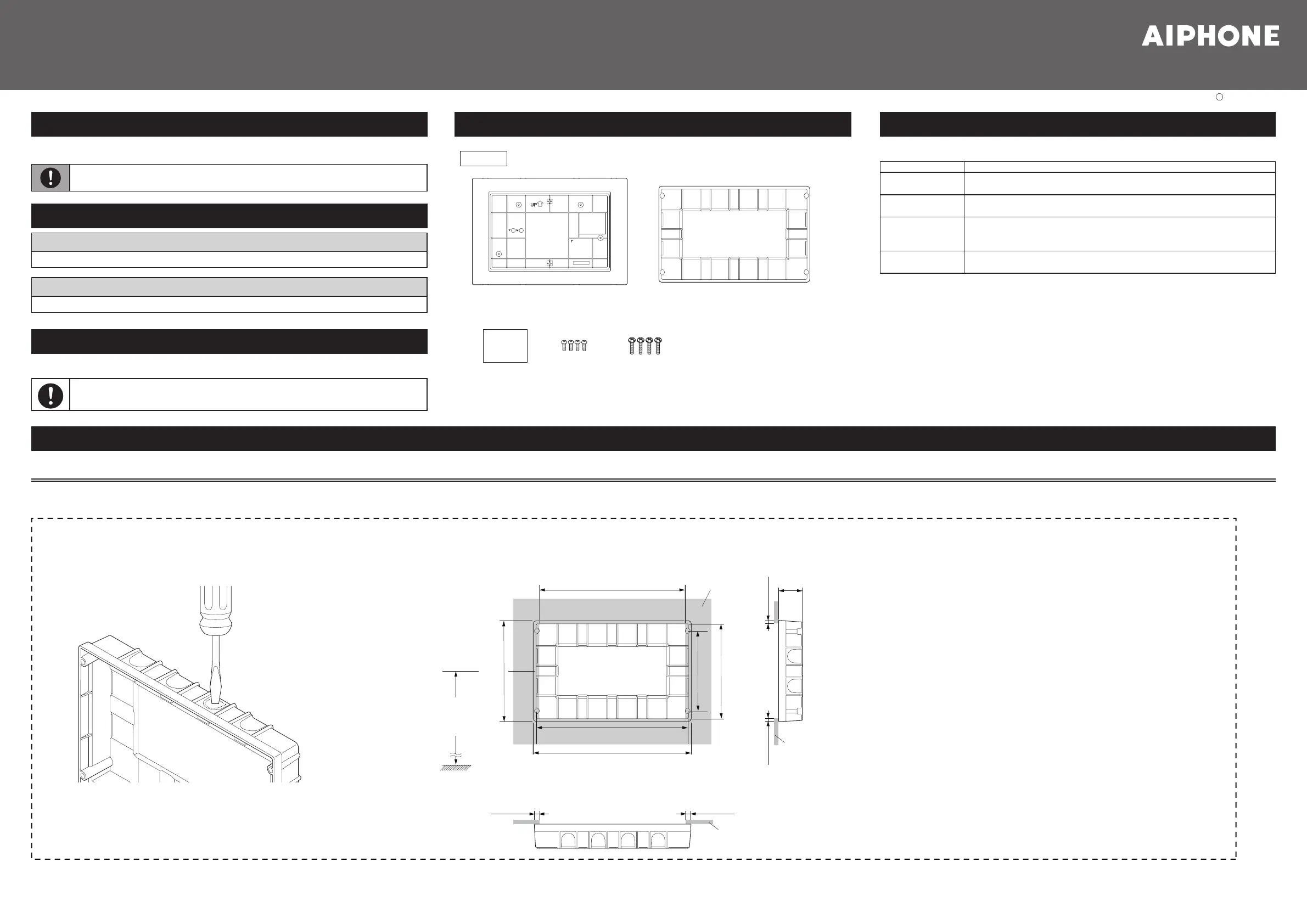

IXG-FMK-2C7 (Flush mount kit for Tenant Station)
Issue Date: Mar. 2020 FK2532 A P0320 RQ 60235
Introduction
• Read this manual before installation and connection.
Read the "Installation Manual" included with IXG-2C7 or IXG-2C7-L.
Perform installation and connection only after gaining sufficient understanding of the
system and this manual.
Part Names and Accessories
Front view
Wall-mounting
screws × 4
Frame-mounting
screws ×4
Included accessories
Installation Manual ×1
(this manual)
Panel & FrameBack box
Installation Manual
Precautions
Notice
• The illustrations used in this manual may differ from the actual product.
Precautions for mounting
• Do not use an impact driver to fasten screws. Doing so may cause damage to the device.
Literature information
The important information concerning correct operation and what you should observe is marked with
the following symbols.
Restricts user actions / provides instructions.
How to Install
Tenant Station (IXG-2C7, IXG-2C7-L) is sold separately.
<Front>
<Underside >
<Side>
240 (9-7/16")
Opening dimension of wall
265 (10-7/16")
Back Box dimension
169 (6-5/8")
Back Box dimension
165 (6-1/2")
Opening dimension of wall
Wall
Wall
12.5 (1/2")
2 (1/16") 2 (1/16")
12.5 (1/2")
Wall
40
(1-9/16")
2. Install the back box in the wall.
Installation of Back Box
Recommended
Mounting height
(center of back box)
1,500mm (4' 11'')
1. Make a hole for the cable.
How to install Tenant Station is described on the back.
Pass the LAN cable and low voltage cable through the opened hole.
134 (5-1/4")
255 (10-1/16")
Specifications
■IXG-FMK-2C7
MountingFlush wall-mounted
MaterialsPanel: Self-extinguishing resin
Frame & Back Box: Self-extinguishing plastic
ColorPanel & Frame: White
Back Box: Black
DimensionsPanel & Frame: 290 mm (11-7/16") [W] × 199 mm (7-13/16") [H] × 30 mm
(1-3/16") [D]
Back Box: 265 mm (10-7/16") [W] × 169 mm (6-5/8") [H] × 40 mm (1-9/16") [D]
MassPanel & Frame: Approx. 110g (0.25 lbs)
Back Box: Approx. 220g (0.49 lbs)
Installation of Tenant Station with Flush mount kit
