Sida 1/57
Alienware AW2518HF Monitor
User’s Guide
Model: AW2518HF
Regulatory model: AW2518HFb
Notes, cautions, and warnings
NOTE: A NOTE indicates important information that helps you make
better use of your computer.
CAUTION: A CAUTION indicates potential damage to hardware or loss
of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Copyright © 2017 Dell Inc. All rights reserved. This product is protected by U.S. and international
copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of Dell Inc. in the
United States and/or other jurisdictions. All other marks and names mentioned herein may be
trademarks of their respective companies.
2017 - 07
Rev. A00
| 3
Contents
About Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Product Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Identifying Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . 8
Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Rear and Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Monitor Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Flat Panel Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Resolution Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Supported Video Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Preset Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Physical Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Environmental Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Power Management Modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Plug and Play Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Universal Serial Bus (USB) Interface . . . . . . . . . . . . . . . . . . .20
USB Upstream Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
USB Downstream Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
USB Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
LCD Monitor Quality and Pixel Policy. . . . . . . . . . . . . . . . . . 22
Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Cleaning Your Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Setting Up the Monitor . . . . . . . . . . . . . . . . . . . . . . . . .23
Attaching the Stand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
4 |
Connecting the Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Removing the Monitor Stand . . . . . . . . . . . . . . . . . . . . . . . . . 26
Wall Mounting (Optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Operating the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . .29
Power On the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using the Front-Panel Controls . . . . . . . . . . . . . . . . . . . . . . 29
Front-Panel Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Using the On-Screen Display (OSD) Menu. . . . . . . . . . . . . .31
Accessing the Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
OSD Warning Message. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44
Setting the Maximum Resolution. . . . . . . . . . . . . . . . . . . . . . 46
Using the Tilt, Swivel, and Vertical Extension . . . . . . . . . . . 47
Tilt, Swivel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Vertical Extension . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Rotating the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Adjusting the Rotation Display Settings of Your
System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Built-in Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Common Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Product Specific Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Universal Serial Bus (USB) Specific Problems . . . . . . . . . . 56
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57
FCC Notices (U.S. Only) and Other Regulatory
Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Contact Dell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
About Your Monitor | 5
About Your Monitor
Package Contents
Your monitor ships with the components shown below. Ensure that you have
received all the components and Contact Dell if something is missing.
NOTE: Some items may be optional and may not ship with your monitor.
Some features or media may not be available in certain countries.
NOTE: To set up with any other stand, please refer to the respective stand
setup guide for setup instructions.
Monitor
Stand Riser

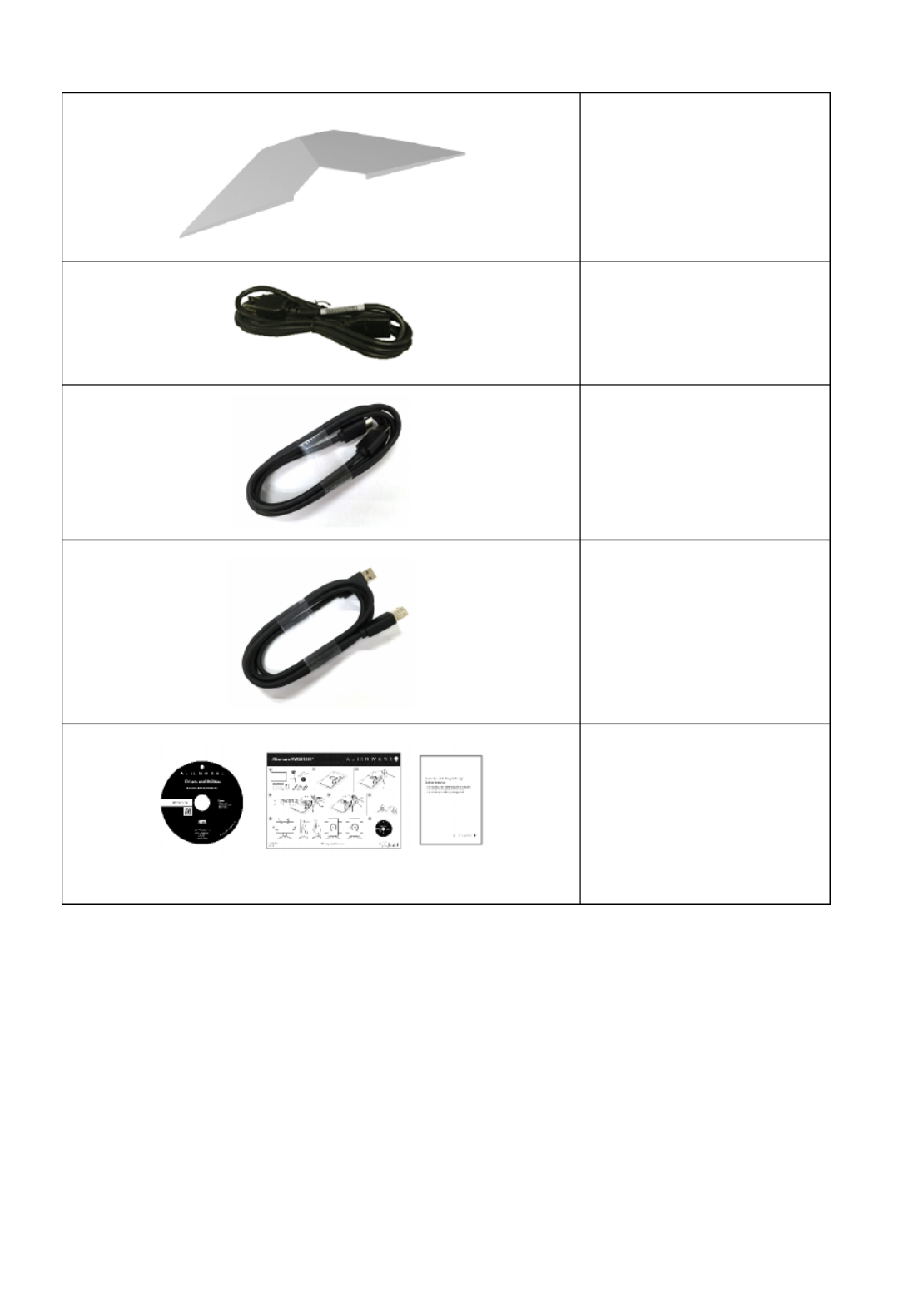

6 | About Your Monitor
Cable Cover
Power Cable (Varies by
Country)
HDMI Cable
USB 3.0 Upstream Cable
(Enables the USB Ports
on the Monitor)
• Drivers and
Documentation Media
• Quick Setup Guide
• Safety, Environmental,
and Regulatory
Information
About Your Monitor | 7
Product Features
The Alienware AW2518HF flat panel display has an active matrix, Thin-Film
Transistor (TFT), Liquid Crystal Display (LCD) and LED backlight. The monitor
features include:
• 62.23 cm (24.5 inch) viewable area (measured diagonally).
Resolution: Up to 1920 x 1080 through DisplayPort and HDMI, with full-
screen support or lower resolutions.
• AMD FreeSync monitor, with a extremely high refresh rate of 240 Hz and a
rapid response time of 1 ms.
• Color gamut of 72% NTSC.
• Tilt, swivel, pivot, and height adjustment capabilities.
• Removable stand and Video Electronics Standards Association (VESA™)
100 mm mounting holes for flexible mounting solutions.
• Digital connectivity with DisplayPort and HDMI.
• Equipped with 1 USB upstream port and 4 USB downstream ports.
• Plug and play capability if supported by your system.
• On-Screen Display (OSD) adjustments for ease of set-up and screen
optimization.
• The color modes also offers different game modes, including FPS (First-
Person Shooter), RTS (Real-Time Strategy), RPG (Role-Playing Game), and
3 game modes to personalize your preference.
• Software and documentation media includes an Information File (INF),
Image Color Matching File (ICM), and product documentation.
• Dell Display Manager Software included (comes in the CD shipped with
the monitor).
• 0.3 W standby power when in sleep mode.
• Optimize eye comfort with a flicker-free screen.
• The possible long-term effects of blue light emission from the monitor may
cause damage to the eyes, including eye fatigue, digital eye strain, and so
on. ComfortView feature is designed to reduce the amount of blue light
emitted from the monitor to optimize eye comfort.
8 | About Your Monitor
Identifying Parts and Controls
Front View
Label Description
1Cable-management slot (on the front side of the stand)
2Function buttons (For more information, see Operating the Monitor)
3Power On/Off button (with LED indicator)
About Your Monitor | 9
Back View
Back view with monitor stand
Label Description Use
1VESA mounting holes (100 mm
x 100 mm - behind attached
VESA Cover)
Wall mount monitor using VESA-
compatible wall mount kit (100 mm x
100 mm).
2Regulatory label Lists the regulatory approvals.
3Stand release button Releases stand from the monitor.
4Barcode serial number label Refer to this label if you need to
contact Dell for technical support.
5Cable-management slots
(on the left and right sides of
the stand)
Use to organize cables by placing
them through the slots.
10 | About Your Monitor
Rear and Bottom View
Rear and bottom view without monitor stand
Label Description Use
1Power cable
connector
Connect the power cable (shipped with your
monitor).
2
(1, 2)
HDMI port Connect your computer with HDMI cable
(shipped with your monitor).
3Line-out port Connect your speakers.
NOTE: This port does not support
headphones.
4DisplayPort Connect your computer with DP cable.
5USB upstream port Connect the USB cable (shipped with your
monitor) to this port and your computer to
enable the USB ports on your monitor.
6, 9 USB 3.0 port Connect your USB device.
NOTE: To use this port, you must connect the
USB cable (shipped with your monitor) to the
USB-upstream port on the monitor and to
your computer.
7USB downstream
port with Power
Charging
Connect to charge your USB device.
8Headphone-out
jack
Connect the headphones.
About Your Monitor | 11
Monitor Specifications
Flat Panel Specifications
Model AW2518HF
Screen type Active matrix - TFT LCD
Panel technology TN
Aspect Ratio 16:9
Viewable image
Diagonal
Horizontal, Active Area
Vertical, Active Area
Area
622.3 mm (24.5 inches)
543.74 mm (21.41 inches)
302.62 mm (11.91 inches)
164545.63 mm2 (255.05 inch2)
Pixel pitch 0.2832 mm x 0.2802 mm
Pixel per inch (PPI) 90
Viewing angle 160° (vertical) typical
170° (horizontal) typical
Luminance output 400 cd/m² (typical)
Contrast ratio 1000 to 1 (typical)
Faceplate coating Anti-Glare with 3H hardness
Backlight LED edgelight system
Response time 1 ms gray-to-gray
Color depth 16.7 million colors
Color gamut 72%* (CIE1931)
Built-in devices • USB 3.0 super-speed hub (with 1 x USB 3.0
upstream port)
• 4 x USB 3.0 downstream ports (including 1
port which supports power-charging)
12 | About Your Monitor
* Color gamut (typical) is based on CIE1976 (82%) and CIE1931 (72%) test
standards.
Resolution Specifications
Horizontal scan range 249.1 kHz to 263 kHz (automatic)
Vertical scan range 30 Hz to 240 Hz (automatic)
Maximum preset resolution 1920 x 1080 at 240 Hz
Supported Video Modes
Video display capabilities
(HDMI & DP playback)
480i, 480p, 576i, 576p, 720p, 1080i,
1080p, FHD
Connectivity • 1 x DP 1.2
• 2 x HDMI 2.0
• 1 x USB 3.0 Upstream port (Rear)
• 2 x USB 3.0 Downstream port (Rear)
• 2 x USB 3.0 Downstream port (Bottom)
• 1 x Headphone-out jack (Bottom)
• 1 x Audio line-out jack (Rear)
Height adjustable stand
Tilt
Swivel
Pivot
0 to 130 mm
-5° to 25°
-20° to 20°
-90° to 90°
Dell Display Manager (DDM)
Compatibility
Yes
Model AW2518HF
Model AW2518HF
About Your Monitor | 13
Preset Display Modes
HDMI Display Modes
Display Mode Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal/
Vertical)
VESA, VGA, 640 x
480
31.5 25.260 -/-
VESA, 800 x 600 37.88 60 40 +/+
VESA, 1024 x 768 48.36 60 65 -/-
HDTV, 1920 x
1080p
67.5 60 148.5 +/+
HDTV, 1920 x
1080p @ 120 Hz
137.26 120 285.5 +/-
HDTV, 1920 x
1080p @ 144 Hz
166.59 144 346.5 +/-
HDTV, 1920 x
1080p @ 240 Hz
291.31 240 594.27 +/-
DP Display Modes
Display Mode Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Pixel Clock
(MHz)
Sync Polarity
(Horizontal/
Vertical)
VESA, 640 x 480 31.5 25.260 -/-
VESA, 800 x 600 37.88 60 40 +/+
VESA, 1024 x 768 48.36 60 65 -/-
HDTV, 1920 x
1080p
67.5 60 148.5 +/+
HDTV, 1920 x
1080p @ 120 Hz
137.26 120 285.5 +/-
HDTV, 1920 x
1080p @ 144 Hz
166.59 144 346.5 +/-
HDTV, 1920 x
1080p @ 240 Hz
291.31 240 594.27 +/-
NOTE: This monitor supports AMD FreeSync.
14 | About Your Monitor
Electrical Specifications
Video input signals • HDMI 2.0, 600 mV for each differential
line, 100 ohm input impedance per
differential pair
• DisplayPort 1.2, 600 mV for each
differential line, 100 ohm input impedance
per differential pair
Synchronization input signals Separate horizontal and vertical
synchronization, polarity-free TTL level, SOG
(Composite SYNC on green)
AC input voltage/frequency/
current
100 VAC to 240 VAC / 50 Hz or 60 + Hz
3 Hz / 1.5 A (typical)
Inrush current • 120 V: 30 A (Max.) at 0 °C (cold start)
• 220 V: 60 A (Max.) at 0 °C (cold start)
Physical Characteristics
Model AW2518HF
Model AW2518HF
Signal cable type •Digital: HDMI, 19 pins
• Digital: DisplayPort, 20 pins (cable not
included)
• Universal Serial Bus: USB, 9 pins
Dimensions (with stand)
Height (extended) 523.3 mm (20.6 inches)
Height (compressed) 418.4 mm (16.5 inches)
Width 555.8 mm (21.88 inches)
Depth 268.6 mm (10.57 inches)
Dimensions (without stand)
Height 327.9 mm (12.91 inches)
Width 555.8 mm (21.88 inches)
Depth 64.6 mm (2.54 inches)
Stand dimensions
About Your Monitor | 15
Environmental Characteristics
Height (extended) 426.7 mm (16.8 inches)
Height (compressed) 418.4 mm (16.5 inches)
Width 465.7 mm (18.33 inches)
Depth 268.6 mm (10.57 inches)
Weight
Weight with packaging 11.3 kg (24.91 lb)
Weight with stand assembly
and cables
6.90 kg (15.21 lb)
Weight without stand assembly
(For wall mount or VESA mount
considerations - no cables)
3.38 kg (7.45 lb)
Weight of stand assembly 3.22 kg (7.09 lb)
Front frame gloss Black Frame - 20 gloss unit (max.)
Model AW2518HF
Compliant Standards
• ENERGY STAR certified Monitor
• EPEAT Silver registered in the U.S. EPEAT registration varies by country. See
www.epeat.net for registration status by country
• Arsenic-Free glass and Mercury-Free for the panel only
Temperature
Operating 0 °C to 40 °C (32 °F to 104 °F)
Non-operating • Storage: -20 °C to 60 °C (-4 °F to 140 °F)
• Shipping: -20 °C to 60 °C (-4 °F to
140 °F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating • Storage: 5% to 90% (non-condensing)
• Shipping: 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,404 ft) (maximum)
16 | About Your Monitor
Power Management Modes
If you have VESA's DPM™ compliance display card or software installed in your
PC, the monitor can automatically reduce its power consumption when not in
use. This is referred to as Power Save Mode*. If the computer detects input from
the keyboard, mouse, or other input devices, the monitor automatically resumes
functioning. The following table shows the power consumption and signaling of
this automatic power saving feature.
VESA
Modes
Horizontal
Sync
Vertical
Sync
Video Power
Indicator
Power
Consumption
Normal
operation
Active Active Active Blue 65 W
(maximum)**
17.6 W (typical)
Active-off
mode
Inactive Inactive Blanked Amber
(blinking)
Less than 0.3 W
Switch off - - - Off Less than 0.3 W
Energy Star Power Consumption
Pon 13.5 W
ETEC 43.1 kWh
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation • 221.8 BTU/hour (maximum)
• 60.0 BTU/hour (typical)
About Your Monitor | 17
The OSD functions only in the normal operation mode. When any button is
pressed in the Active-off mode, the following message will be displayed:
NOTE: The message may be slightly different according to the connected
input signal.
NOTE: This monitor is ENERGY STAR Qualified.
NOTE:
Pon: Power consumption of on mode as defined in Energy Star 7.0
version.
ETEC: Total energy consumption in kWh as defined in Energy Star 7.0
version.
* Zero power consumption in OFF mode can only be achieved by disconnecting
the main cable from the monitor.
** Maximum power consumption with max luminance, and USB active.
This document is informational only and reflects laboratory performance. Your
product may perform differently, depending on the software, components and
peripherals you ordered and shall have no obligation to update such information.
Accordingly, the customer should not rely upon this information in making
decisions about electrical tolerances or otherwise. No warranty as to accuracy or
completeness is expressed or implied.
About Your Monitor | 19
HDMI Connector
Pin
Number
19-pin Side of the Connected
Signal Cable
1 TMDS DATA 2+
2 TMDS DATA 2 SHIELD
3 TMDS DATA 2-
4 TMDS DATA 1+
5 TMDS DATA 1 SHIELD
6 TMDS DATA 1-
7 TMDS DATA 0+
8 TMDS DATA 0 SHIELD
9 TMDS DATA 0-
10 TMDS CLOCK+
11 TMDS CLOCK SHIELD
12 TMDS CLOCK-
13 CEC
14 Reserved (N.C. on device)
15 DDC CLOCK (SCL)
16 DDC DATA (SDA)
17 DDC/CEC Ground
18 +5V POWER
19 HOT PLUG DETECT
Plug and Play Capability
You can install the monitor in any Plug and Play-compatible system. The monitor
automatically provides the computer system with its Extended Display
Identification Data (EDID) using Display Data Channel (DDC) protocols so that
the system can configure itself and optimize the monitor settings. Most monitor
installations are automatic; you can select different settings if desired. For more
information about changing the monitor settings, see Operating the Monitor.
20 | About Your Monitor
Universal Serial Bus (USB) Interface
This section gives you information about the USB ports that are available on the
monitor.
Transfer Speed Data Rate Power Consumption*
Super-speed 5 Gbps 4.5 W (Max, each port)
High speed 480 Mbps 4.5 W (Max, each port)
Full speed 12 Mbps 4.5 W (Max, each port)
NOTE: This monitor is Super-Speed USB 3.0 compatible.
* Up to 2 A on USB downstream port (port with battery icon) with
BC1.2-compliant devices or normal USB devices.
USB Upstream Connector
Pin
Number
9-pin Side of the
Connector
1 VCC
2 D-
3 D+
4 GND
5 SSTX-
6 SSTX+
7 GND
8 SSRX-
9 SSRX+
About Your Monitor | 21
USB Downstream Connector
Pin
Number
9-pin Side of the
Connector
1 VCC
2 D-
3 D+
4 GND
5 SSRX-
6 SSRX+
7 GND
8 SSTX-
9 SSTX+
USB Ports
• 1 upstream - rear
• 2 downstream - rear
• 2 downstream - bottom
• Power Charging Port- the port with battery icon; supports fast
current charging capability if the device is BC1.2 compatible.
NOTE: USB 3.0 functionality requires a USB 3.0-capable computer.
NOTE: The monitor's USB interface works only when the monitor is On or
in the power save mode. If you turn Off the monitor and then turn it On,
the attached peripherals may take a few seconds to resume normal
functionality.
22 | About Your Monitor
LCD Monitor Quality and Pixel Policy
During the LCD Monitor manufacturing process, it is not uncommon for one or
more pixels to become fixed in an unchanging state which are hard to see and
do not affect the display quality or usability. For more information on Dell
Monitor Quality and Pixel Policy, see Dell Support site at: http://
www.dell.com/support/monitors.
Maintenance Guidelines
Cleaning Your Monitor
CAUTION: Read and follow the Safety Instructions before cleaning the
monitor.
WARNING: Before cleaning the monitor, unplug the monitor power
cable from the electrical outlet.
For best practices, follow the instructions in the list below while unpacking,
cleaning, or handling your monitor:
• To clean your anti-static screen, lightly dampen a soft, clean cloth with
water. If possible, use a special screen-cleaning tissue or solution suitable
for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive
cleaners, or compressed air.
• Use a lightly-dampened, warm cloth to clean the monitor. Avoid using
detergent of any kind as some detergents leave a milky film on the monitor.
• If you notice white powder when you unpack your monitor, wipe it off with
a cloth.
• Handle your monitor with care as a darker-colored monitor may get
scratched and show white scuff marks more than a lighter-colored monitor.
• To help maintain the best image quality on your monitor, use a dynamically
changing screen saver and turn Off your monitor when not in use.
Setting Up the Monitor | 23
Setting Up the Monitor
Attaching the Stand
NOTE: The stand is detached when the monitor is shipped from the
factory.
NOTE: This is applicable for a monitor with a stand. When any other stand
is bought, please refer to the respective stand setup guide for the set-up
instructions.
To attach the monitor stand:
1. Place the monitor on a soft cloth or cushion.
2. Attach the stand riser till it snaps into place.
24 | Setting Up the Monitor
3. Route and connect the necessary cables to the monitor, as shown in the
illustration.
a. Power cable
b. HDMI cable
c. DP cable (optional, cable not included)
d. USB upstream cable
e. USB downstream cables (optional, cable not included)
NOTE: Route each cable neatly so that the cables will be organized after
the cable cover is attached.
WARNING: Do not plug-in or turn-on the power to the monitor until you
are instructed to do so.
4. Slide the cable cover till it snaps into place.
NOTE: Ensure that the cables may pass through the bottom of the cable
cover.
Setting Up the Monitor | 25
Connecting the Computer
WARNING: Before you begin any of the procedures in this section,
follow the Safety Instructions.
NOTE: Do not connect all cables to the computer at the same time.
NOTE: See also Attaching the Stand.
To connect your monitor to the computer:
1. Connect the other end of the connected DP or HDMI cable to your
computer.
2. Connect the upstream USB 3.0 port (cable supplied) to an appropriate
USB 3.0 port on your computer. (See Rear and Bottom View for details.)
3. Connect the USB 3.0 peripherals to the downstream USB 3.0 ports on the
monitor.
4. Plug the power cables for your computer and monitor into a nearby outlet.
5. Turn On the monitor and the computer.
If your monitor displays an image, installation is complete. If it does not
display an image, see Universal Serial Bus (USB) Specific Problems.
NOTE: The graphics are used for the purpose of illustration only.
Appearance of the computer may vary.
26 | Setting Up the Monitor
Removing the Monitor Stand
NOTE: To prevent scratches on the LCD screen while removing the stand,
ensure that the monitor is placed on a soft, clean surface.
NOTE: This is applicable for a monitor with a stand. When any other stand
is bought, please refer to the respective stand setup guide for the set-up
instructions.
To remove the stand:
1. Turn off the monitor.
2. Unplug the cables from the computer.
3. Place the monitor on a soft cloth or cushion.
4. Using your thumbs, apply gentle pressure on the cable cover to horizontally
slide it off from the monitor.
5. Unplug the cables from the monitor.
Setting Up the Monitor | 27
6. Press and hold the stand release button.
7. Lift the stand riser up and away from the monitor.
28 | Setting Up the Monitor
Wall Mounting (Optional)
(Screw dimension: M4 x 10 mm).
Refer to the instructions that come with the VESA-compatible wall mounting kit.
1. Place the monitor panel on a soft cloth or cushion on a stable, flat table.
2. Remove the stand.
3. Use a Phillips crosshead screwdriver to remove the four screws securing the
plastic cover.
4. Attach the mounting bracket from the wall mounting kit to the monitor.
5. Mount the monitor on the wall by following the instructions that comes with
the wall mounting kit.
NOTE: For use only with UL-listed wall mount bracket with minimum
weight/load bearing capacity of 13.52 kg.
Operating the Monitor | 29
Operating the Monitor
Power On the Monitor
Press the Power button to turn on the monitor.
Using the Front-Panel Controls
Use the control buttons on the front of the monitor to adjust settings.
The following table describes the front-panel buttons:
Front-Panel Button Description
1
Shortcut key/
Preset Modes
Use this button to choose from a list of preset color modes.
2
Shortcut key/
Game Enhance
Mode
Use this button to launch the Game Enhance Mode menu.
3
Shortcut key/
Dark Stabilizer
Use this button to launch the Dark Stabilizer menu.
30 | Operating the Monitor
Front-Panel Button
Use the buttons on the front of the monitor to adjust the image settings.
Front-Panel Button Description
1
Up
Use the Up button to adjust (increase ranges) items in the
OSD menu.
2
Down
Use the Down button to adjust (decrease ranges) items in the
OSD menu.
3
Select
Use the Select button to confirm your selection.
4
Back
Use the Back button to go back to the previous menu.
4
Shortcut key/
Brightness/
Contrast
Use this button to directly access the Brightness/Contrast
menu.
5
Menu
Use the MENU button to launch the On-Screen Display
(OSD). See Accessing the Menu System.
6
Exit
Use this button to exit the OSD main menu.
Operating the Monitor | 31
Using the On-Screen Display (OSD) Menu
Accessing the Menu System
NOTE: If you change the settings and then either proceed to another
menu or exit the OSD menu, the monitor automatically saves those
changes. The changes are also saved if you change the settings and then
wait for the OSD menu to disappear.
1. Press the button to launch the OSD menu and display the main menu.
2. Press the and buttons to move between the setting options. As you
move from one icon to another, the option name is highlighted. See the
following table for a complete list of all the options available for the
monitor.
3. Press the button once to activate the highlighted option.
4. Press the and buttons to select the desired parameter.
5. Press to enter the submenu and then use the directional buttons,
according to the indicators on the menu, to make your changes.
6. Select the button to return to the main menu.
32 | Operating the Monitor
Icon Menu and
Submenus
Description
Game Use this menu to personalize your visual gameplay experience.
Preset Modes Allows you to choose from a list of preset color modes.
•Standard: Loads the monitor's default color settings. This is
the default preset mode.
•FPS: Loads color settings ideal for First-Person Shooter
games.
•RTS: Loads color settings ideal for Real-Time Strategy
games.
•RPG: Loads color settings ideal for Role-Playing games.
•Game 1/Game 2/Game 3: Allows you to customize the
color settings for your gaming needs.
Operating the Monitor | 33
Preset Modes •ComfortView: Decreases the level of blue light emitted
from the screen to make viewing more comfortable for your
eyes.
WARNING: The possible long-term effects of
blue light emission from the monitor may cause
personal injury such as digital eye strain, eye
fatigue and damage to the eyes. Using monitor for
extended periods of time may also cause pain in
parts of body such as neck, arm, back and
shoulder.
To reduce the risk of eye strain and neck/arm/back/
shoulder pain from using the monitor for long periods of
time, we suggest you to:
1. Set the distance of the screen between 20 inches to 28
inches (50cm-70cm) from your eyes.
2. Blink frequently to moisten your eyes or wet your eyes
with water after prolonged usage of the monitor.
3. Take regular and frequent breaks for 20 minutes every
two hours.
4. Look away from your monitor and gaze at a distant
object at 20 feet away for at least 20 seconds during
the breaks.
5. Perform stretches to relieve tension in the neck, arm,
back, and shoulders during the breaks.
•Warm: Increases the color temperature. The screen
appears warmer with a red/yellow tint.
•Cool: Decreases the color temperature. The screen appears
cooler with a blue tint.
•Custom Color: Allows you to manually adjust the color
settings. Press the and buttons to adjust the three
colors (R, G, B) values and create your own preset color
mode.
Operating the Monitor | 35
Dark Stabilizer The feature improves the visibility in the dark gaming
scenarios. The higher the value (between 0 to 3), the better
visibility in dark area of the display image.
Hue This feature can shift the color of the video image to green or
purple. This is used to adjust the desired flesh tone color. Use
or to adjust the hue level from 0 to 100.
Use to increase the green shade of the video image.
Use to increase the purple shade of the video image.
NOTE: Hue adjustment is available only when you select FPS,
RTS, or RPG preset mode.
Saturation This feature can adjust the color saturation of the video image.
Use or to adjust the saturation level from 0 to 100.
Use to increase the colorful appearance of the video
image.
Use to increase the monochrome appearance of the video
image.
NOTE: Saturation adjustment is available only when you
select FPS, RTS, or RPG preset mode.
Reset Game Select this option to restore default game settings.
Operating the Monitor | 37
Input Source Use the Input Source menu to select between the different
video signals that may be connected to your monitor.
DP Select the DP input when you are using the DP connector.
HDMI 1 Select the HDMI 1 or HDMI 2 input when you are using the
HDMI connectors.
HDMI 2
Auto Select Turning on the function allows you to scan for available input
sources.
Reset Input
Source
Reset your monitor input settings to the factory settings.
38 | Operating the Monitor
Display Use Display to adjust images.
Aspect Ratio Adjusts the image ratio to Wide 16:9, Auto Resize, 4:3, or
1:1.
Input Color
Format
Allows you to set the video input mode to:
RGB: Select this option if your monitor is connected to a
computer (or DVD player) using the DP or HDMI cable.
YPbPr: Select this option if your DVD player supports only
YPbPr output.
Sharpness This feature can make the image look sharper or softer. Use
or to adjust the sharpness level from 0 to 100.
Dynamic
Contrast
Allows you to increase the level of contrast to provide sharper
and more detailed image quality.
Press the button to select the Dynamic Contrast "On"
or "Off".
NOTE: Dynamic Contrast provides higher contrast if you
select these preset modes: FPS, RTS, RPG, Game 1, Game 2,
and Game 3.
Reset Display Select this option to restore default display settings.
Operating the Monitor | 39
Audio
Volume Allows you to set the volume level of headphone output.
Use or to adjust the volume level from 0 to 100.
Reset Audio Select this option to restore default audio settings.
Produktspecifikationer
| Varumärke: | Alienware |
| Kategori: | Övervaka |
| Modell: | AW2518HF |
Behöver du hjälp?
Om du behöver hjälp med Alienware AW2518HF ställ en fråga nedan och andra användare kommer att svara dig
Övervaka Alienware Manualer
1 September 2024
31 Augusti 2024
30 Augusti 2024
30 Augusti 2024
29 Augusti 2024
28 Augusti 2024
28 Augusti 2024
27 Augusti 2024
27 Augusti 2024
27 Augusti 2024
Övervaka Manualer
- Positivo
- Odys
- Raysgem
- Jung
- Viewsonic
- Adam
- M-Audio
- Allen & Heath
- Xiaomi
- Freedom Scientific
- IFM
- Dahua Technology
- JVC
- BOOX
- Mybeo
Nyaste Övervaka Manualer
9 April 2025
9 April 2025
8 April 2025
8 April 2025
7 April 2025
5 April 2025
5 April 2025
4 April 2025
4 April 2025
2 April 2025
