WZ
3
SYS-LINK Applications Note AP5736 1

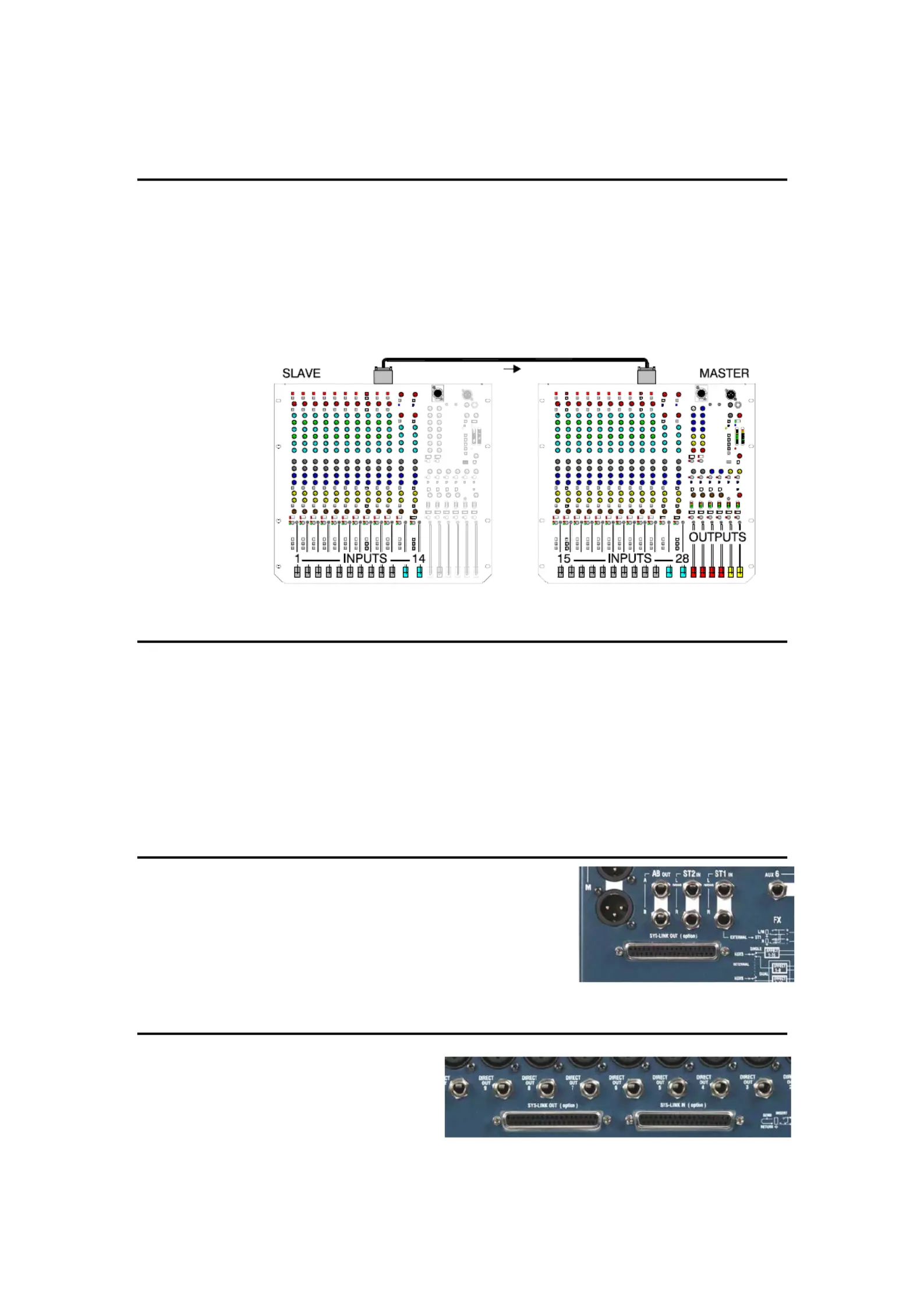

SYS-LINK explained
SYS-LINK (system link) is the Allen & Heath connection standard for linking two consoles together to
expand the number of input channels feeding the mixes. One becomes the ‘slave’ to the other ‘master’
console. All the slave console mix busses including main LR, groups and auxes connect directly to the
master console mix busses without using up valuable input channels. The PFL/AFL system is also
linked so that all channels can be monitored using the master console headphones and meters. The
slave console master section is not used as its signals are taken before the mix inserts and output
faders. Both consoles must have the SYS-LINK option fitted. A single multiway cable is all that is
required to link the WZ
3
to another Allen & Heath console fitted with SYS-LINK.
SYS-LINK versions 1 and 2
The MixWizard WZ
3
uses the more recent SYS-LINK Version 2 standard. This benefits from balanced
interconnections which allow longer cable length with less chance of noise and interference pickup
than the earlier, unbalanced SYS-LINK Version 1. Both versions operate at -2dBu line level. V1 uses
the 25way D-type connector. V2 uses the 37way D-type connector. Two consoles fitted with SYS-LINK

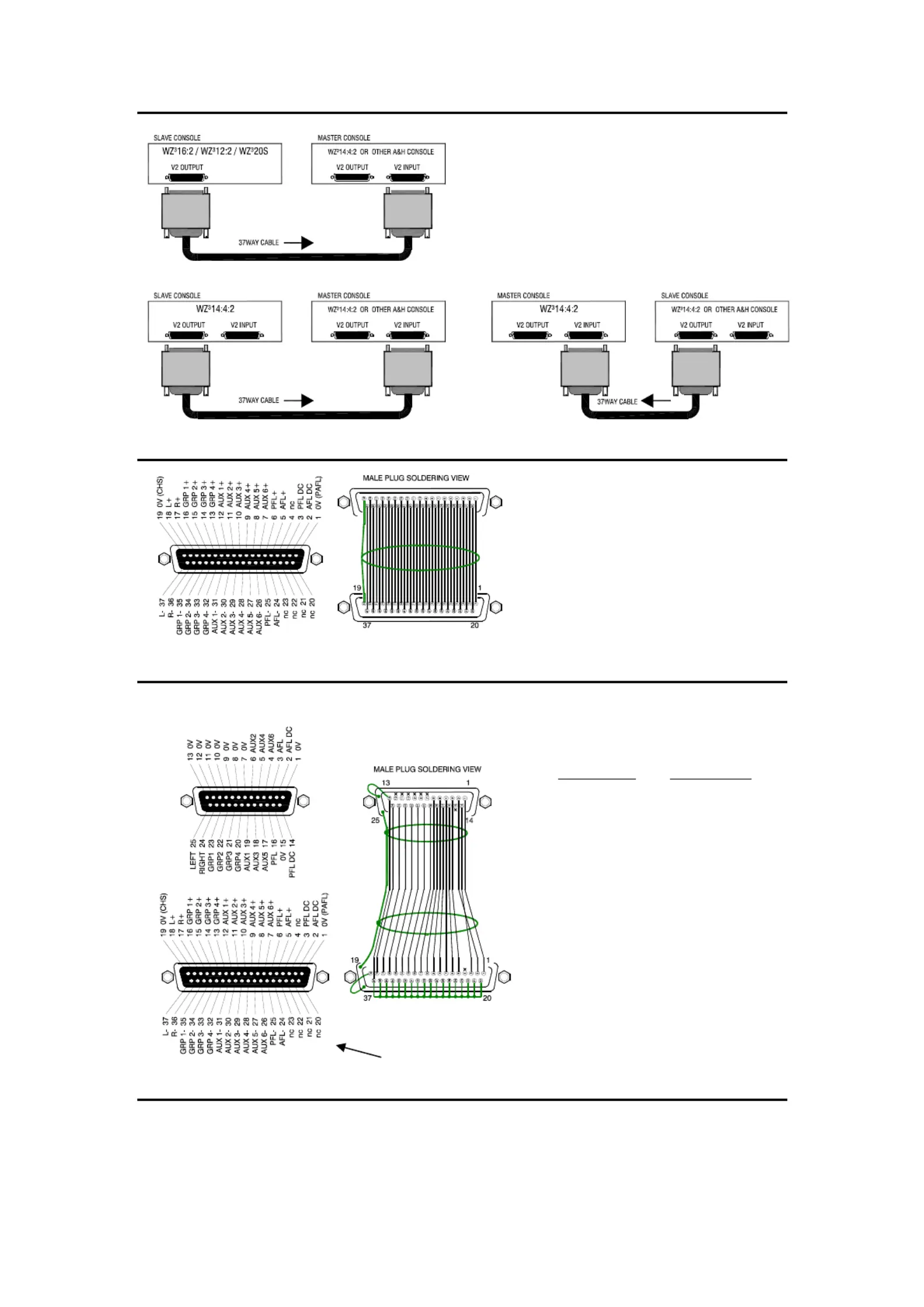

V2 can be linked using a 36-core shielded cable wired one to one to two 37way male D-type
connectors. It is also possible to connect between SYS-LINK V2 and V1. This requires a 37way to
25way adapter cable wired to unbalance the connections. Wiring details are provided later. The
interconnecting cable is not included in the kit and should be sourced elsewhere or ordered separately
from Allen & Heath.
WZ
3
16:2 / WZ
3
12:2 / WZ
3
20S SYS-LINK V2 output option
Option kit W312/16-SLV2 is available from Allen & Heath. This can
be installed in the WZ
3
16:2, WZ
3
12:2 or WZ
3
20S console to provide
a SYS-LINK V2 output connection. Note that an input connection is
not provided. These consoles may be used as ‘slave’ channel
expanders only. For information on fitting the option refer to
document AP5735.
WZ
3
14:4:2 SYS-LINK V2 input and output option
Option kit W31442-SLV2 is available from
Allen & Heath. This can be installed in the
WZ
3
14:4:2 console to provide both SYS-LINK
V2 input and output. The console may be
used as either a ‘slave’ or a ‘master’. For
information on fitting the option refer to
document AP5737.
ALLEN&HEATH WZ
3
SYS-LINK V2 AP5736 issue 3
Applications Note
