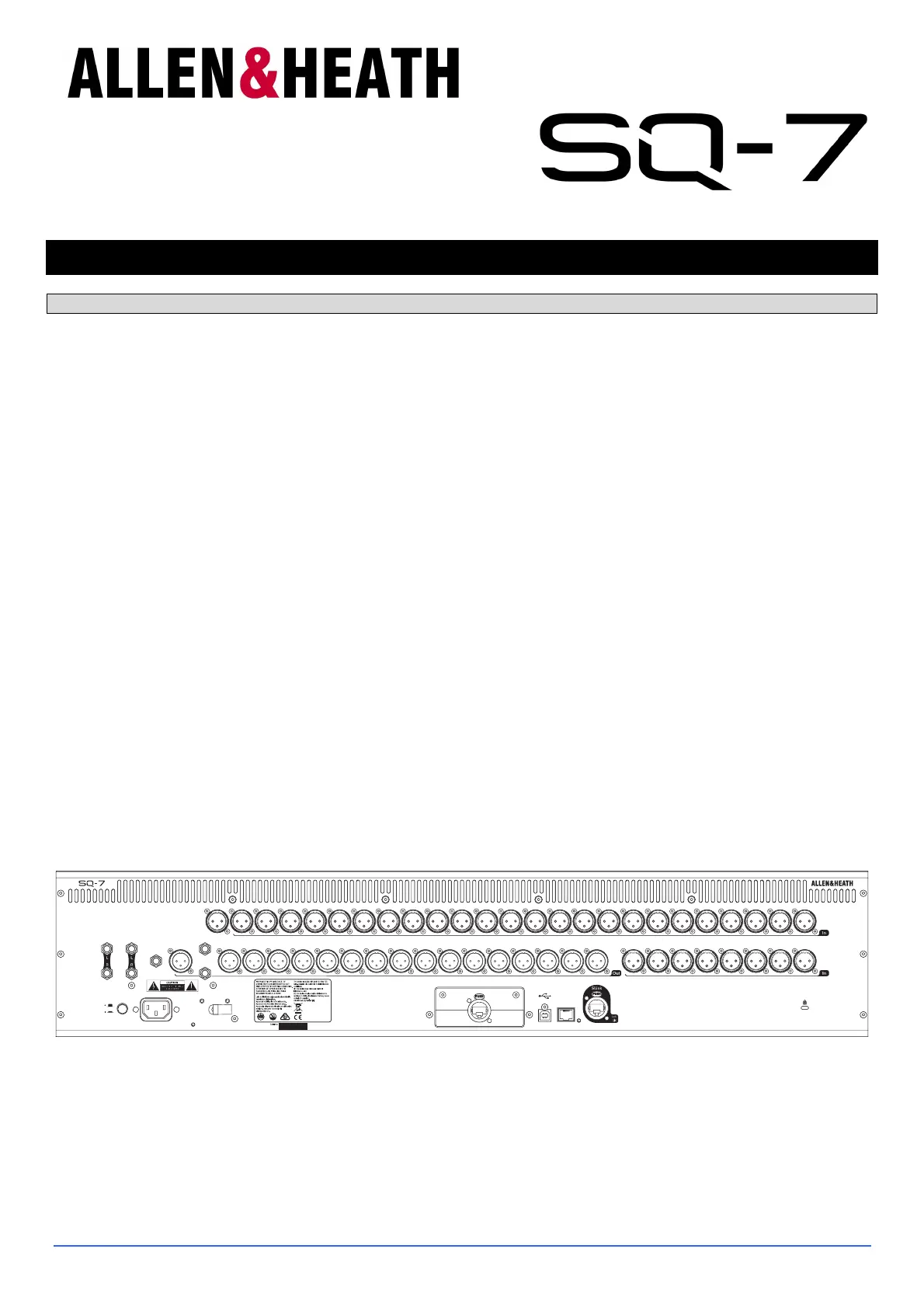

SQ-7 Technical Datasheet 1 Allen & Heath Ltd
Technical Datasheet
Overview
• Compact Digital Mixer for Live, Studio and Installation
• 48 Input Channels
• 32 Local Mic Inputs (XLR)
• 2 ¼” Stereo Inputs (TRS)
• 1 3.5mm Stereo Input
• 36 Total Busses
• 12 Stereo Mix (Aux or Group) + Main
• PAFL Bus
• 18 Assignable Local Outputs (16 XLR + 2 ¼” TRS)
• AES Digital Output
• Dedicated Talkback mic input (XLR)
• ¼” TRS Headphone out with dedicated control
• SLink EtherCON connection for remote audio using
dSnake, DX or gigaACE protocol (64x64 channels)
• I/O Port for Option Card (including 3
rd
party protocols –
Dante/Waves)
• 8 Mute Groups
• 8 DCA Groups
• 8 Stereo FX with dedicated FX Returns
• DEEP Processing Ready
• RackFX Effects suite
• 7" colour touchscreen
• 16 Assignable SoftKeys
• 8 Assignable Soft Rotaries
• Dedicated physical controls for channel processing
(Gain, HPF Frequency, Gate Threshold, Compressor
Threshold, Pan, EQ Gain/Frequency/Width)
• 32+1 Faders with 6 Layers for 192 assignable Channel
Strips
• Motorised faders for sends on faders, GEQ fader flip
and mix recall
• 32 Backlit LCD Channel Strip displays
• Chromatic Channel Metering
• Integrated Surface Illumination
• Single/Dual Footswitch Control
• Input channel linking for stereo sources
• Patchable Insert points
• Input processing – Preamp, HPF, Gate, PEQ,
Compressor, Delay
• Mix processing – PEQ, Graphic EQ, Compressor,
Delay
• Fully integrated Automatic Mic Mixing
• 31 Band Real Time Analyser
• Quick copy/paste/reset for parameters
• User Permissions to restrict operator access
• 300 Scene memories per show
• Channel Safes, Global and per Scene Recall Filters
• FX, processing and channel Libraries
• SQ-Drive for stereo and multitrack recording/playback
direct to USB drive
• USB transfer of Scenes, Libraries, Shows
• 32x32 channel USB streaming to/from Mac/PC
• DAW Control driver for MIDI control via USB or TCP/IP
• Wireless remote mixing apps for iPad and Android
• Compatible with ME personal monitoring range
12345678910111213141524 23 22 21 20 19 18 17 16
2526272829303132
Talkback
1234567891011/L12/R13141516
Footswitch
AES out
AVIS: RISQUE DE CHOC ELECTRIQUE - NE PAS OUVRIR.
Power
Network
I/O Port
ENGINEERED IN ENGLAND BY ALLEN & HEATH LIMITED MADE IN CHINA
USB
2.0
OFF
ON
AC MAINS IN ~
100-240V~ 50/60Hz 110W
ST2 in ST1 in A out
B out
Serial No:
WARNING: THIS APPLIANCE MUST BE
CONNECTED TO A MAINS SOCKET OUTLET
WITH A PROTECTIVE EARTHING CONNECTION.
ATTENTION: CET APPAREIL DOIT ETRE
RACCORDE A UNE PRISE ELECTRIQUE
SECURISEE RELIEE A LA TERRE
Laite on liitettävä suojamaadoituskoskettimilla
varustettuun pistorasiaan.
Apparatet må tilkoples jordet stikkontakt.
Apparaten skall anslutas till jordat uttag.
Apparatets stikprop skal tilsluttes en stikkontakt
med jord, som giver forbindelse til
stikproppens jord.
This device complies with part 15 of the FCC
rules. Operation is subject to the following two
conditions:
(1) this device may not cause harmful
interference, and
(2) this device must accept any interference
received, including interference that may cause
undesired operation.
CAN ICES-3 (B)/NMB-3 (B)
Lnk
DO NOT OBSTRUCT VENTILATION OPENINGS
NE PAS OBSTRUER LES OUVERTURES DE VENTILATION
SQ-7 Technical Datasheet 2 Allen & Heath Ltd

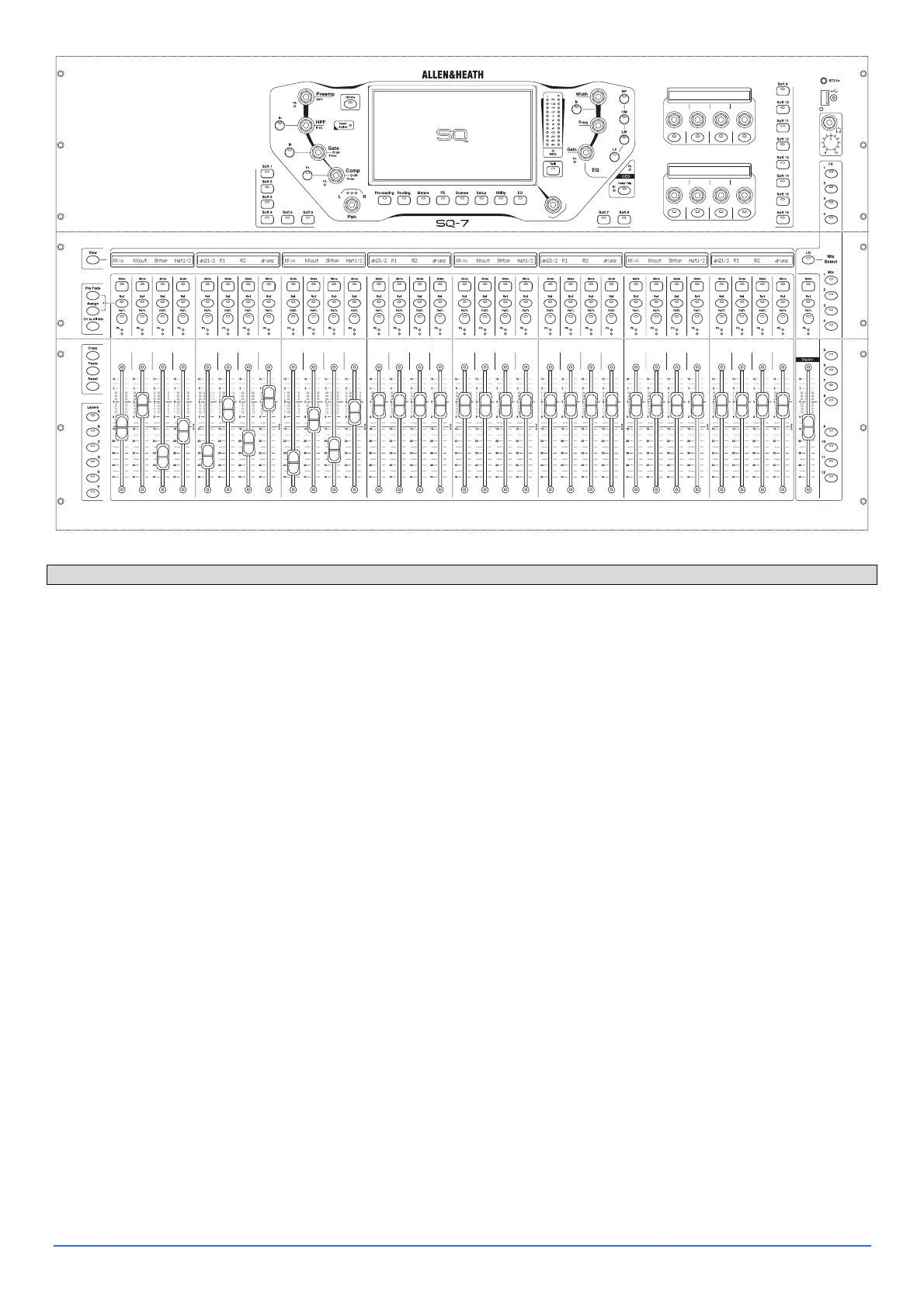

A&E Specifications
The mixer shall be a compact digital mixer built
around a 96kHz XCVI FPGA core with 48 input
channels mixing to LR and 12 stereo mix outputs.
The surface shall include 33 moving faders with 6
layers, each layer having dedicated keys, giving easy
access to input channels, mixes, FX sends, FX returns,
DCA masters and MIDI control.
Each fader strip shall have dedicated PAFL, Select,
and Mute buttons with indicators, a variable LED
meter, a peak indicator LED and variable colour
backlit LCD display.
There shall be dedicated physical controls which allow
for adjustment of key processing parameters, and
which follow the select button for the input and output
channels.
The fader and rotary controls shall be of a high
contrast colour to the mixer surface for excellent
visibility during operation in low light conditions. The
rotary controls shall also be illuminated to indicate
function and availability for use.
Send levels to mixes shall be displayed and adjusted
using the faders.
Surface illumination shall be integrated into the
bodywork of the mixer.
Local analogue inputs shall use balanced XLR sockets
and connect to fully recallable digitally controlled
preamplifiers. These shall be able to provide up to
+60dB of gain, industry standard 48V phantom
power, and include a switchable -20dB Pad to allow a
maximum input level of +30dBu.
Local analogue outputs shall be provided on 16 XLR
sockets and 2 balanced TRS ¼ inch Jack sockets.
These will have a nominal line output of +4dBu and a
maximum output of +22dBu.
There shall be a local “SLink” Ethernet audio
expansion port with locking EtherCON connector,
supporting multiple AoIP protocols and providing
access to a maximum 128x128 digital channels,
connected over a single cable ‘digital snake’ and
allowing remote preamp control of Allen & Heath
Remote Audio Units, as well as connection to Allen &
Heath ME Personal Mixing Systems.
A digital I/O Port shall be provided to accept optional
cards, supporting a maximum 128x128 channels and
the ability to interface with 3
rd
party AoIP protocols
such as Dante and Waves.
All input and output processing, routing options and
system configuration shall be accessed and adjusted
via a 7-inch colour touchscreen and associated
dedicated rotary control.
16 user-assignable SoftKeys with variable colour LED
illumination shall be provided for quick access to
Input/Mix/DCA/Group Mutes, Tap Tempo, Scene
Controls, MMC and SQ-Drive Controls, as well as 8
assignable rotary encoders with LCD display showing
their current function.
A footswitch connection shall be provided to allow
assignable control from an optional single or dual
footswitch.
There shall be dedicated keys for quick
Copy/Paste/Reset of processing parameters and
mixes.
dSnk1
Home
