M- -SLINK Fitting Note SQ
AP11565 Issue 1
SQ SLink Option Card
M- -SLINK is one of several audio networking options that can be fitted to an SQ
Allen & Heath mixerSQ . It provides a single intelligent SLink socket with a
maximum 128x128ch and 48/96kHz operation.
Fitting the card
1. Switch the system off.
2. Use a Torx T8 driver to remove the 2 screws securing the I/O Port
blank panel the SQ mixer. to
3. Slide the card into the slot and press it firmly into the mating
connector.
4. Refit the 2 screws to secure the card.
Software and firmware
Download and install the latest version of firmware: SQ
http://www.allen-heath.com
M- -SLINK requires firmware V1.3 or above. SQ SQ

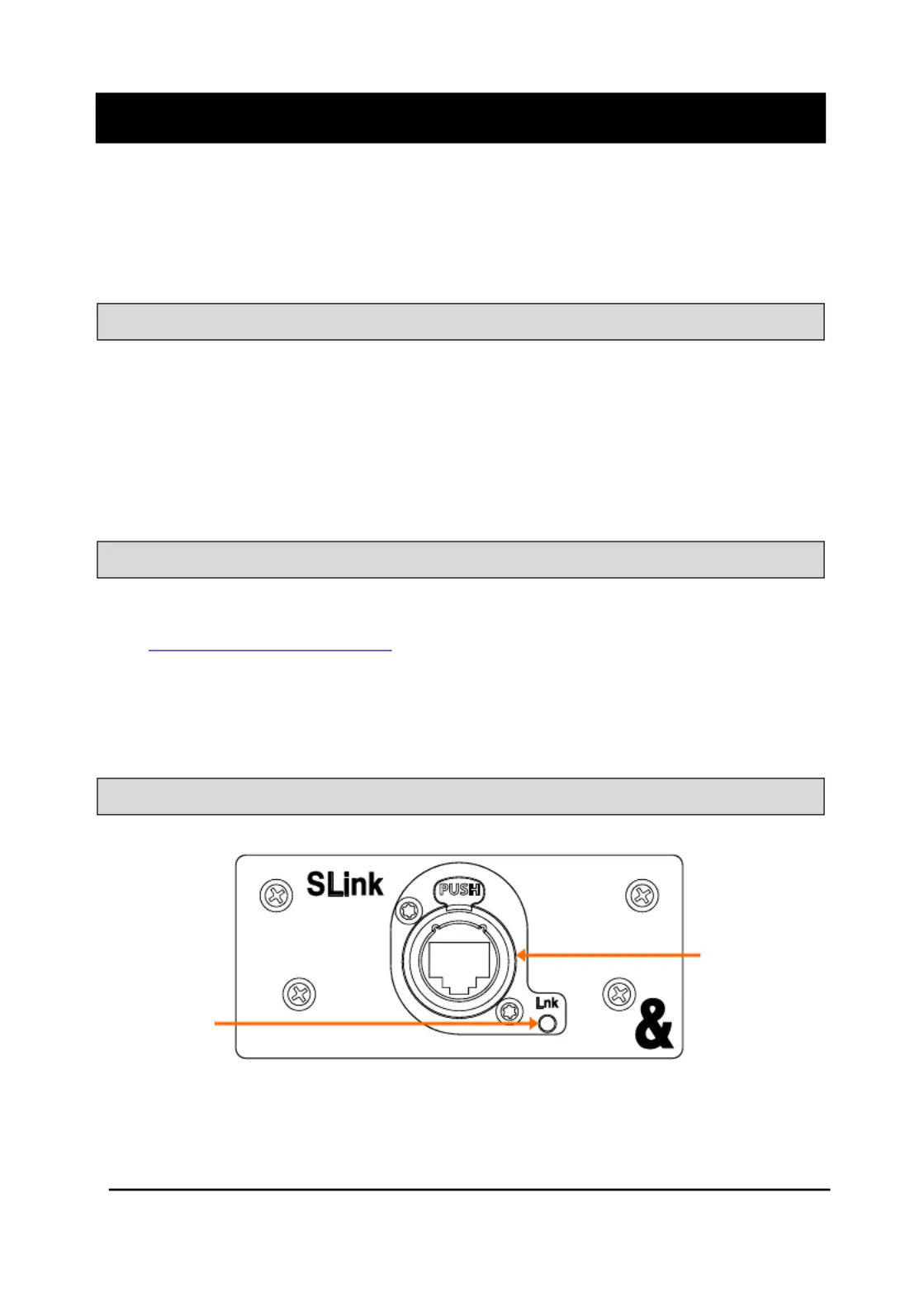

Front panel
Link Status
Flashes to indicate
network activity
SLink port
Locking EtherCon
port
Setting clock and patching signals
Use the screen to patch signals to or from the I/O Port. SQ I/O
Use the screen to select the clock source for the Setup / Audio Audio Sync/
mixer. Typically, this is set to Internal, though can be switched to I/O Port if
connecting directly to another desk i.e. when connecting to a dLive GigaACE
option card or another SLink port.
There should only be one clock ‘master’ in a system.
For more information on setup and functions please SQ
refer to the Firmware Reference Guide available for SQ
download at . www.allen-heath.com
Different protocols
The built-in SLink port and the port on the SLink Option Card are independent
from one another and automatically switch between 3 modes. Each port can be
in either dSnake/ME, DX or GigaACE mode.
You cannot run two different protocols on the same port
at once.
A limited one year manufacturer’s warranty applies to this product, the conditions
of which can be found at: www.allen-heath.com/legal.
This product complies with the European Electromagnetic
Compatibility directive 1 U and the European Low Voltage 20 4/30/E
directive / U. 2014 35/E
Copyright © 2018 Allen & Heath. All rights reserved.
ALLEN HEATH &
Allen & Heath Limited, Kernick Industrial Estate, Penryn, Cornwall, TR10 9LU, UK
http://www.allen-heath.com
