OPERATORS MANUAL MP 22
DJ MIXER
QUICK START
If you won’t read the manual (we know how it is) here are a few basic “plug it in and get signal thru it” facts. The MP
22 has all unbalanced RCA connectors, except for the XLR & ¼" Mic Inputs, and ¼" Mic Loop. Be sure your amplifier is
off while making connections. On the front panel, set all controls to the middle of their travel. Set all pushbuttons to their
out position, slide the MASTER LEVEL all the way down. Turn the INPUT SELECT switch for Channel A or B to an
Input with material playing. Turn your amplifier on. Now slowly turn up the MASTER LEVEL and see the material on the
meters and hear it from the MASTER OUTPUT jacks.
There are two places where you can get lost. If you bring a phono signal into PH/LN 1 or 2 be sure to keep the LINE/
PHONO switch set to PHONO; likewise when using a CD player be sure this switch is set to LINE. If you plug into the
MASTER LOOP RETURN the signal path thru the unit is broken, since these are switching jacks. They are looking for
the return from an outside device that got its signal from the MASTER LOOP SEND, so only use these when you can
make a complete loop. Now that was a pretty quick start, right?
Never connect anything except a Rane RS 1 to the thing that looks like a red telephone jack on the rear of the MP 22.
This is an AC supply and requires some special attention if you do not have an operational power supply exactly like the
one that came with your unit. Consult the Rane factory for a replacement or substitution.
Manual-2

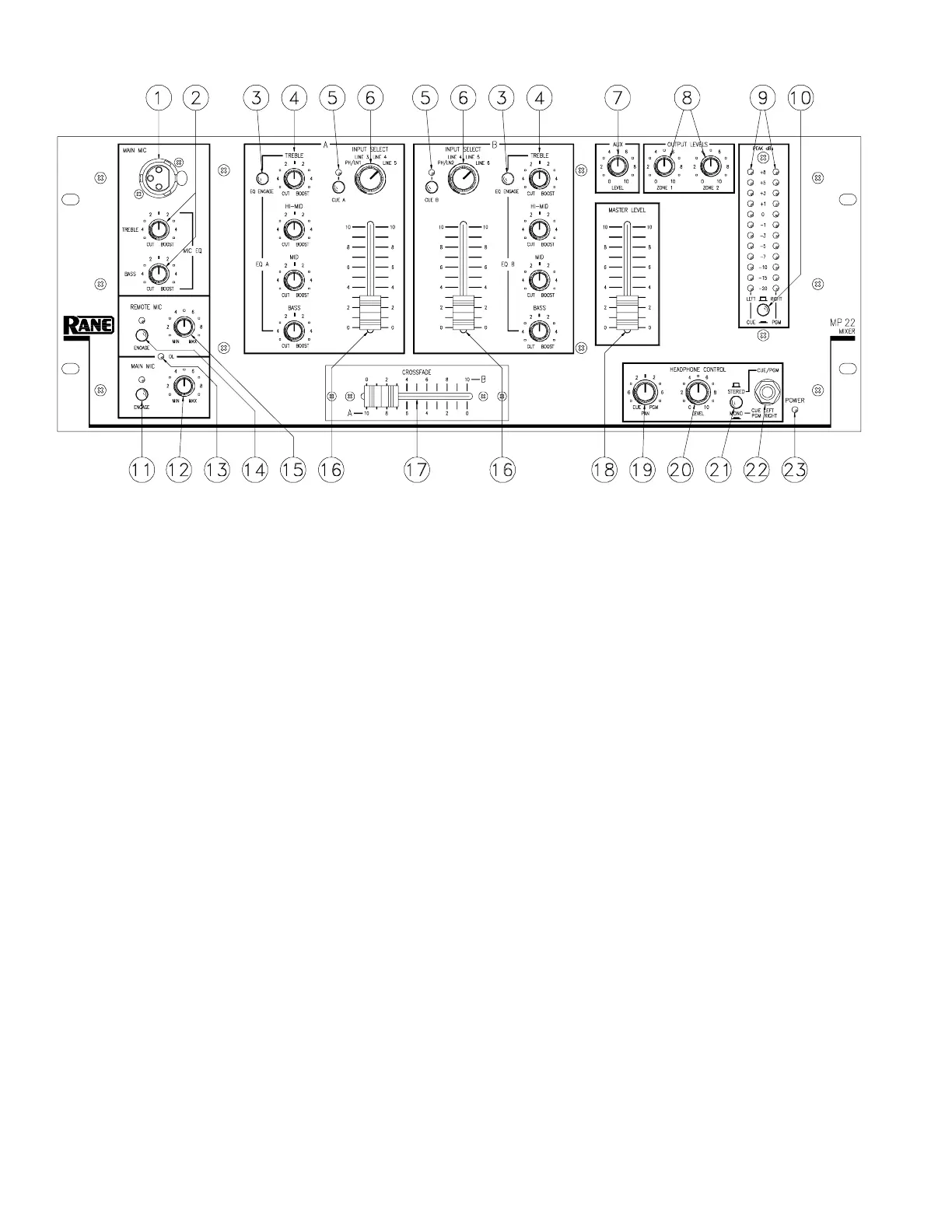

FRONT PANEL DESCRIPTION
1. Front panel MAIN MIC input: Use this three pin connector for connecting a balanced microphone of any impedance.
2. MIC EQ controls: These two controls adjust the frequency contour of both Microphone Inputs. They have no effect on any
other Inputs. Positioning these controls to the “12 o'clock” position turns the Mic Equalization off.
3. CHANNEL A & B EQ ENGAGE switches: Engaging this switch enables the Channel Equalizer to function. In the out
position, the Equalizer is bypassed.
4. CHANNEL A & B EQ level controls: These four rotary controls, when enabled with the EQ ENGAGE switch, are used to
contour the frequency response of the selected Input Channel. This is not designed to be the only Equalizer in the system,
this is intended to provide EQ between varying program materials. We recommend an external graphic equalizer for best
overall system sound, connected between the MASTER OUTPUTS and the amplifier.
5. CUE A or CUE B switch: Engaging any single or combination of CUE pushbuttons sends any program present at the
respective Channel's INPUT SELECT selector to the Headphone and meter cue sections. The yellow LEDs adjacent to each
CUE select button illuminate when the switch is engaged. Not recommended for beat sync lights. See OPERATING
INSTRUCTIONS.
6. INPUT SELECT A & B: These four position rotary switches provide Input selection between the various phono/line inputs
for their respective mixing Channels.
7. AUX LEVEL control: This rotary control adjusts the LEVEL from the AUX LINE IN jacks.
8. ZONE LEVEL controls: Control the output LEVEL of ZONE 1 and ZONE 2.
9. PEAK dBu CUE/PROGRAM meter: This meter can switch between two display modes. Refer to the CUE/PROGRAM
switch description below.
10. Meter CUE/PROGRAM switch: In the out position, the meter indicates Master Program output level in PEAK dBu in
LEFT and RIGHT stereo. In the in position, mono CUE level is displayed on the LEFT side and mono ProGraM level is
displayed on the RIGHT side.
11. MAIN MIC ENGAGE switch: This pushbutton ENGAGES the MAIN MIC Input. The adjacent red LED flashes when-
ever the switch is pressed in, signalling that the Main Mic is on.
