Sida 1/8
1
17. Connectivity Layout
16
INSTALLATION MANUAL
IVECO
Model: Daily VI & Daily VII
Year: Daily VII > 2019 & Daily VI > 2014
Kit content: double DIN facia plate; mounting
brackets + screws; SWRC CAN bus & LIN bus
wiring harness; antenna adapters; camera
adapter; USB/AUX adapter; speaker adapter
1a
2
13
6
5
7
8
9
10
11
12
3
4
14
16
1b
15 Optional 1
Optional 2
5. In order to fit the radio unit some plastic
parts need to be cut and removed. The
parts to be removed are the four flaps
and the plastic rectangular central
protrusion highlighted in the pictures.
32

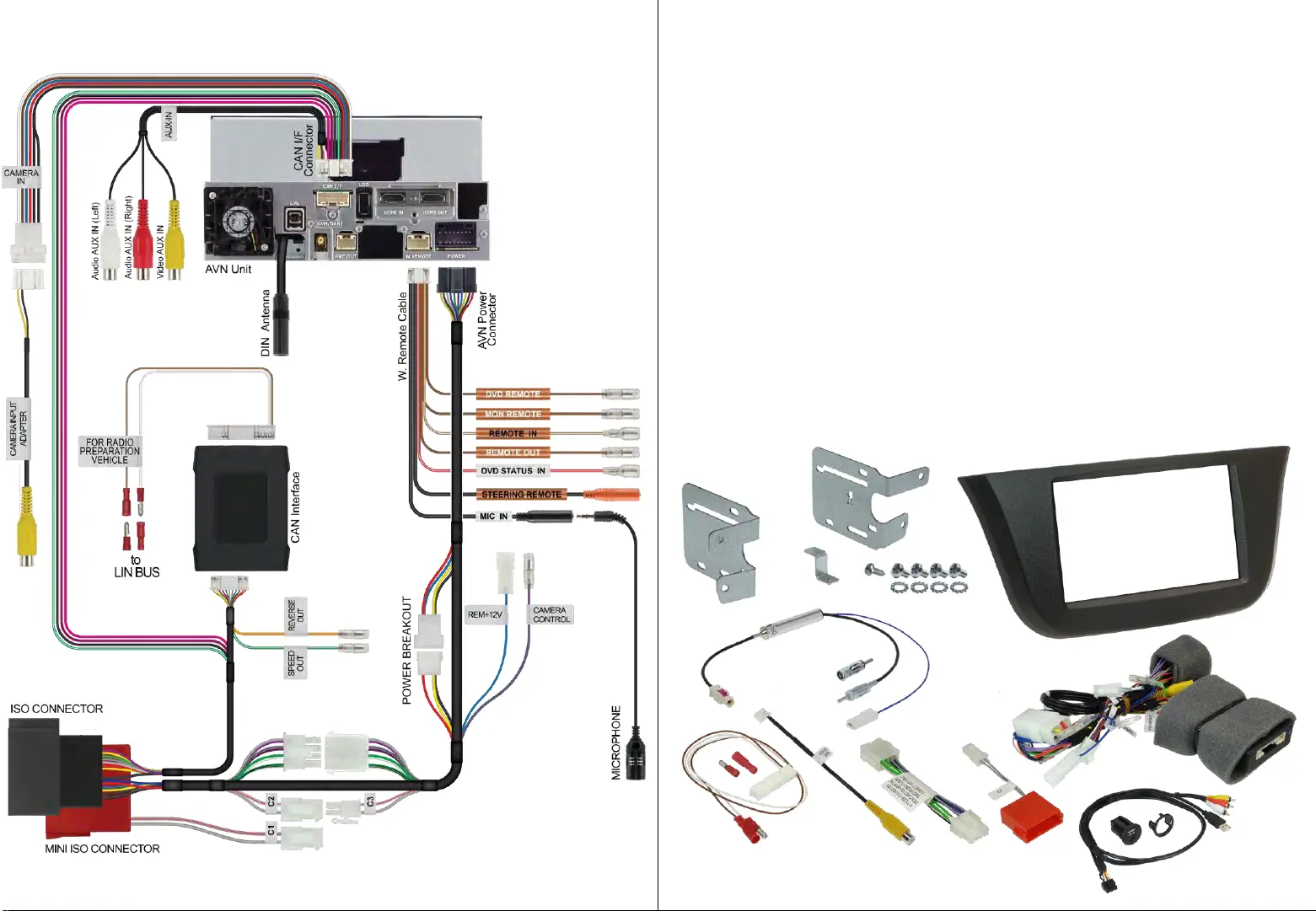

Content and wiring harness connections
1A/1B - to RADIO connectors
2 - to CAR connector
3 - CAMERA input
4 - AUX input
5 - CAMERA control/REMOTE out
6 - POWER ANTENNA output
7 - to optional/extra SERVICES:
Orange Reverse output–
Green Speed output–
8 - to INTERFACE connector
9 - to LIN BUS (point 7 / page 4-–5)
10 - External power access
11 - SPEAKER connection (point 9 / page 9)
12 7)- CAN BUS access (point 7 / page 4-–
13 - FAKRA antenna adapter
14 - ISO/DIN antenna adapter
15 - USB/AUX adapter
16 - CAMERA input adapter
OPTIONAL 1 (point 7 / page 5)→
OPTIONAL 2 (point 9 / page 9)→
1. This is how the original dashboard looks
like.
2. Remove the drawer and unscrew the
two screws as shown in the picture.
3. Remove the rubber compartment as
shown in the picture.
4. Unscrew the central screw and remove
the original facia.
6. Connect the harness as indicated on left
side (page 2).
CONFIGURATION STEP 1 STEP 2
Configuration radio steering wheel without
controls and open dash
C2 and C3 connected. Select the configuration indicated in the picture.
For more details see page 12 of the manual.
Configuration with radio steering wheel
controls and open dash
Remove the tape and connect the brown and
thin white cables to cables (9) (see page 2)
of the interface harness.
Select the configuration indicated in the picture.
For more details see page 12 of the manual.
Configuration with radio steering wheel
controls and DAB radio
C2 and C3 connected. Select the configuration indicated in the picture.
For more details see page 12 of the manual.
Configuration with radio steering wheel
controls and HI-CONNECT radio
For Daily VII with HI-CONNECT radio additional
parts KIT-903ID-NAV is needed. →
Please contact us to get assistance.
C1 and C3 connected.
7.1. Set the harness according to the configuration of your vehicle Iveco Daily VII–
5
