Sida 1/4
All installa on work must be performed by a quali ed professional installer only.� fi
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
SWC interface
INSTALLATION MANUAL
Model:

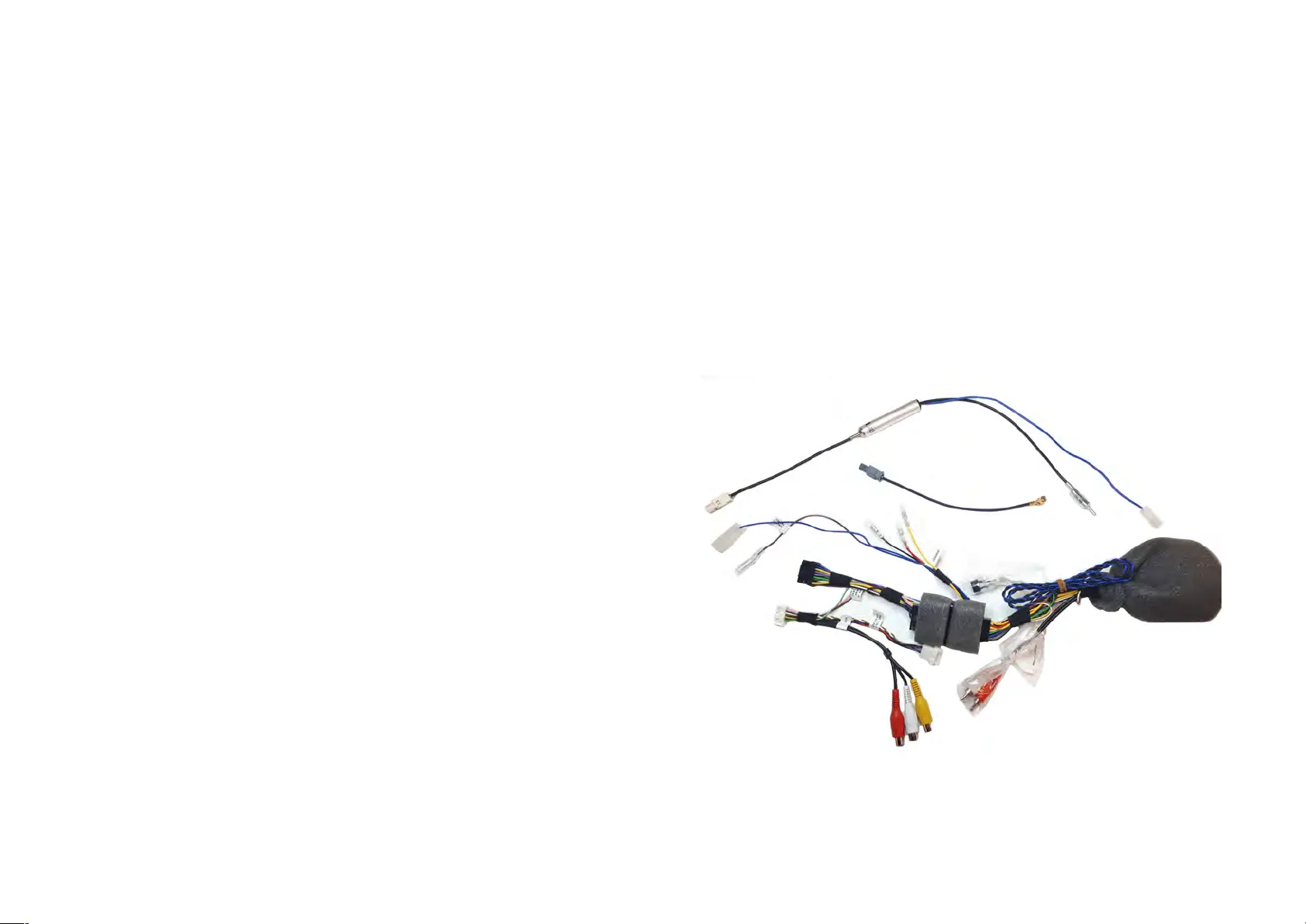

Kit content:
Customer code:
10/2019 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
wiring harness
Steering wheel control interface installa on kit for:�
FM antenna adapter
JEEP
Compass with VP2/VP2 NAV original RADIO;
All installa on work must be performed by a quali ed professional installer only.� fi
The manufacturer / dealer is not liable for any kind of incidental or indirect damages.
10/2019 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
2017>
Year:
DAB antenna adapter
16
BUZZER CABLE DASHBOARD
2
10
4
1
5
6
7
8
9
12
11
15
3
13
ATTENTION!
14
In order to prevent ESD damage, the WHEEL REMOTE JACK must be
connected before plugging in the connectors on car side.
Connect cables to as follow:
1- to RADIO CONNECTOR
2- to CAR ANTENNA CONNECTOR
3- to CAR ANTENNA CONNECTOR (with iLX-702D, X802D-U, INE-W710D, iLX-F903D Radio)
4- to CAMERA IN
5- to AUX IN
6- Red wire UNDERKEY - available for external accessories MAX 500 mA
7- Yellow wire PERMANENT - available for external accessories
8- Black wire GND - available for external accessories
9- AUT ANTENNA SIGNAL
10- to CAMERA CONTROL
11- to CAR CONNECTOR
12- to RADIO ANTENNA CONNECTOR
13- to RADIO ANTENNA CONNECTOR (with iLX-702D, X802D-U, INE-W710D, iLX-F903D Radio)
14 - to the point n°9 (AUT ANTENNA SIGNAL)
NOTE: 15- Connect to point n°4 only if original RVC installed
NOTE: 16- Find near the steering wheel the area where air grille is placed (highlighted in the picture).
NOTE: 17- Connect to point n°5 (White and Red RCA connectors) for VP2 with AUX only.
We suggest to place the buzzer behind this area for a be�er sound di usion. ff
16
The steering wheel buons perform the following func ons (if supported by the radio):
1- Source
2- Seek up
3- Seek down
4- Accept incoming call
5- Voice
6- Reject incoming call
7- Volume up
8- Volume down
9- Mute
4
6
5
copy for the vehicle owner
