Sida 1/2

IF IN THE VEHICLE SETTINGS THERE ISN'T THE

CHANGE TIME MENU,

AND YOU WANT TO SET THE VEHICLECLOCK?

PLEASE FOLLOW THE PROCEDURE BELOW:

Steering wheel remote control

interface installation kit for:

SMART

Model: For Two / For Four

Year: 2012 >

Kit content: SWRC CAN Bus interface

wiring harness

antenna adapter

radio adapter

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

ATTENTION: CHANGE TIME MENU

- The vehicle must be stationary with the handbrake on

- Turn on and off the vehicle (Key in pos. n°2) for three times;

- Use "volume +" to increase the hours

- Use "Volume -" to increase the minutes

- Use "Voice" to change 12h/24h format

To exit the menu, switch off the

car for at least 5 sec.

NOTE:

When turning on the car, the clock's hands automatically reach the

correct time.

Please note that the clock can have a variation of roughly 1 minute per

month.

All installation work must be performed by a qualified professional installer only.

The manufacturer / dealer is not liable for any kind of incidental or indirect damages.

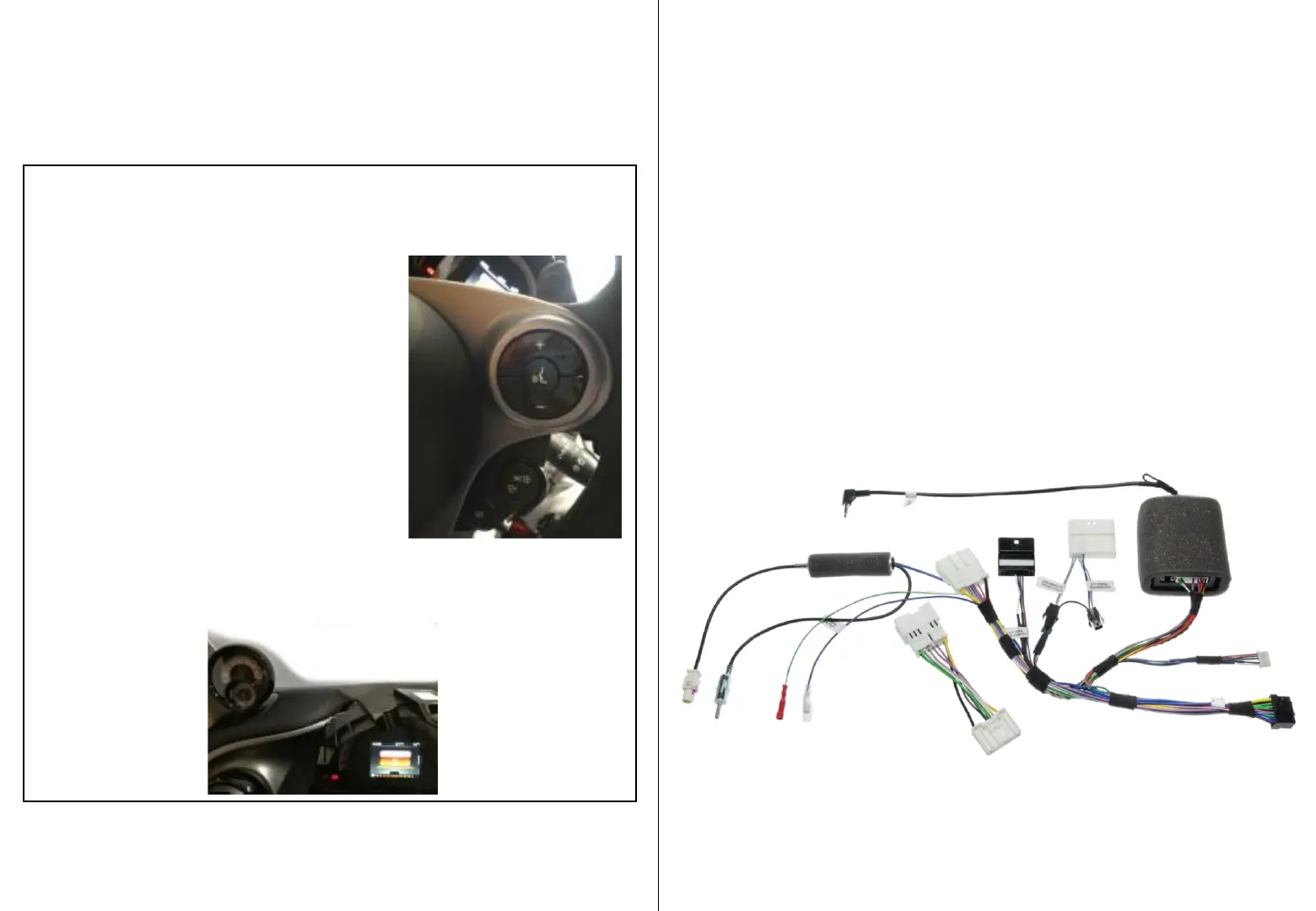

INSTALLATION MANUAL

Content and wiring harness connections

Connect cables to the radio side as follow:

1 - to CAR CONNECTOR (connect with original rear view camera only)

2A/2B - to CAR CONNECTORS

3 - CAMERA control / REMOTE output

4 - to the RADIO STEERING WHEEL REMOTE SOCKET

(NOTE: do not connect to microphone socket)

5 - to RADIO POWER CONNECTOR

6 - to RADIO ANTENNA CONNECTOR

7 - to CAR ANTENNA CONNECTOR

8 - CONNECTORto 10

(if the vehicle is equipped with the original touchscreen radio)

9 - to CONNECTOR 10

(if the vehicle is NOT equipped with the original touchscreen radio)

11 - to 2A CONNECTOR (if the original radio is equipped with NAVI)

12 - to CAR CONNECTOR (if the original radio is equipped with NAVI)

13 - to RADIO CAMREA connector

(if the vehicle is equipped with OEM REAR VIEW CAMERA)

14 - SPEEDPULSE output

1- Volume +

2- Volume –

3- Short press > Accept incoming call

Long press > Voice

cut along the dottd line - copy for the vehicle owner

ATTENTION!

In order to prevent ESD damage, the WHEEL REMOTE JACK must be

connected before plugging in the connectors on car side.
