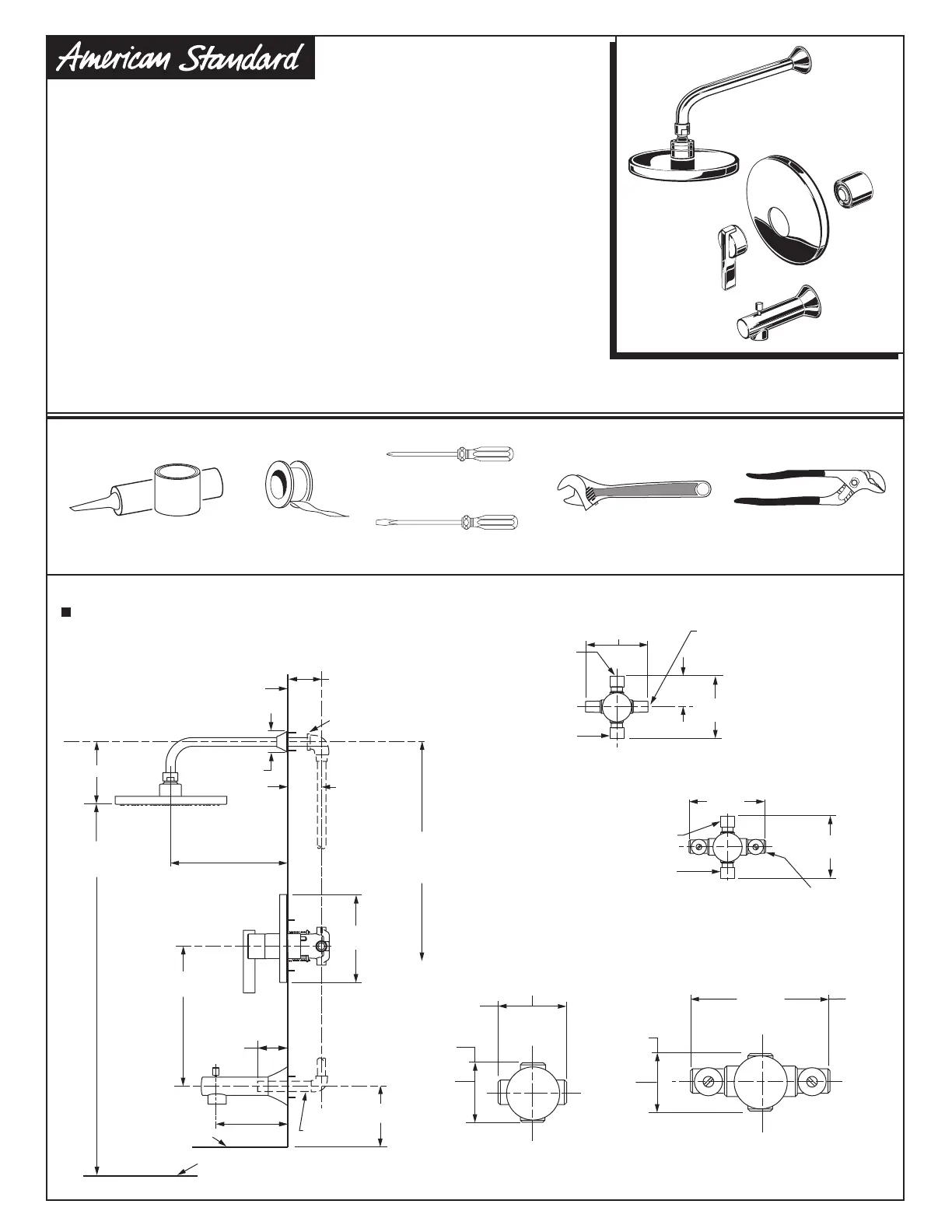

BATH AND SHOWER TRIM KIT
M968602 REV.1.5
To assure proper positioning in relation to wall,
note roughing-in dimensions.
ROUGHING-IN DIMENSIONS
Certified to comply with ANSI A112.18.1
Installation
Instructions
T430.50X
T431.50X
THREADED INLETS (STOPS)
5-7/8"
(149mm)
5-7/8"
(149mm)
INLETS 1/2" NPT
(13mm)
INLETS
1/2" NPT
(13mm)
OUTLETS
1/2" NPT
(13mm)
OUTLETS
1/2" NPT
(13mm)
3-3/8"
(86mm)
3-3/8"
(86mm)
3-3/8"
(86mm)
THREADED INLETS
Recommened Tools
Flat Blade Screwdriver
Adjustable Wrench
Channel Locks
Plumbers' Putty or Caulking
Phillips Screwdriver
4"
(102mm)
BOTTOM OF TUB
74" (1880mm)
FOR HEAD
CLEARANCE
18" (457mm)
OPTIONAL
4-7/8" REF.
(124mm)
1/2" (12mm) NPT
1/2" (13mm)
COPPER
7-1/4"
(184mm)
OPTIONAL TO FINISHED
FLOOR USUALLY
BETWEEN 65'' AND 80''
(1651 AND 2032mm)
TOP OF TUB RIM
Teflon Tape
SHR. 1/2" (13mm) NOM.
COPPER SWEAT
TUB 1/2" (13mm) NOM.
COPPER SWEAT
SHR. 1/2" (13mm) NOM.
COPPER SWEAT
TUB 1/2" (13mm) NOM.
COPPER SWEAT
4-1/16"
(103mm)
4-1/16"
(103mm)
INLETS
4-1/16"
(103mm)
2"
(51mm)
SWEAT
INLETS
SWEAT
INLETS (STOPS)
INLETS
1/2" (13mm) NOM.
COPPER SWEAT
INLETS
1/2" (13mm) NOM.
COPPER SWEAT
1-5/8" TO 3-1/4"
(41 TO 83mm)
1-5/8" TO 3-1/4"
(41 TO 83mm)
FINISHED WALL
5" (127mm) REF.
12" (305mm) REF.
2-1/4"
(57mm)
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
1-1/2" REF.
(38mm)
BERWICK
™
/ BOULEVARD
™
