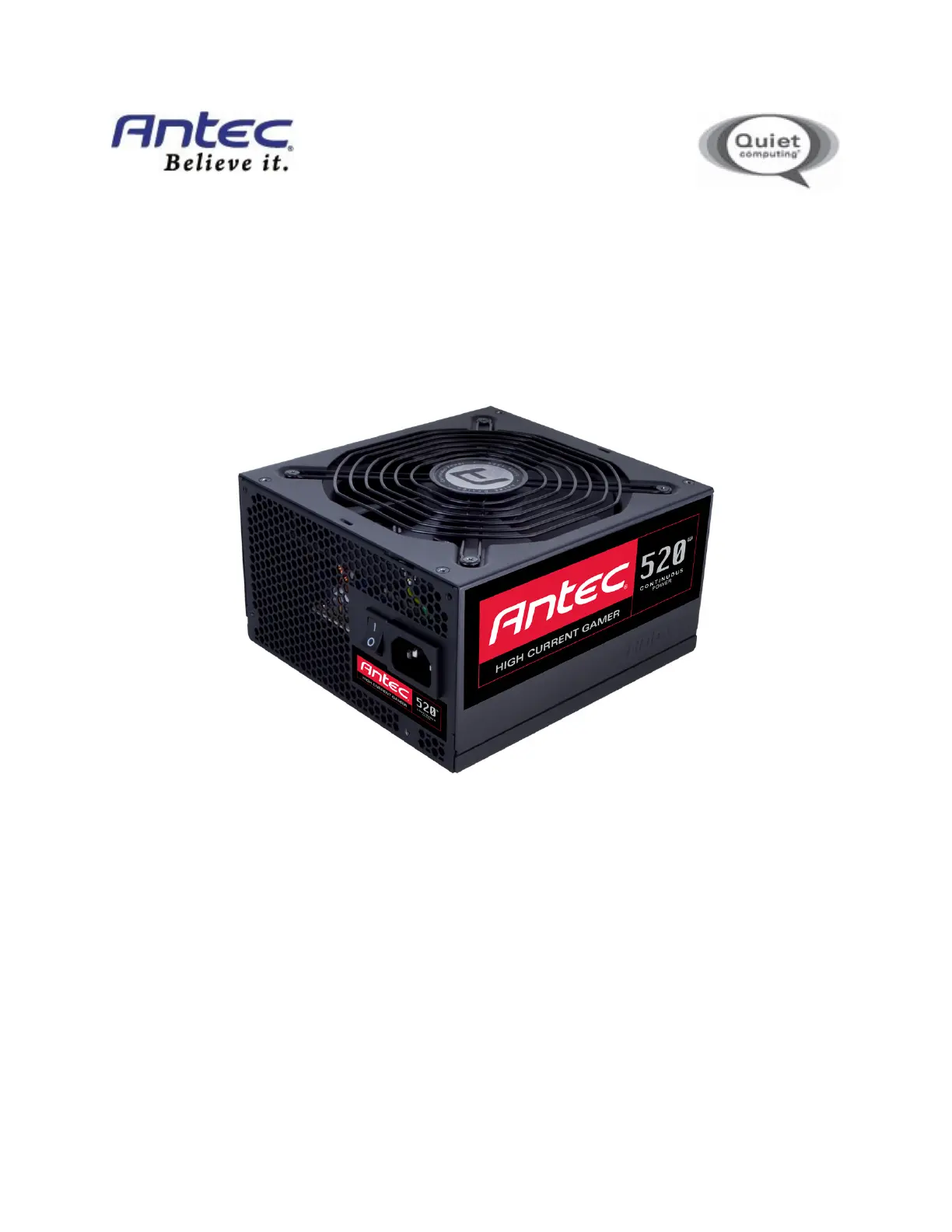

The HCG-520, part of Antec’s High Current Gamer Series of power supplies, is the perfect combination of power

and efficiency. Delivering 520 continuous watts of power, the HCG-520 features a high-power +12V rail and special

heavy-duty High Current connectors and cabling that supply extreme levels of power. At the same time, the HCG-

520 delivers superb efficiency thanks to its 80 PLUS® Bronze Certification and Active PFC. Highest-quality gold-

plated connectors, Japanese-brand capacitors and quiet 135 mm double ball bearing fans complete the package.

TANDARDS AND

EATURES

The connectors and power specifications of the HCG-520 PSU are all compatible with ATX12V v2.3 and EPS12V

v2.91 specifications. The HCG-520 features Universal Input, which automatically senses when you connect the

power supply to any AC power source between 100~240V without setting a voltage switch. This power supply also

features Active Power Factor Correction (Active PFC), which improves the power factor value of the power supply

by altering the input current wave shape, helping to power transmission across the grid.

YSTEM

ROTECTION

A variety of industrial-grade safety circuitry will help protect your computer: OVP (Over Voltage Protection), SCP

(Short Circuit Protection), OPP and OCP (Over Current Protection). Sometimes the PSU will “latch” into a protected

state. You will need to power off the PSU and clear the fault before it will function again. There are no user-

replaceable fuses in your HCG-520.

PLUS®

ERTIFICATION

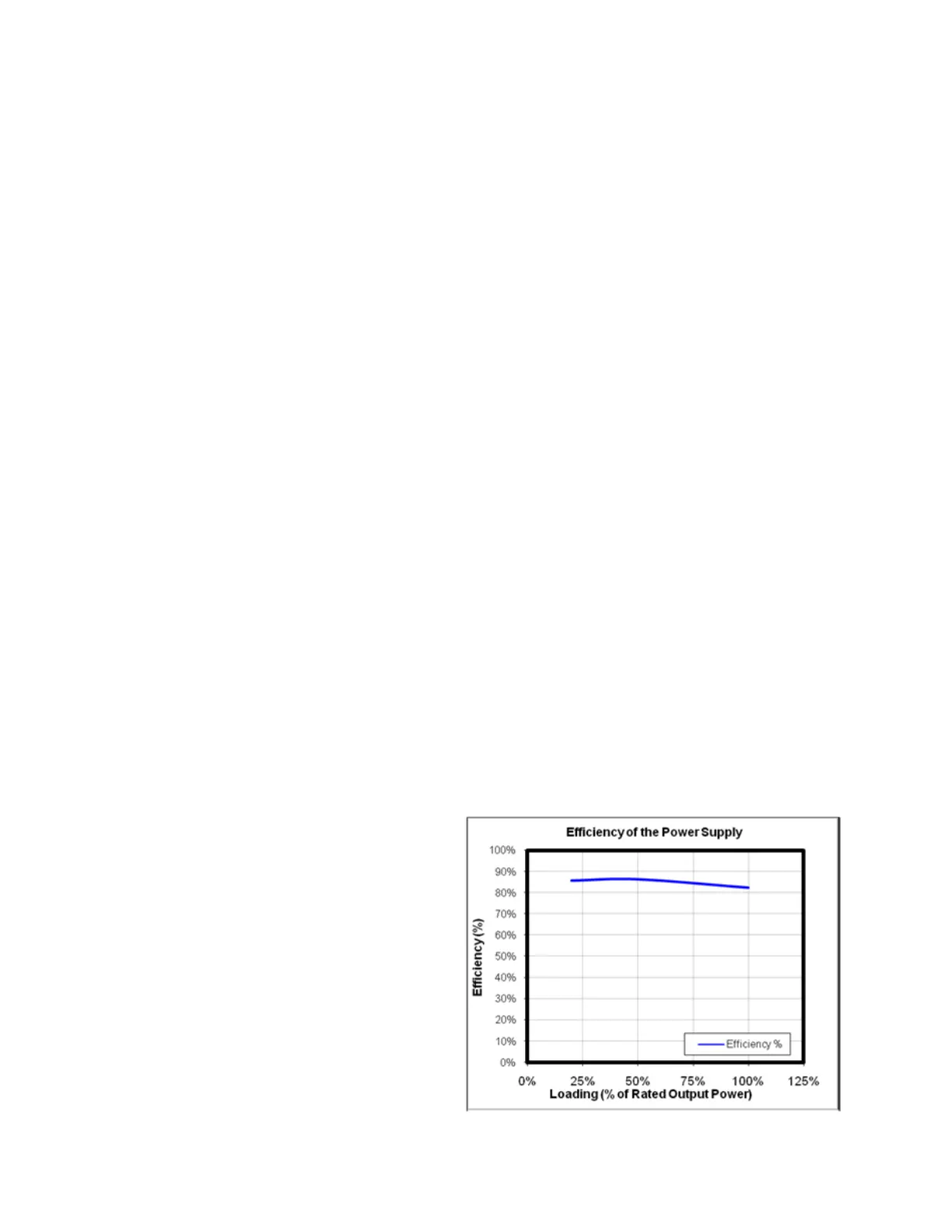

80 PLUS® certification is the most widely recognized

independent standard in power supply efficiency. An

80 PLUS® certified power supply uses less energy and

generates less heat to stay cooler, run quieter and

last longer. The HCG-520 has been 80 PLUS® Bronze

certified to be at least 82% efficient at a wide range

of operating loads; this will lower your operating

costs and help protect the environment.

OWER

UTPUT

ONNECTORS

The HCG-520 power supply distributes power on separate rails. Some rails require a minimum load in order to run.

To see the output capacity and regulation for each different voltage, see Table 1. A list of all available power

connectors can be found in Table 2.

TABLE 1

Output Voltage Load Max. Regulation Ripple & Noise

+3.3V 24A ±5% < 50 mV

+5V 24A ±5% < 50 mV

+12V 40A ±5% < 120 mV

–12V 0.8A ±10% < 120 mV

+5VSB 2.5A ±5% < 50 mV

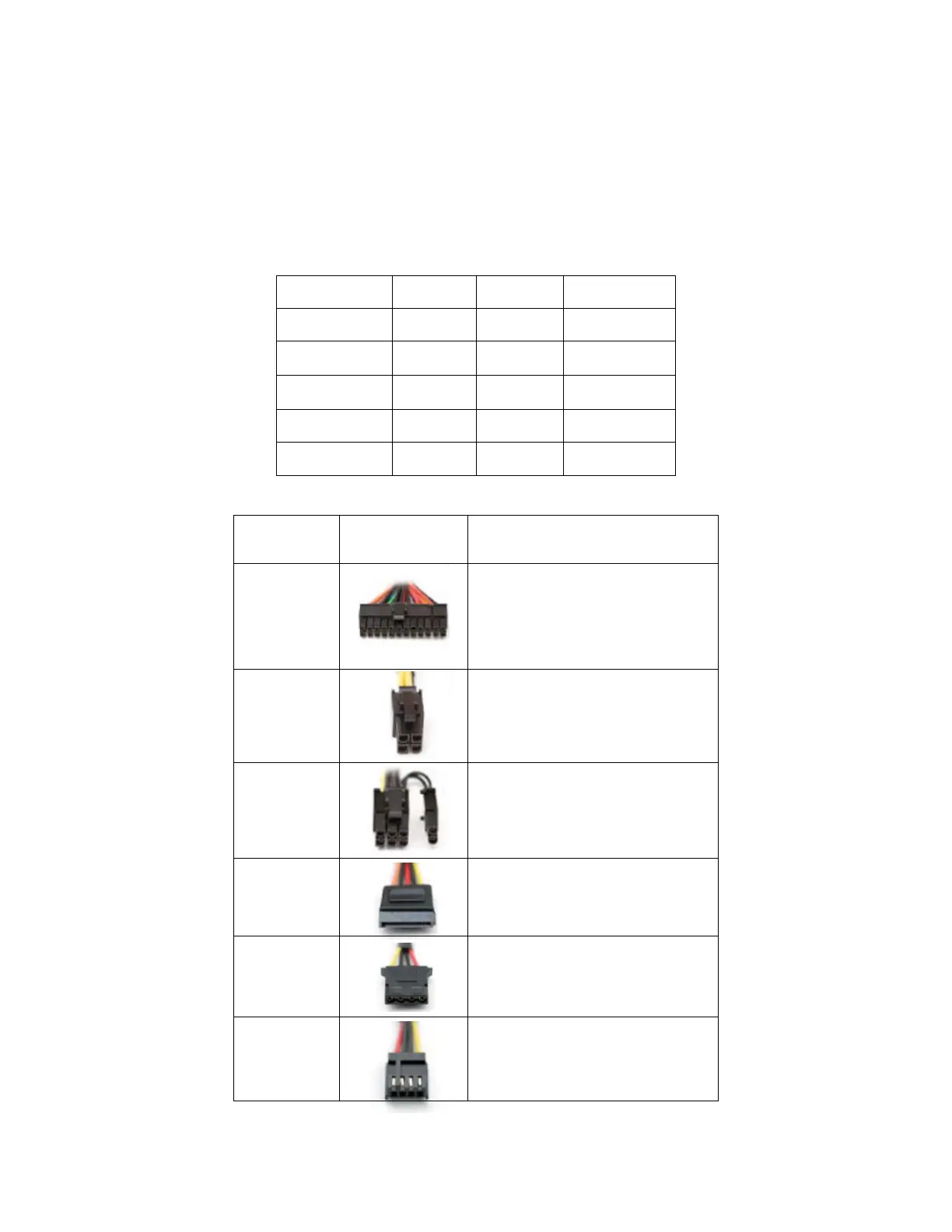

TABLE 2

Quantity Connector Description

24-pin (20 + 4) main connector

8-pin (4 + 4) ATX12V / EPS12V

8-pin (6 + 2) PCI-E

SATA

Molex

Floppy
