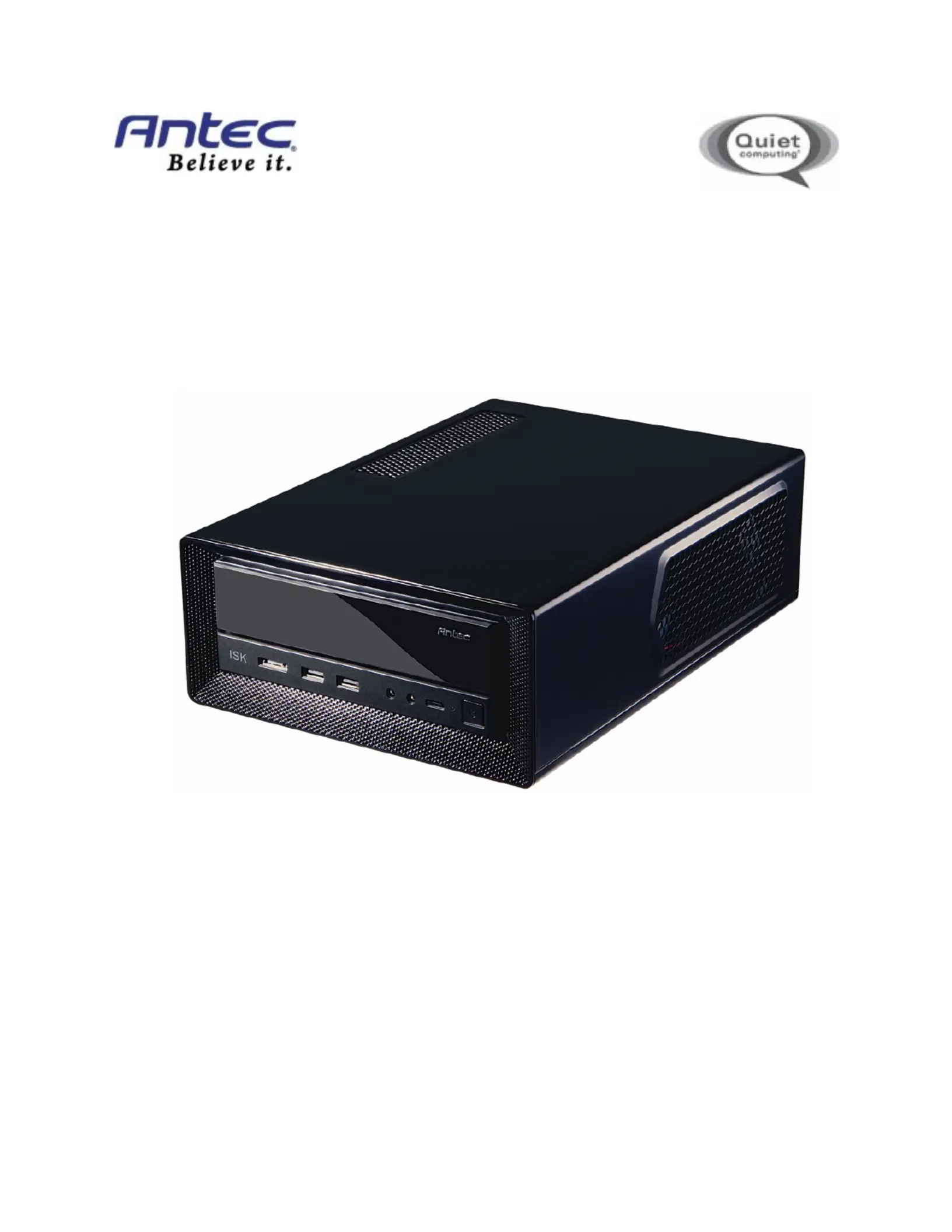

ISK 300- 150

U MSER’S ANUAL

T C ABLE OF ONTENTS

I NTRODUCTION

1.1 Case Specicaons.…..………………………………………………………………………………….. 3

1.2 Diagram…………………………………………………………………….…………………………………. 3

1.3 Power Supply Specicaons…………………………………………………………………………. 4

H I G ARDWARE NSTALLATION UIDE

2.1 Removing the Top Panel.……………………………………………………………………………….5

2.2 Removing the Drive Tray Assembly……….……………………………………………………… 5

2.3 Motherboard Installaon..……………………………………………………………………………. 5

2.4 Internal 2.5” Device Installaon……………………………………………………………………. 6

2.5 External Slim 5.25” Device Installaon…………………………………………………………. 6

C F P ONNECTING THE RONT I/O ORTS

3.1 USB 2.0 Ports………………………………………………….……………………………………………. 7

3.2 eSATA Port…………………………………….……………………………………………………………… 7

3.3 AC’97 / HD Audio Ports……………………….………………………………………………………… 7

3.4 Switch and LED Connectors…………………………………………………………………………… 8

3.5 Rewiring Motherboard Header Connecons………………………………………………… 8

C S OOLING YSTEM

4.1 Exhaust TriCool™ Fan……………………………………………………………………………………. 9

ISK

300-150

SER

’

ANUAL

At Antec, we connually rene and improve our products to ensure the highest quality. It’s possible

that your new case will dier slightly from the descripons in this manual. This isn’t a problem; it’s

simply an improvement. As of the date of publicaon, all features, descripons, and illustraons in

this manual are correct.

Disclaimer

This manual is intended only as a guide for Antec’s computer enclosures. For more comprehensive

instrucons on installing the motherboard and peripherals, please refer to the user’s manuals that

come with those components.

Although care has been taken to prevent sharp edges in your Antec case, we strongly recommend

taking the appropriate me and care when working with it. Avoid hurried or careless moons. Please

use reasonable precauon.

This manual is not designed to cover CPU, RAM, or expansion card installaon. Please consult the

motherboard manual for specic mounng instrucons and troubleshoong. Before proceeding,

check the manual for your CPU cooler to nd out if there are steps you must take before installing the

motherboard. While installing hardware, keep your case on a at, stable surface.

Produktspecifikationer

Varumärke:	Antec
Kategori:	Computerbehuizing
Modell:	ISK 300-150
Vikt:	2500 g
Bredd:	222 mm
Djup:	328 mm
Höjd:	96 mm
Förpackningens bredd:	380 mm
Strömförsörjning:	150 W
Inbyggda högtalare:	Nej
Certifiering:	RoHS, AQ3
Ljudutgång:	Ja
Modell:	PC
Installerade sidofläktar:	1x 80 mm
Produktens färg:	Svart
Låddjup:	195 mm
Vikt inkl. förpackning:	5500 g
Formfaktor:	Skrivbord
Antalet Seriella ATA anslutningar:	4
Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar:	2
Ljudanslutning:	Ja
Hårddiskstorlek som stöds:	3.5 "
Antal eSATA portar:	1
Som stöds moderkorts formfaktorer:	Mini-ITX
Antal 2,5 "vikar:	2
Antalet 5,25 "fack:	1
