DANGER

WARNING

CAUTION

NOTICE

Important Safety Messages

Read the instructions carefully and look at the equipment to become familiar with the device before trying to install,

operate, service or maintain it. The following special messages may appear throughout this document or on the

equipment to warn of potential hazards or to call attention to information that claries or simplies a procedure.

The addition of this symbol to a Danger or Warning product safety label indicates that an electrical hazard exists

that will result in personal injury if the instructions are not followed.

User Manual Easy UPS

SNMP Card APV9602

The addition of this symbol to either a “Danger” or “Warning” safety label indicates that an

electrical hazard exists which will result in personal injury if the instructions are not followed.

This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all

safety messages that follow this symbol to avoid possible injury or death.

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious

injury.

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious

injury.

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate

injury.

NOTICE is used to address practices not related to physical injury.

2 SNMP Card APV9602

Product Description

Integrated with Easy UPS LI SNMP Manager software, devices with the SNMP Card installed can be

monitored and controlled in LAN.

APV9602 SNMP Card:

 Provides SNMP MIB to monitor & control UPS.

 Auto-senses 10M /100M/1000M Fast Ethernet Manage and congure via Web Browser or NMS.

 Supports TCP/IP, UDP, SNMP, HTTPS, SMTP, FTPS Protocols.

 Supports SSL/TLS Encryptions.

 Provides easy setup and upgrade tools via Easy UPS LI SNMP Manager software.

 Sends SNMP TRAP; E-mail for events notication.

 Emails daily UPS history report.

 Performs graceful shutdown via Easy UPS LI Shutdown software.

Devices in which you can install the SNMP Card

The SNMP Card can be installed in any compatible device that has an Intelligent Card Slot, including:

 Easy UPS: SMV series UPS

Package Contents

The packaging is recyclable; save it for reuse or dispose of it properly.

(1)

SNMP Card

(1)

User manual

(1)

Utility CD

Disclaimer

APC by Schneider Electric is not responsible for damage sustained during reshipment of this product.

The SNMP Card is sensitive to static electricity. When handling the SNMP Card, touch only

the end plate while using one or more of these electrostatic-discharge devices (ESDs): wrist

straps, heel straps, toe straps, or conductive shoes.

SNMP Card APV9602 3

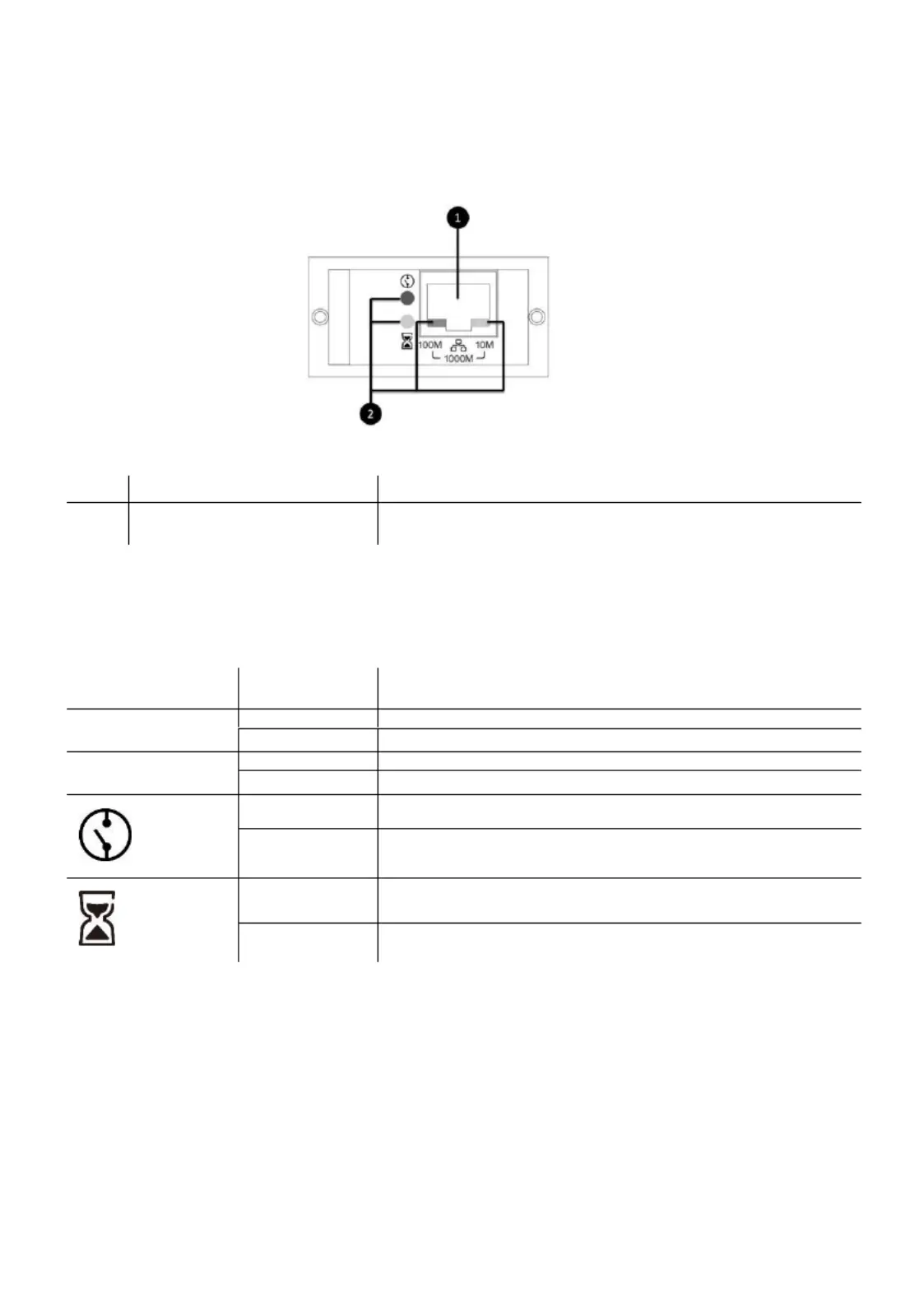

Product Overview

Front Panel

●

10/100 Base-T connector

Connects SNMP card to the Ethernet network.

●

Status LED

See “Status LED”.

Status LED

Color LED

Condition

Description

100M LED (Green)

Flash

Port is operating at 100Mbit/s

Off

Card is not connected to the network

10M LED (Yellow)

Flash

Port is operating at 10Mbit/s

Off

Card is not connected to the network

LED(Red)

Flash

Lost UPS connection

Off

Connecting with UPS

LED(Yellow)

SNMP card is operating

Off

SNMP card stop working

Note:

The port is operating at 1000Mbit/s when both Green(100M) and Yellow(10M) LED illuminating.

DO NOT turn o power when updating rmware. LED (red) will keep ashing.

Produktspecifikationer

Varumärke:	Apc
Kategori:	ej kategoriserat
Modell:	APV9602
Produkttyp:	Nätverkshanteringskort
Vikt:	3 g
Bredd:	80 mm
Djup:	26 mm
Höjd:	52 mm
Förpackningens bredd:	180 mm
Certifiering:	RoHS, CE, REACH
Gränssnitt:	Ethernet
Kabelteknik:	10/100/1000BaseT(X)
Användarvänlig:	Ja
Maximal dataöverföringshastighet:	100 Mbit/s
Produktens färg:	Black, Red
Låddjup:	150 mm
Vikt inkl. förpackning:	30 g
Enkel installation:	Ja
Typ av ethernet-gränssnitt:	Snabb Ethernet
Datahastighet för Ethernet-LAN:	10, 100 Mbit/s
Antal LAN (RJ-45) anslutningar:	1
Temperatur vid drift:	0 - 40 ° C
Temperaturintervall (förvaring):	-15 - 45 ° C
Intervall för relativ operativ luftfuktighet:	0 - 95 %
Fuktighet (förvaring):	0 - 95 %
Hållbarhetscertifiering:	RoHS
Kryptering/säkerhet:	SNMP, SNMPv3
Gränssnittstyp:	RJ-45
Anslutningsteknologi:	Trådlös
Nätverksansluten (Ethernet):	Ja
Webbaserad adminstraion:	Ja
Kommunikationsstandarder:	IEEE 802.1x
Harmonized System (HS)-kod:	85079080
Intern:	Ja
