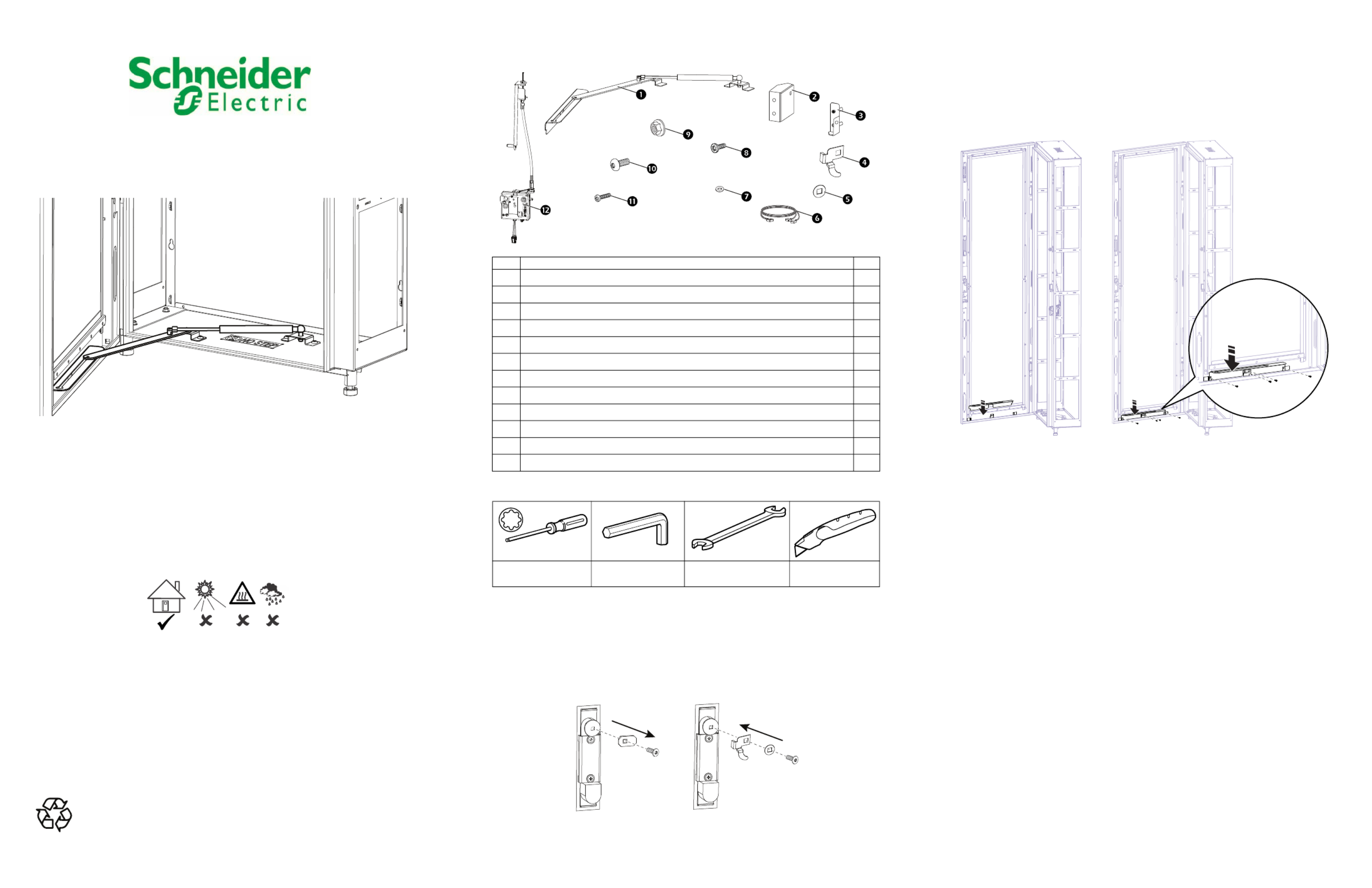

Emergency Ventilation Kit
Installation
EVP1000
Receiving
Inspect the Equipment
Carefully inspect the shipment for visible signs of damage. If you detect shipping
damage, contact your shipping company immediately and Schneider Electric Customer
Support at www.se.com.
Storage
The kit components should be stored indoors and out of the weather. Do not allow the
components to be exposed to the elements.
Unpacking
Each kit contains the parts for the installation of two (2) Emergency Ventilation Kits to
two (2) Air Containment Adapter doors. The kits can be installed on a front or rear door.
1. Open and unpack the kit boxes. Use a box cutter (not provided) to open
the boxes.
2. Check the contents against the Inventory list on this page.
3. Confirm the contents of the boxes are complete.
Recycle or dispose of the packaging materials appropriately.
Inventory
Tools Required (not provided)
Install the Door Lock Components
Remove the screw and latch cam from the Air Containment adapter door handle.
Save the screw to install the latch cam from the kit.
Install the latch cam and spacer from the kit using the screw saved when the door
handle latch cam was removed.
Item Description Qty
Door opener assembly 2
Interior bracket for electronic lock assembly 2
Exterior bracket for electronic lock assembly 2
Latch cam (electronic lock assembly) for door handle 2
Latch cam spacer (electronic lock assembly) for door handle 2
Power and signal cable for electronic lock assembly 1
Spacer for electronic lock assembly 4
M4 x 8 pan head T20 screw 8
M6 flanged head hex nut 8
M6 x 12 pan head T30 screw 8
M5 x 16 hex screw 4
Electronic lock assembly 2
T20 and T30 Torx
head screwdrivers
Allen wrench 10-mm wrench Box cutter
ns3391a
ns3398a
Install the Door Opener Assembly
Install the door opener plate to the door
1. Insert the opener plate into the three (3) clips on the bottom of the door.
2. Secure the plate in position behind the clips with four (4) M4 x 8 pan head T20 screws
included in the kit. Use a T20 screwdriver (not provided).
ns3396a
