cuplex kryos NEXT RGBpx 12/2020
cuplex kryos NEXT
cuplex kryos NEXTcuplex kryos NEXT
cuplex kryos NEXT
Operating and assembly manual
Operating and assembly manualOperating and assembly manual
Operating and assembly manual
1. Preparation
1. Preparation1. Preparation
1. Preparation
Back up your data before modifying your hardware! Disconnect your PC from the mains power
outlet. To prevent damaging the sensitive hardware components, make sure to ground your
workplace and yourself to prevent electrostatic discharges.
When upgrading an existing PC setup, remove the installed heat sink from the CPU. Refer to the
instruction manual of the CPU cooler for details. Remove thermal grease residues from the CPU
surface using benzine if necessary.
Place a small drop (diameter ca. 4 mm or 0.15 inch) of thermal grease supplied with the cuplex
kryos NEXT centrally on the CPU. Alternatively, you can apply a thin layer of the thermal grease
using the supplied plastic spatula.
2.1. Instructions for Socket 2066, 2011-3,
2.1. Instructions for Socket 2066, 2011-3,2.1. Instructions for Socket 2066, 2011-3,
2.1. Instructions for Socket 2066, 2011-3,
2011, AM4, TR4, sTRX4
2011, AM4, TR4, sTRX42011, AM4, TR4, sTRX4
2011, AM4, TR4, sTRX4

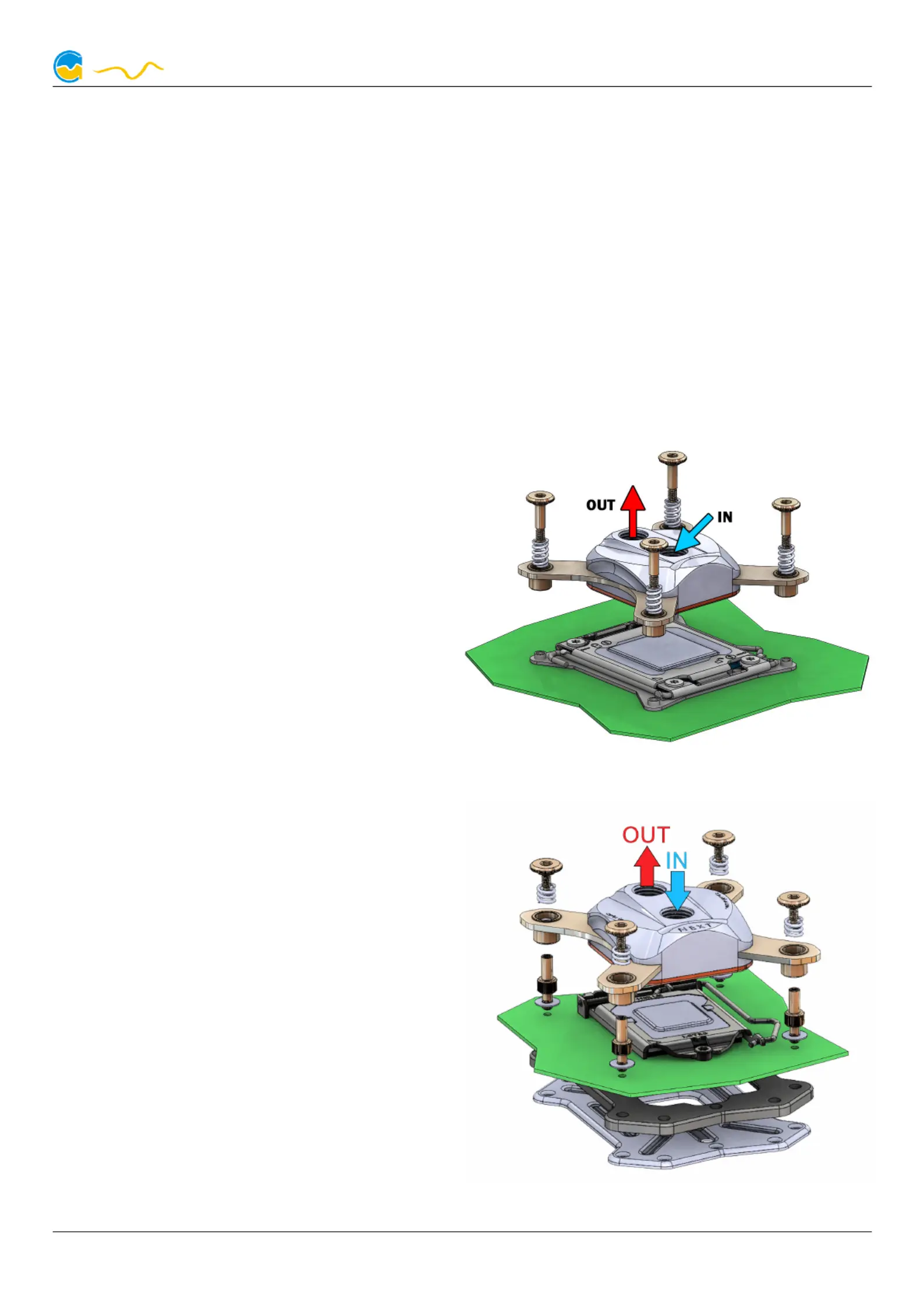

Place the cuplex kryos NEXT on top of the ther-
mal grease covered CPU, observing the orien-
tation as shown in the picture. Place on spring
into each recess and insert a knurled screw
through each spring into the anchor threads of
the CPU socket (only one or two revolutions).
Alternately fasten each screw a fraction of a
revolution until all four screws are fully fas-
tened.
2.2. Instructions for Socket 1150, 1151, 1155, 1156, 1200
2.2. Instructions for Socket 1150, 1151, 1155, 1156, 12002.2. Instructions for Socket 1150, 1151, 1155, 1156, 1200
2.2. Instructions for Socket 1150, 1151, 1155, 1156, 1200
Arrange back plate and black insulation mat
below the processor socket as shown in the pic-
ture. Slide one plastic washer onto the outer
thread of each retention bolt and screw the
bolts through the four mounting holes of the
motherboard into the back plate. For easy in-
stallation, the retention bolts can be screwed in
by hand or with a hexagon socket wrench.
Place the cuplex kryos NEXT on top of the ther-
mal grease covered CPU, observing the orien-
tation as shown in the picture. Slide one of the
four supplied springs onto each bolt and secure
each spring using one of the knurled head
screws (only one or two revolutions). Alternately
fasten each screw a fraction of a revolution un-
til all four screws are fully fastened.
© 2020 Aqua Computer GmbH & Co. KG – Gelliehäuser Str. 1 – D-37130 Gleichen
