Compact Printer Series - User’s Manual
C P OMPACT RINTER SERIES
U M SER’S ANUAL
CP-2140 / CP-2140Z / CP- 2140E
CP- L / CP-3140ZL 3140
CP- LE / CP- Z 3140 3140 LE
Website: http://www.argox.com
2
Compact Printer Series - User’s Manual
Table of Contents
1. Introduction 5...................................................................
Proprietary Statement ................................................... 5
Product Improvements ................................................. 5
FCC Compliance Statement ......................................... 5
Liability Disclaimer ........................................................ 5
2. Getting Started .............................................................. 7
Unpacking Printer ......................................................... 7
Package Contents .................................................... 8
Printer Overview ........................................................... 9
Front View: ............................................................... 9
Rear View: CP-2140, CP-2140Z, CP-3140L,
CP-3140ZL ......................................................... 10
Rear View: CP-2140E, CP-3140LE, CP-3140ZLE . 10
Interior View I ......................................................... 11
Interior View II ........................................................ 12
Attaching Power ......................................................... 13
Loading Media ............................................................ 15
Preparing Media ..................................................... 15
Placing Media Roll ................................................. 15
Media Sensor Type Setting ........................................ 20
Multi-Column Label Setting by Software/ Driver ..... 20
Multi-Column Label Setting Manually ..................... 21
Loading Ribbon .......................................................... 26
Preparing Ribbon ................................................... 26
Placing Ribbon Rolls .............................................. 27
3. Printer Operations ...................................................... 32
Printing Media Calibration & Configuration ................. 32
Steps to Start Media Calibration & Configuration ... 32

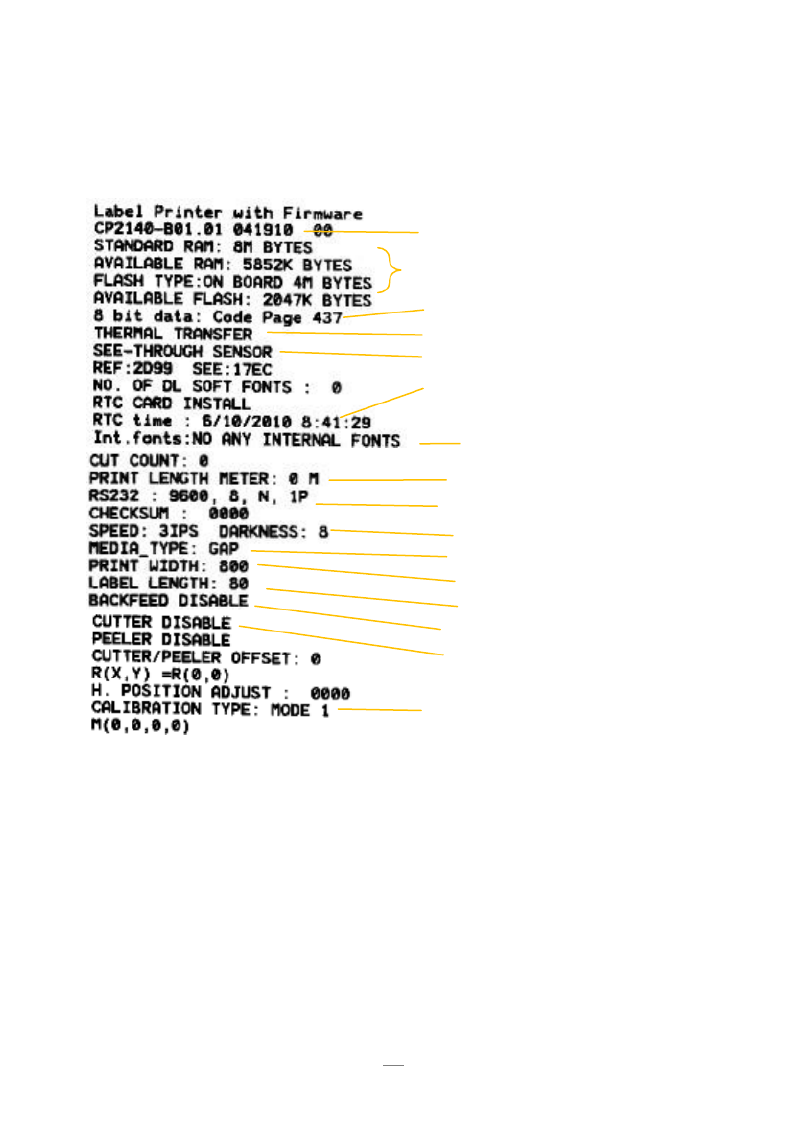

Sample of Printer Configuration Label ................... 33
3
Compact Printer Series - User’s Manual
Resetting Printer to Factory Defaults .......................... 35
Printer Controls and Indicators ...................................36
Troubleshooting by LED Indicators Diagnosis ............ 39
Miscellaneous ............................................................. 42
Recovery ..................................................................... 43
4. Communications ......................................................... 44
Interfaces and Requirements ...................................... 44
USB Interface Requirements .................................. 44
Serial (RS-232) Interface Requirements ................. 45
Parallel Interface Requirements ..............................45
Serial and Parallel Cabling Requirements .............. 45
Ethernet 10/100 Internal Printer Server Option ....... 46
Ethernet Module Status Indicators .......................... 46
Communicating with the Printer .................................. 47
Installing a Plug and Play printer driver (for USB only)
........................................................................... 47
Installing a Printer Driver (for other interfaces except
USB) ................................................................... 53
5. Caring for Your Printer ...............................................61
Print Head Maintenance Guide ................................... 61
Cleaning Interval ..................................................... 61
Cleaning Material .................................................... 61
Cleaning Direction .................................................. 61
6. Product Specification ................................................. 63
General Specification .................................................. 63
Fonts, Barcodes, and Graphics Specification .............65
Printer Programming Language PPLA ....................65
Printer Programming Language PPLB ....................66
Printer Programming Language PPLZ .................... 67
Interface Specification ................................................. 68
USB Interface ......................................................... 68
4
Compact Printer Series - User’s Manual
Serial Interface ....................................................... 69
Parallel (Centronics) Interface ................................ 70
Ethernet Interface ................................................... 71
7. Appendix ..................................................................... 74
Rotary Cutter and Guillotine Cutter Installation ...... 74
Rotary Cutter and Guillotine Cutter Settings .......... 80
Rotary Cutter with Paper Jam ................................ 83
Guillotine Cutter with Paper Jam ............................ 84
5
Compact Printer Series - User’s Manual
1. Introduction
Proprietary Statement
This manual contains proprietary information of Argox Information Co., Ltd. It is
intended solely for the information and use of parties operating and maintaining the
equipment described herein. Such proprietary information may not be used,
reproduced, or disclosed to any other parties for any other purpose without the
expressed written permission of Argox Information Co., Ltd.
Product Improvements
Continuous improvement of products is a policy of Argox Information Co., Ltd. All
specifications and signs are subject to change without notice.
FCC Compliance Statement
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that the
interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment into a different outlet on a different circuit.
Consult the dealer or an experience Radio/TV technician for help.
This unit was tested with shielded cables on the peripheral devices. Shielded cables
must be used with the unit to insure compliance. The user is cautioned that any
changes or modifications not expressly approved by Argox Information Co., Ltd.
could void the user’s authority to operate the equipment.
Liability Disclaimer
Argox Information Co., Ltd. takes steps to assure that the company’s published
engineering specifications and manuals are correct; however, errors do occur. Argox
Information Co., Ltd. reserves the right to correct any such errors and disclaims any
resulting liability. In no event shall Argox Information Co., Ltd. or anyone else
involved in the creation, production, or delivery of the accompanying product
(including hardware and software) be liable for any damages whatsoever (including,
7
Compact Printer Series - User’s Manual
2. Getting Started
Congratulations on choosing compact printer series, made by CP
Argox Information Co., a leader in the world-wide barcode industry.
CP compact printer series are ideally designed to easily bring more
efficiency for your business. This manual will help you get to know
your new printer and provide sufficient information needed.
Unpacking Printer
After receiving your printer, please check for possible shipping
damage:
Inspect the outside of both the box and the printer for possible
damage.
1. Open the top cover of the printer to see if all parts are in order.
2. Check whether you have received the following accessories
together with the printer. If there is any item missing, please
contact your local dealer.
Note: If shipping damage has been discovered, contact your
shipping company immediately to file a claim.
8
Compact Printer Series - User’s Manual
Package Contents
Quick Installation Guide
DVD (Documentation & Software)
Power Cord
Media Hanger & Media Shields
Printer
Power Supply
USB cable
Ribbon Core Adaptors
1 ID Core for Ribbon ”
1 ID Core for Ribbon ”
Quick Installation
Guide
Printer
DVD
Power Supply
Power Cord
Media Hanger &
Media Shields
Ribbon Core
Adaptors
USB cable
9
Compact Printer Series - User’s Manual

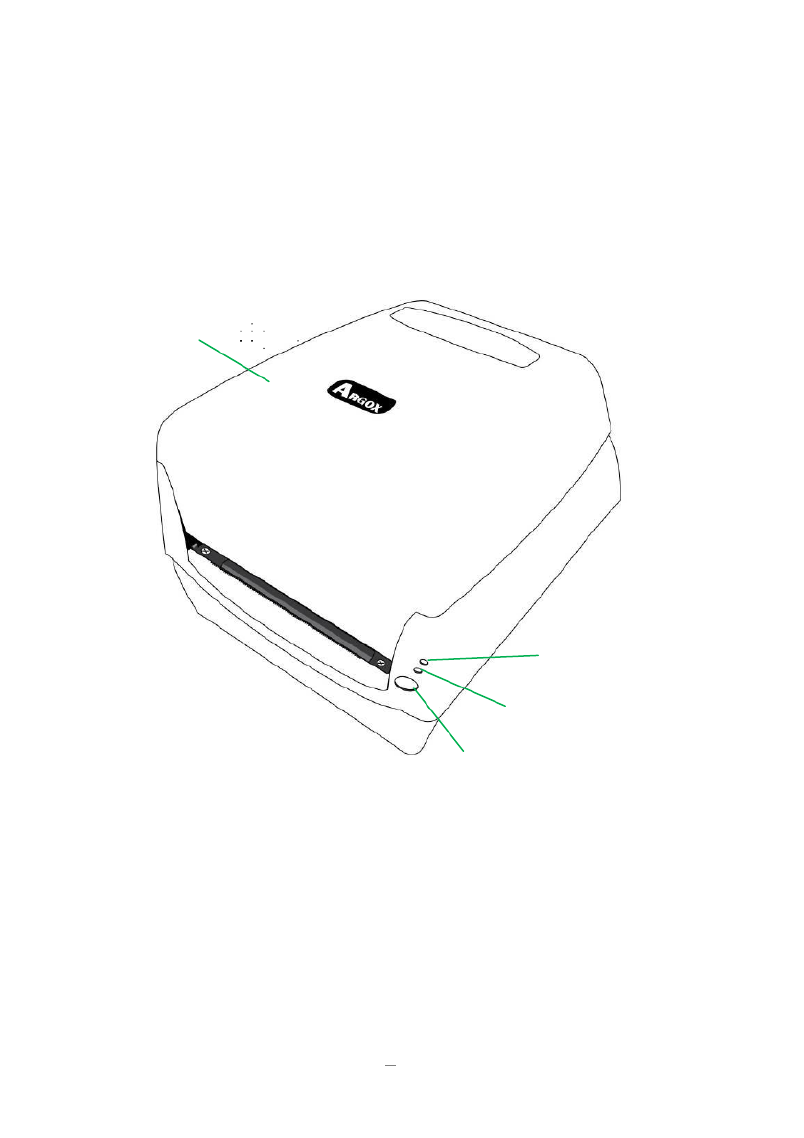

Printer Overview

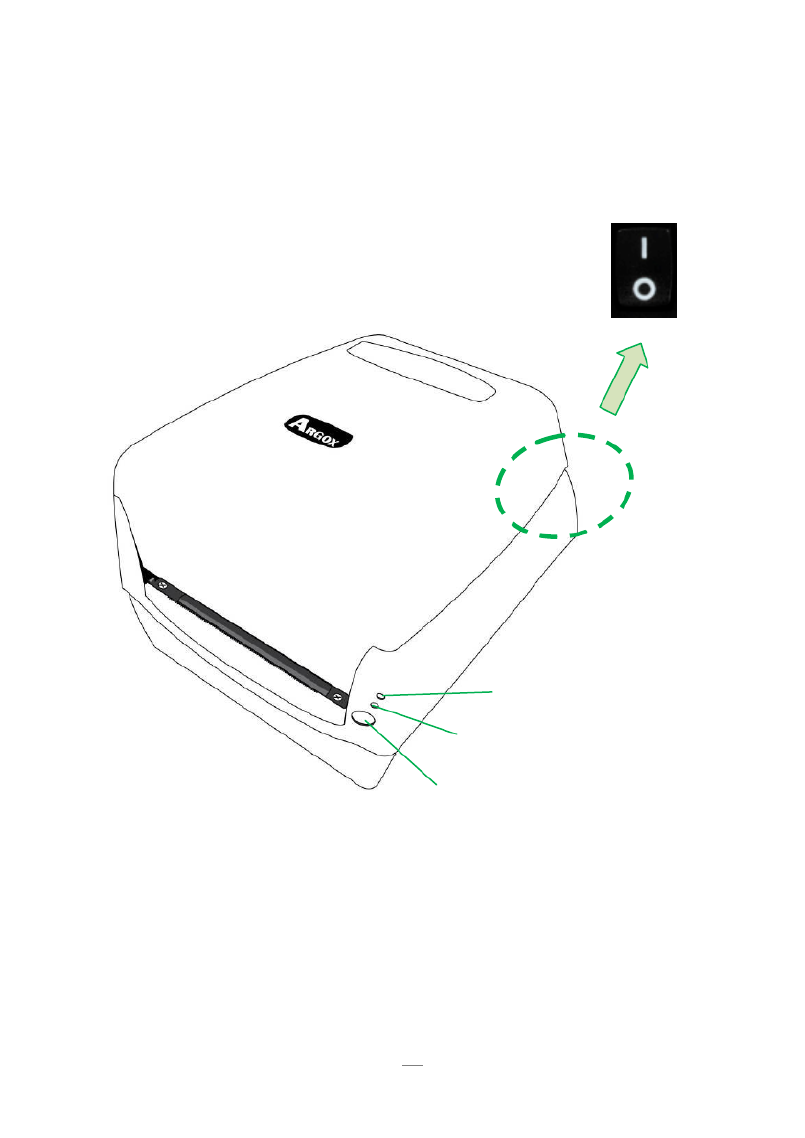

Front View :
Feed Button
Power LED
Ready LED
Top Cover
10
Compact Printer Series - User’s Manual

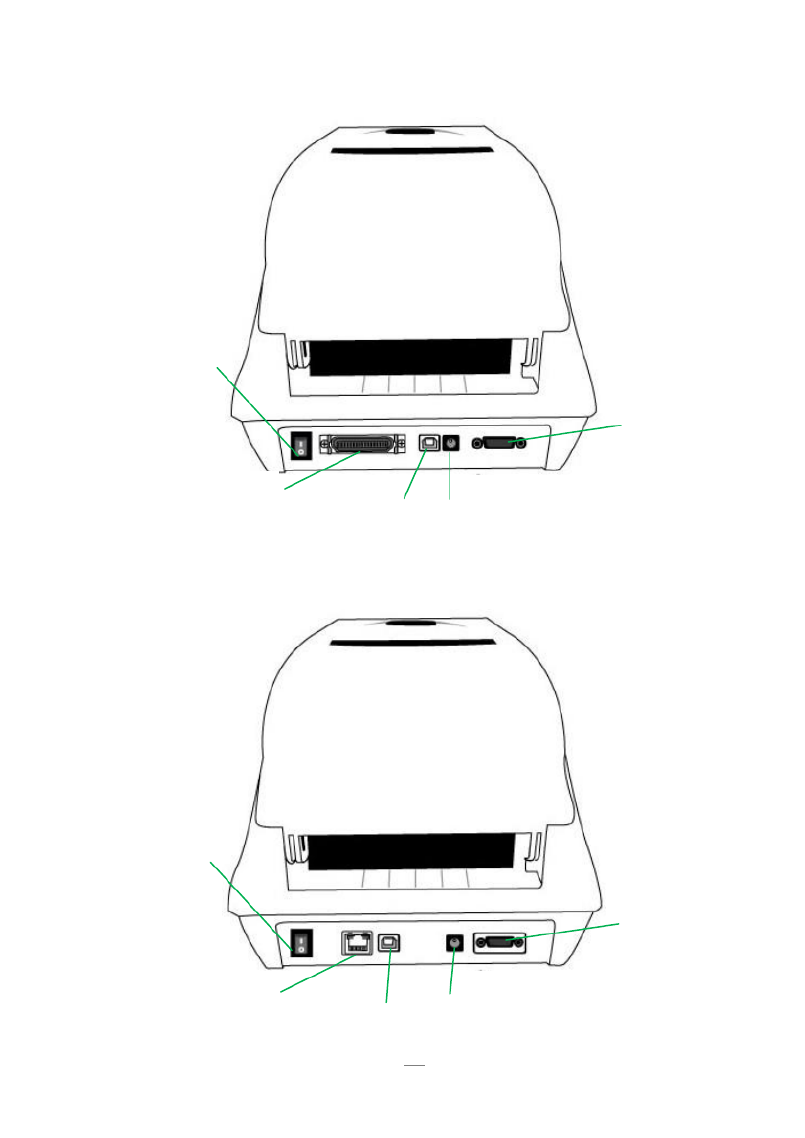

Rear View: -2140, CP-2140Z, CP-3140L, CP- CP 3140ZL
Rear View: CP-2140E, -3140LE, CP-3140ZLE CP
Power Switch
Parallel Port
USB
Power Jack
RS232 Serial
Power Switch
Ethernet
USB
Power Jack
RS232 Serial
11
Compact Printer Series - User’s Manual

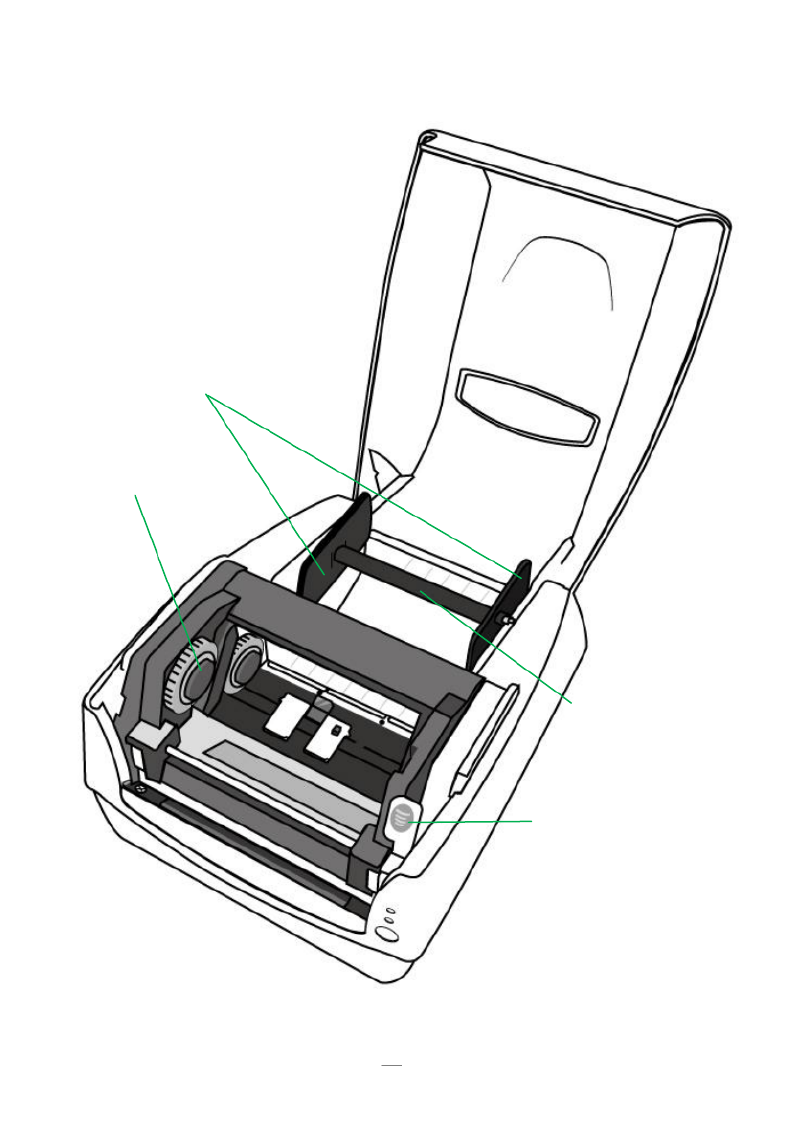

Interior View I
Module Release Latch
Media Shields
Ribbon
Pick- up
Holder
Media Hanger
PUSH
13
Compact Printer Series - User’s Manual

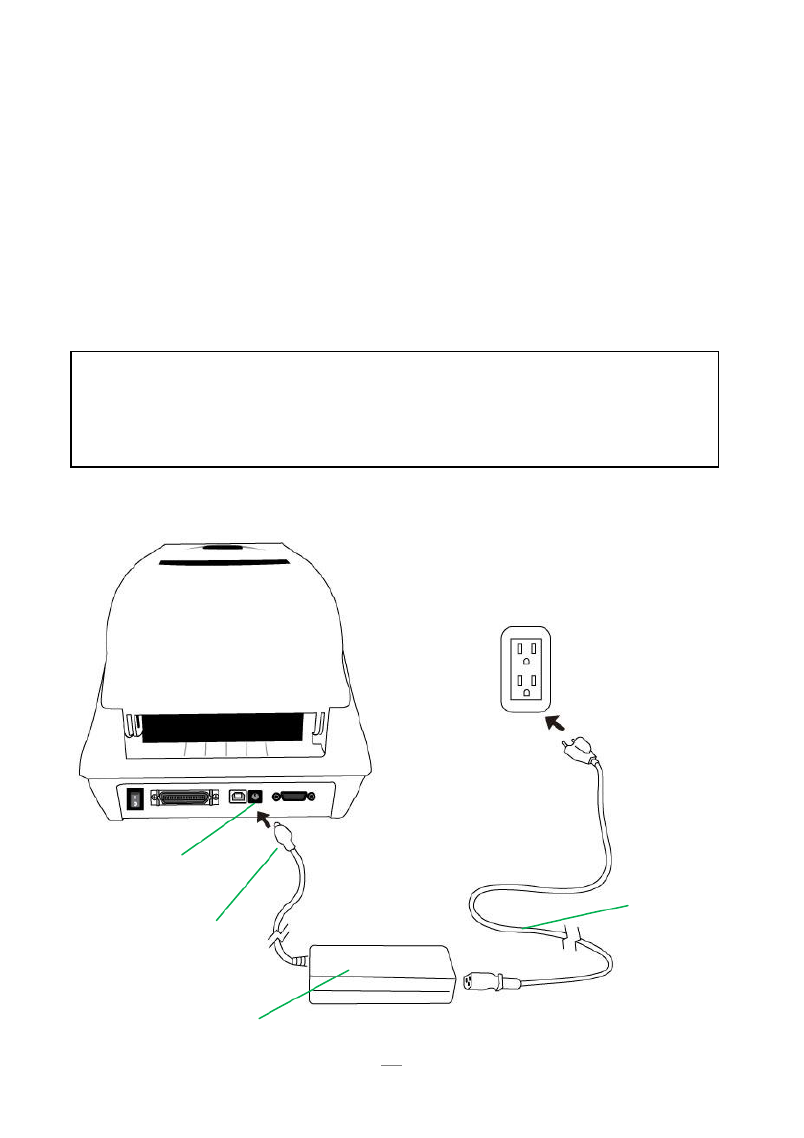

Attaching Power
1. Make sure the printer’s power switch is in the off position (down).
2. Insert the AC power cord into the power supply.
3. Insert the power supply’s power connector into the printer’s power
jack.
4. Plug the other end of the power cord into an appropriate grounded
AC electrical outlet.
CP- , CP-2140Z, CP- L, CP-3140ZL 2140 3140
Warning:
Do not operate the printer and power supply in an area where they
might get wet.
Power Supply
Power Cord
Power
Connector
Power Jack
14
Compact Printer Series - User’s Manual

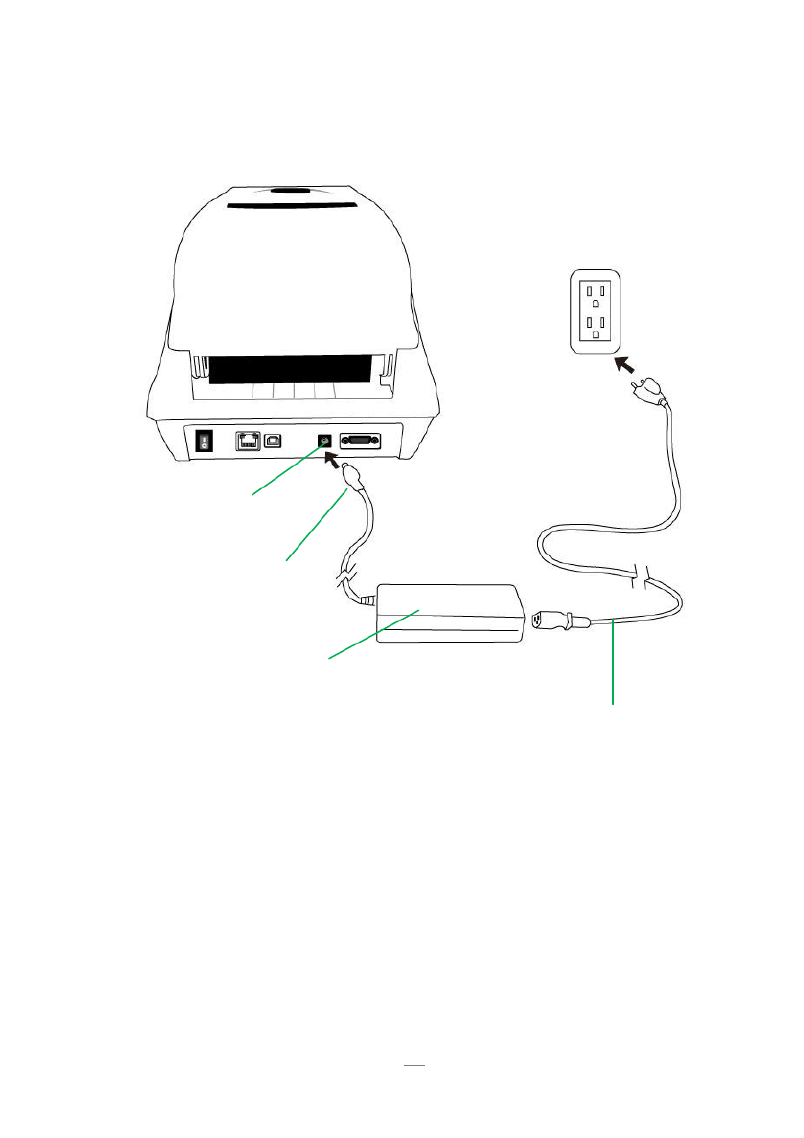

CP CP CP- , 2140E -3140LE, -3140ZLE
Power Supply
Power Cord
Power
Connector
Power Jack
16
Compact Printer Series - User’s Manual

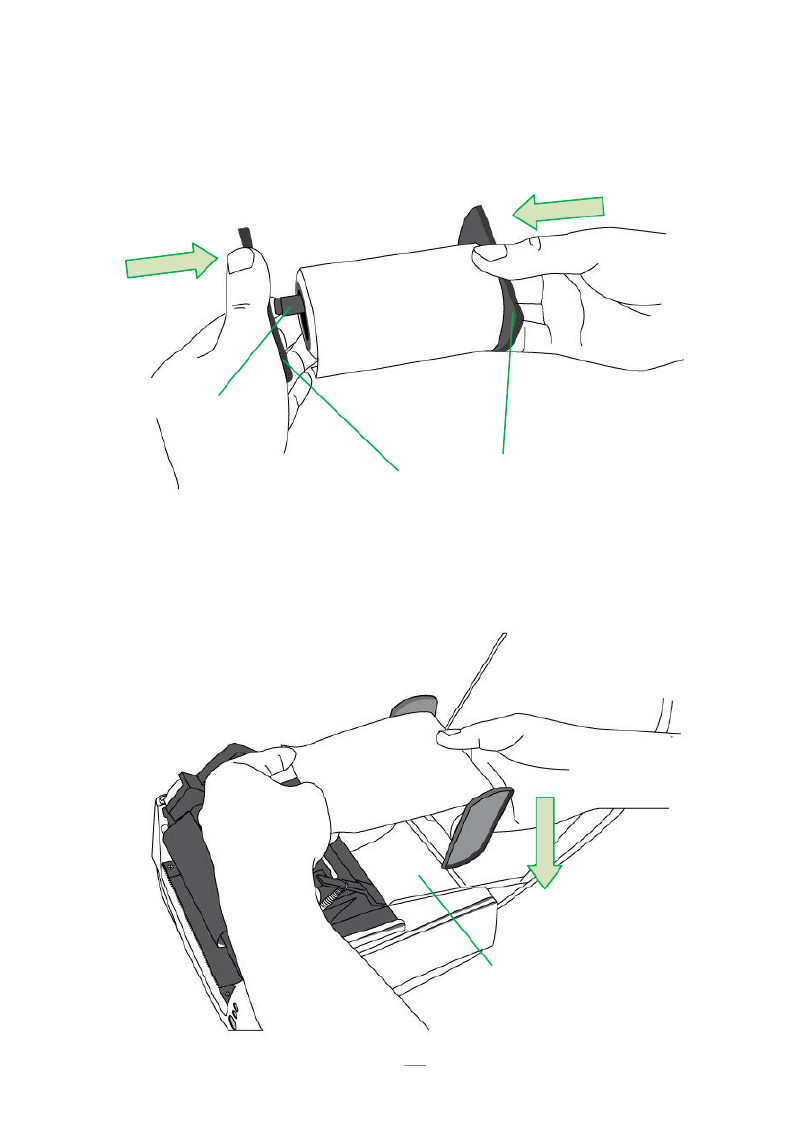

2. Put the Media Hanger through media supply roll, and then
centrally align with the two Media Shields to closely lean against
the media supply roll .
3. Locate the media supply roll into the Media Compartment of
printer.
Media Shield
Media Hanger
Media Compartment
17
Compact Printer Series - User’s Manual

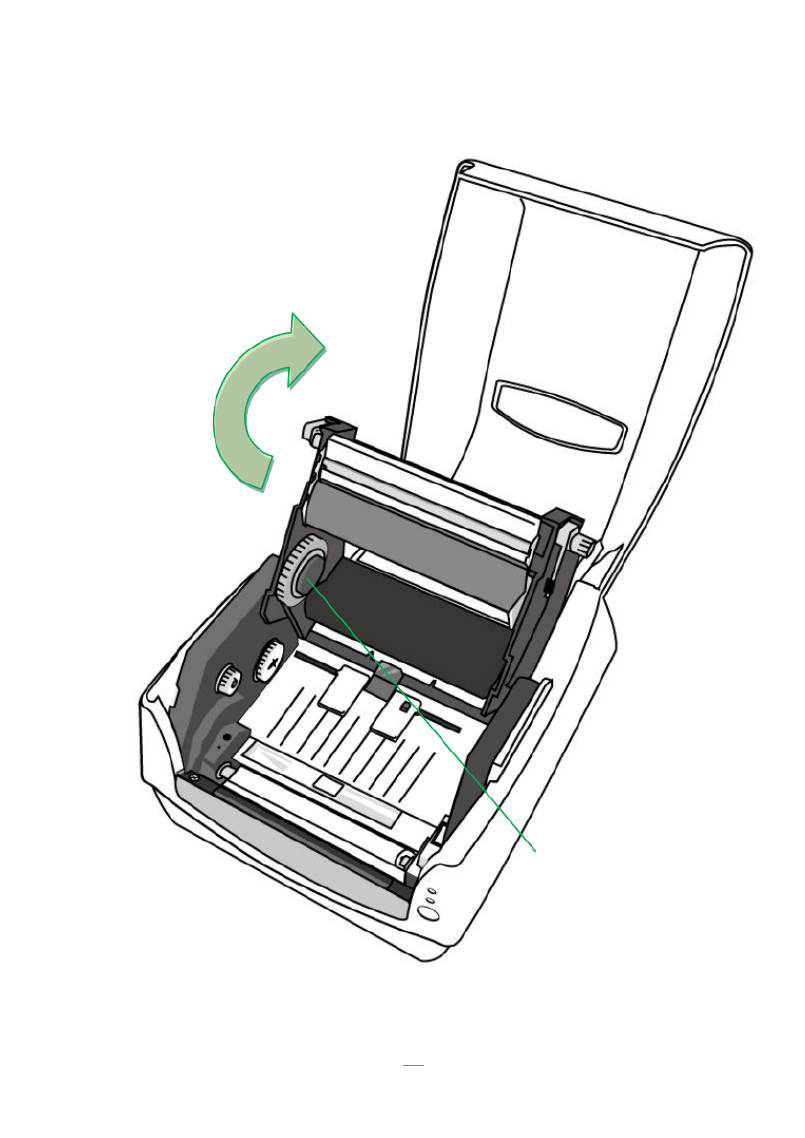

4. Push the Release Latch to open the printer module.
5. Pull a short length of media till it reaches the Platen Roll of printer.
Platen Roller
PUSH
Module
Release Latch
18
Compact Printer Series - User’s Manual

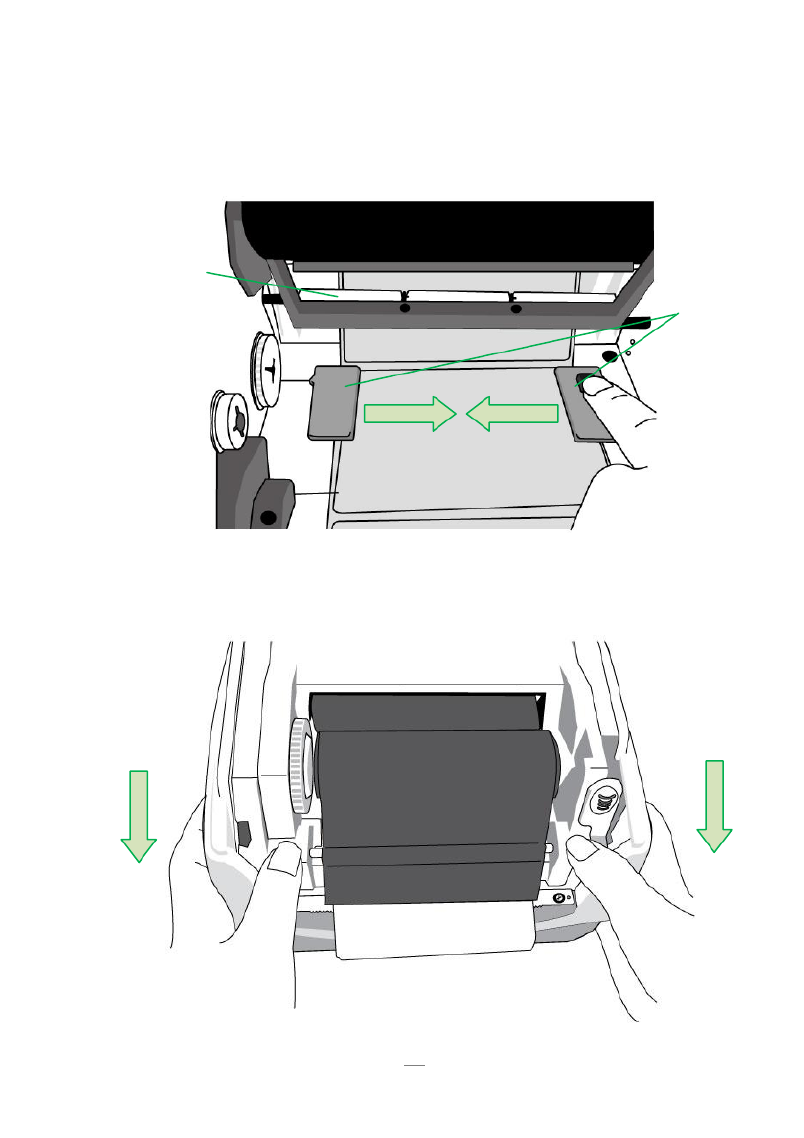

6. Press the lock of Media Guide at the right to adjust media guides ’
positions. Make sure media stays under the Media Shaft and
centrally under both of the Media Guides.
7. Close the printer module and then press firmly at the both sides to
properly latch until you hear a click.
Media
Guides
Media Shaft
20
Compact Printer Series - User’s Manual
M Sensor Setting edia Type
Multi-Column Label Setting by Software/ Driver
To index labels with multiple columns, please select media types to
Multi-Column Labels in the label editing software Bartender UL .
Software setting steps:
Argox Bartender UL Seagull Driver Media Types / – –
Multi-Column Labels

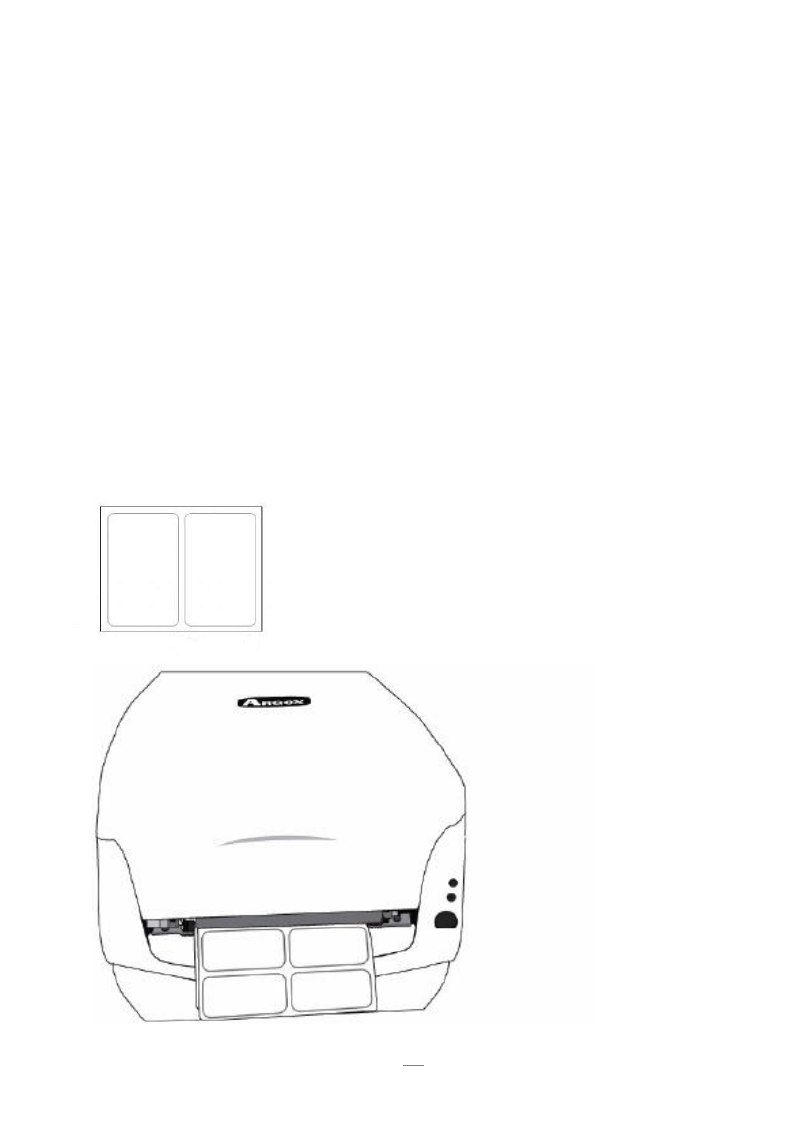

Sample of labels with multiple columns:
21
Compact Printer Series - User’s Manual
Multi-Column Label Setting Manually
With specific firmware versions, CP Series printers now get the
sensor setting able to be achieved manually. Once there is need to
detect multi-column labels, but there is no PC around, or utility
software is not installed, or it’s necessary to over ride printer’s
previous settings from commands/ software setting, the procedures
provided below can be quick and easy to set Reflective Sensor Force
Mode manually.
CP Series provides two modes of media sensor type settings to set
manually, with no need to connect PC and to select by software:
Mode A. To always detect multi-column labels, force CP series
printers to enter Reflective Sensor Force Mode.
Thus, no matter which media type/ sensor type is set by Driver/ Utility/
printer commands, printer will always detect multi-column labels by its
movable Reflective sensor. Steps:
1. Push the Release Latch to open the printer module. Ready LED
will start flashing.
2. Press and hold Feed button for about 5 seconds, when Power
LED and Ready LED start to flash alternately, the setting is
complete. Release Feed button immediately.
3. In about 3 seconds, Ready LED will be flashing again. Close the
printer module and then press firmly at the both sides to properly
latch it until you hear a click.
25
Compact Printer Series - User’s Manual

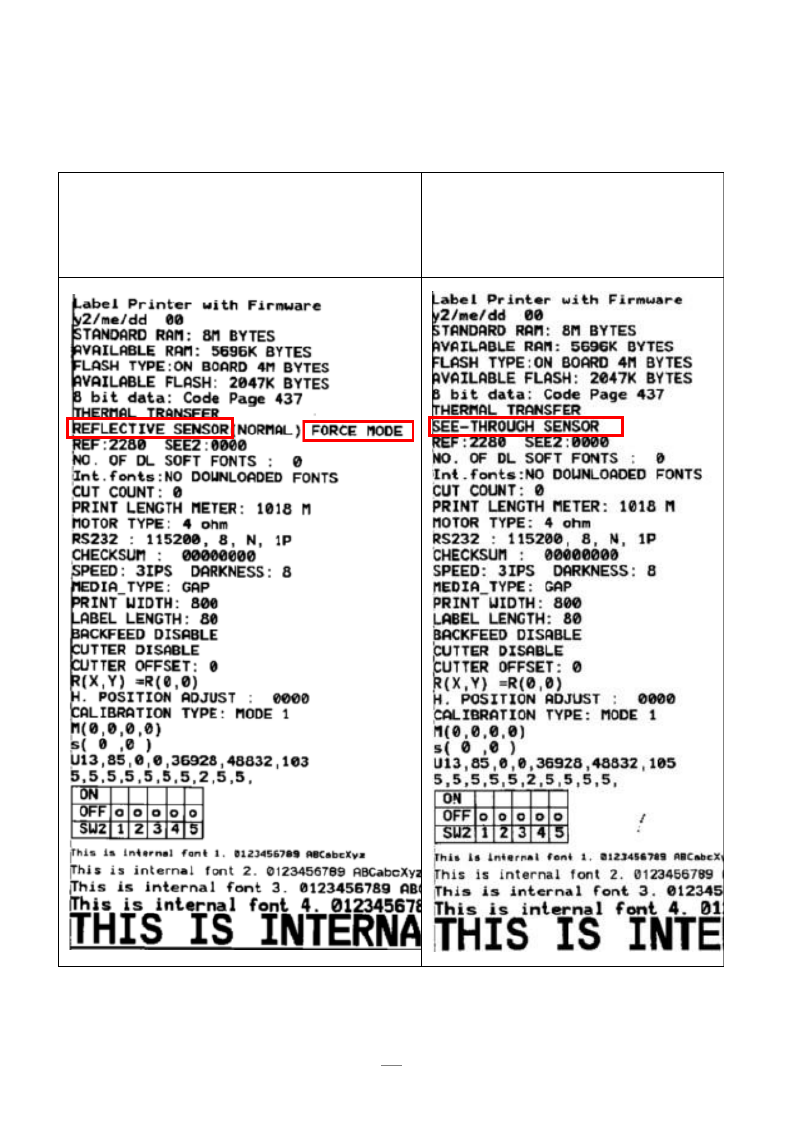

※ Before printing, to double-check current sensor setting, please
conduct media calibration and print a self-test/ configuration label.
Refer to the sample self-test pages below:
Reflective Sensor
Force Mode
Transmissive Sensor
Mode
(See-Through Sensor)
26
Compact Printer Series - User’s Manual
Loading Ribbon
The following steps only apply to thermal transfer printing mode only.
Direct thermal does not need ribbon to be installed.

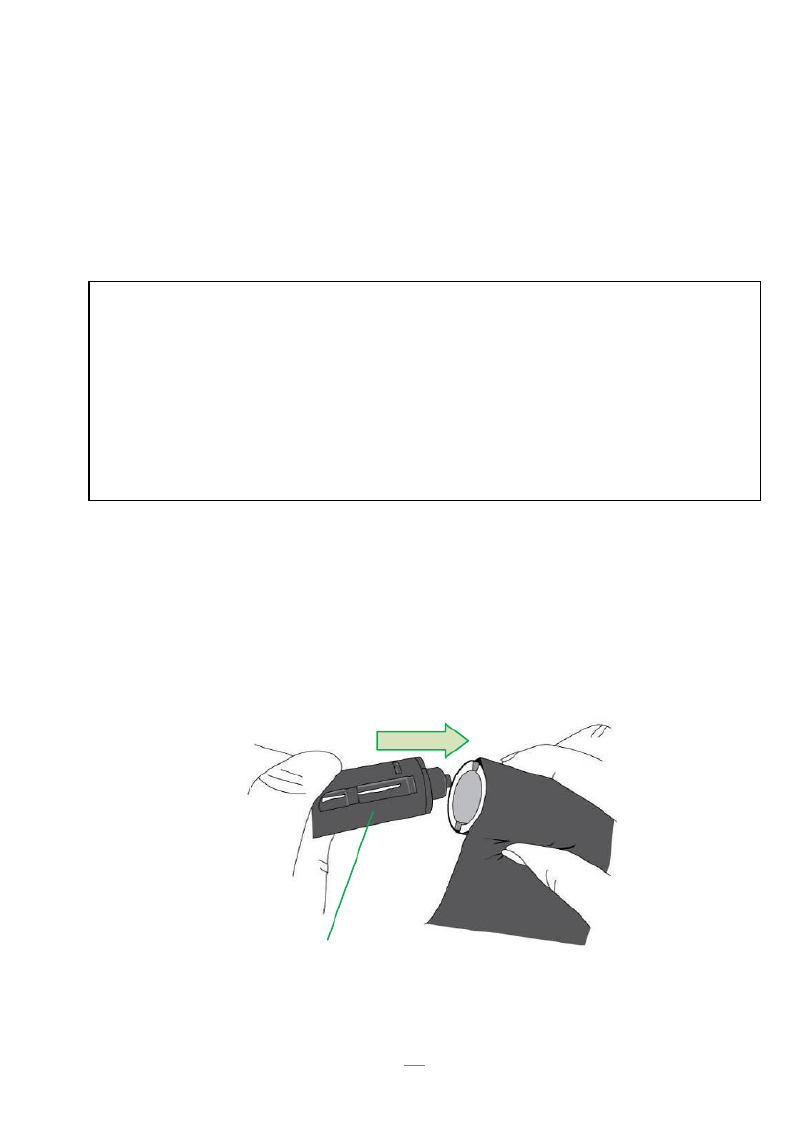

Preparing Ribbon
Find the two Ribbon Core Adaptors in printer package and fix them
into new ribbon rolls from the left to the right.
Note:
- Media and ribbon types should be matched to provide with
optimal print results.
- Always use ribbon that is wider than the media to protect the print
head from wear.
- For direct thermal printing, do not load ribbon in the printer.
Ribbon Core Adaptor
28
Compact Printer Series - User’s Manual
3. Lift up the printer module to check the Ribbon Supply Holder.
Ribbon Supply Holder
29
Compact Printer Series - User’s Manual

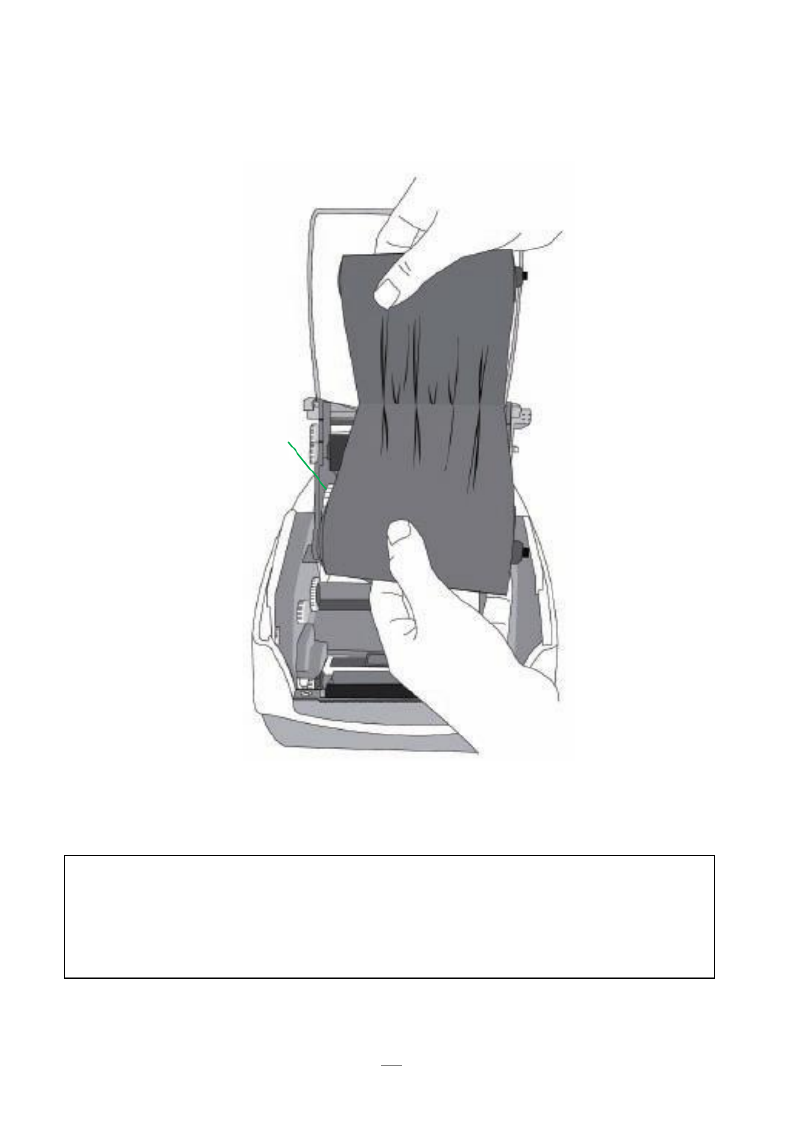

4. Install one ribbon roll and rotate until the notches align and lock it
into the left side of Ribbon Supply , and then into the right. hub
Ribbon Supply Holder
Note:
The Ribbon Supply Holder accepts the coated side of ribbon to
be wound ink-side IN or wound ink-side OUT.
33
Compact Printer Series - User’s Manual
Sample of Printer Configuration Label
Print speed and darkness
F mware version & date code ir
Print method
Media sensor type
Real Time Clock (RTC) setup
(available only with RTC Card)
Internal Asian fonts downloaded
Printed label length
Serial port settings
Media type setting
Print width setting
Label length setting
Codepage
Backfeed setting
Calibration mode type
Cutter setting
Memory capacity
35
Compact Printer Series - User’s Manual
Resetting Printer to Factory Defaults
Follow the steps below to reset printer to default settings:
1. Turn on the printer and wait till both "Ready" indicator and
"Power" indicator stay solid green.
2. Press the "FEED" button for 4 seconds, and the "Ready"
indicator and "Power" indicator will go off in order.
(at this step, if the “FEED” button is pressed for 8 seconds, printer
will reset first >> feed blank labels as media calibration >>
and then print configuration/ self-test labels.)
3. Once "Power" indicator becomes lit again, release the FEED
button.
4. "Ready" indicator will then become lit, too. At this moment,
the printer has resumed its factory default settings.
Printer will delete those print tasks received but not yet printed.
Note:
The printer factory default settings are stored in printer flash’s ;
these settings remain stored, without being erased even the printer
power is disconnected.
36
Compact Printer Series - User’s Manual
Printer Controls and Indicators
The following table explains printer controls and indicators ’
functions to help understanding LED indications and printer
status:
Power Switch
Feed Button
Power LED
Ready LED
37
Compact Printer Series - User’s Manual
Control /
Indicator
Function
Power
Switch
On: turns on normal operation (at I position) “ ”
Off: turns off power ( at O position) “ ”
Note: Turn power off before connecting or
disconnecting cables
Power LED
It will start blinking while “Media Out”, “Media
Gap Not Found” or “Ribbon Out” has been
detected.
Once printer cutter mode has been enabled,
when Cutter is jammed with paper or Cutter is
not installed, POWER indicator will blink.
When RS-232 communication error is
detected, POWER indicator will blink.
Ready LED
When printer is started, the READY indicator
will blink. In Ethernet model, the READY
indicator will blink for several seconds to wait
till Ethernet Card is ready.
When printer receives data from host PC,
READY indicator will start blinking.
READY indicator will blink when printing is
paused.
It will start blinking while “Media Out”, “Media
Gap Not Found” or “Ribbon Out” has been
detected.
It will blink as soon as the printer module is
38
Compact Printer Series - User’s Manual
opened.
Note:
When the print head is over-heated printer s , ’
thermal protection function will be activated and
make READY LED blink to indicate printer is in
PAUSE stat to wait till print head has been us
cool down. The printing tasks sent previously ed
will be resumed automatically later .
Feed Button
Press to advance the label media to the first
printing position.
Press during printing to make printer "pause".
Press and hold while switching on the power to
conduct media calibration and print out a
configuration profile.
To resume printing after “Media Out “or
“Ribbon Out “ errors have been resolved.
39
Compact Printer Series - User’s Manual
Troubleshooting by LED Indicators Diagnosis
Normally, when the printer is in not working properly, the "Power"
LED blinks continuously, and printing and communication
between the host and printer stops. Refer to LED indications
listed below to understand possible solutions to resolve the
problems printer run into.
LED Indicators: Power and Ready LEDs blink at the same tempo
Power LED
Ready LED
ON
ON
OFF
OFF
Possible Problems
Solutions
Remarks
Media sensor cannot
index label gaps
Check the label path
Check the label sensor
If a continuous label roll
is in use, set
“continuous media”
printing in driver
settings or commands.
Media out
Install a new label roll
Paper jam
Recover the jam
42
Compact Printer Series - User’s Manual
Miscellaneous
If the host shows "Printer Time out":
1. Check if the communication cable (serial) is connected
securely to your serial port on the PC and to the connector
on the printer at the other end.
2. Check if the printer power is turned on.
If the data has been sent, but there is no output from the printer.
Check the active printer driver, and see if Seagull driver for your
Windows system and the label printer has been selected.

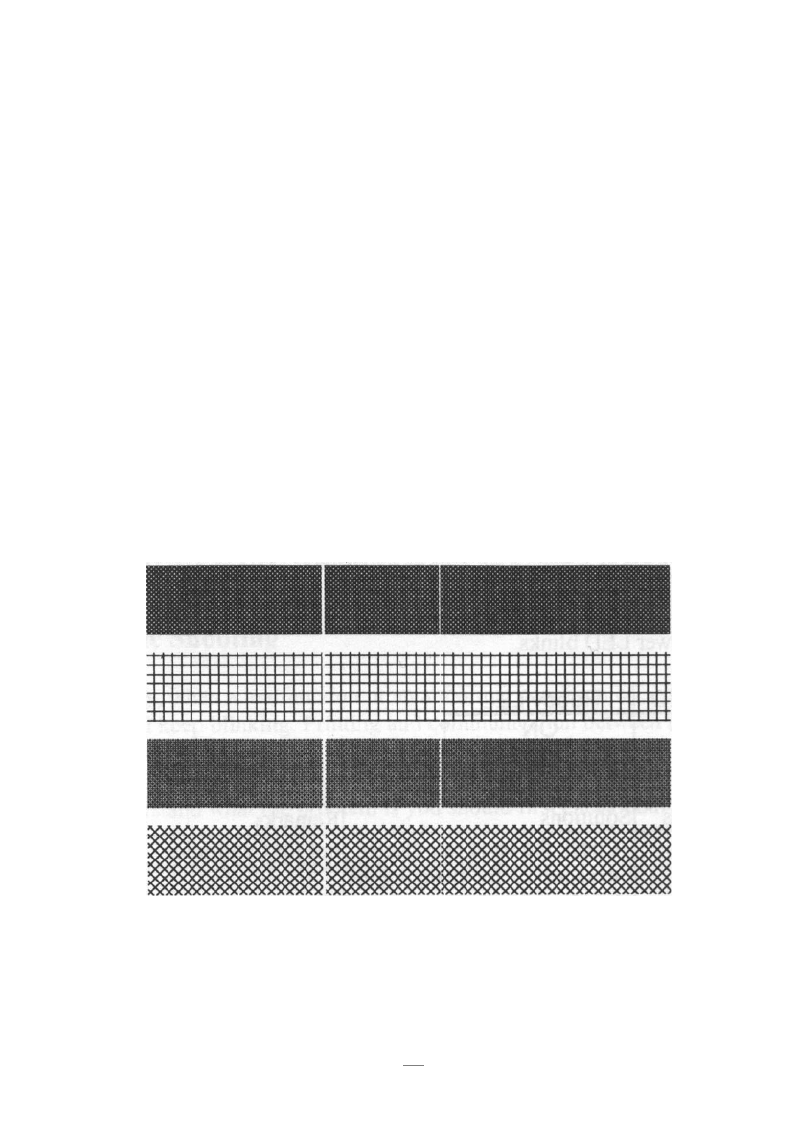

Vertical streaks in the printout usually indicate a dirty or faulty
print head. (Refer to the following examples.)
Clean the print head. If the problem persists, replace the print
head.
Produktspecifikationer
| Varumärke: | Argox |
| Kategori: | Etikettskrivare |
| Modell: | CP-3140L |
Behöver du hjälp?
Om du behöver hjälp med Argox CP-3140L ställ en fråga nedan och andra användare kommer att svara dig
Etikettskrivare Argox Manualer
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
18 September 2024
17 September 2024
17 September 2024
Etikettskrivare Manualer
- Panduit
- POSline
- 3M
- Epson
- EC Line
- Olympia
- G&G
- Phoenix
- Zebra
- Ruggard
- Seiko
- SATO
- Dascom
- Renkforce
- Toshiba
Nyaste Etikettskrivare Manualer
19 Augusti 2025
14 Augusti 2025
14 Augusti 2025
14 Augusti 2025
13 Augusti 2025
13 Augusti 2025
9 Augusti 2025
9 Augusti 2025
4 Augusti 2025
29 Juli 2025
