ARENA MOTO

Operations Manual

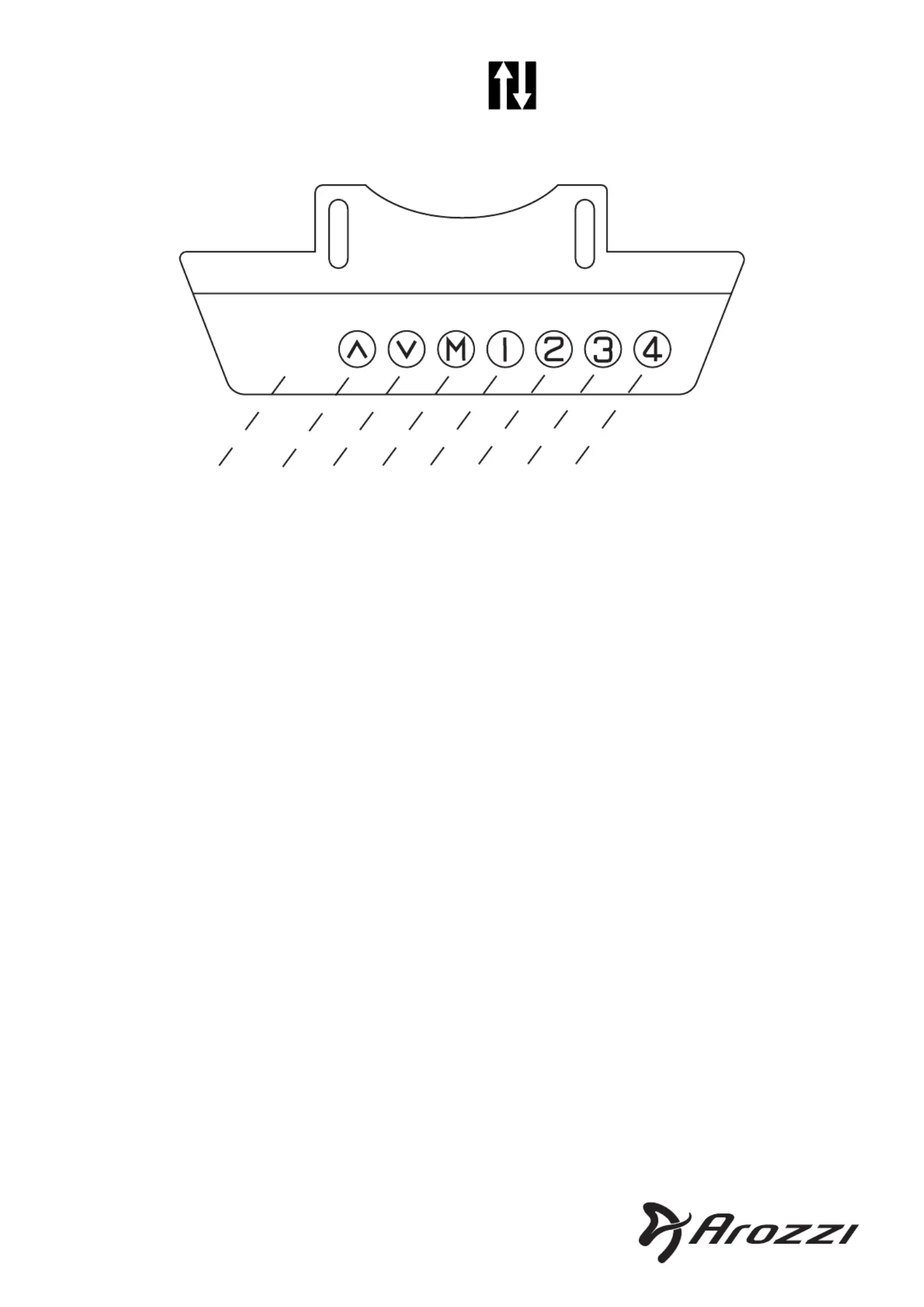

Display

Down

Set Memory

Save 1

Save 2

Save 3

Save 4

Up/Down operation

Wake up controller

Position memory

Setting a minimum height

• Press the Up button until you reach your desired height. The operation stops when reaching the

highest possible point.

• Press the Down button until you reach your desired height. The operation stops when reaching the

lowest possible point.

• Short-press Up or Down and the display will show current height and react to further input

• You can save up to four positions corresponding to the save buttons (1, 2, 3, 4). Save the current

position by pressing the M key and then your prefferred save button.

• You can see previously saved positions by short-pressing any save button. The display will then show

the saved height.

• Double click or long press any of the save buttons (1, 2, 3, 4) and the desk will move to the

corresponding position.

• To set the current height as minimum height for the desk, hold down both Down + M buttons until the

display shows ” ” indicating that the minimum height has been stored. Storing a minimum height -do

ensures that the desk never goes below this position.

• To delete the saved minimum height, let the desk run downwards until it stops. Press down again and

the display shows ” ”. Then hold down Down + M buttons until the display shows ” ” indicating -Lo -do

that the stored minimum height has been deleted.

Setting a maximum height

Mechanical reset

0 position reset

Lock and unlock

Error codes

• To set the current height as maximum height for the desk, hold down both Up + M buttons until the

display shows ” ” indicating that the maximum height has been stored. Storing a maximum height -up

ensures that the desk never goes above this position.

• To delete the saved maximum height, let the desk run upwards until it stops. Then press the Up button

again and the display shows ” ”. Then hold down Up + M buttons until the display shows ” ” -hI -up

indicating that the stored maximum height has been deleted.

• Hold down both Up + Down buttons at the same time until the display shows ” ”. Let the desk run. ---

After it has stopped, the reset is complete. This resets maximum height and minimum height.

• Hold down the Down button until the display shows ” ”. The desk will run downwards to recognize ---

the 0 height. It will then move up to its xed position.

• Lock/unlock the controller unit by holding down the M + 4 buttons until the display shows ” ” for L

locked, or returns from ” ” to regular numbers for unlocked.L

* Contact Arozzi support.

EU: arozzi.se/support --- US: arozzi.com/support

Code Description Clear method

E01 Motor A - Not connected Press up / down button -> Check motor A cable

E02 Motor B - Not connected Press up / down button -> Check motor B cable

E03 Motor A - Overcurrent Press up / down button -> Reduce load -> Replace motor A *

E04 Motor B - Overcurrent Press up / down button -> Reduce load -> Replace motor B *

E05 Press up / down button -> Check A cable -> Replace motor A*Motor A - Internal sensor failure

E06 Motor B - Internal sensor failure Press up / down button -> Check B cable -> Replace motor B*

E07 Main power supply problem Unplug the desk. Plug it in again -> Replace power supply *

E08 Motor A - Abnormal current Unplug the desk. Plug it in again -> Replace motor A *

E09 Motor B - Abnormal current Unplug the desk. Plug it in again -> Replace motor B *

E10 Motor A - Power device failure Unplug the desk. Plug it in again -> Replace motor A *

E11 Motor B - Power device failure Unplug the desk. Plug it in again -> Replace motor B *

E12 Position set failure Perform 0 position reset (See above)

E13 Overheat protection Wait for temperature to drop

E14 Motor A - Stalled Press up / down button -> Reduce load -> Replace motor A *

E15 Motor B - Stalled Press up / down button -> Reduce load -> Replace motor B *

E16 Unbalanced position Perform mechanical reset (See above)

E17 Critical data loss Perform mechanical reset (See above)

RST Overload protection Reduce load on desk
