Aruba 303 Series Campus Access Points

Installation Guide

Rev05 | March 2019 1

The Aruba 303 Series campus access points support IEEE802.11ac Wave 2, delivering high performance with the

MU-MIMO (Multi-User Multiple-Input, Multiple-Output) technology, while also supporting 802.11a/b/g /n wireless

services. The 303 Series access points can be deployed in either a controller-based (ArubaOS) or controller-less

(InstantOS) deployment mode.

The 303 Series access points provide the following capabilities:

 IEEE 802.11a/b/g/n/ac operation as a wireless access point

 IEEE 802.11a/b/g/n/ac operation as a wireless air monitor

 Compatibility with IEEE 802.3af PoE

 Integrated Bluetooth Low Energy (BLE) radio

Package Contents

 303 Series Access Point

 Ceiling mount bracket (Spare: AP-220-MNT-C1 mount kit)

Hardware Overview

The following sections outline the hardware components of the 303 Series access points.

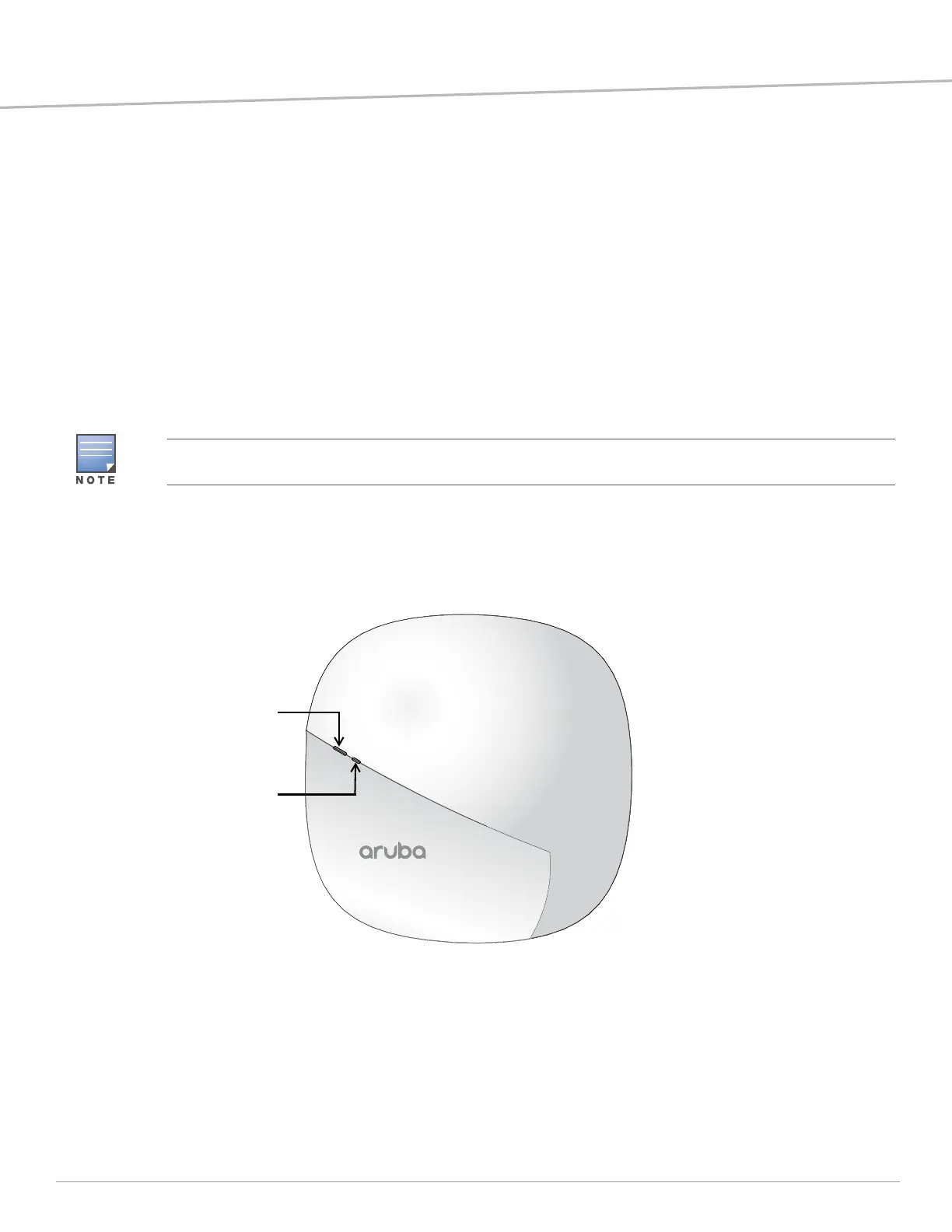

Figure 1 303 Series (front view)

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton, including

the original packing materials. Use these materials to repack and return the unit to the supplier if needed.

System Status

Radio Status

2 Aruba 303 Series Campus Access Points | Installation Guide

LED

The 303 Series access points have two LEDs that indicate the system and radio status of the device. These two

LEDs can be configured via ArubaOS or Aruba Instant software into three separate modes:

 Normal mode (by default): See Table 1

 Both LEDs off

 Blink mode: Both LEDs blink green (synchronized)

1 blinking: one second on, one second off, 2 seconds cycle

2 flashing: mostly on, fraction of a second off, 2 second cycle

3 alternating: one second each color, 2 second cycle

Table 1 303 Series Access Point LEDs Status in Normal Mode

LED Color/State Meaning

System Status Off Device powered off

Green- Blinking

Device booting, not ready for use

Green- Solid Device ready for use, no restrictions

Green- Flashing

Device ready for use, uplink negotiated in sub optimal speed

(<1Gbps)

Red- Solid System error condition - immediate action required

Radio Status Off Device powered off, or both radios disabled

Green- Solid Both radios enabled in access mode

Green- Blinking One radio enabled in access mode, other disabled

Amber- Solid Both radios enabled in monitor mode

Amber- Blinking One radio enabled in monitor mode, other disabled

Alternating

 Green: one radio in access mode

 Amber: one radio in monitor mode
