Aruba Instant On AP25 Access Point

Installation Guide

Rev01 | January 2022 1

The Aruba Instant On AP25 access point delivers high performance concurrent 2.4 GHz and 5 GHz Wi-Fi 6

(802.11ax) functionality with MIMO radios (2x2 in 2.4 GHz, 4x4 in 5 GHz), while also supporting legacy 802.11a/b/

g/n/ac wireless services

Package Contents

 1 x AP25 access point

 1 x Wall/Ceiling mount bracket

 1 x Ethernet cable

Hardware Overview

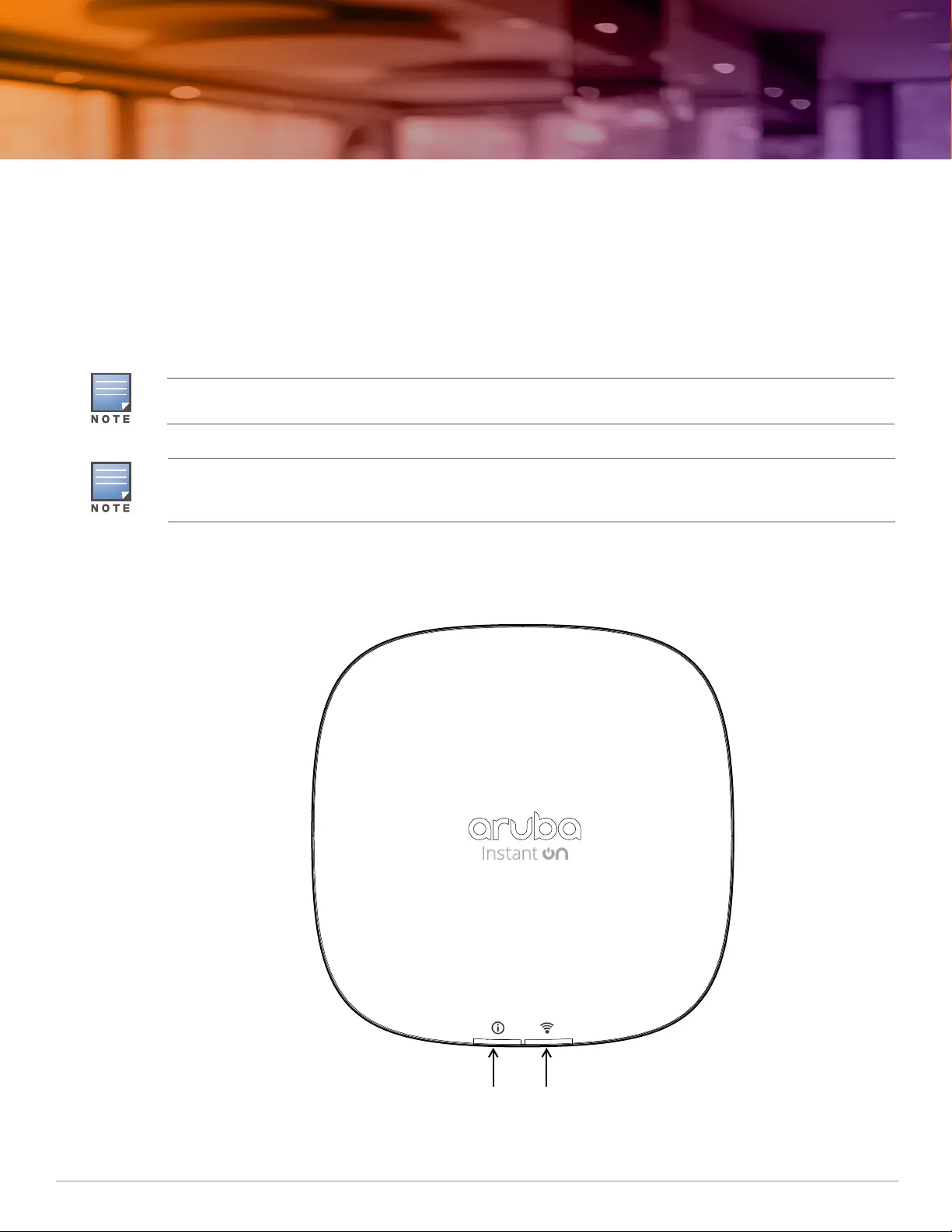

Figure 1 AP25 Front View

If you have ordered AP25 bundle, the package would also include a power supply unit to power the AP through

an electrical power outlet.

Inform your supplier if there are any incorrect, missing, or damaged parts. If possible, retain the carton,

including the original packing materials. Use these materials to repack and return the unit to the supplier if

needed.

System

Radio

2 Aruba Instant On AP25 Access Point | Installation Guide

LEDs

The AP25 access point has two LEDs that indicate the system and radio status of the device.

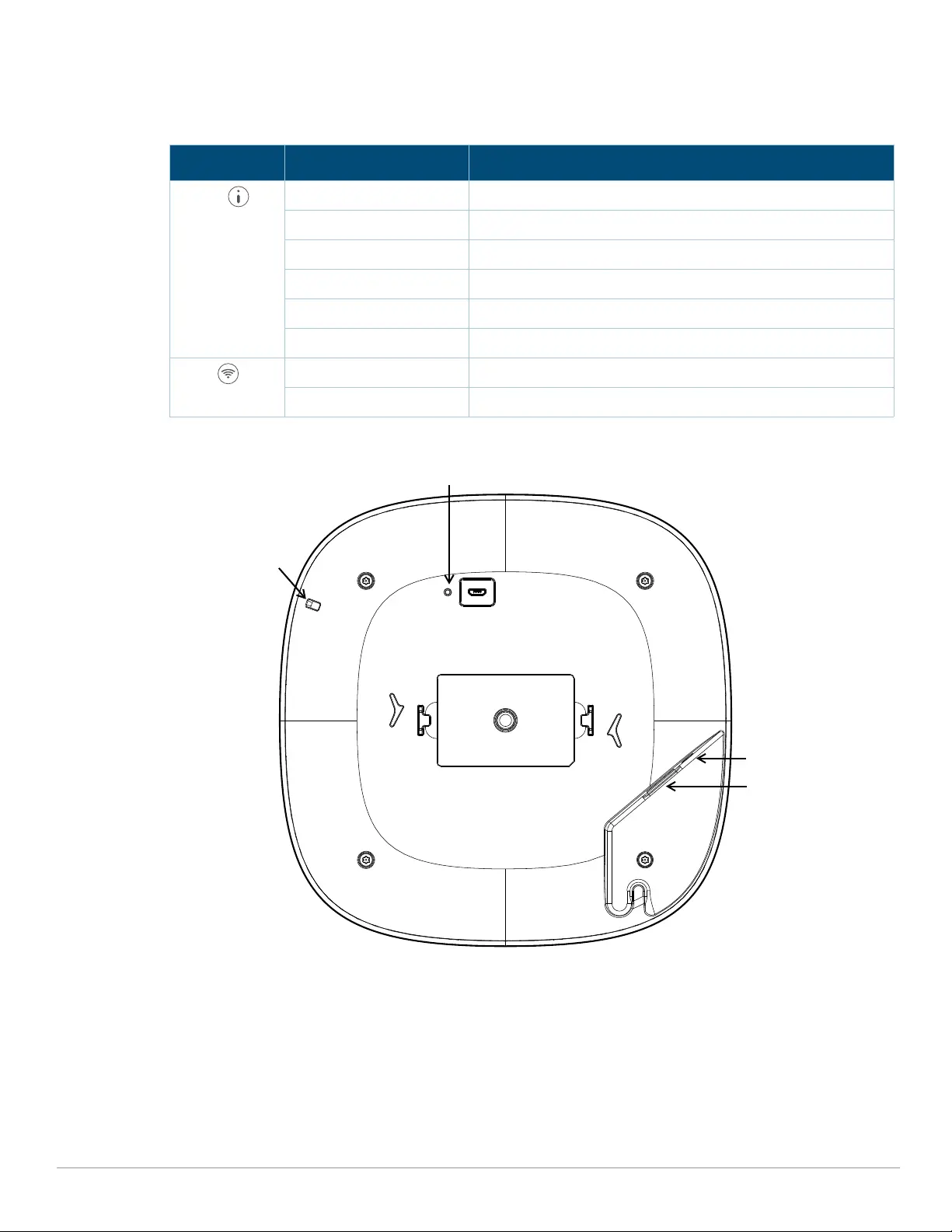

Figure 2 AP25 Rear View

Ethernet Port

The AP25 is equipped with a 100/1000/2500 Base-T auto-sensing MDI/MDX Ethernet port (E0). This E0 port

supports wired-network connectivity, and Power over Ethernet (PoE) from 802.3at compliant PoE power sources,

such as a PoE midspan injector or a network switch.

Kensington Lock Slot

The AP25 access point is equipped with a Kensington lock slot for additional security.

Table 1 AP25 Access Point LEDs Status

LED Color/State Meaning

System No Lights Device has no power

Blinking

Green Device is starting

Alternating Green/Amber Device is ready for setup

Solid Green Device is ready

Solid Amber Device has detected a problem

Solid Red Device has an issue- immediate action required

Radio No Lights Wi-Fi is not ready, wireless clients cannot connect

Solid Green Wi-Fi is ready, wireless clients can connect

Reset Button

DC Power Interface

Kensington Lock Slot

Produktspecifikationer

Varumärke:	Aruba
Kategori:	accesspunkt
Modell:	R9B33A
Vikt:	1180 g
Bredd:	51 mm
Djup:	203 mm
Placering:	Ceiling, Wall
MIMO-typ:	Multi User MIMO
Maximal dataöverföringshastighet:	- Mbit/s
2,4 GHz:	Ja
5 GHz:	Ja
Produktens färg:	Vit
Strömförsörjning via Ethernet (PoE) stöd:	Ja
Antal LAN (RJ-45) anslutningar:	1
Kryptering/säkerhet:	WPA2, WPA3
Antal USB 2.0 anslutningar:	1
Kommunikationsstandarder:	IEEE 802.11ax
Harmonized System (HS)-kod:	85176990
Antenntyp:	Intern
MIMO:	Ja
