ASRock M3A-GLAN Motherboard

EnglishEnglish

English

No part of this installation guide may be reproduced, transcribed, transmitted, or trans-

lated in any language, in any form or by any means, except duplication of documen-

tation by the purchaser for backup purpose, without written consent of ASRock Inc.

Products and corporate names appearing in this guide may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identifica-

tion or explanation and to the owners’ benefit, without intent to infringe.

Disclaimer:Disclaimer:

Disclaimer:

Specifications and information contained in this guide are furnished for informational

use only and subject to change without notice, and should not be constructed as a

commitment by ASRock. ASRock assumes no responsibility for any errors or omissions

that may appear in this guide.

With respect to the contents of this guide, ASRock does not provide warranty of any kind,

either expressed or implied, including but not limited to the implied warranties or

conditions of merchantability or fitness for a particular purpose. In no event shall

ASRock, its directors, officers, employees, or agents be liable for any indirect, special,

incidental, or consequential damages (including damages for loss of profits, loss of

business, loss of data, interruption of business and the like), even if ASRock has been

advised of the possibility of such damages arising from any defect or error in the guide

or product.

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that

may cause undesired operation.

Published May 2009

CALIFORNIA, USA ONLY

The Lithium battery adopted on this motherboard contains Perchlorate, a toxic

substance controlled in Perchlorate Best Management Practices (BMP) regulations

passed by the California Legislature. When you discard the Lithium battery in

California, USA, please follow the related regulations in advance.

“Perchlorate Material-special handling may apply, see

www.dtsc.ca.gov/hazardouswaste/perchlorate”

ASRock Website: http://www.asrock.com

ASRock M3A-GLAN Motherboard

EnglishEnglish

English

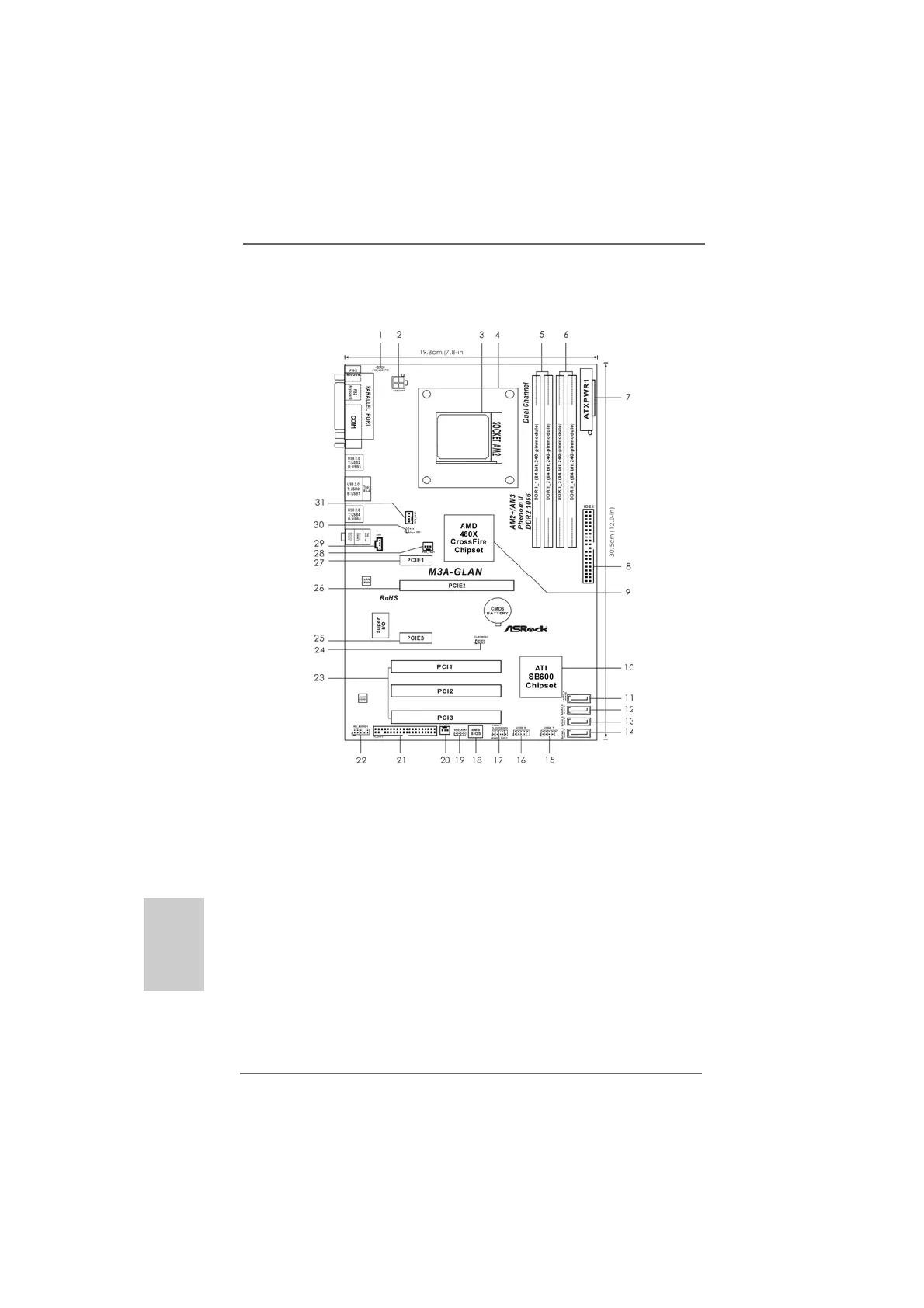

Motherboard LayoutMotherboard Layout

Motherboard Layout

1 PS2_USB_PW1 Jumper 17 System Panel Header (PANEL1, Orange)

2 ATX 12V Power Connector (ATX12V1) 18 SPI Flash Memory (4Mb)

3 AM2 940-Pin CPU Socket 19 Chassis Speaker Header

4 CPU Heatsink Retention Module (SPEAKER 1, Purple)

5 2 x 240-pin DDR2 DIMM Slots 20 Chassis Fan Connector (CHA_FAN1)

(Dual Channel A: DDRII_1, DDRII_2; Yellow) 21 Floppy Connector (FLOPPY1)

6 2 x 240-pin DDR2 DIMM Slots 22 Front Panel Audio Header

(Dual Channel B: DDRII_3, DDRII_4; Orange) (HD_AUDIO1, Lime)

7 ATX Power Connector (ATXPWR1) 23 PCI Slots (PCI1- 3)

8 Primary IDE Connector (IDE1, Blue) 24 Clear CMOS Jumper (CLRCMOS1)

9 Northbridge Controller 25 PCI Express p2-x1 Slot (PCIE3)

10 Southbridge Controller 26 PCI Express x16 Slot (PCIE2)

11 Fourth SATAII Connector (SATAII_4 (PORT4)) 27 PCI Express p2-x1 Slot (PCIE1)

12 Third SATAII Connector (SATAII_3 (PORT3)) 28 Power Fan Connector (PWR_FAN1)

13 Secondary SATAII Connector (SATAII_2 (PORT2)) 29 Internal Audio Connector: CD1 (Black)

14 Primary SATAII Connector (SATAII_1 (PORT1)) 30 Infrared Module Header (IR1)

15 USB 2.0 Header (USB6_7, Blue) 31 CPU Fan Connector (CPU_FAN1)

16 USB 2.0 Header (USB8_9, Blue)

ASRock M3A-GLAN Motherboard

EnglishEnglish

English

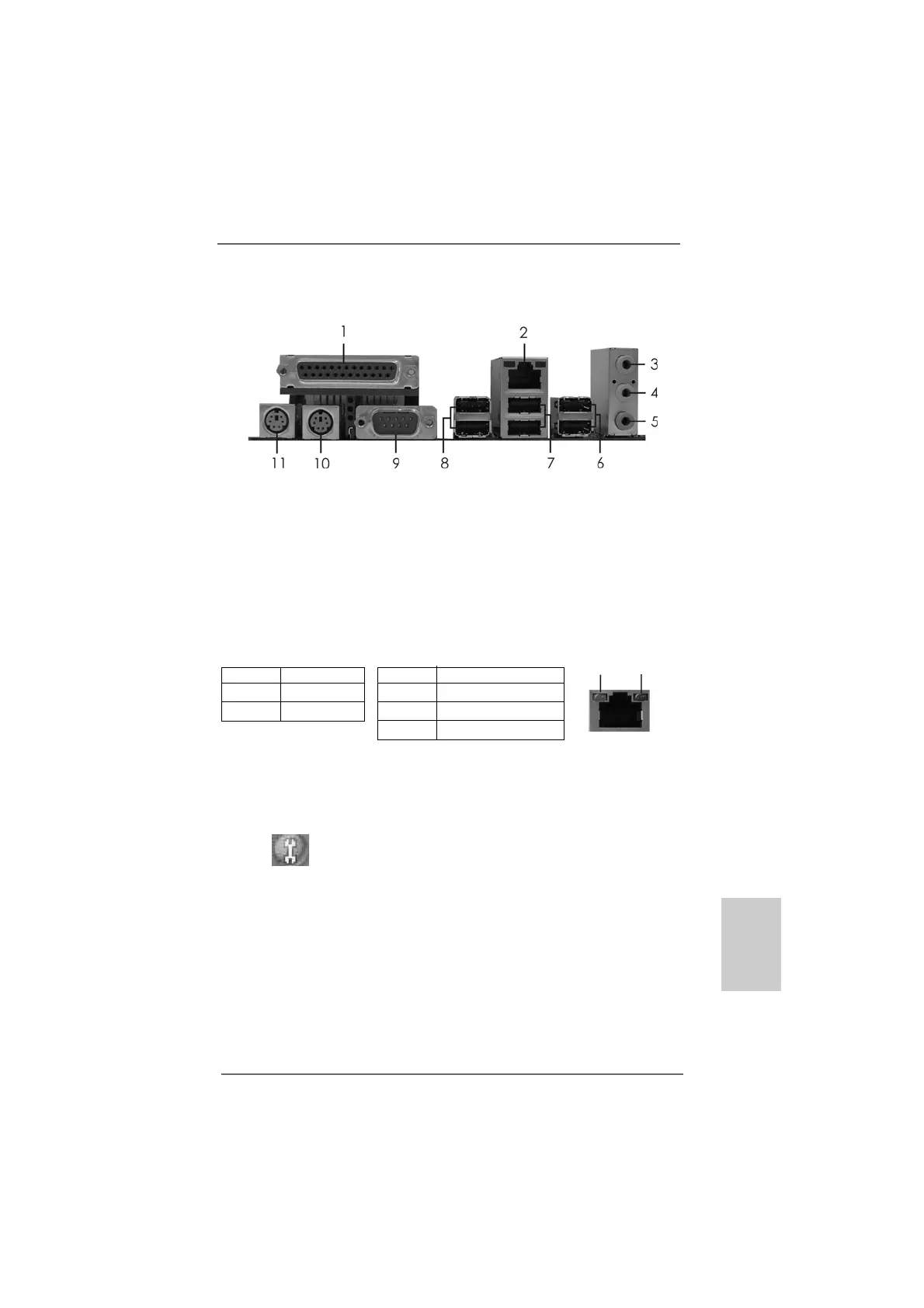

I/O PI/O P

I/O P

anelanel

anel

* To enable Multi-Streaming function, you need to connect a front panel audio cable to the front

panel audio header. Please refer to below steps for the software setting of Multi-Streaming.

For Windows

XP:

After restarting your computer, you will find “Mixer” tool on your system. Please select “Mixer

ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH” or

“4CH” and then you are allowed to select “Realtek HDA Primary output” to use Rear Speaker

and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. Then

reboot your system.

For Windows

Vista

After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Configuration” to “Quadraphonic” or “Stereo”. Click “Device

advanced settings”, choose “Make front and rear output devices playbacks two different audio

streams simultaneously”, and click “ok”. Then reboot your system.

LAN Port

ACT/LINK

LED

SPEED

LED

* There are two LED next to the LAN port. Please refer to the table below for the LAN port LED

indications.

LAN Port LED Indications

Activity/Link LED SPEED LED

Status Description Status Description

Off No Activity Off 10Mbps connection

Blinking Data Activity Orange 100Mbps connection

Green 1Gbps connection

1 Parallel Port 7 USB 2.0 Ports (USB01)

* 2 LAN RJ-45 Port 8 USB 2.0 Ports (USB23)

3 Line In (Light Blue) 9 Serial Port: COM1

4 Line Out (Lime) 10 PS/2 Keyboard Port (Purple)

5 Microphone (Pink) 11 PS/2 Mouse Port (Green)

6 USB 2.0 Ports (USB45)

Produktspecifikationer

Varumärke:	Asrock
Kategori:	moderkort
Modell:	M3A-GLAN
Bredd:	305 mm
Djup:	198 mm
Hörlursutgångar:	1
Certifiering:	FCC, CE, WHQL
Maximalt internminne:	16 GB
Kompatibla operativsystem:	Windows XP/Vista/7
Ljudutgångskanaler:	5.1 kanaler
Snabbinstallationsguide:	Ja
Komponent för:	PC
Kompatibla processorer:	AMD Phenom II X4
Antal minnesplatser:	4
BIOS-typ:	AMI
ACPI-version:	1.1
processortillverkare:	AMD
Typ av ethernet-gränssnitt:	Gigabit Ethernet
Antal LAN (RJ-45) anslutningar:	1
processorsockel:	Socket AM2
Seriella portar:	1
Antal PS/2-portar:	2
Strömkälla av typen:	ATX
Antal USB 2.0 anslutningar:	6
RAID-nivåer:	0, 1,10
Minneskanaler:	Dubbla kanaler
Minnets hastigheter:	533,667,800,1066 MHz
Max antal processorer:	1
USB 2.0 anslutning:	2
ATX strömkontakt (24-pin):	Ja
Fläktanslutning:	Ja
BIOS minnesstorlek:	32 mbit
LAN-styrenhet:	Realtek RTL8111D(L)
Wake-on-LAN förberedd:	Ja
Moderkortets chipset:	AMD 480X CrossFire
Moderkort formfaktor:	ATX
Ombord grafikkort:	Nej
Uttag för mikrofon/linje in:	Ja
Drivrutiner medföljer:	Ja
Parallellport:	1
CPU-fläktsanslutning:	Ja
Stöd för processorsystembussar:	1066 MHz
Antal SATA II kontakter:	4
PCI-kortplatser:	3
Moderkort southbridge:	AMD SB600
Antalet parallella ATA-anslutningar:	1
CD/AUX ljudingång:	Ja
Anslutning för diskettenhet:	Ja
PCI Express x16 platser:	1
PCI Express x1 kortplatser:	2
